JBL Stage3 627F 6.5" Two-Way Coaxial Car Speakers

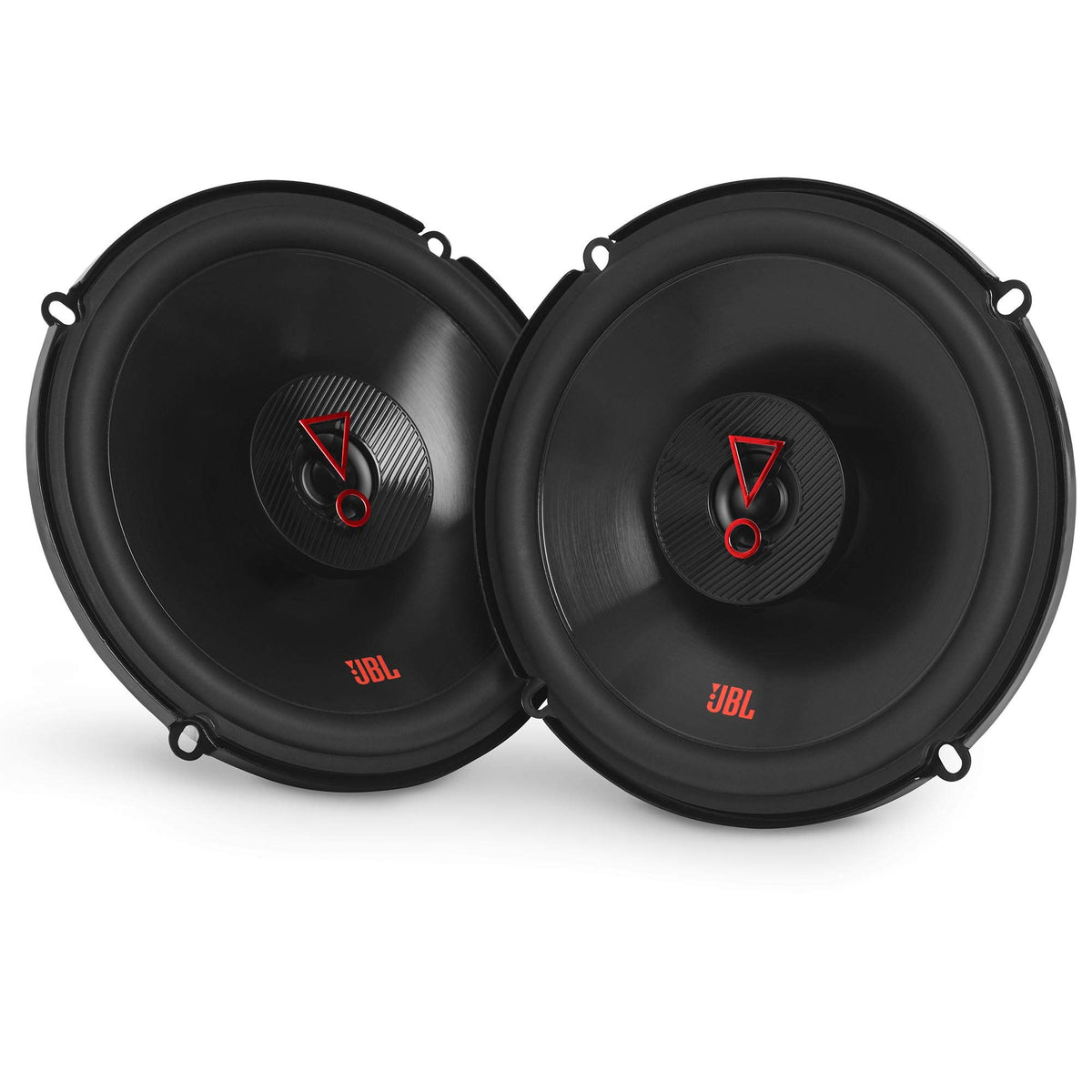

The JBL Stage3 627F is a pair of 6.5-inch, two-way coaxial car speakers designed for replacing compatible factory door or rear-deck speakers. Its no-grille configuration is intended for factory locations that retain the vehicle's original speaker grille or trim. It is a practical option for drivers seeking a straightforward speaker upgrade without changing the head unit.

Each speaker combines a woofer and dome tweeter in one assembly, helping cover bass, midrange, and high-frequency content from a single factory-style mounting location. JBL rates the pair's speaker design for a 55Hz to 20kHz frequency response and 92dB sensitivity at 2.83V/1m. The 3-ohm nominal impedance is designed to work with compatible car audio systems.

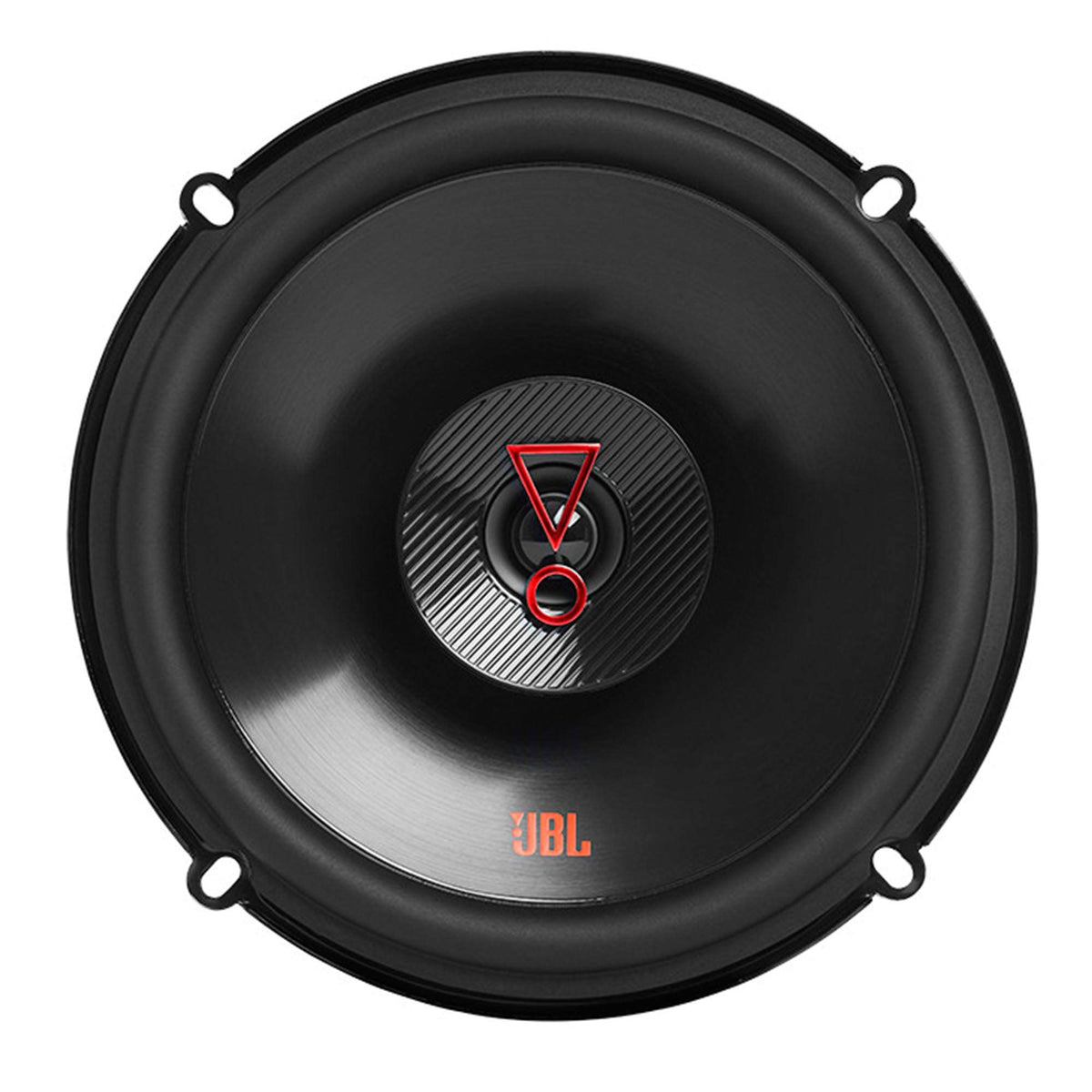

JBL's Plus One polypropylene woofer cone architecture moves the surround attachment outward to increase usable cone area. This design is intended to support stronger output from the available mounting diameter, while retaining a durable polypropylene cone material. The edge-driven dome tweeter is engineered for broad, smooth high-frequency response.

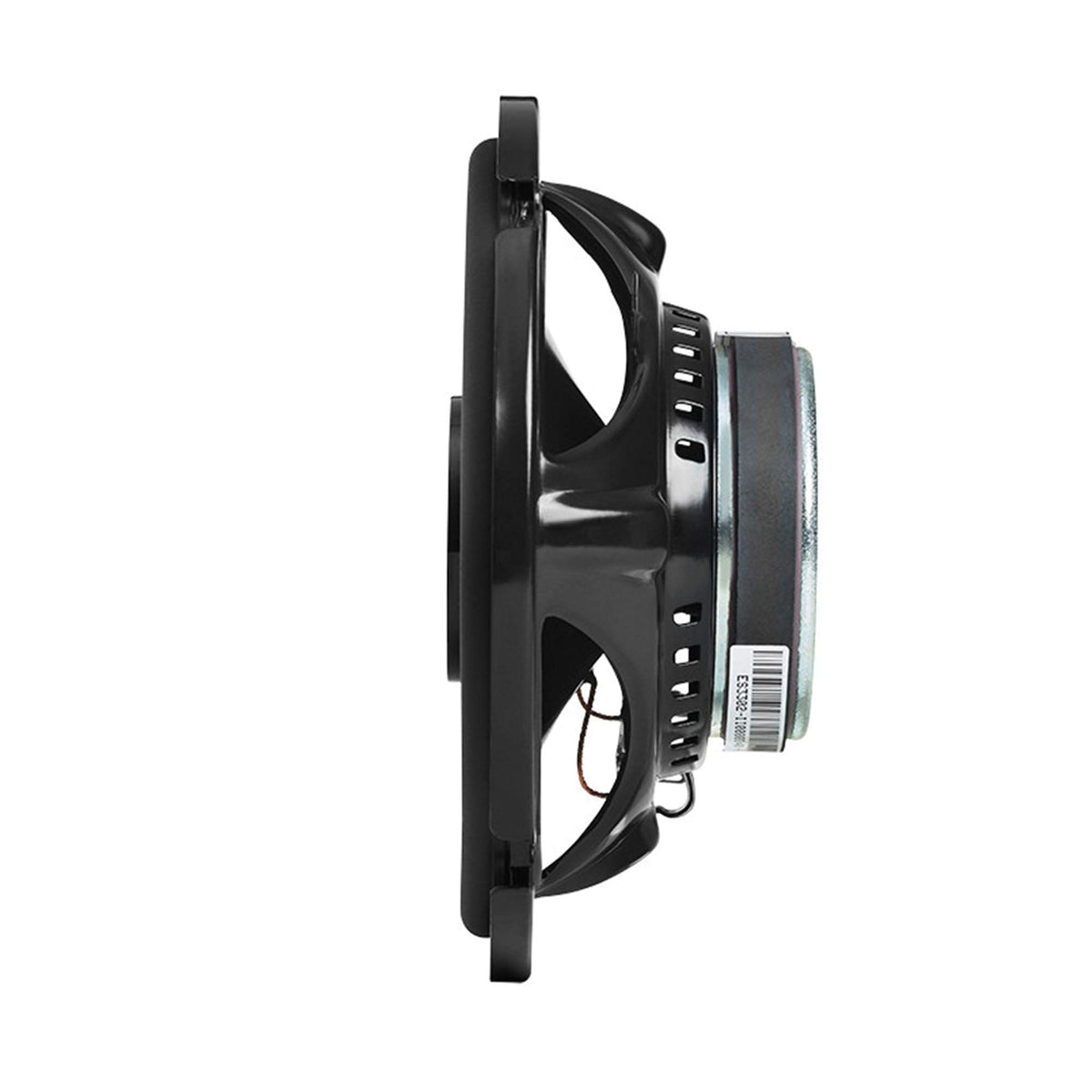

A vented basket frame supports airflow around the motor structure and voice coil during operation. This construction is intended to help manage heat and support reliable operation at higher listening levels. The speakers use a coaxial layout, so separate external crossovers and separately mounted tweeters are not required.

The Stage3 627F can be used as a factory-system replacement or as part of an amplified aftermarket setup. JBL lists 45W RMS power handling and includes two speakers in the package. Before ordering, confirm the vehicle's 6.5-inch mounting location, available mounting depth, cutout, and connector or adapter requirements.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter in each speaker for a space-efficient factory-location upgrade.
• Plus One Woofer Cones: Increased cone area supports efficient output from the available speaker size.
• Polypropylene Cone: Provides a durable woofer diaphragm for everyday automotive use.
• Edge-Driven Dome Tweeter: Helps deliver broad, smooth high-frequency response.
• Vented Basket Frame: Helps move heat away from the voice-coil and motor area.
• No-Grille Configuration: Designed for installations that reuse the vehicle's factory grille or trim.

Design & Installation

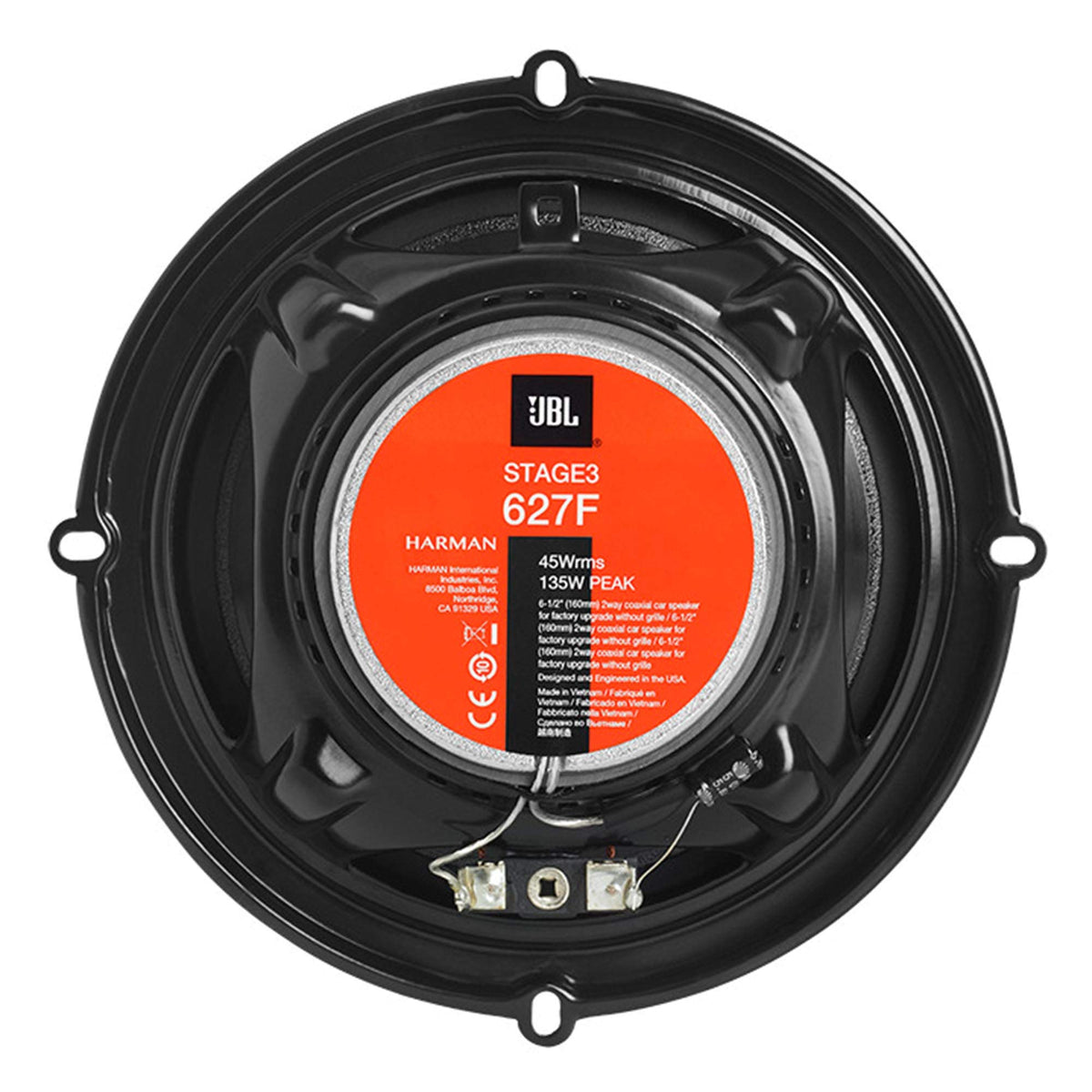

The Stage3 627F uses a polypropylene Plus One woofer cone, dome tweeter, rubber surround, and a rigid vented basket frame. Its black, no-grille design is tailored to factory-style speaker positions where the vehicle's existing panel or grille covers the speaker. JBL specifies a 6.5-inch (160mm) two-way coaxial format with 3-ohm nominal impedance.

Verify vehicle-specific fitment before installation, including the mounting opening, speaker clearance, and electrical connection style. The listed top-mount depth is 1.91 inches and the listed cutout dimension is 5 inches; adapter brackets or wiring harnesses may be needed depending on the vehicle. Observe positive and negative terminal polarity when wiring both speakers, and use amplification or head-unit power appropriate for the speaker's published ratings.
