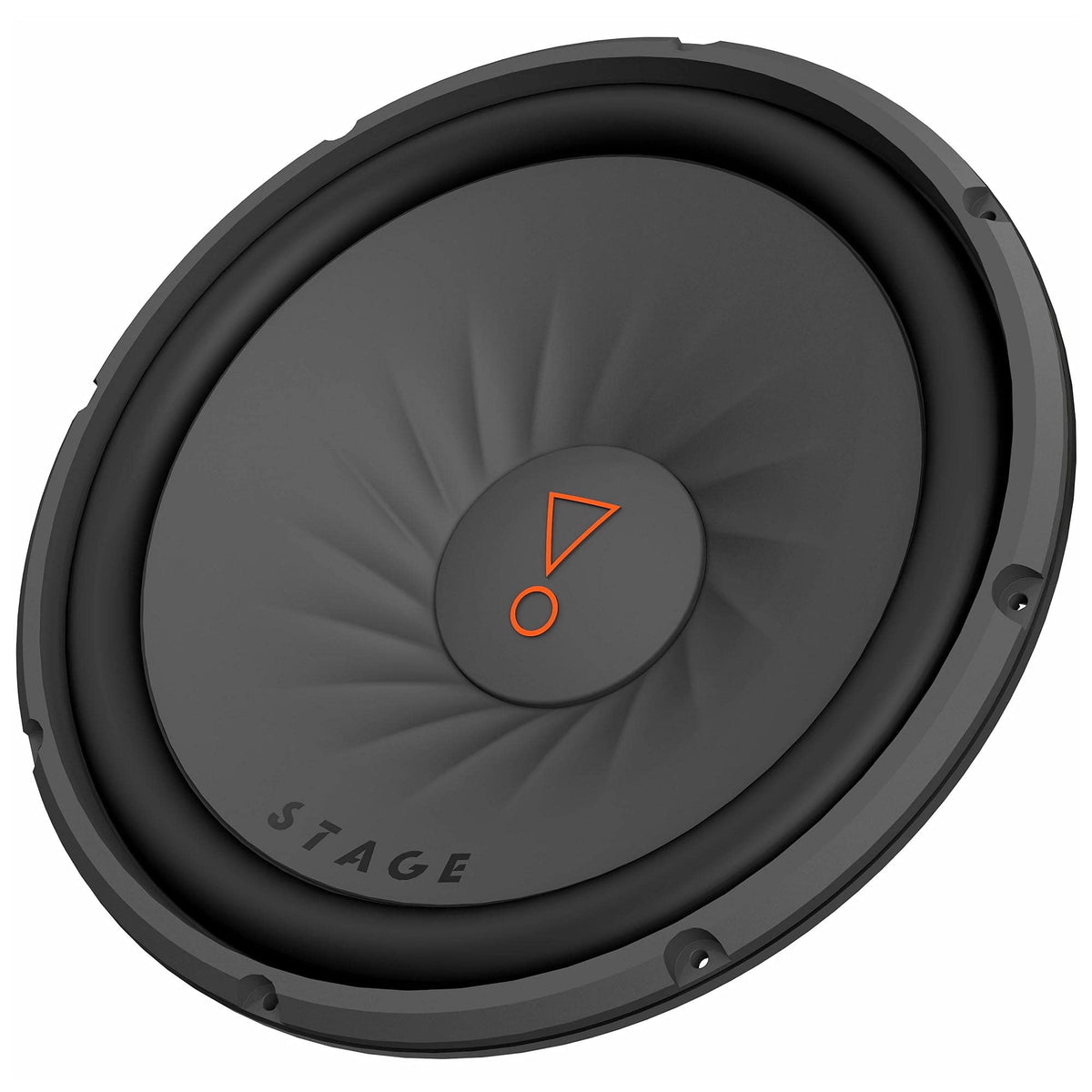

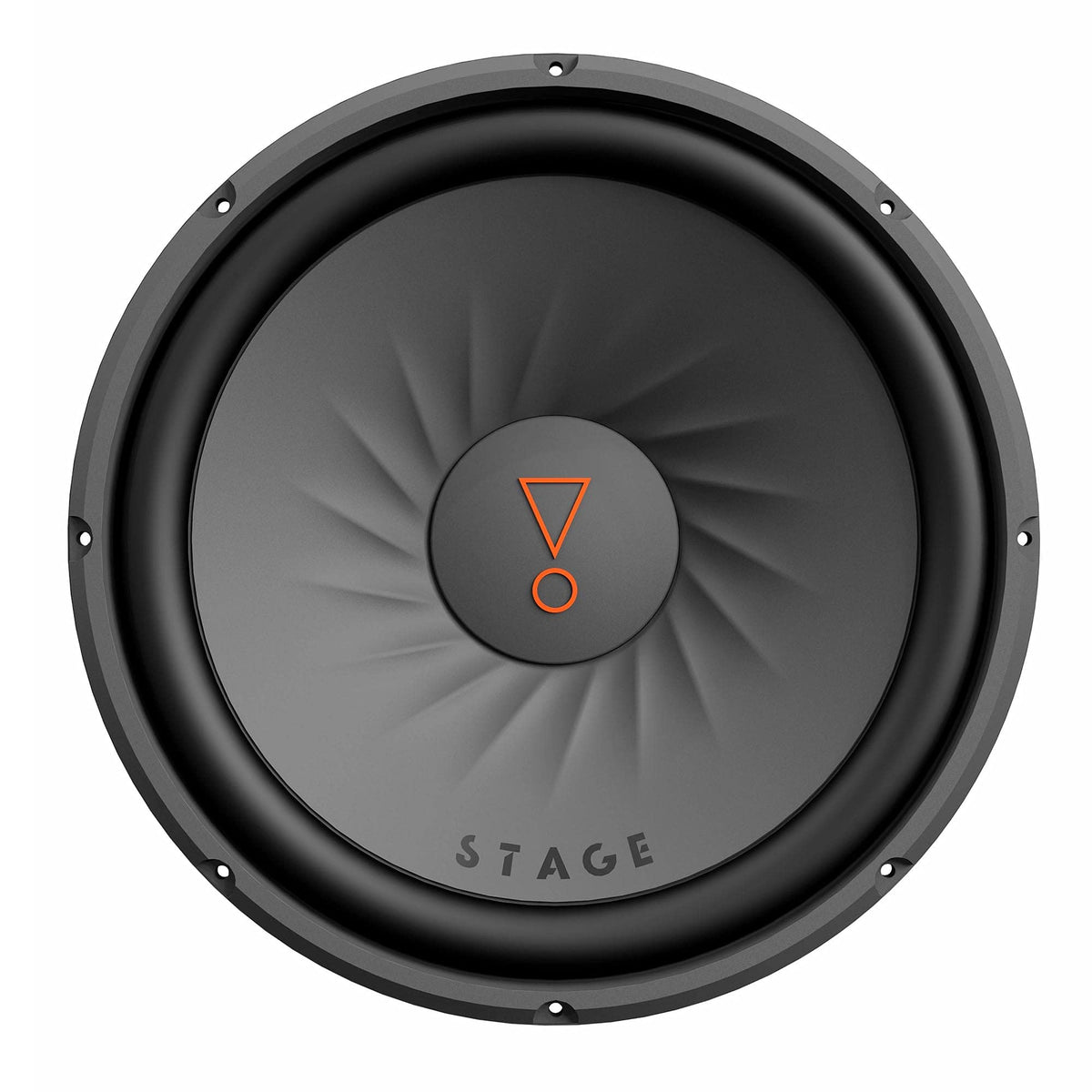

JBL Stage 122D JBLSUBST122DAM 12" DVC Car Subwoofer

The JBL Stage 122D is a 12-inch car audio subwoofer designed to add low-frequency output to a custom vehicle sound system. Its dual 4-ohm voice-coil design provides wiring flexibility for compatible external amplifiers. This is a passive component subwoofer, so it requires an enclosure and separate amplification.

It is suited to listeners building an affordable bass upgrade without moving to a preloaded powered enclosure. The Stage 122D can be used in sealed or vented enclosures, allowing the system to be tailored around available space and listening preferences. A sealed enclosure emphasizes controlled response, while a vented enclosure can improve efficiency through the upper-bass range.

JBL rates this subwoofer at 250 watts RMS and 1,000 watts peak power handling. Its 91 dB sensitivity and 34 Hz to 200 Hz frequency response support use as the dedicated bass driver in a full car audio system. Final output and character will depend on enclosure design, amplifier setup, vehicle acoustics, and installation quality.

The Stage 122D uses a lightweight polypropylene cone with a hi-roll rubber surround. A 2-inch voice coil supports its power-handling capability, while the dual-coil configuration can be wired for a 2-ohm or 8-ohm nominal load. JBL also specifies automotive-grade materials and HARMAN reliability testing for the design.

Install the Stage 122D in a properly built enclosure and pair it with an amplifier that is stable at the selected final impedance. It is a practical fit for a system that already has full-range speakers and needs dedicated low-end support. The included foam gasket helps create a sealed interface between the subwoofer frame and enclosure.

Key Features

• 12-Inch Subwoofer: Provides dedicated low-frequency reinforcement for vehicle audio systems.
• Dual 4-Ohm Voice Coils: Wire the coils in parallel for 2 ohms or series for 8 ohms.
• 250W RMS Handling: Supports amplifier matching for sustained bass performance.
• Polypropylene Cone: Combines low weight with stiffness for subwoofer duty.
• Hi-Roll Rubber Surround: Supports cone movement and durable everyday use.
• Flexible Enclosure Options: Works in recommended sealed or vented enclosure designs.

Design & Installation

The Stage 122D combines a polypropylene woofer cone, rubber surround, steel basket, and 2-inch voice coil. Its 12-1/4-inch outer diameter, 11-1/16-inch cutout requirement, and 5-13/16-inch mounting depth should be checked against the planned enclosure before installation. A foam mounting gasket is included to help seal the woofer frame to the enclosure.

JBL specifies a 1.4-cubic-foot sealed enclosure or a 1.6-cubic-foot vented enclosure, with both figures including driver displacement. The vented design uses a 2.95-inch-diameter, 4-inch-long port tuned to 34 Hz; an infrasonic filter is recommended for vented use. Use suitable speaker wire between the amplifier and subwoofer, observe polarity, and configure the two voice coils for the impedance supported by the amplifier.
