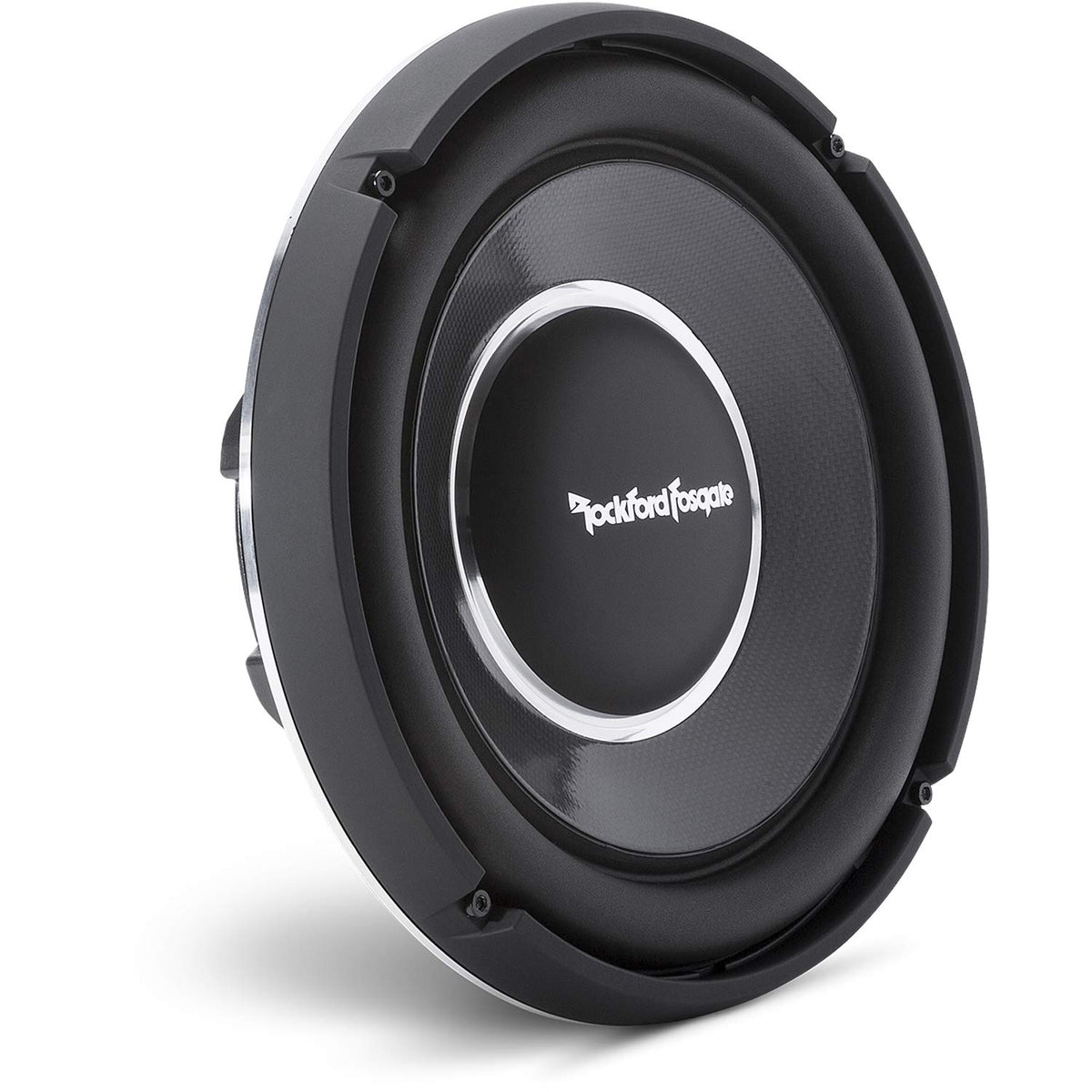

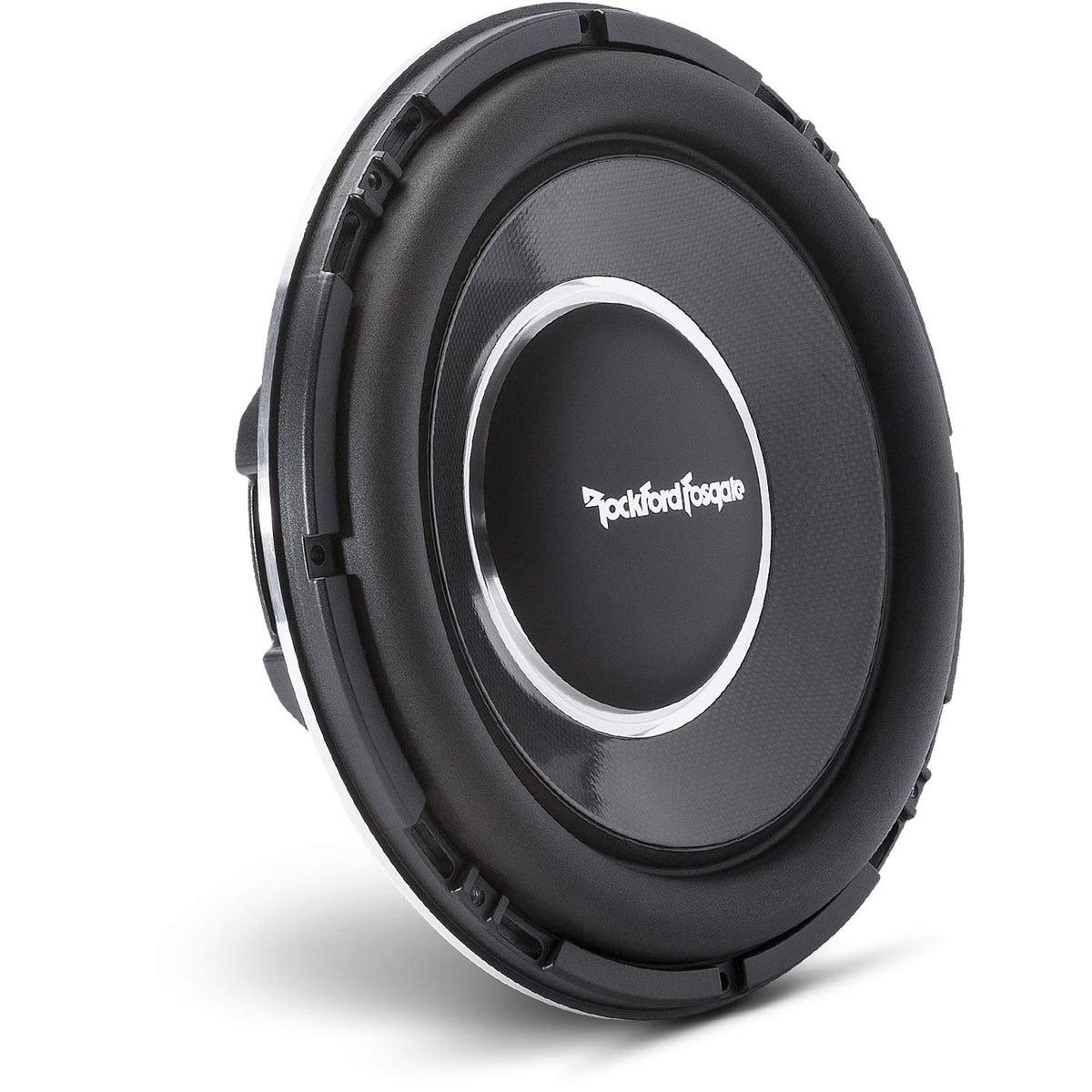

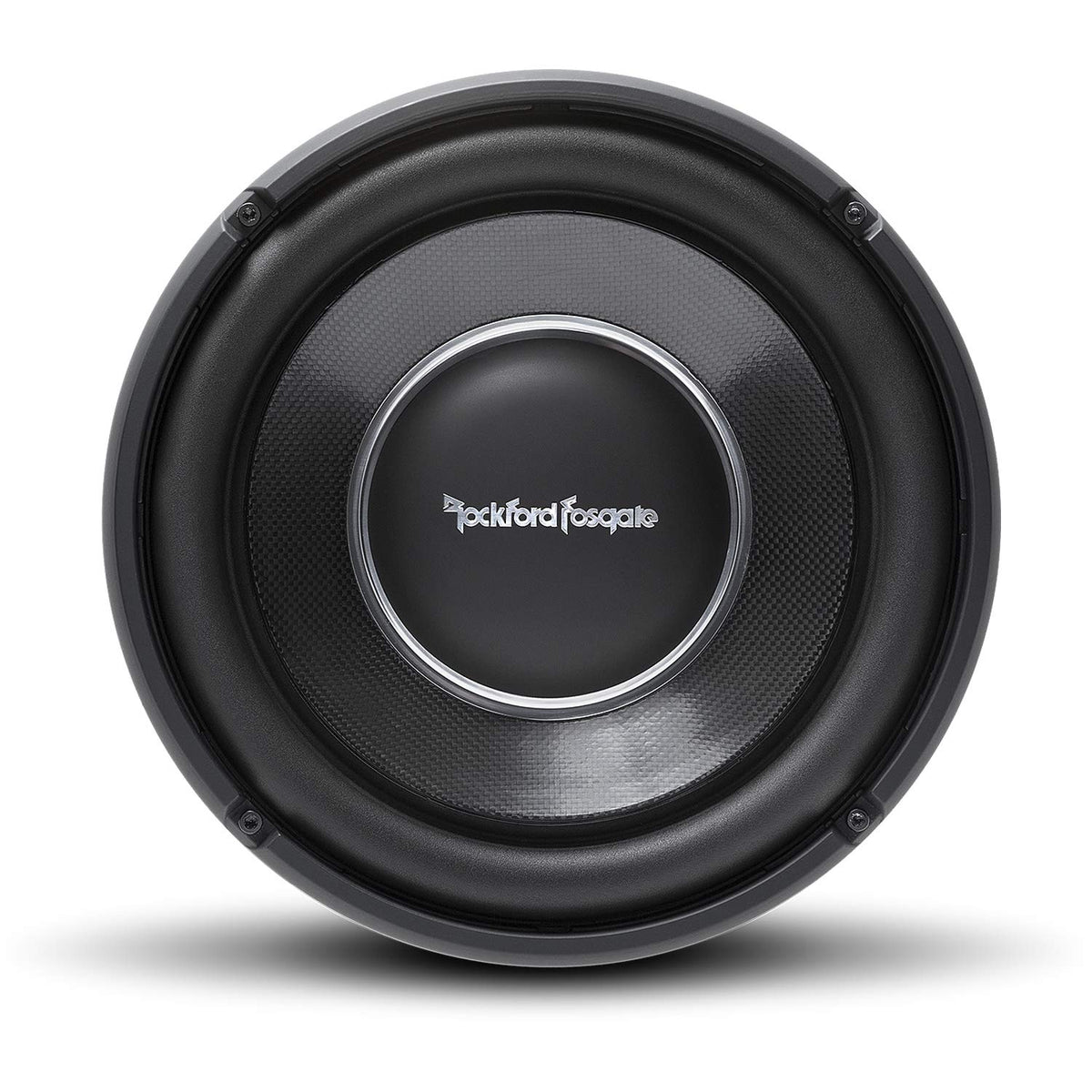

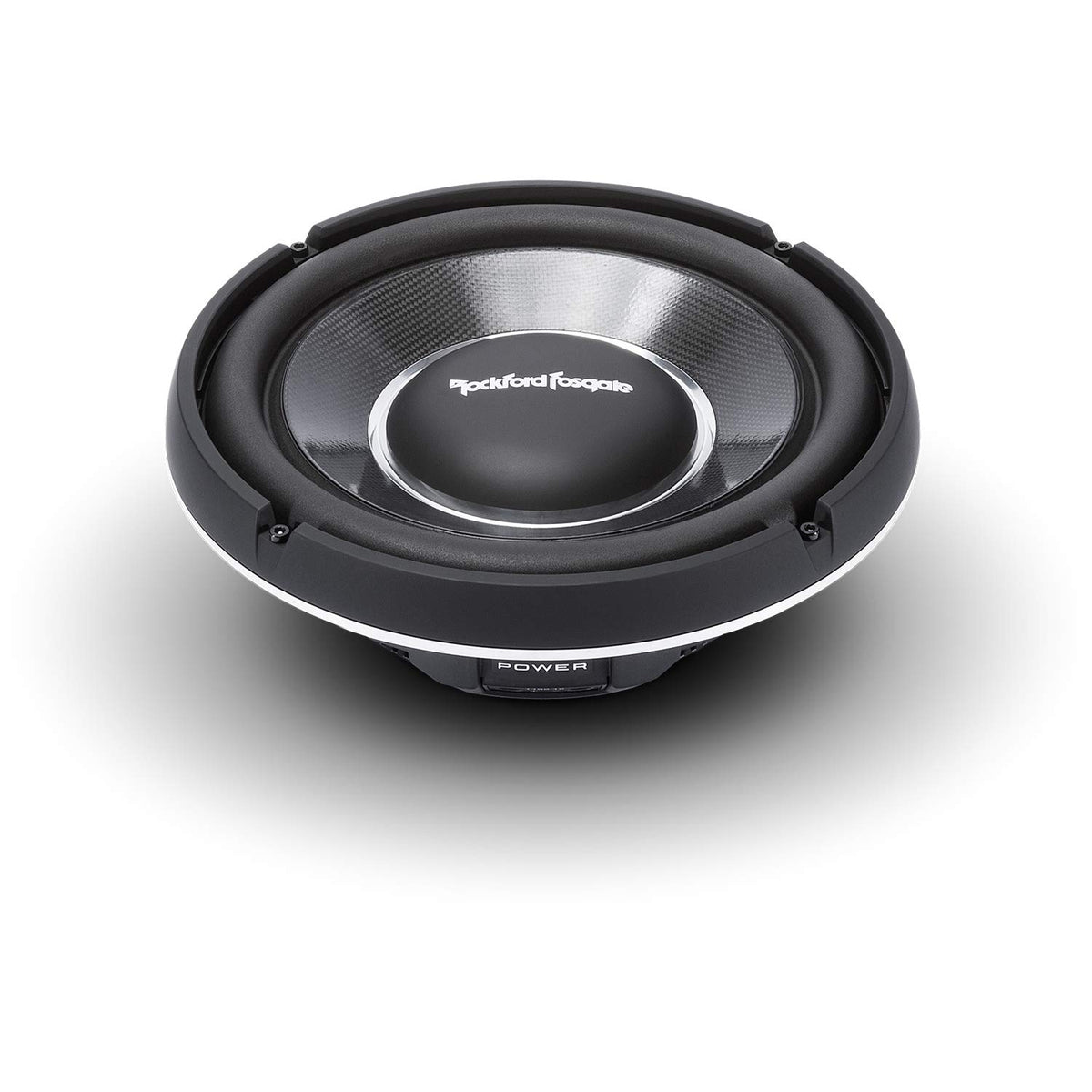

Rockford Fosgate T1S212 12" Slim 2-Ohm Subwoofer

The Rockford Fosgate T1S212 is a shallow-mount 12-inch component subwoofer built for vehicle installations with limited mounting depth. It uses a single 2-ohm voice coil and is rated for 600 watts RMS power handling. Its 3-inch mounting depth helps make room for bass upgrades in trucks, compact vehicles, and custom enclosures where a conventional deep subwoofer may not fit.

This model is intended for listeners building a dedicated low-frequency system around an external amplifier and enclosure. The 28–250 Hz frequency-response specification supports sub-bass and mid-bass reinforcement when paired with an appropriate low-pass crossover. With 85 dB sensitivity at 1W/1m, it is designed to work as part of a properly matched amplified system rather than as a direct head-unit speaker.

The T1S212 uses a carbon fiber/PMI/glass fiber composite cone, aluminum dustcap, and injection-molded foam surround. Its VAST surround design increases effective cone area without increasing basket size. Dual Nomex progressive spiders and stitched lead wires help support controlled cone movement during operation.

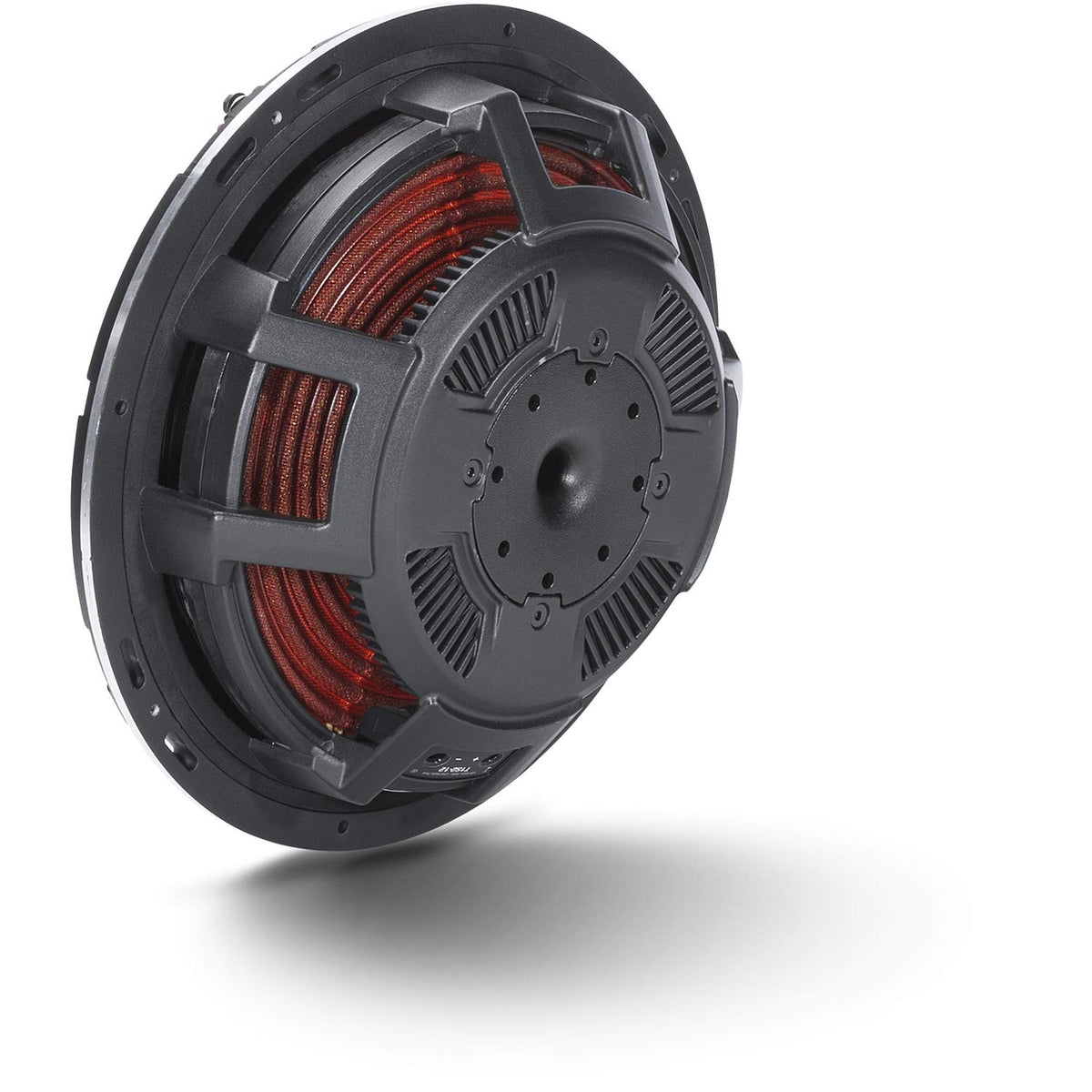

Rockford Fosgate's slim motor architecture uses a split-yoke pass-through design to allow substantial excursion in a shallow profile. The 3-inch, four-layer voice coil uses an anodized aluminum former, while the die-cast aluminum basket incorporates heat-sink fins. EVCC voice-coil coupling and an integrated copper-cap inductive damping heat sink are included as part of the motor and cooling design.

The subwoofer can be used in sealed or vented enclosures, with manufacturer recommendations provided for both approaches. A sealed enclosure suits installations prioritizing compact packaging and controlled response, while a vented enclosure can provide greater output around its tuning frequency. For a complete system, match it with an amplifier stable at the intended impedance, a correctly designed enclosure, and an active low-pass crossover.

Key Features

• Shallow 12-Inch Profile: A 3-inch mounting depth helps fit bass into limited-depth vehicle locations.
• 600-Watt RMS Rating: Provides a continuous-power target for selecting a compatible amplifier.
• Single 2-Ohm Voice Coil: Offers a straightforward wiring configuration for a mono amplifier channel.
• Composite Cone Assembly: Carbon fiber, PMI, and glass fiber construction supports a rigid moving surface.
• VAST Foam Surround: Increases effective cone area without requiring a larger basket.
• Flexible Enclosure Options: Manufacturer guidance supports both sealed and vented box designs.

Design & Installation

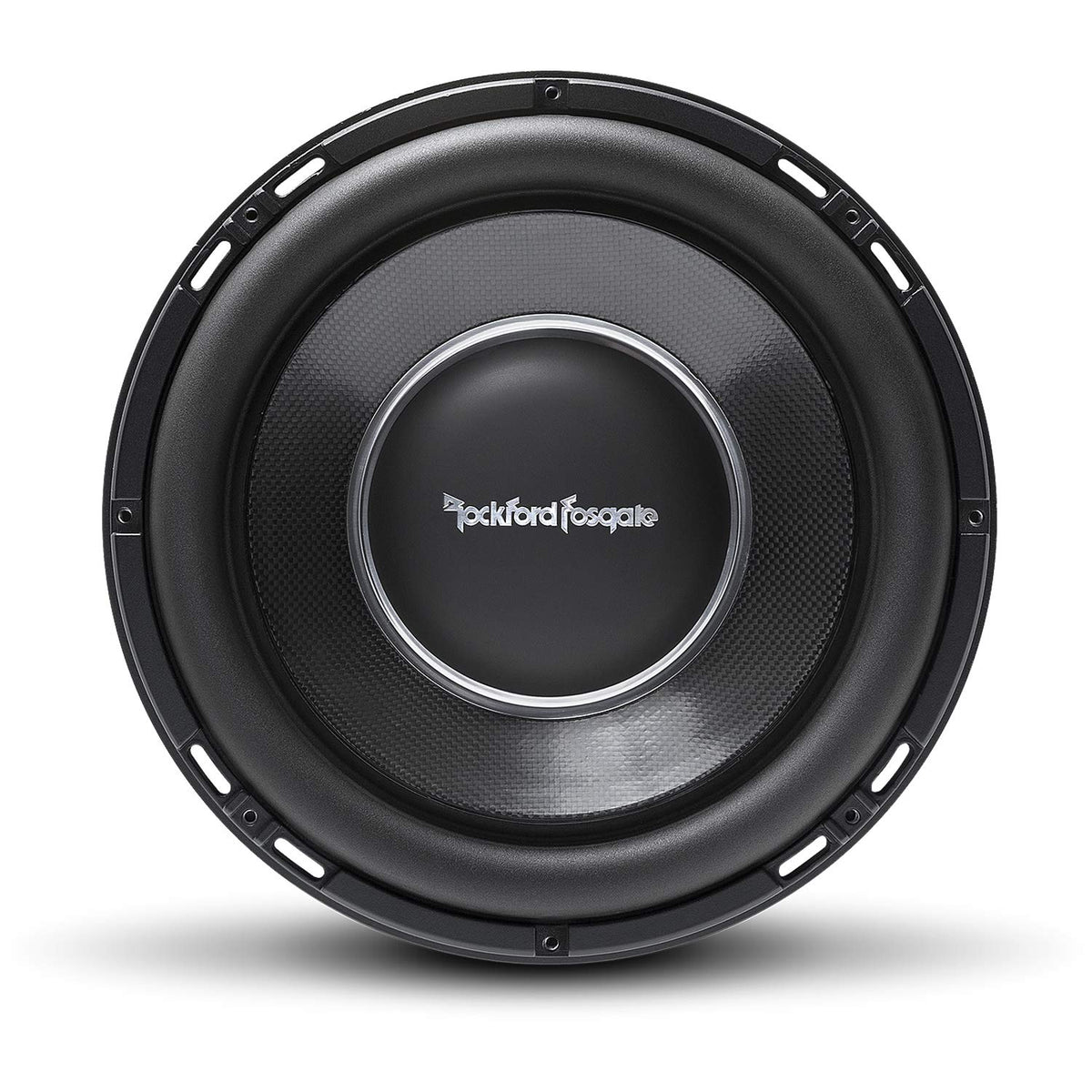

The T1S212 combines an aluminum die-cast frame, composite cone, aluminum dustcap, foam surround, dual Nomex spiders, and a high-energy neodymium motor. Its trim ring is detachable, and the basket uses a FlexFit slotted mounting pattern for minor positioning adjustment. Spring terminals accept up to 10 AWG speaker wire.

Plan for an 11.22-inch mounting cutout, 13-inch overall diameter, and 3-inch mounting depth. Use a rigid, airtight enclosure built to the recommended internal volume after accounting for woofer and port displacement; the manual recommends 3/4-inch MDF and internal bracing. For vented systems, Rockford Fosgate recommends using a subsonic or infrasonic filter at or above 27 Hz, along with an active 80–100 Hz low-pass crossover at 12 dB per octave.
