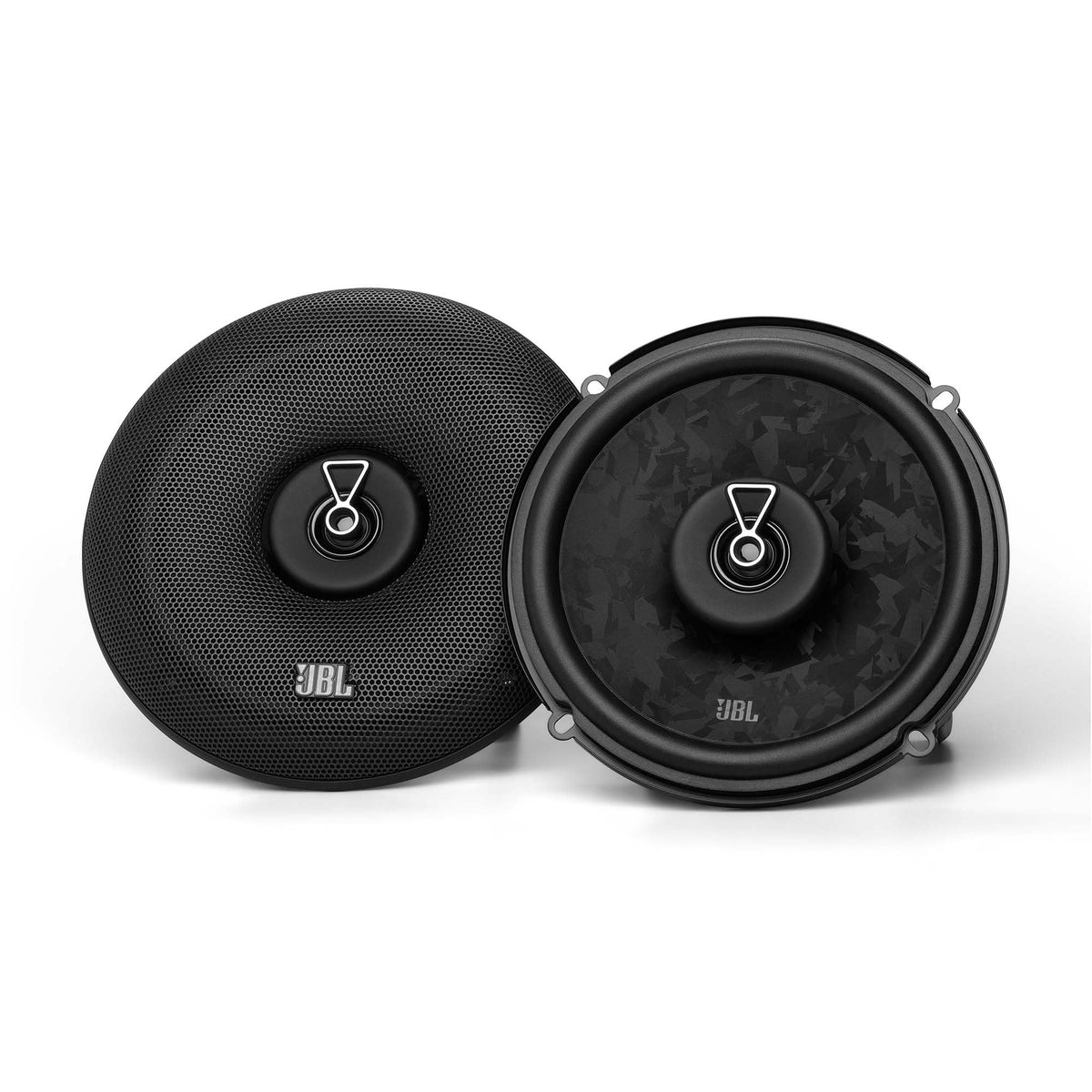

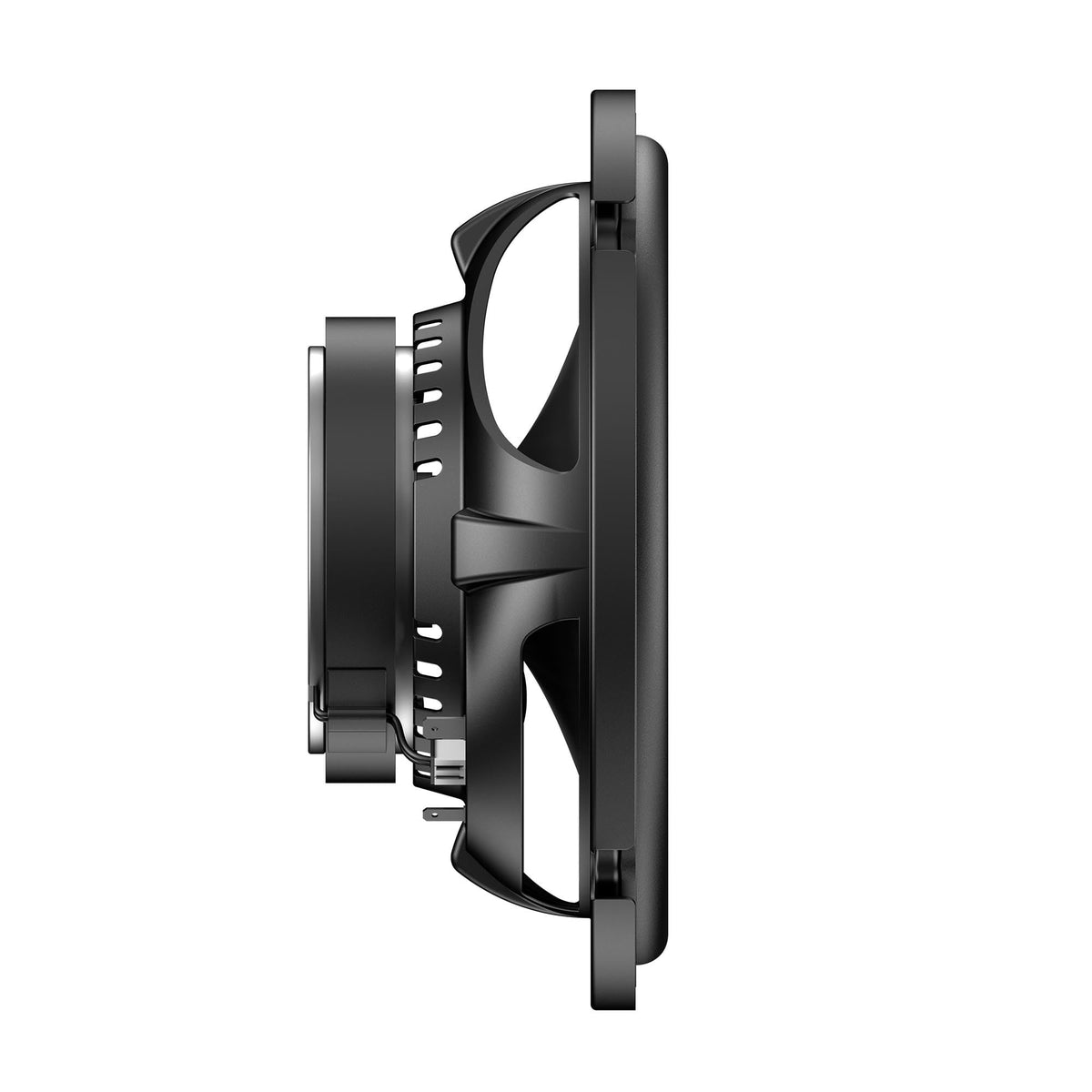

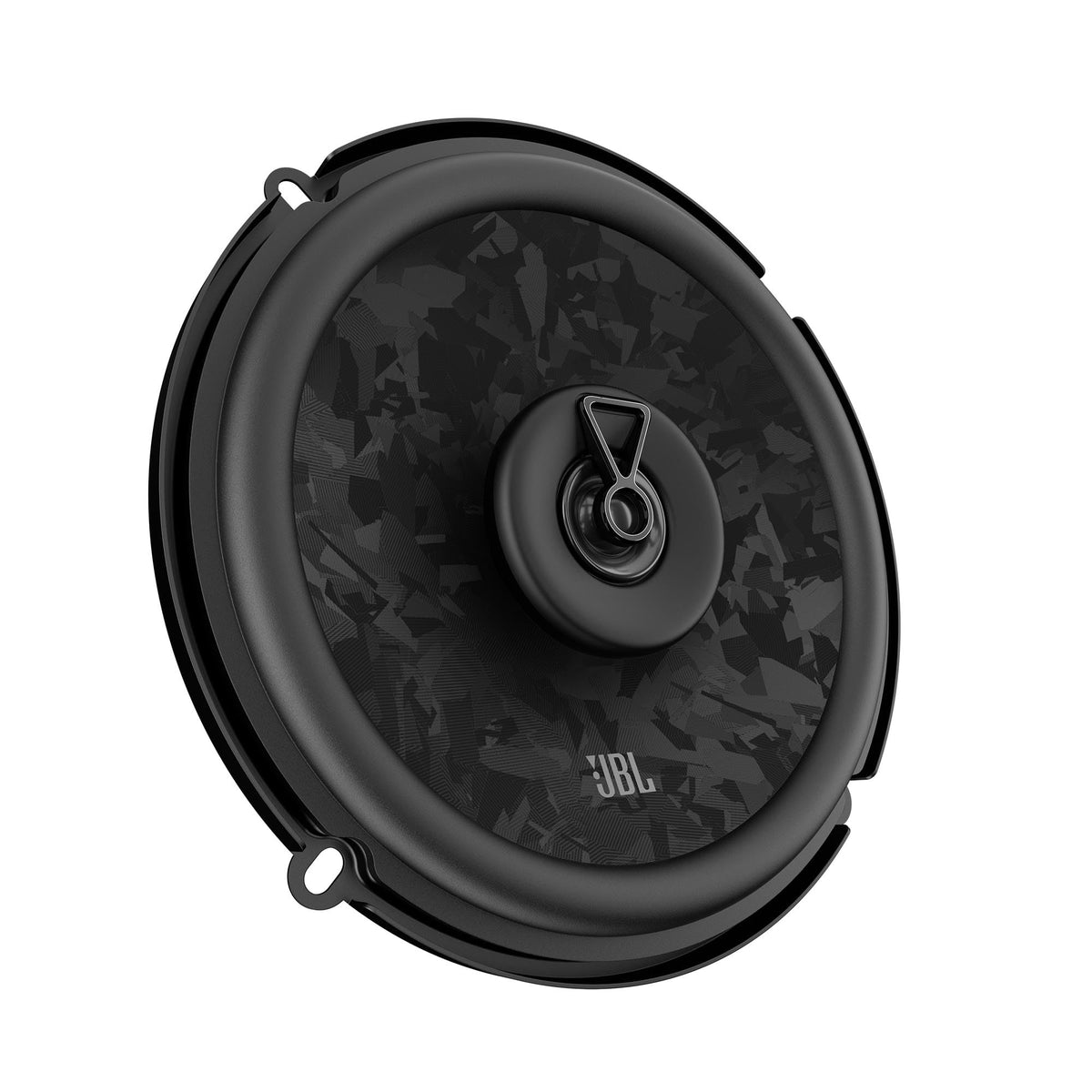

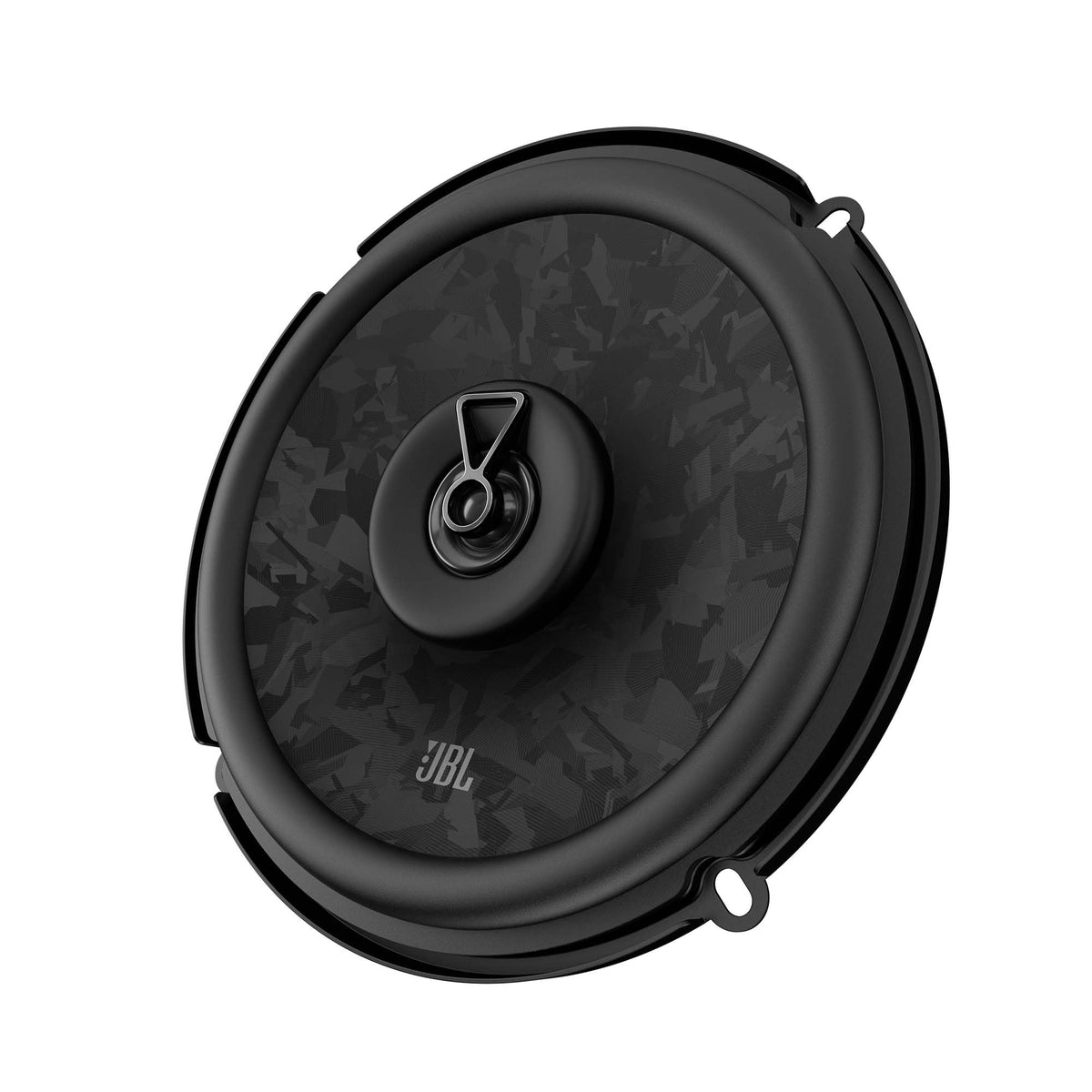

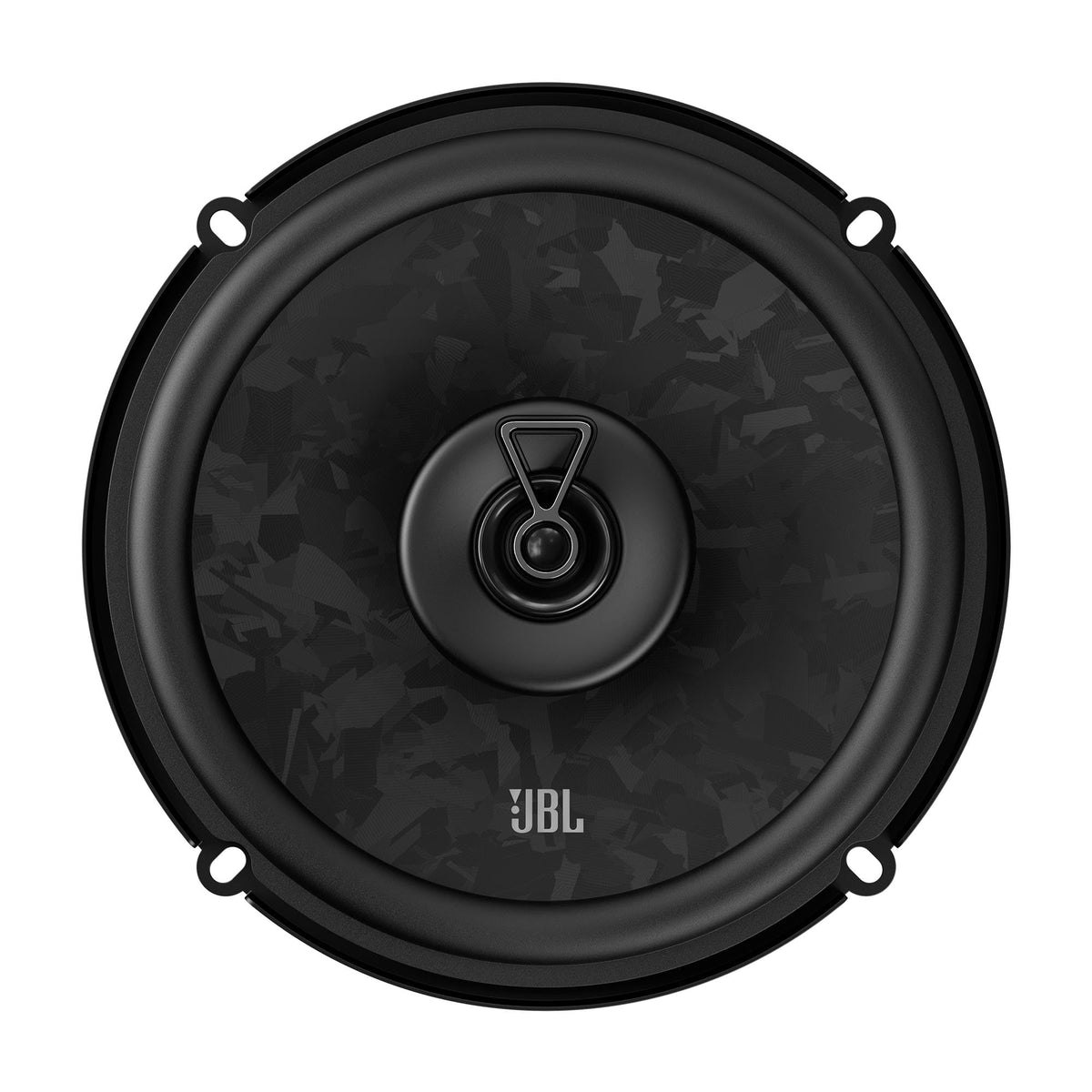

JBL JBLSPKS368F Stage3 68F 6.5" Coaxial Speakers

The JBL Stage3 68F is a pair of 6.5-inch, two-way coaxial car speakers made for replacing factory door, dash, or rear-deck speakers where the vehicle accepts this size. Each speaker combines a woofer and tweeter in one assembly for a straightforward full-range speaker upgrade. The set is supplied without grilles, making it suited to factory locations that retain their original speaker grilles or panels.

With 70 watts RMS power handling per speaker, a 4-ohm nominal impedance, and 91 dB sensitivity at 2.83V, the Stage3 68F can be paired with a compatible factory radio or aftermarket amplifier. Its 55Hz to 20kHz frequency response covers bass, midrange, and treble duties for everyday music listening. Power matching should be based on the continuous RMS rating rather than the peak figure.

The sound is built around JBL's Plus One woofer cone architecture, which increases usable cone area compared with conventional designs in its class. More cone area helps the speaker move air efficiently and supports low-frequency output from a compact 6.5-inch format. The woofer cone is reinforced with 10% glass fiber and formed with a laser-etched surface treatment.

A PEI balanced dome tweeter handles high frequencies in the coaxial assembly. This tweeter material is designed to provide clear treble response while keeping the installation simple because a separate tweeter location and external crossover are not required. The integrated arrangement is practical for vehicles using conventional full-range speaker locations.

The Stage3 68F uses JBL's True 4-ohm technology to maintain a 4-ohm nominal load for compatible head units and amplifiers. It also incorporates post-consumer recycled plastic components, PVC-free wiring, and packaging printed with soy-based inks. For a complete upgrade, it can be used as a matched front or rear pair after verifying vehicle-specific mounting diameter, depth, connector style, and panel clearance.

Key Features

• 6.5-Inch Two-Way Coaxial Design: Combines woofer and tweeter functions in each speaker for a compact replacement-speaker layout.
• Plus One Woofer Cone Architecture: Provides increased cone surface area to support efficient output and low-frequency response.
• Glass-Fiber-Reinforced Cone: Uses a woofer cone infused with 10% glass fiber for a rigid, resonant bass foundation.
• PEI Balanced Dome Tweeter: Delivers dedicated high-frequency reproduction from the integrated coaxial tweeter.
• True 4-Ohm Technology: Maintains a 4-ohm nominal load for use with compatible radios and amplifiers.
• Environment-Conscious Materials: Uses recycled plastic components, PVC-free wiring, and soy-ink packaging.

Design & Installation

The Stage3 68F uses a laser-etched woofer cone with a forged-carbon-fiber-style visual effect and 10% glass-fiber reinforcement. Its coaxial format places the PEI balanced dome tweeter over the woofer, while the speaker package omits grilles. The included foam gaskets, screws, spade clips, and logo badges support a tidy installation in compatible locations.

Confirm that the vehicle accepts a 6.5-inch speaker and check mounting depth, mounting-hole pattern, door-panel clearance, and factory wiring before installation. Use the included spade clips or a vehicle-specific speaker harness as appropriate, and observe polarity when connecting each speaker. For amplified systems, select amplifier channels appropriate for the speakers' 70W RMS rating and 4-ohm nominal impedance.
