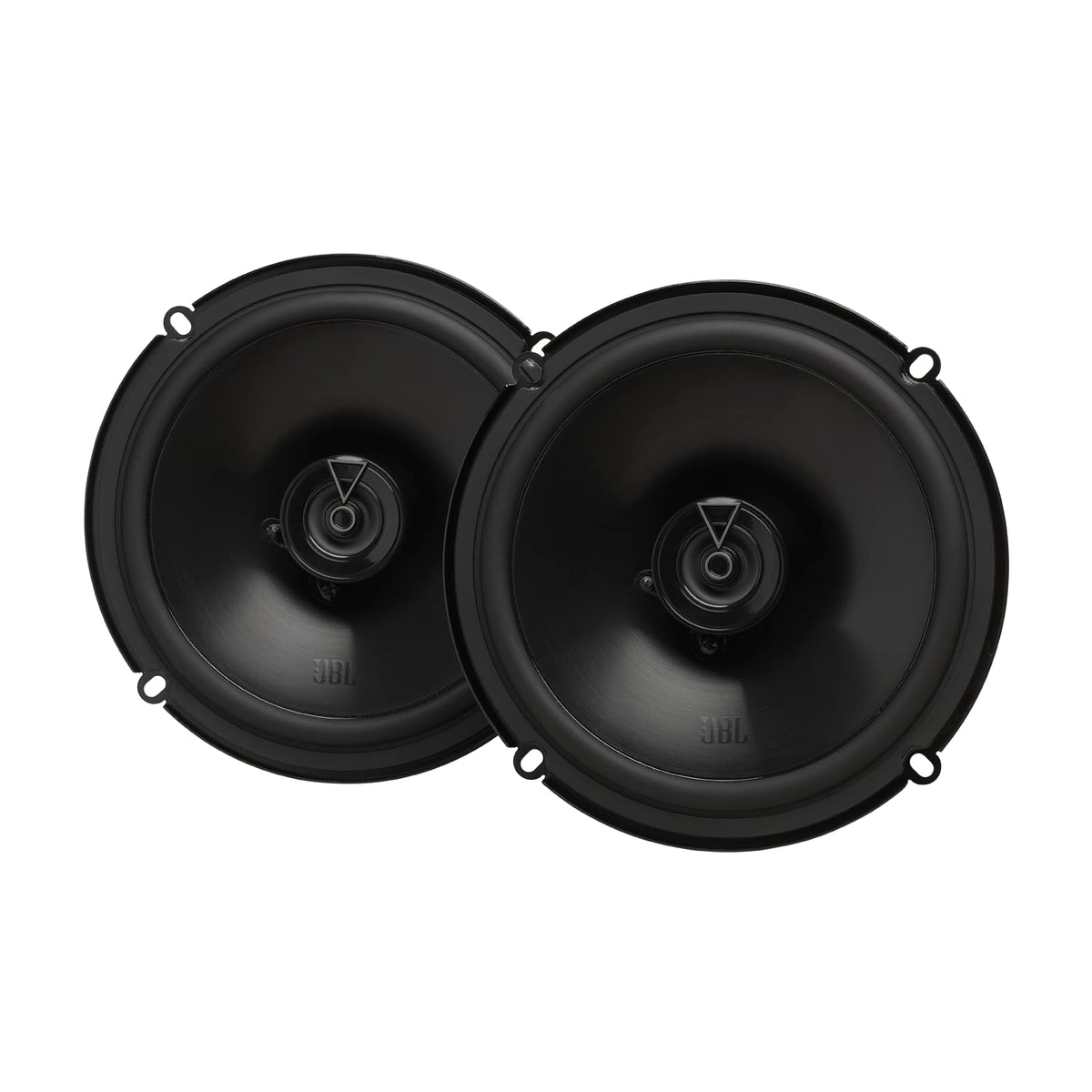

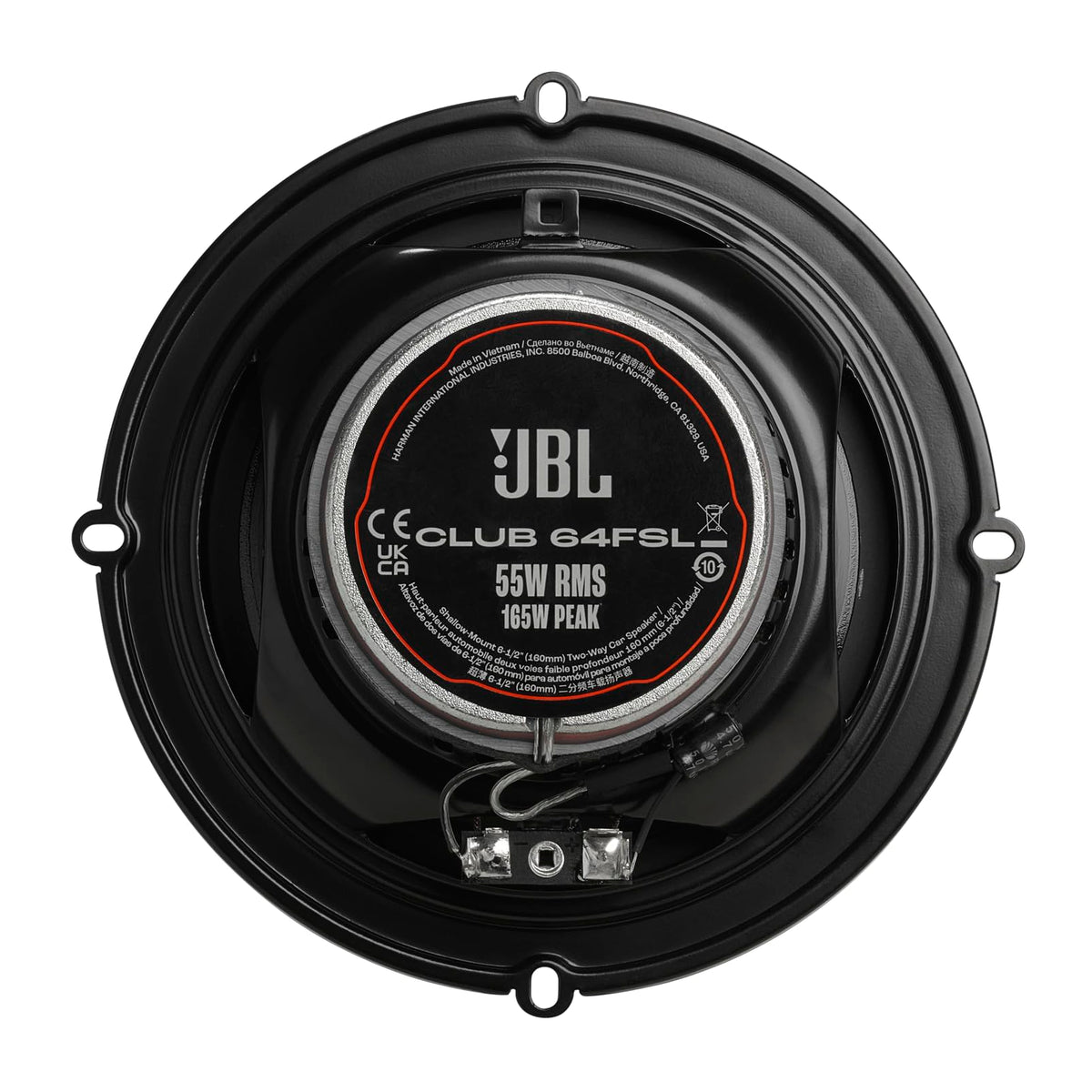

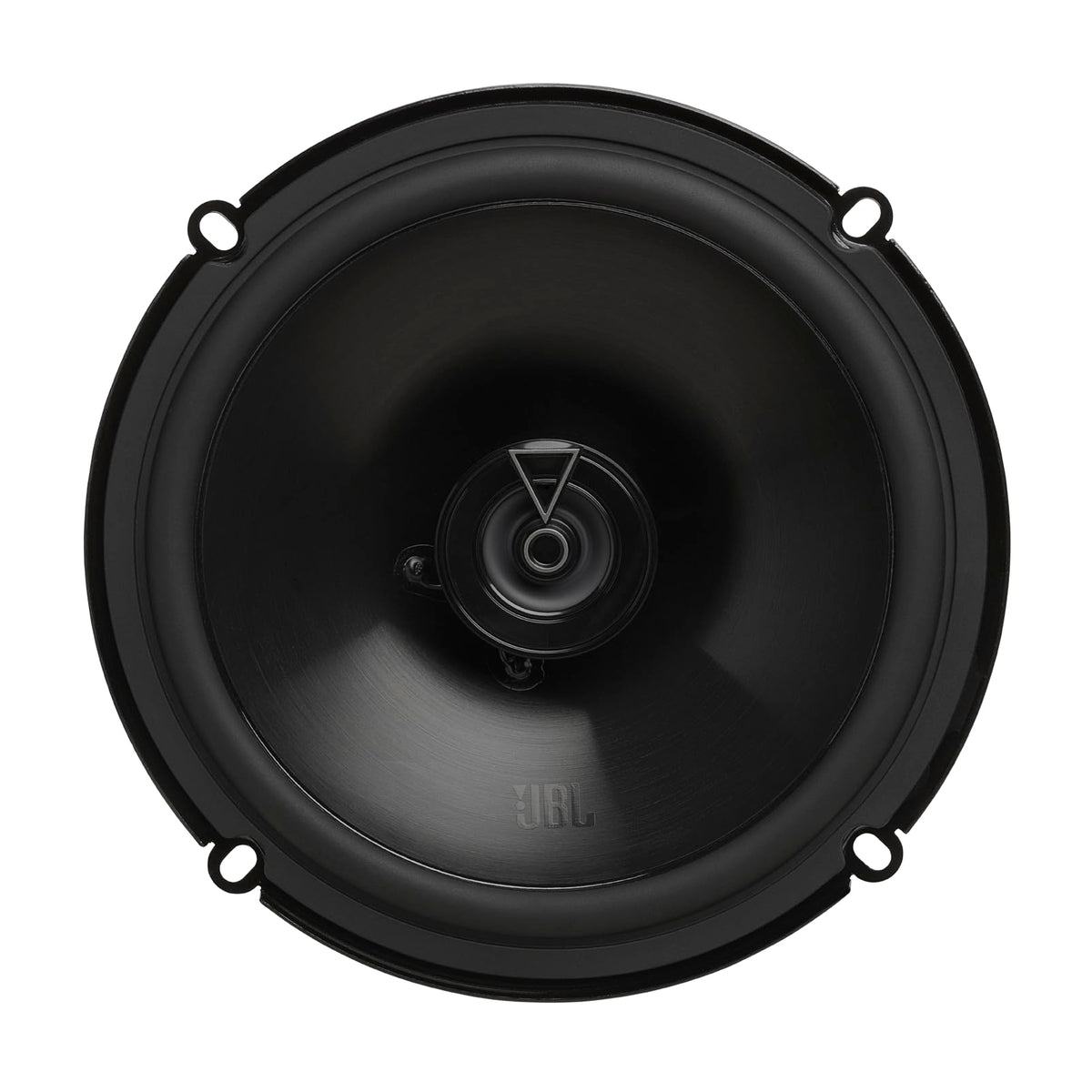

JBL Club 64FSL 6.5" Shallow-Mount 2-Way Car Speakers

The JBL Club 64FSL is a pair of shallow-mount 6-1/2-inch two-way coaxial car speakers designed for vehicles with limited speaker-depth clearance. They provide a practical replacement or upgrade path for factory door, dash, or rear-deck speakers where a conventional-depth 6.5-inch speaker may not fit. Each speaker is rated for 55 watts RMS and 165 watts peak power.

This speaker set is suited to drivers seeking a compact full-range upgrade without adding separate tweeters or external passive crossovers. Its coaxial layout combines the woofer and tweeter in each speaker, helping keep installation straightforward. The 3-ohm nominal impedance and 92 dB sensitivity support use with appropriately rated factory or aftermarket audio systems.

JBL specifies a 55 Hz to 20 kHz frequency response and a 4 kHz crossover point. The result is a two-way design intended to cover bass, midrange, and treble from a single mounting location. For a balanced vehicle system, these speakers can be paired with a compatible head unit or amplifier and, when desired, a separate subwoofer for deeper low-frequency output.

The Club 64FSL uses JBL Plus One woofer cone architecture, which increases effective cone area compared with conventional same-size designs. Its acoustically damped, UV-resistant polypropylene cone is built for the heat and humidity encountered in automotive installations. A silk edge-driven dome tweeter handles high-frequency reproduction.

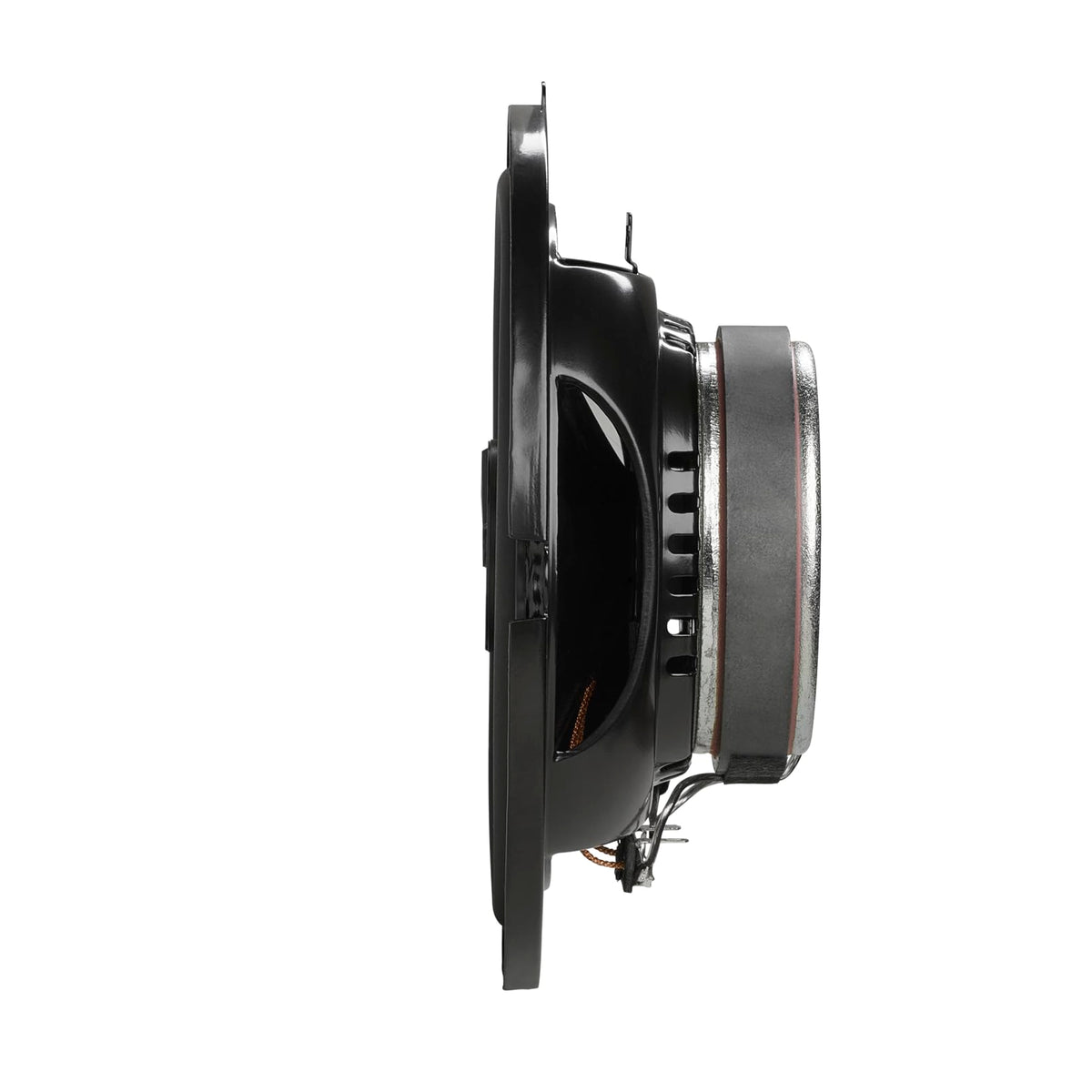

Shallow mounting is the central advantage of this model. The speaker has a 47.7 mm (1.88-inch) mounting depth and a 123.4 mm (4.86-inch) mounting cutout diameter, helping it fit tighter locations. Included multi-hole adapter rings expand mounting options, but vehicle-specific fitment should always be checked before installation.

Key Features

• Shallow-Mount Profile: A 47.7 mm mounting depth helps accommodate locations with limited clearance.
• Two-Way Coaxial Design: Integrates woofer and tweeter in each speaker for a simpler installation.
• 55W RMS Handling: Supports 55 watts RMS and 165 watts peak power per speaker.
• 3-Ohm Impedance: Designed for use with audio equipment rated to drive a 3-ohm speaker load.
• Plus One Woofer Cone: Uses greater effective cone area for the speaker size.
• UV-Resistant Polypropylene Cone: Built to withstand demanding automotive heat and humidity conditions.

Design & Installation

The Club 64FSL combines a polypropylene woofer cone, rubber surround, large magnet motor structure, and a 1-inch silk edge-driven dome tweeter. Its compact basket and shallow-profile design are tailored for installations where window mechanisms, door panels, or other vehicle components limit mounting depth. The speakers are finished in black and use a coaxial construction rather than separate component-speaker hardware.

Confirm the vehicle's factory opening, available mounting depth, panel clearance, and mounting-hole pattern before purchase. JBL specifies a 123.4 mm mounting cutout diameter, 47.7 mm mounting depth, and 158.0 mm overall speaker diameter; the included multi-hole adapter rings may assist with various 6.5-inch and 6.75-inch applications. Use the supplied foam gasket, screws, and speed clips as applicable, and connect the speakers only to a factory radio or amplifier that is suitable for a 3-ohm nominal load.
