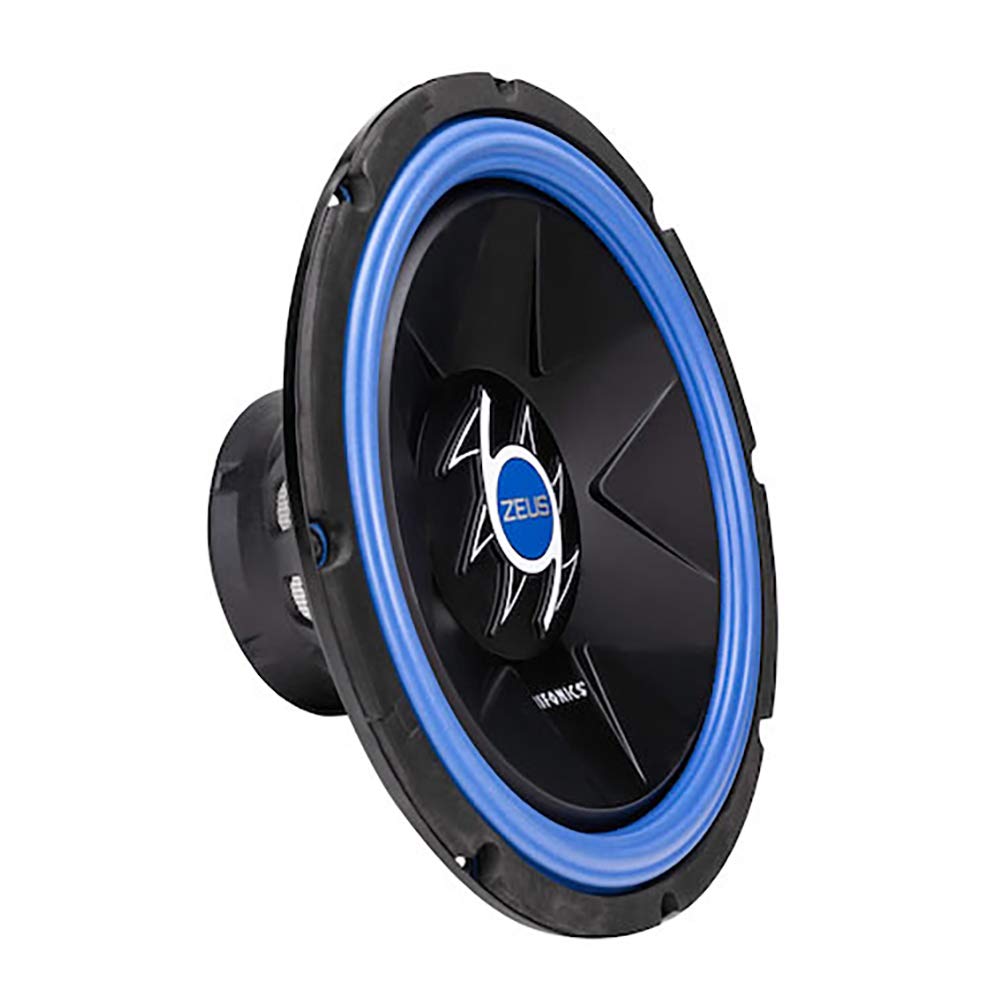

Hifonics ZG12D4 12" Dual 4-Ohm Car Subwoofer

The Hifonics ZG12D4 is a 12-inch component car subwoofer designed to add dedicated low-frequency output to a vehicle audio system. It handles 400 watts RMS and up to 800 watts maximum power. Because it is a non-enclosed, non-powered driver, it requires a separate amplifier and subwoofer enclosure.

This model is intended for listeners building or upgrading a bass system around a single 12-inch woofer. Its dual 4-ohm voice-coil configuration provides wiring flexibility for matching a compatible mono or multi-channel amplifier. The design can be wired for a 2-ohm or 8-ohm final load when used as one subwoofer.

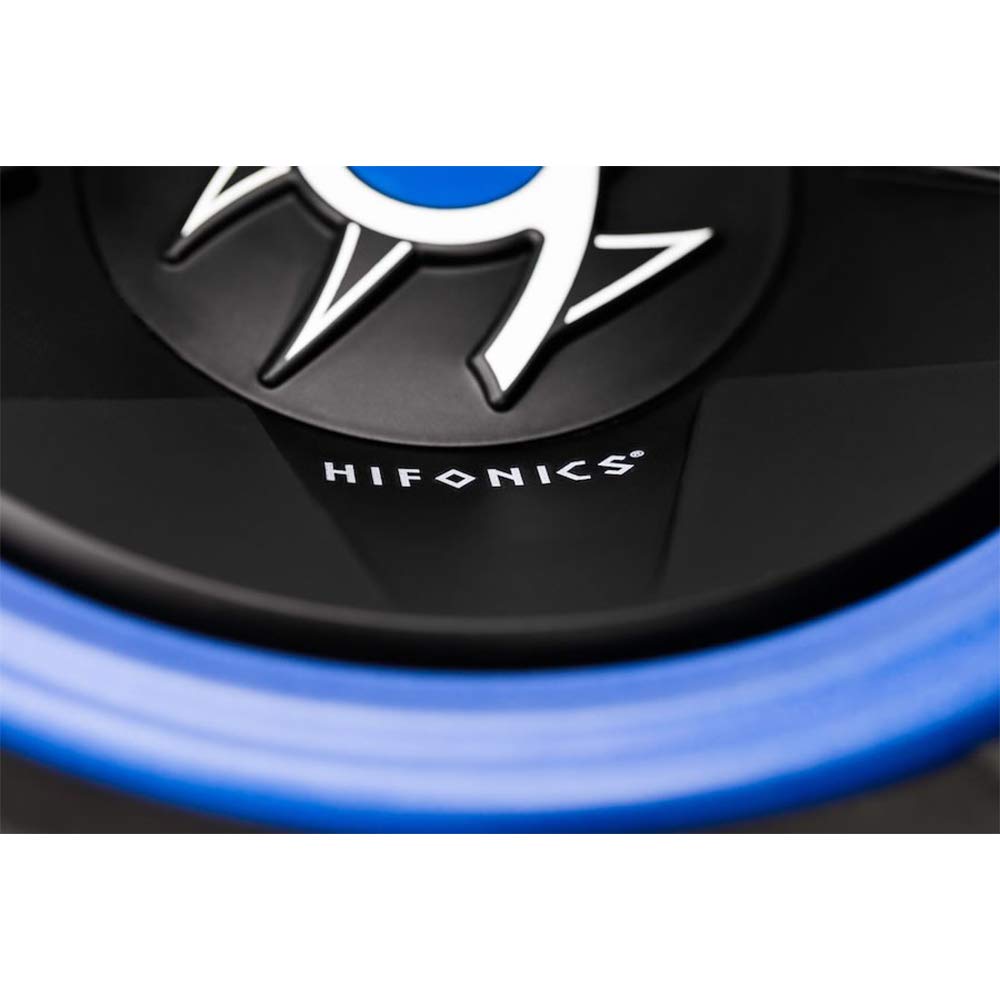

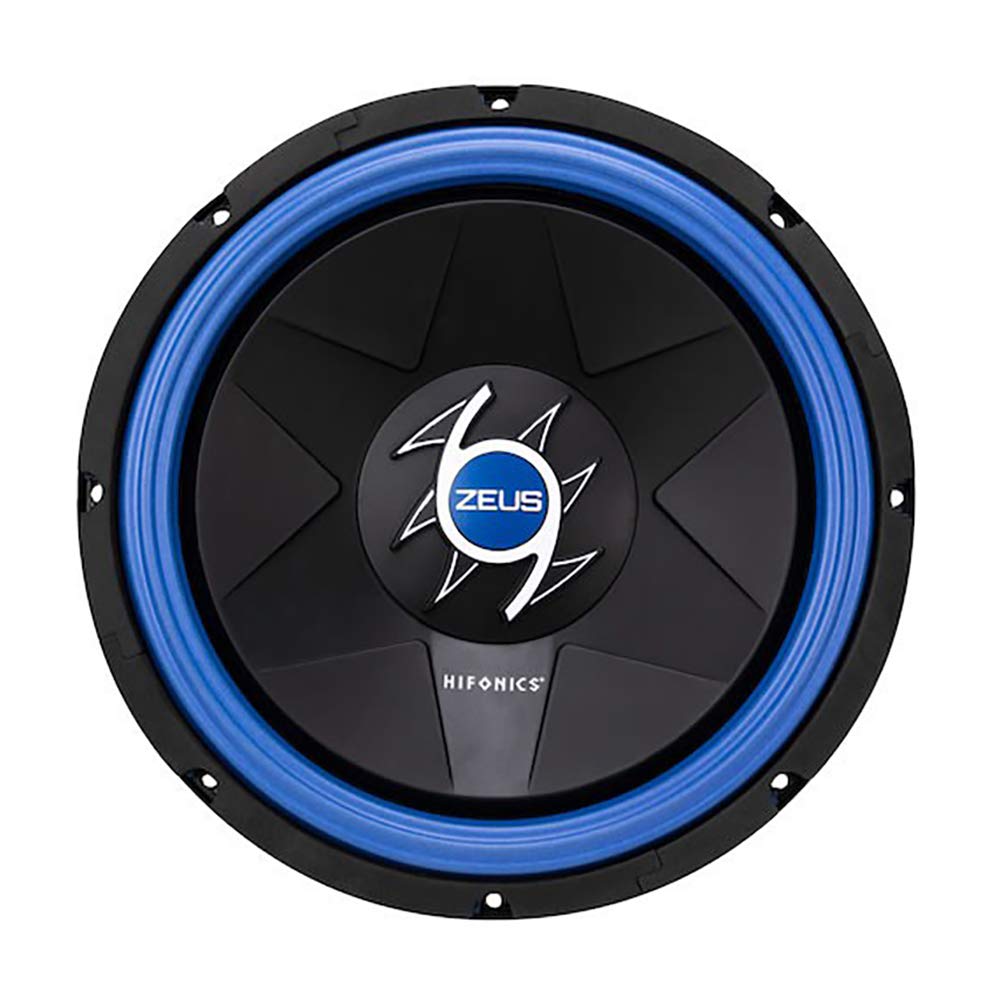

The ZG12D4 uses a pressure-treated blue foam surround and Hifonics cotton spider to support controlled cone movement. Its thermal-formed polypropylene cone has a molded Zeus symbol and six-spoke design. These components are paired with a vented aluminum voice-coil former to help manage heat during operation.

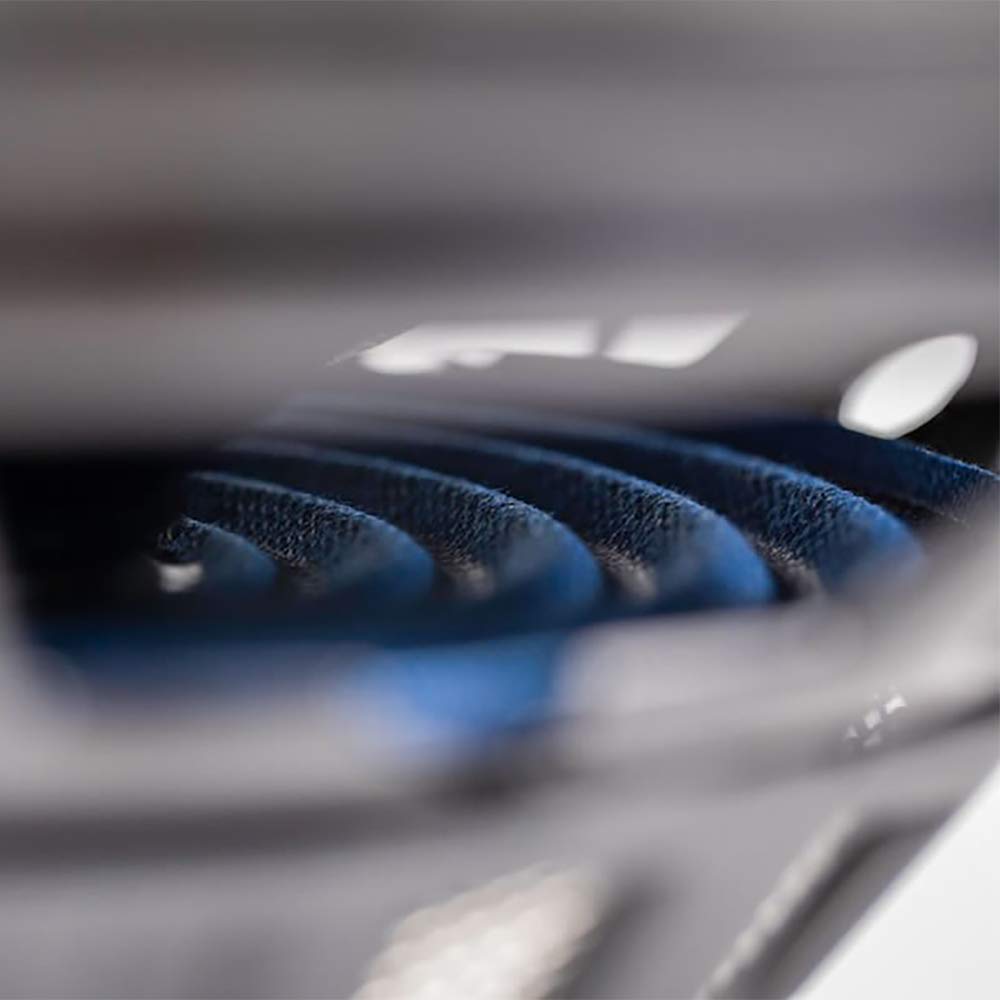

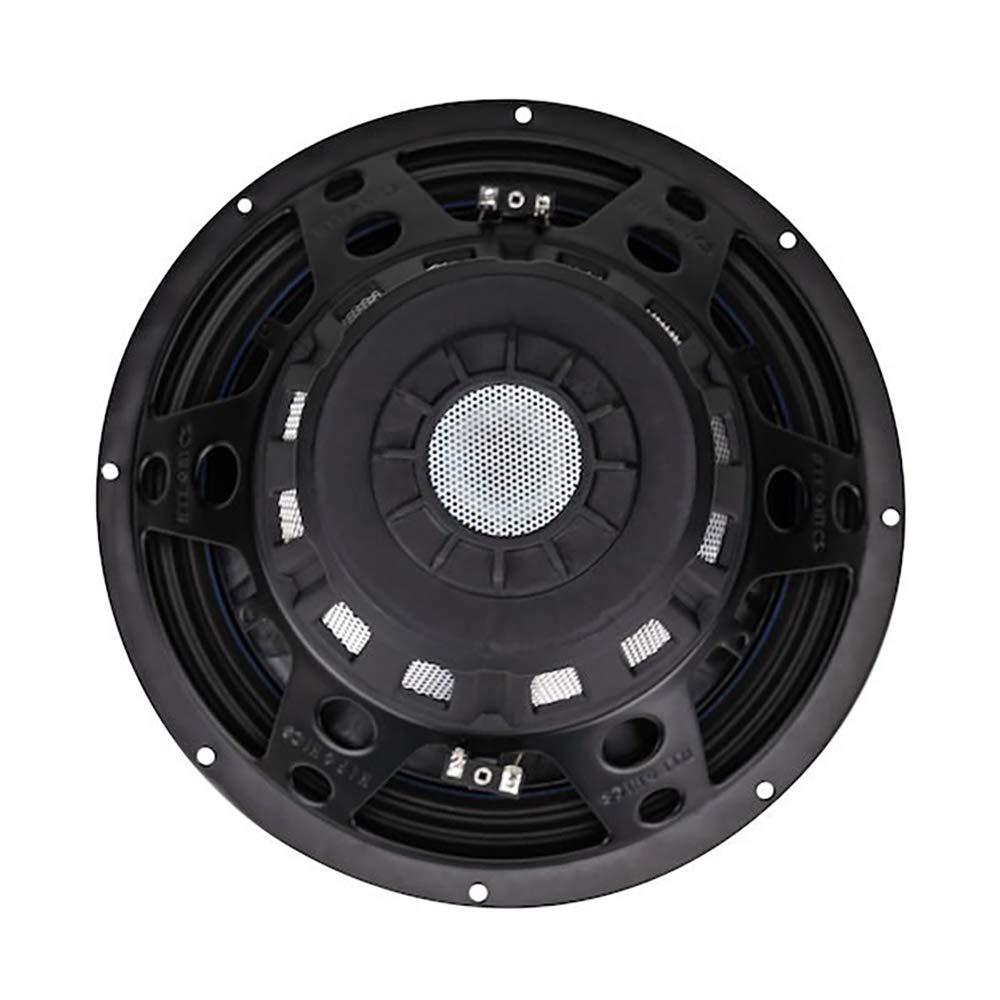

A heavy-gauge, powder-coated stamped-steel basket forms the foundation for the motor and moving assembly. Through-the-frame venting with a mesh grille and a vented high-energy motor support airflow around the speaker structure. The rear motor cover helps protect the back of the subwoofer.

The ZG12D4 is suited to small sealed enclosures or medium-to-large vented enclosures, with ported designs identified as an ideal application. It has a 10-inch cutout requirement and 5.4-inch mounting depth, so enclosure dimensions should be checked before installation. Pair it with an amplifier selected and set appropriately for its 400-watt RMS rating and final wired impedance.

Key Features

• 400-Watt RMS Handling: Supports amplifier matching based on continuous power capability.
• Dual 4-Ohm Voice Coils: Allows series or parallel wiring flexibility.
• 12-Inch Woofer: Provides dedicated bass reproduction for vehicle audio systems.
• Vented Aluminum Former: Helps move heat away from the voice coil.
• Steel Basket: Powder-coated stamped-steel construction supports the motor assembly.
• Ported-Enclosure Ready: Designed for medium-to-large vented enclosure applications.

Design & Installation

The subwoofer combines a thermal-formed polypropylene cone, pressure-treated blue foam surround, cotton spider, and a heavy-duty powder-coated steel basket. Its 2-inch voice coil uses a vented aluminum former, while through-frame venting and a vented motor assembly promote airflow. The motor uses 37-ounce magnets, and a rear motor cover protects the back of the assembly.

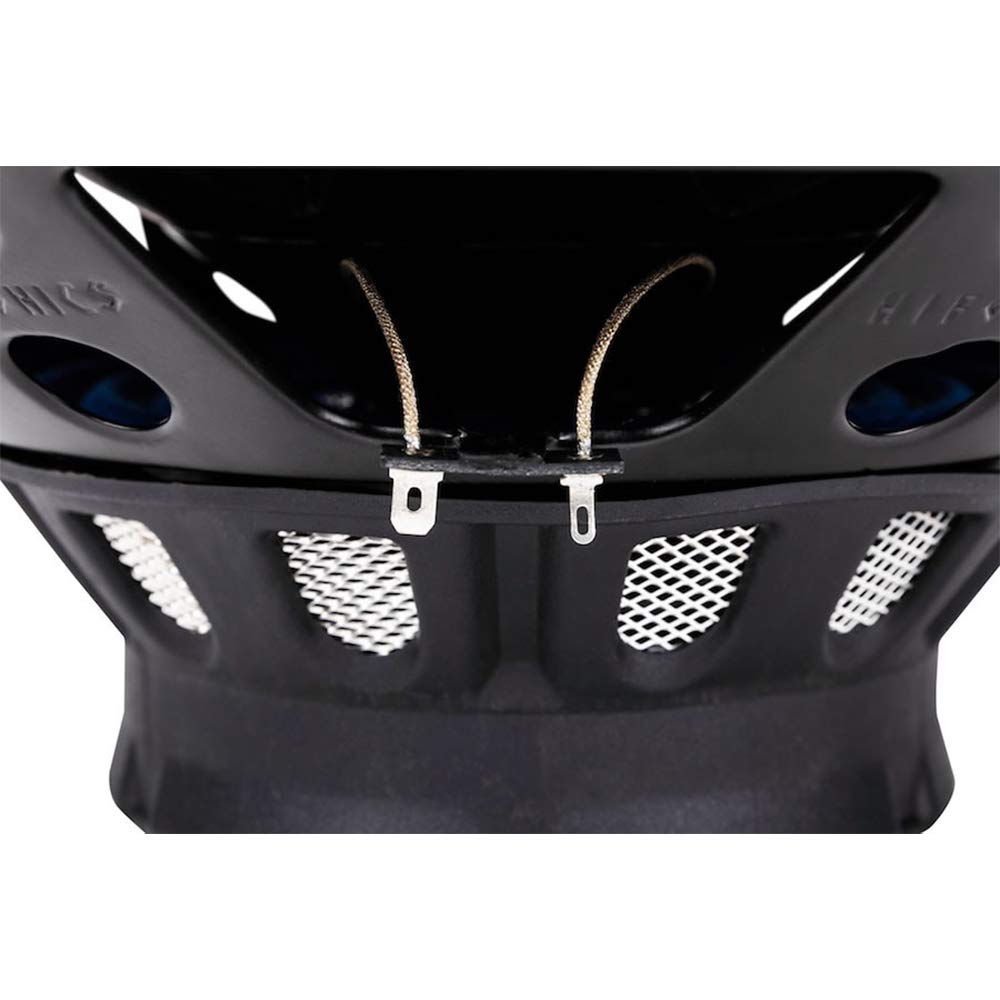

Mount the ZG12D4 in an enclosure with at least a 10-inch cutout and 5.4 inches of mounting depth. Use the spade-style terminals to connect both 4-ohm voice coils according to the amplifier's supported load: parallel wiring presents 2 ohms and series wiring presents 8 ohms. Select a properly configured external amplifier, secure the driver to a rigid enclosure, and ensure the enclosure type suits the intended installation.
