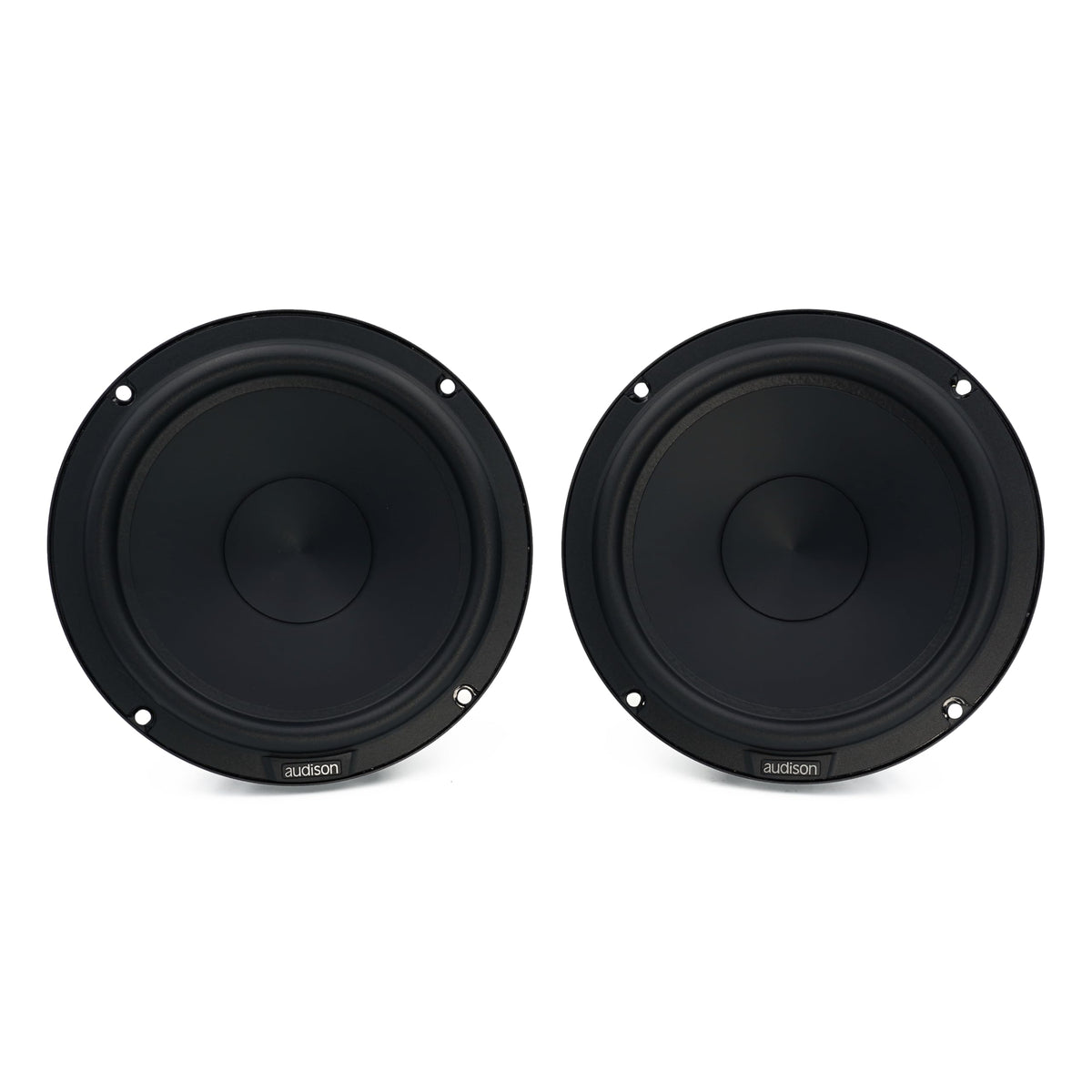

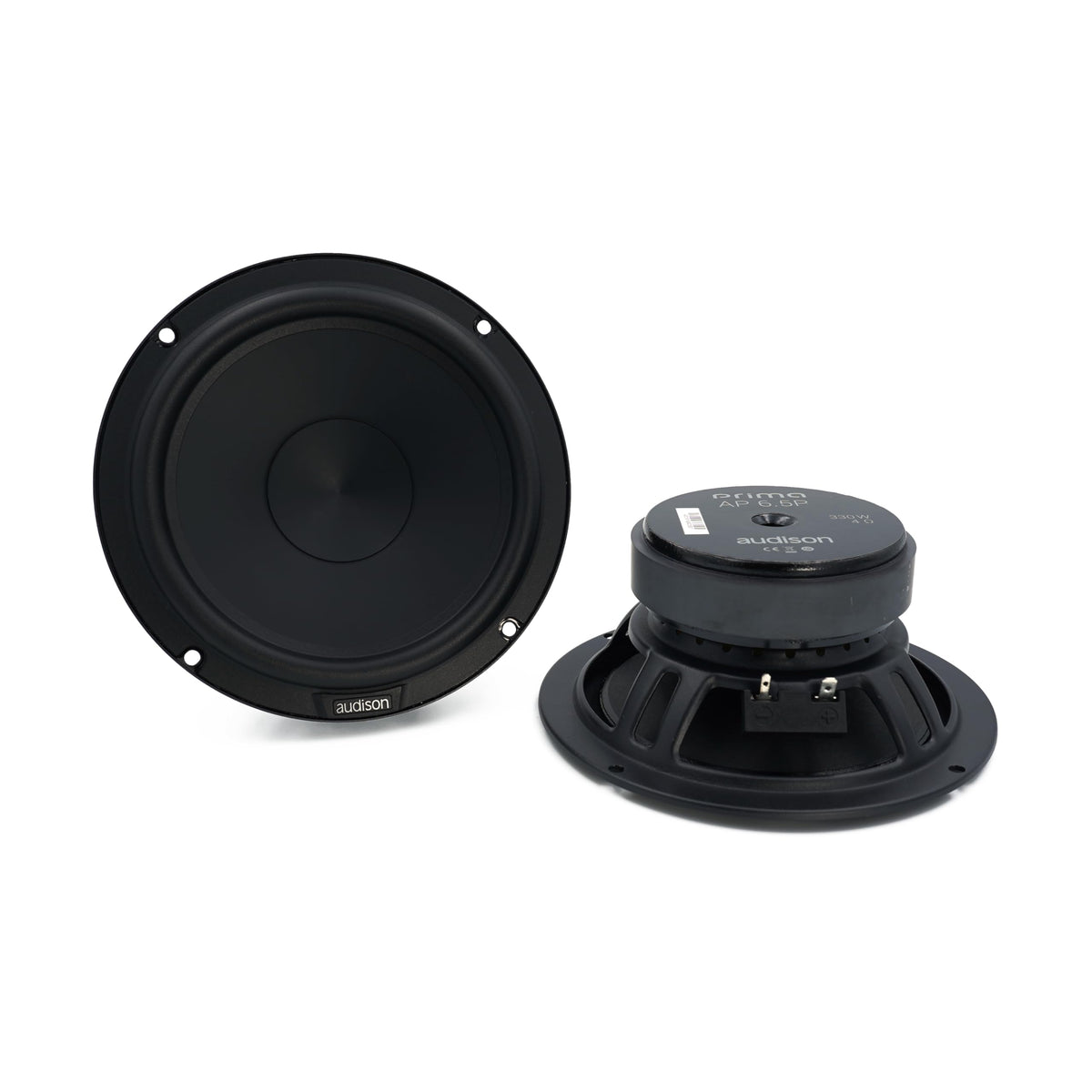

Audison AP 6.5P 6.5" Component Woofer Pair

The Audison AP 6.5P is a pair of 165 mm (6.5-inch) component woofers designed for upgrading factory door-speaker locations. It is intended for listeners who want stronger midbass capability and greater power handling than typical OEM speakers can provide. Its compact format supports installations where available depth and mounting space are limited.

With 110 W continuous and 330 W peak power handling per speaker, the AP 6.5P is suited to systems using an external amplifier as well as carefully configured factory-system upgrades. Its 4-ohm nominal impedance makes it compatible with many conventional car-audio amplifier channels. The 92.5 dB sensitivity specification supports efficient output from an appropriately matched system.

The woofer uses a 32 mm Copper-Clad Aluminum Wire voice coil to manage higher applied power while keeping moving mass controlled. Audison specifies 5.6 mm Xmax for increased cone travel during dynamic passages. The result is a woofer engineered for controlled midbass response and dependable operation within its rated range.

A water-repellent treated paper cone provides the diaphragm material, while the magnetic assembly is sized to help maintain cone control at high excursion. The basket was engineered to reduce airflow resistance while retaining a compact shape. These design choices support use in OEM-style door locations where installation clearance is an important consideration.

The AP 6.5P is a woofer component rather than a complete coaxial speaker, making it a practical foundation for a custom component system. It can be paired with compatible tweeters, crossover networks, amplification, and sound treatment based on the vehicle and installation goals. For a front-stage upgrade, confirm fitment, available mounting depth, and the crossover plan before installation.

Key Features

• 165 mm Woofer Size: Fits the common 6.5-inch speaker class for many door-speaker upgrades.
• 110 W Continuous Handling: Supports use with appropriately matched aftermarket amplification.
• 32 mm CCAW Voice Coil: Helps manage power while supporting controlled cone movement.
• Extended Excursion: Rated at 5.6 mm Xmax for handling demanding dynamic peaks.
• Treated Paper Cone: Water-repellent cone material is suited to automotive-door environments.
• Compact Basket: Designed to ease installation in OEM-style speaker locations.

Design & Installation

The AP 6.5P combines a water-repellent treated paper cone, 32 mm CCAW voice coil, compact basket, and substantial magnetic assembly. Audison designed the basket to lower airflow resistance while preserving a compact installation profile. Each speaker has a specified weight of 1.45 kg.

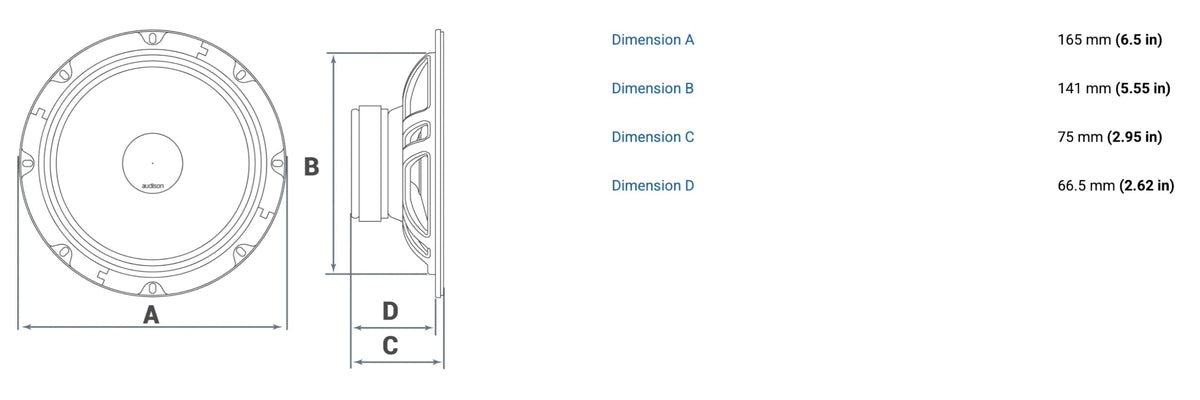

Verify the vehicle's speaker opening, mounting depth, and panel clearance before ordering or installation. The manufacturer lists a 165 mm overall diameter, 141 mm mounting-hole diameter, 75 mm total depth, and 66.5 mm mounting depth. Because this is a woofer component, use suitable high-pass and low-pass filtering, and select compatible tweeters and crossovers when building a component system.
