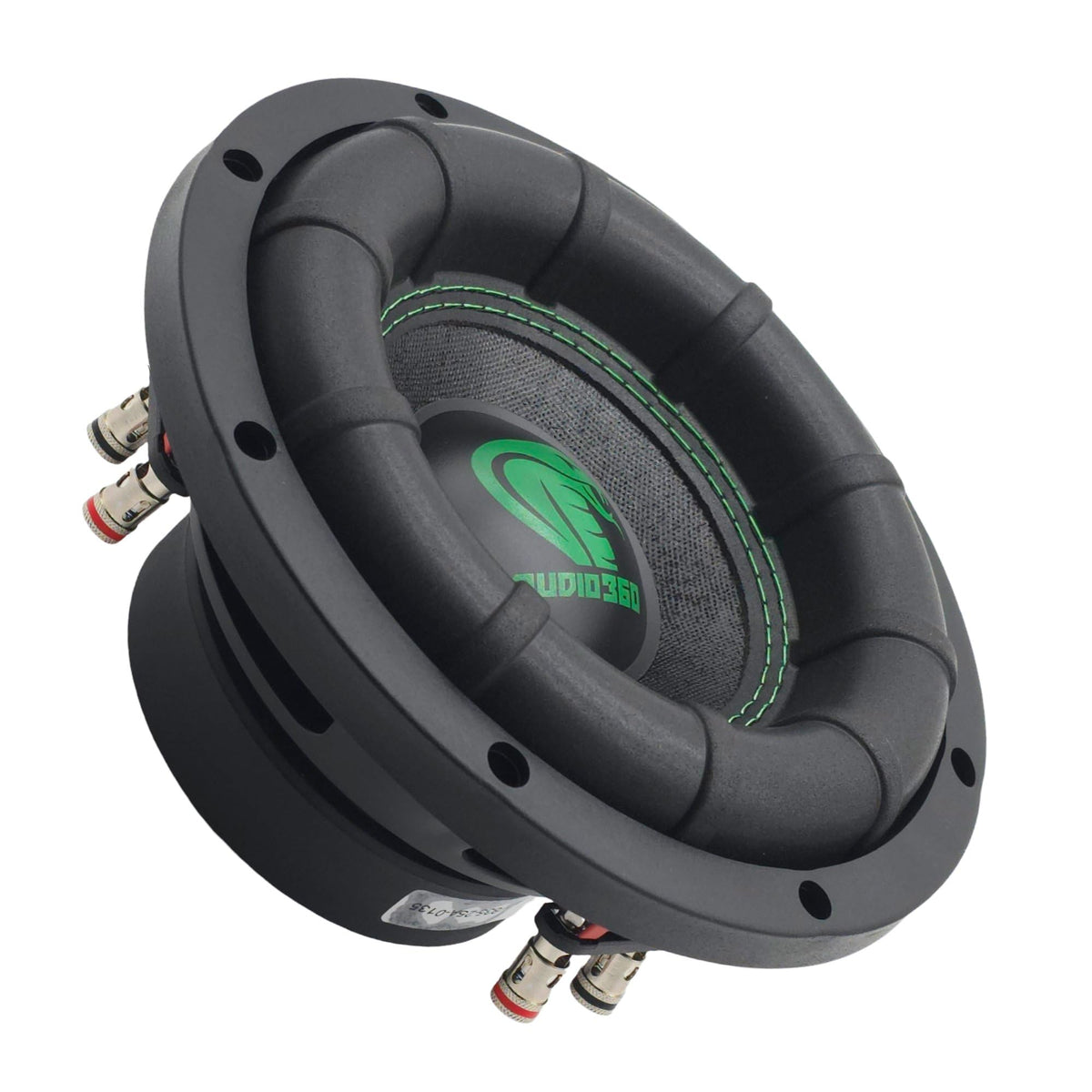

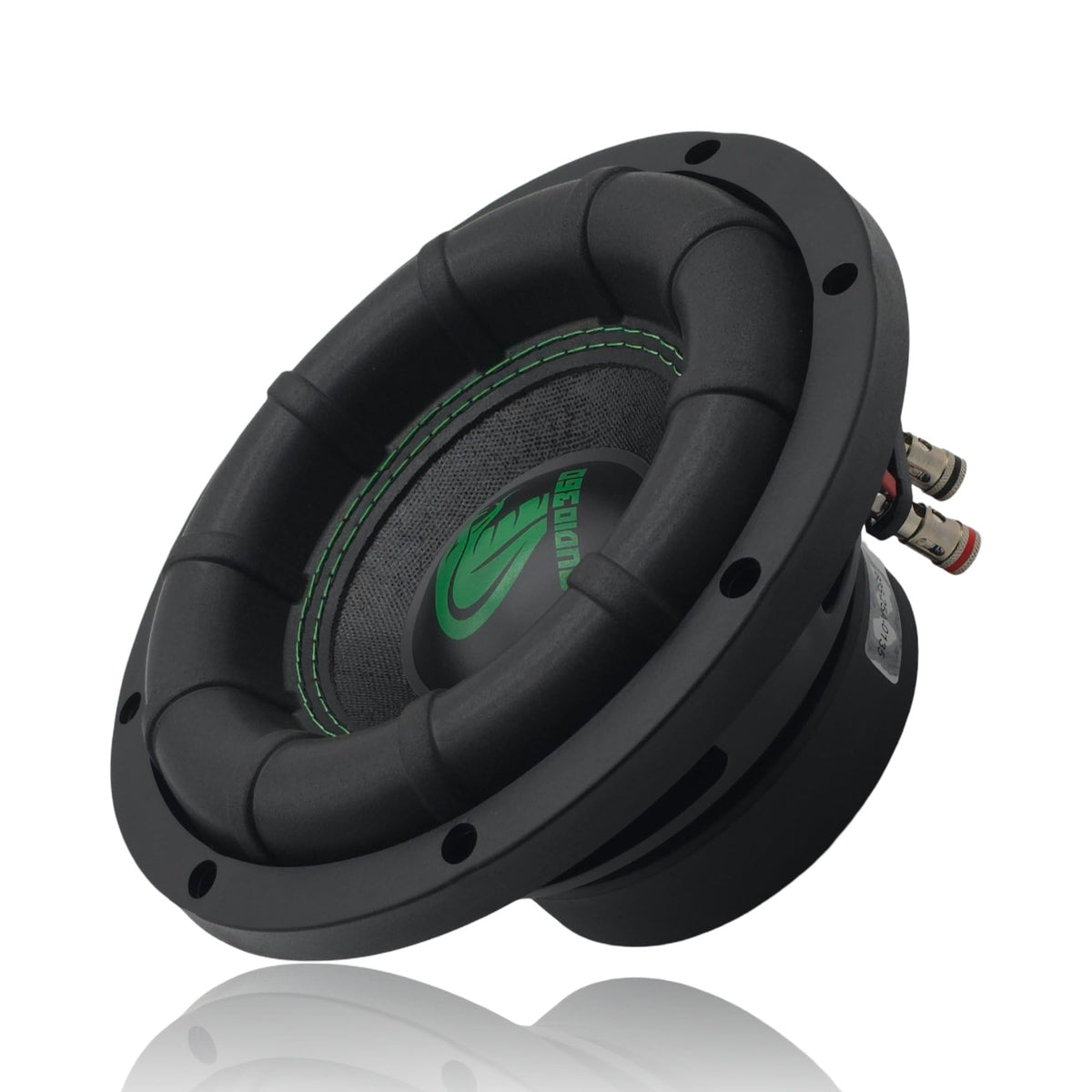

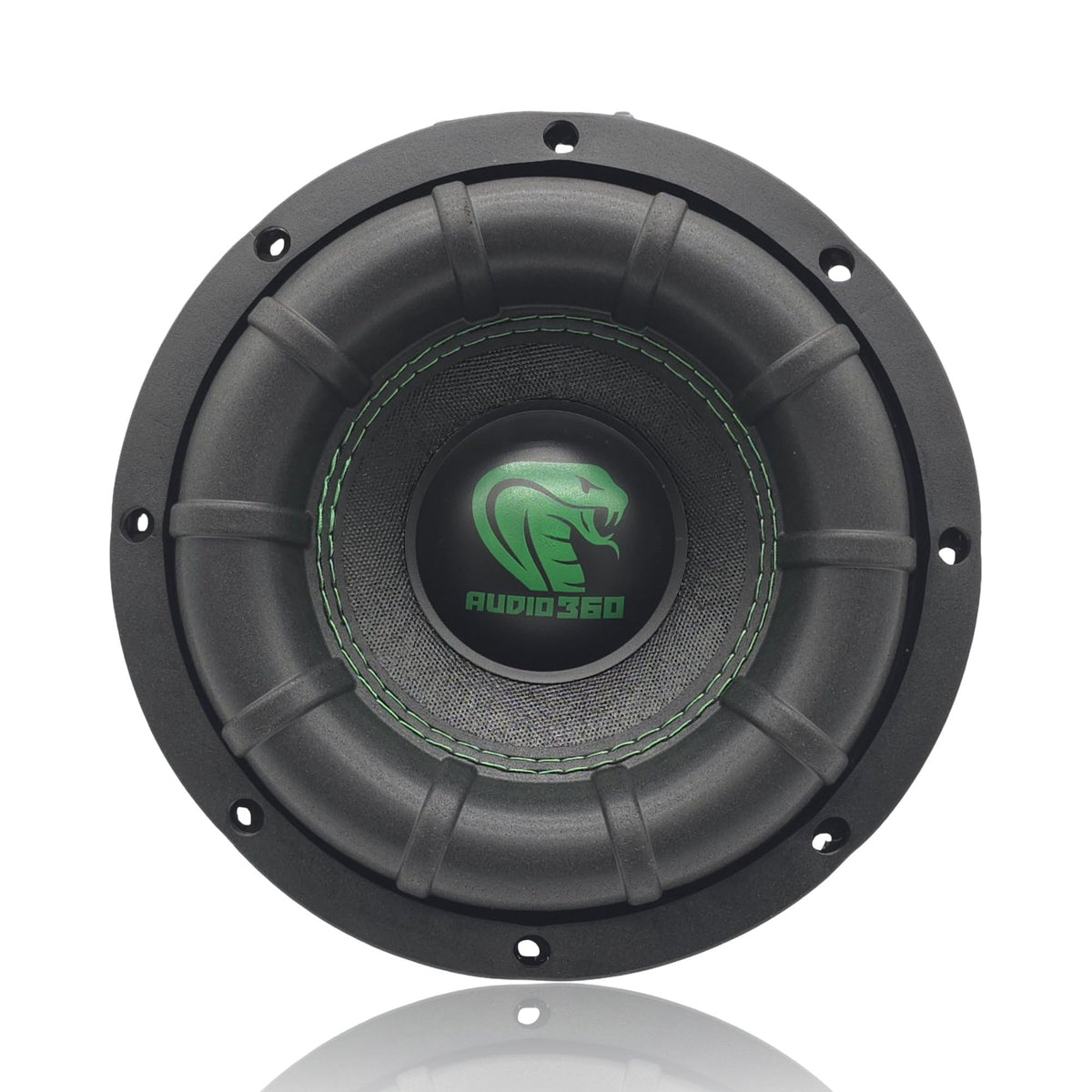

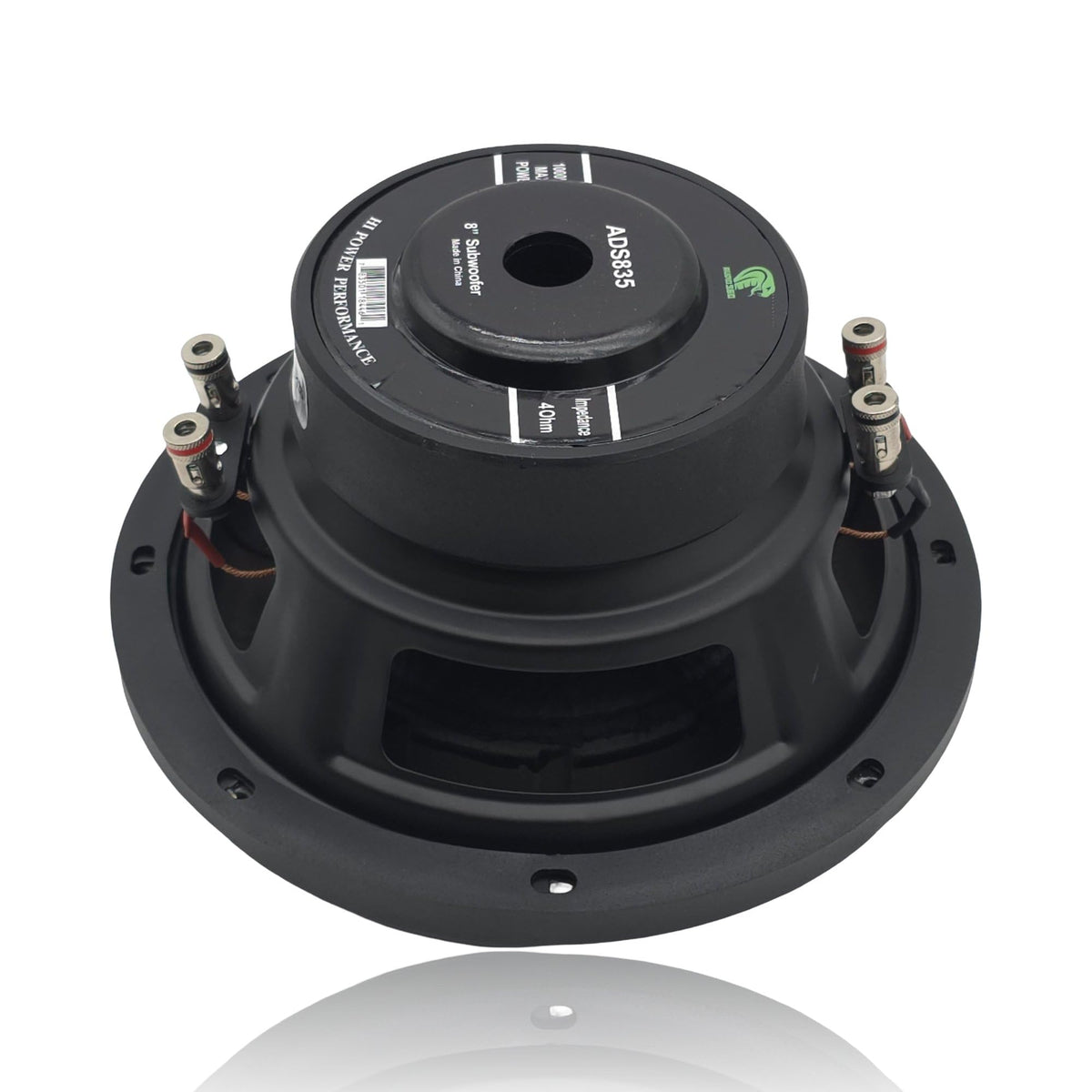

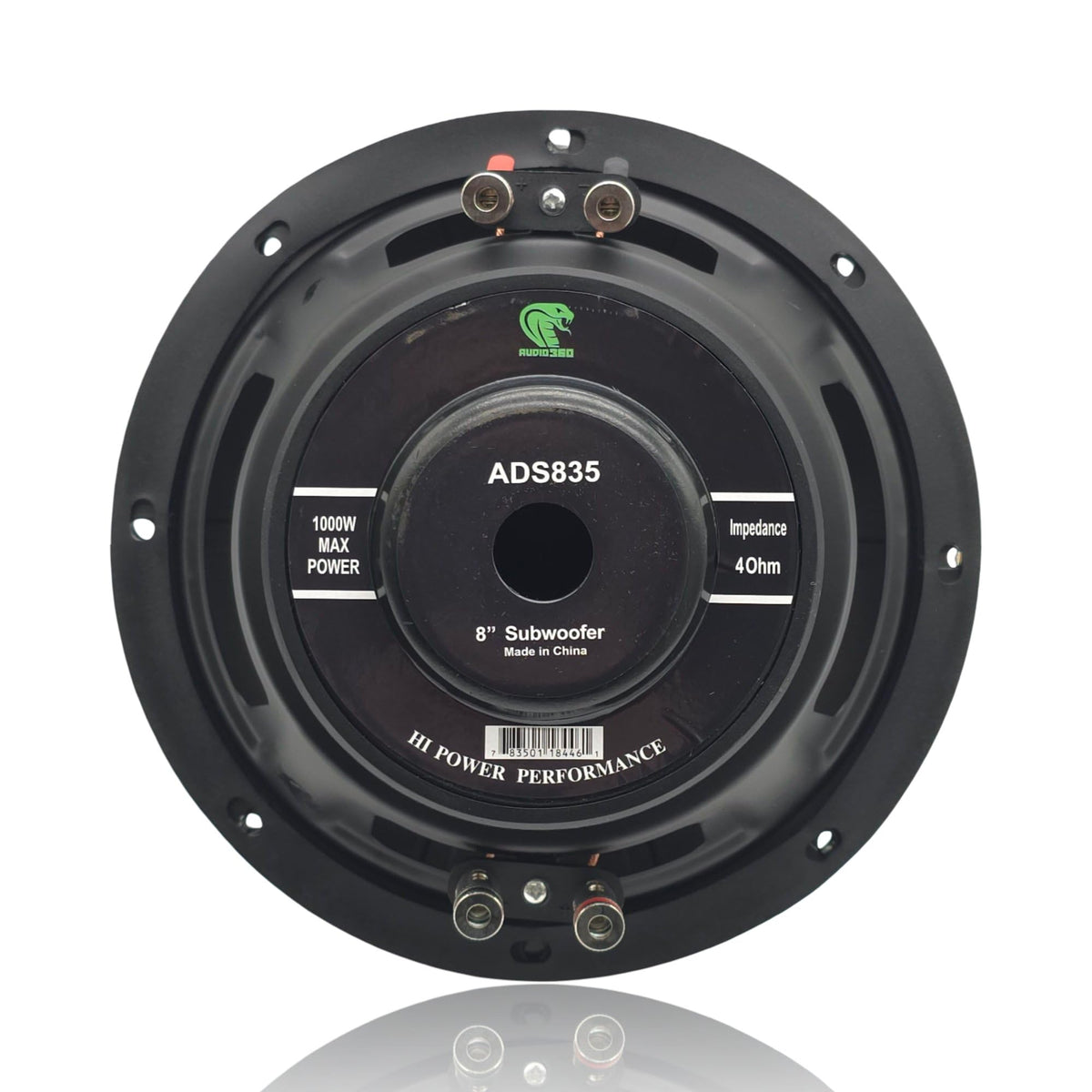

AUDIO360 ADS835 8-Inch 4-Ohm Car Subwoofer

The AUDIO360 ADS835 is an 8-inch car subwoofer designed to add low-frequency output where installation space is limited. Its compact format suits vehicle audio systems using compact to mid-size subwoofer enclosures. With a 4-ohm nominal impedance, it is intended for use with compatible aftermarket amplification.

Rated at 500 watts RMS and 1,000 watts maximum power, the ADS835 is built for systems that need a dedicated bass driver rather than relying only on full-range door speakers. It can help reproduce the lower musical range with more presence and impact. Proper amplifier gain setting and enclosure selection remain important to its performance.

The ADS835 is suited to drivers building a first subwoofer system, replacing an existing 8-inch woofer, or fitting bass into a space-conscious installation. Its 8-inch diameter can be practical when a larger subwoofer is not appropriate for the available enclosure or vehicle layout. The 4-ohm configuration supports straightforward matching with an amplifier rated to operate at that load.

A reinforced cone and surround provide the driver construction specified for this model. This design is intended to support repeated woofer movement during low-frequency playback. The shallow 3.15-inch mounting depth can also help where rear clearance behind the mounting panel is restricted.

The ADS835 can be used in either sealed or ported enclosures. A sealed enclosure is appropriate for a more controlled bass character, while a ported enclosure can prioritize additional low-frequency output when properly designed. Its 7.09-inch cutout diameter should be verified against the planned baffle before installation.

Key Features

• 500W RMS Power Handling: Supports amplifier matching around its continuous power rating.
• 1,000W Maximum Power: Provides the listed peak power-handling specification.
• 8-Inch Subwoofer: Fits compact bass-system and replacement applications.
• 4-Ohm Impedance: Works with compatible aftermarket amplifier configurations.

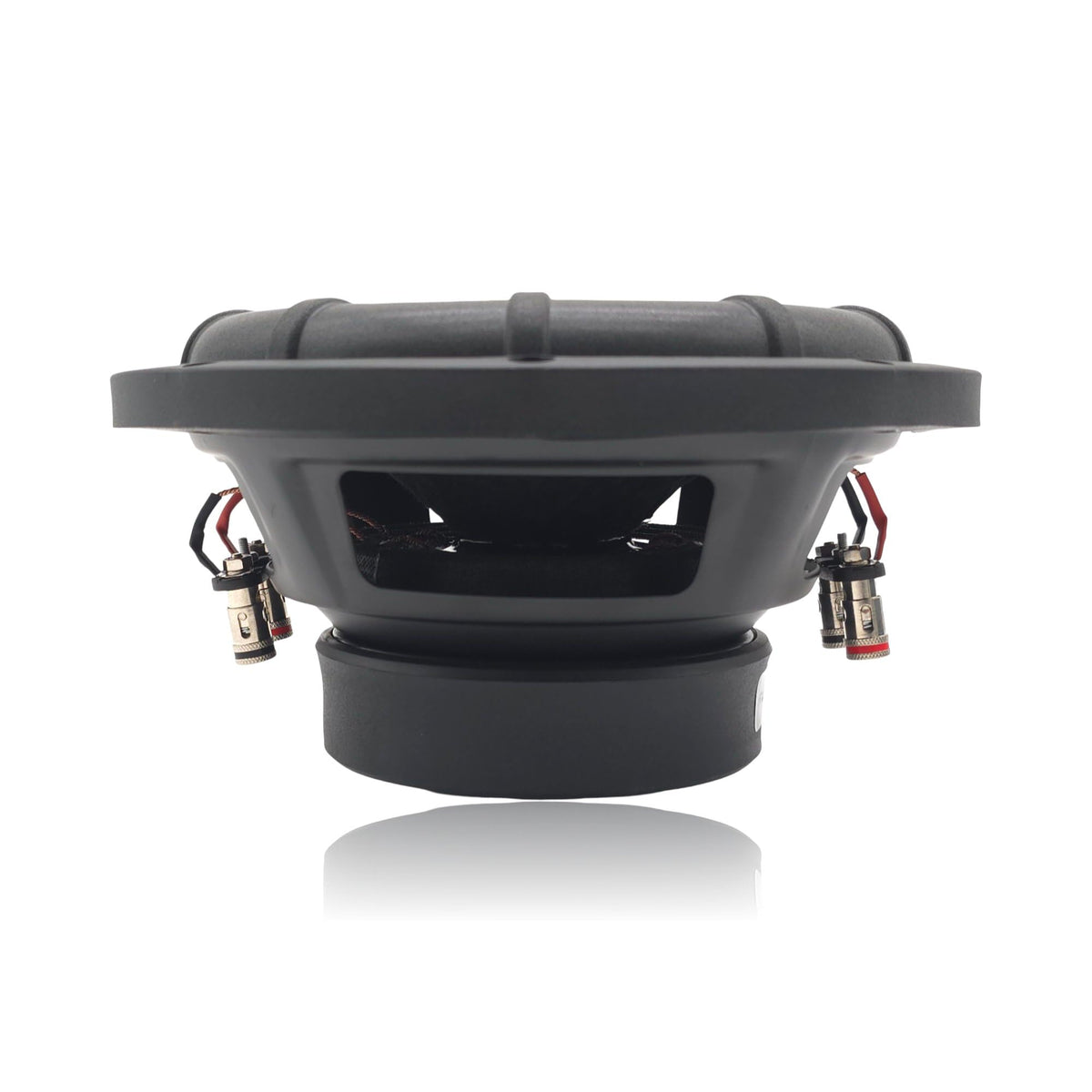

• Shallow Mounting Depth: Requires only 3.15 inches of rear clearance.
• Sealed or Ported Use: Allows enclosure selection for system goals.

Design & Installation

The ADS835 uses a reinforced cone and surround, with a circular 8-inch driver layout. Its compact dimensions are intended for installations where enclosure volume and mounting clearance are important considerations. The driver is specified for in-car audio use and is listed as a passive wired subwoofer.

Plan the enclosure and amplifier around the subwoofer's 4-ohm impedance and 500-watt RMS rating. Confirm a 7.09-inch mounting cutout and at least 3.15 inches of mounting depth before cutting a panel. Use either a properly designed sealed or ported enclosure, and have an experienced installer handle wiring, amplifier setup, and gain adjustment if needed.
