Viper 5706V 2-Way Security and Remote Start System

The Viper 5706V is a two-way vehicle security and remote start system designed to combine alarm functions, keyless-entry control, and remote engine starting in one installed package. It is intended for drivers who want confirmation that a command was received rather than relying only on a one-way transmitter. Its LCD remote can report system status while supporting daily arm, disarm, trunk, and remote-start functions.

This system uses a 4-channel security platform with door and trunk trigger inputs to monitor key vehicle access points. A shock sensor provides impact detection, with adjustable sensitivity for tailoring the response to the vehicle and installation environment. The system can also provide siren, parking-light, horn-honk, and starter-control connections when professionally integrated.

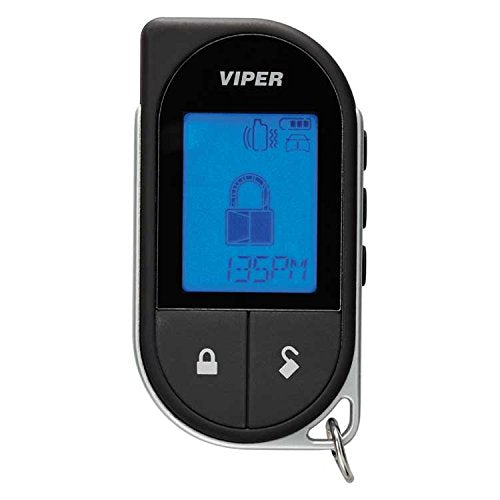

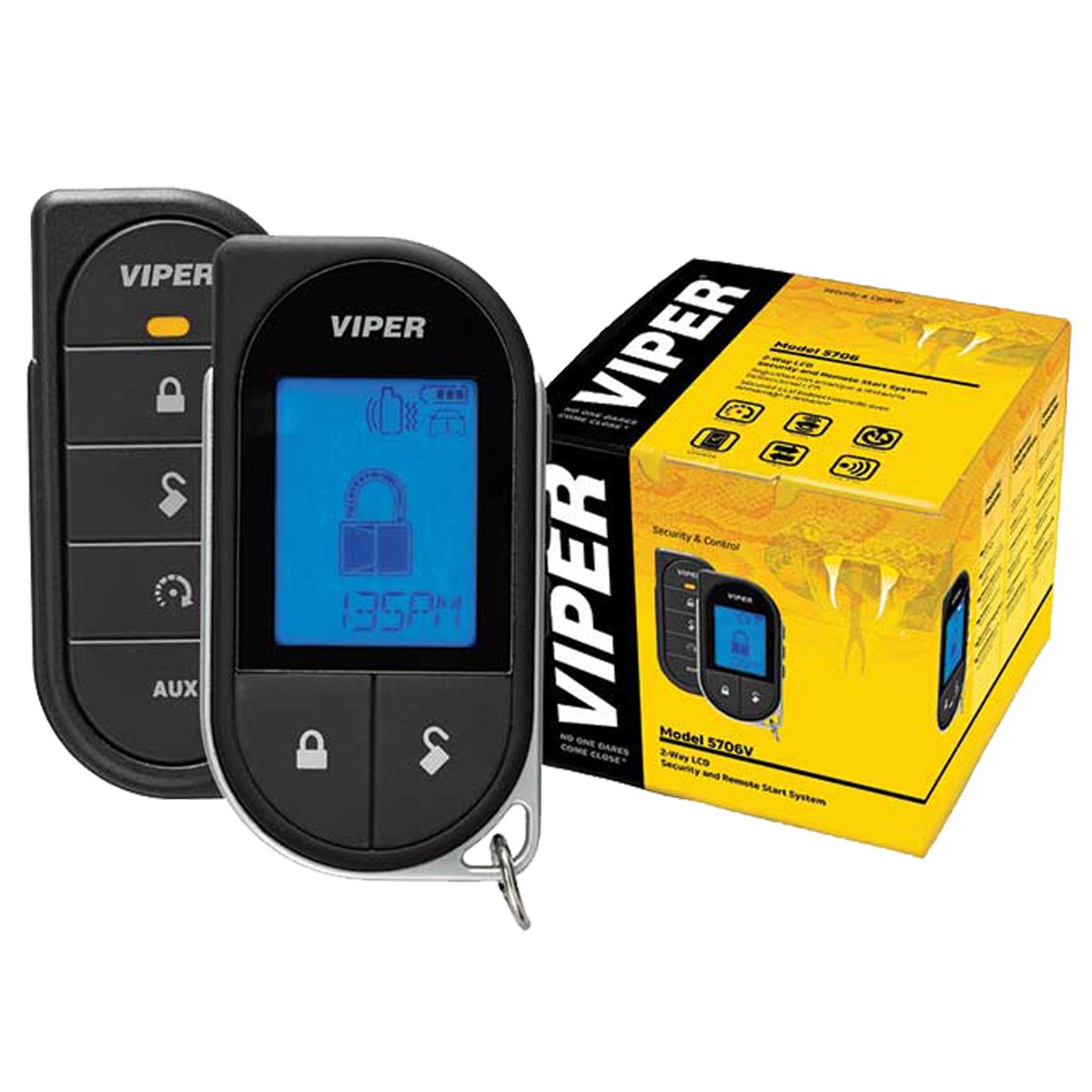

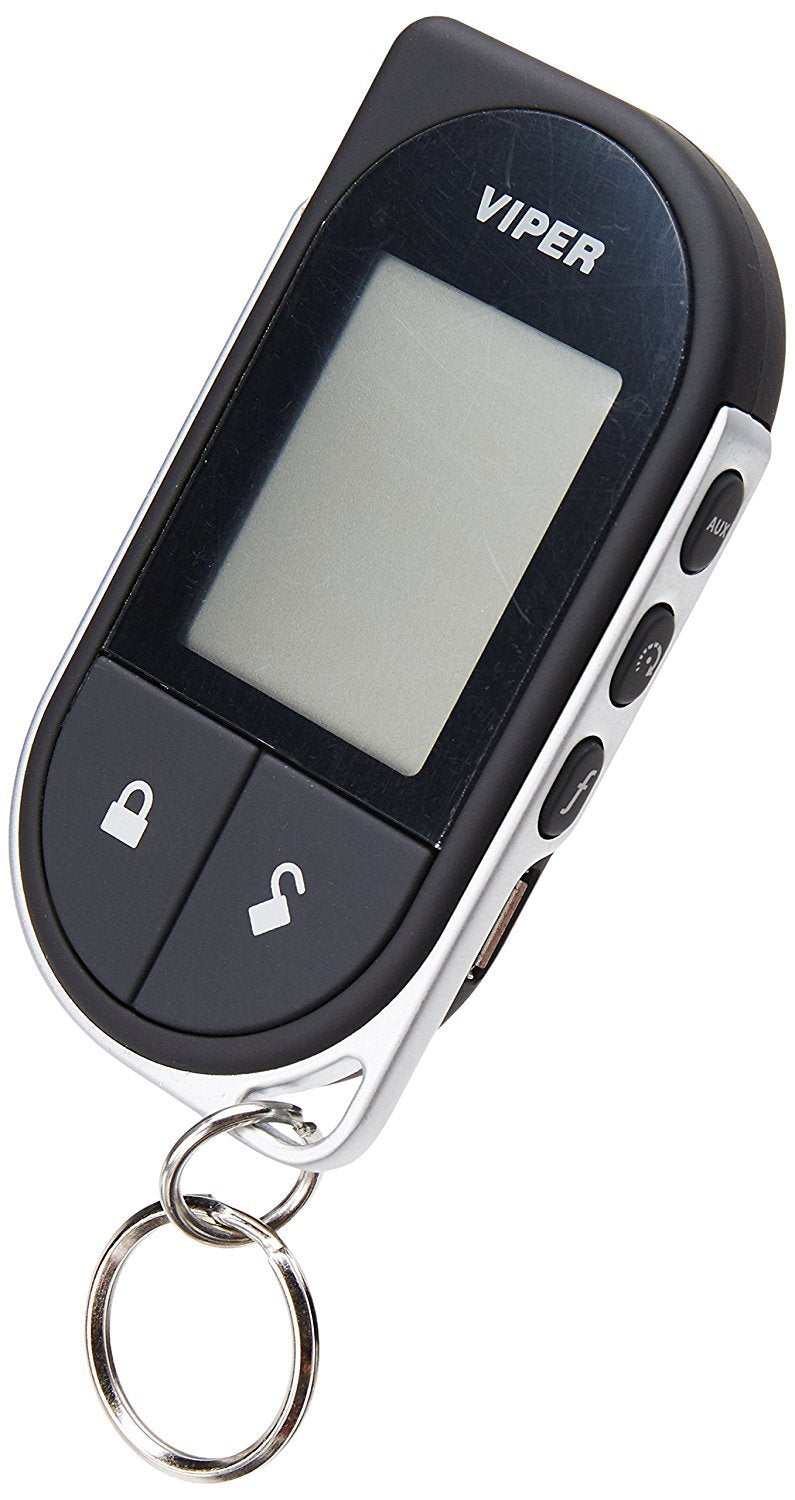

Its communication approach centers on a two-way Responder LC remote, which displays status icons and text confirmations for system, siren, alarm-zone, and remote-start activity. The remote can show clock, runtime, or temperature information during remote start when configured. A companion one-way remote provides a straightforward secondary controller for another driver or as a backup.

The 5706V supports remote starting through a heavy-gauge ignition, accessory, and starter wiring harness. It offers tachometer learning and Virtual Tach capability for engine-start monitoring, with dedicated brake, hood, neutral-safety, and diesel wait-to-start inputs. These safeguards and vehicle-specific connections make correct setup important for dependable operation.

For a complete security upgrade, the system can be integrated with compatible door locks, trunk release, factory-alarm arm/disarm circuits, and an external Xpresskit interface through its D2D port. Its Control Center combines the in-vehicle antenna, status LED, and valet/control button at the windshield. Professional installation is recommended because compatibility, bypass requirements, and wiring methods vary by vehicle.

Key Features

• Two-Way LCD Remote: Displays command confirmations and key system-status information.
• One-Mile Range: Provides extended operating distance under suitable conditions.
• Remote Start Capability: Starts or stops the engine from the remote.
• 4-Channel Security: Supports door and trunk trigger monitoring.
• Adjustable Shock Sensor: Lets an installer tailor impact-detection sensitivity.

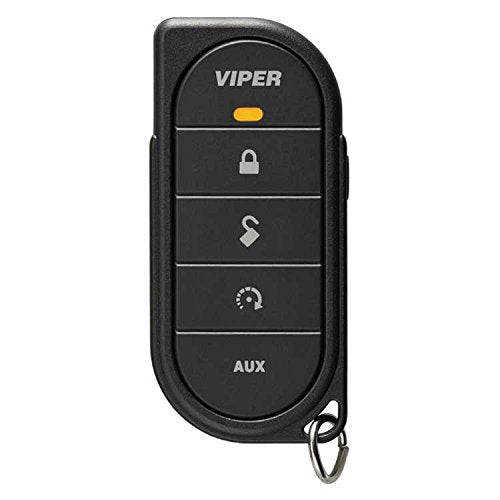

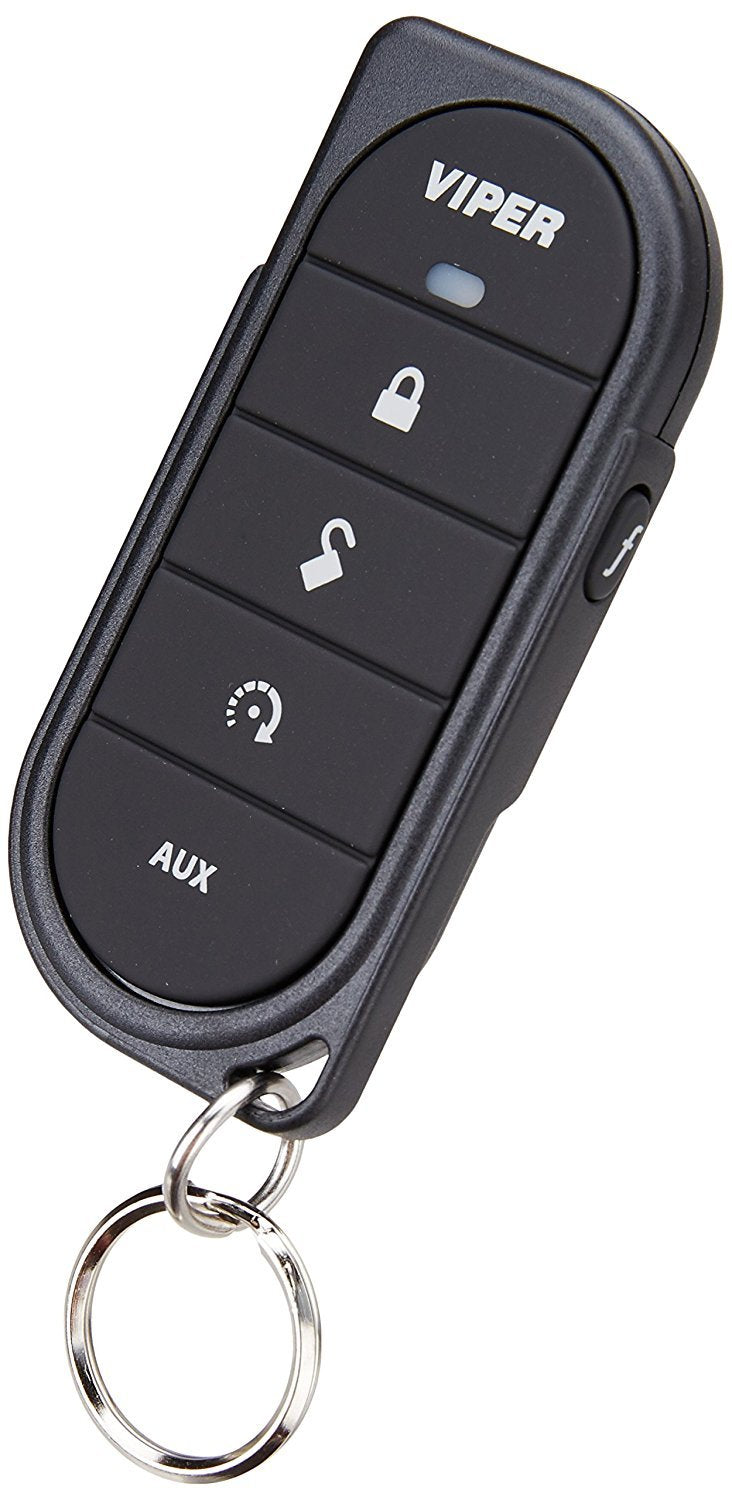

• Companion One-Way Remote: Adds a second five-button control option.

Design & Installation

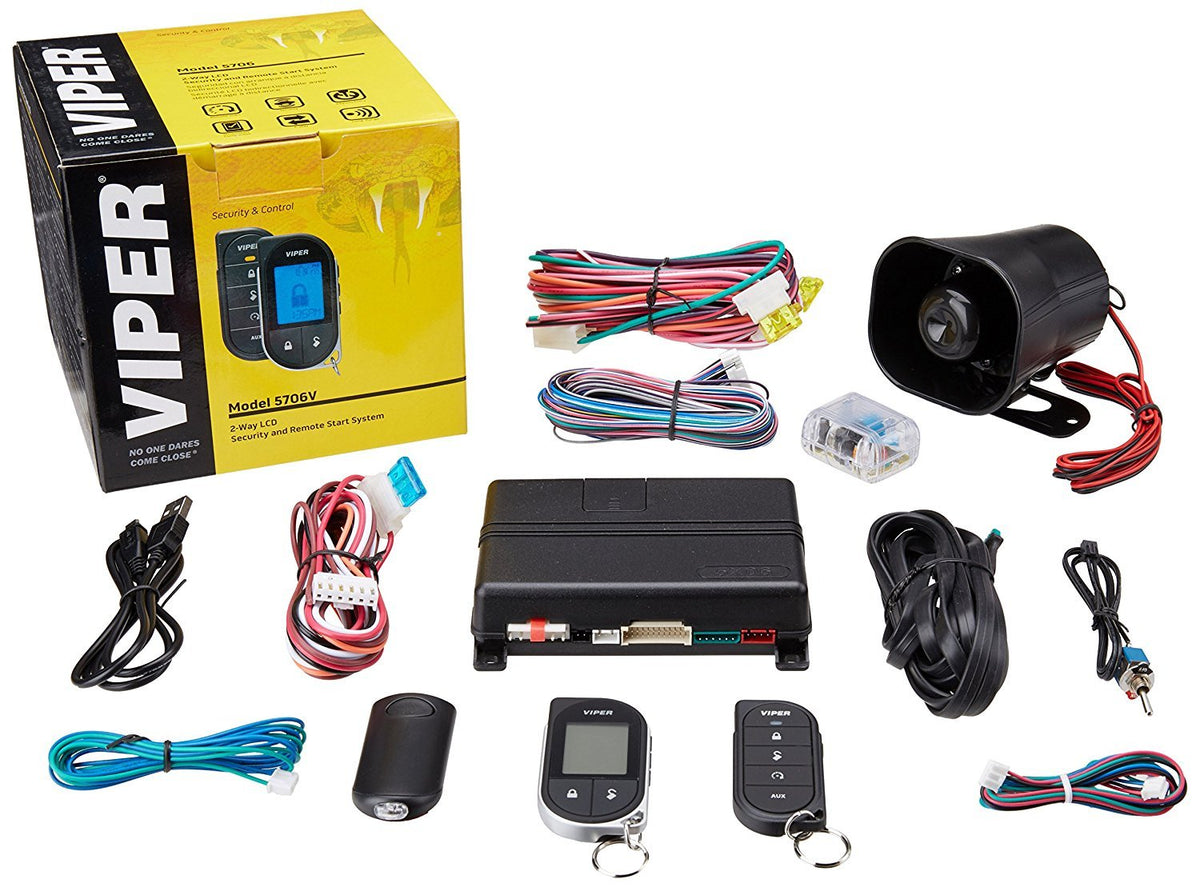

The 5706V is a vehicle-integrated electronic security system built around a central control module, separate Control Center, remote transmitters, harnesses, and sensor connections. The manufacturer documentation does not publish enclosure-material specifications. Its Control Center design places the two-way antenna, status LED, and valet/control button together for accessible operation and visible status indication.

Installation requires connection to the vehicle's power, ground, ignition, accessory, starter, brake, hood, door, and related circuits as applicable. The Control Center is typically mounted at the upper windshield, while the main module and wiring are installed inside the vehicle. A compatible vehicle interface or bypass module may be needed for certain vehicles, and the manufacturer specifies professional installation for this product.
