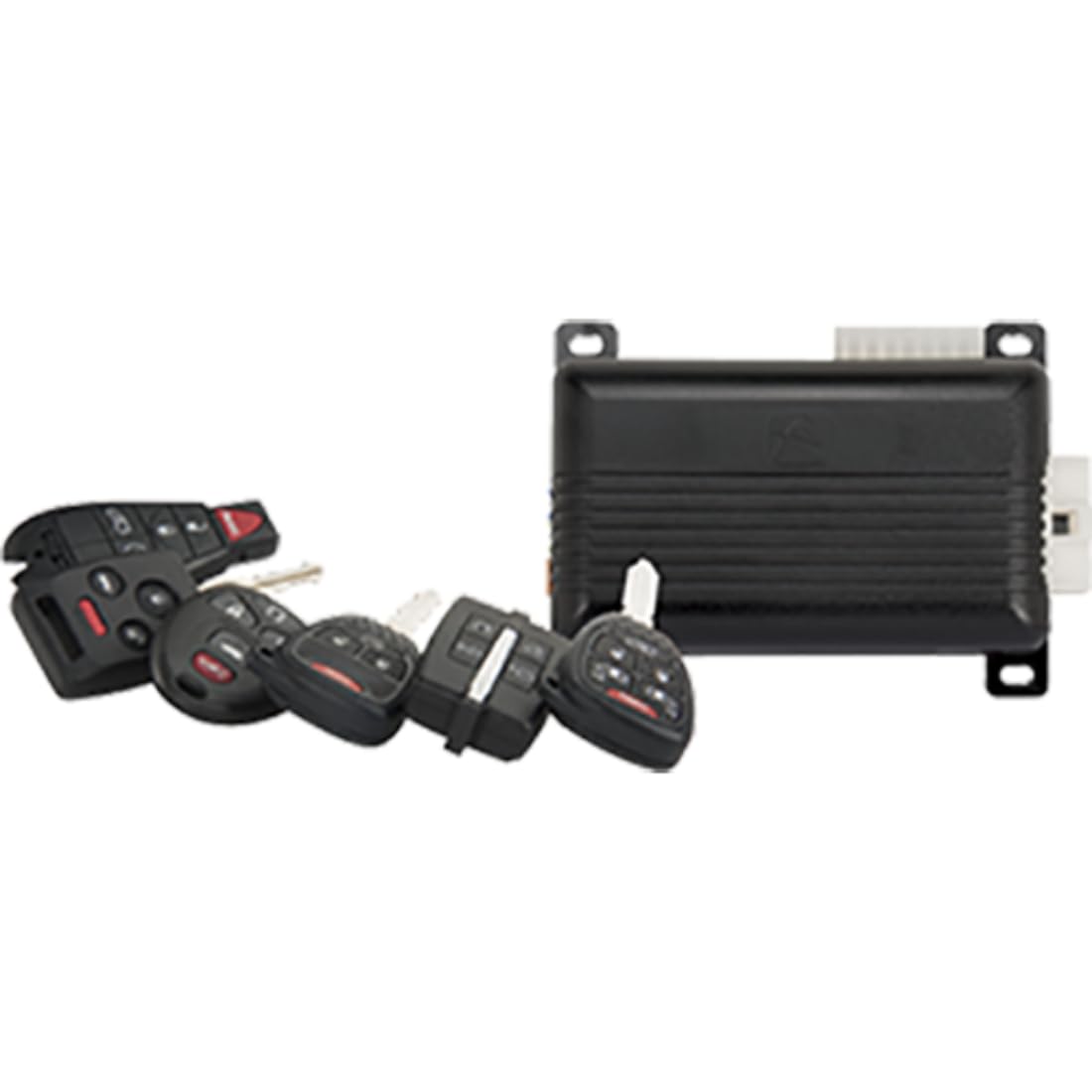

VIPER Pursuit PRO9233Z Factory Keyless Security Upgrade

The VIPER Pursuit PRO9233Z is a vehicle security upgrade designed for vehicles that already have factory keyless entry. It uses the vehicle's existing OEM remote controls to arm and disarm the security system, helping retain the familiar factory lock and unlock operation. This makes it a practical option for adding alarm functions without replacing the original key fobs.

The system is intended for drivers who want added vehicle monitoring while preserving factory-style daily operation. A dual-stage shock sensor provides a warning-level response and a full-trigger response, while door, hood, trunk, and shock inputs can be used as security trigger zones. Parking-light, siren, horn, and LED feedback help communicate system status.

The PRO9233Z includes a starter-interrupt output that can be used with the appropriate installation hardware to disable the starter circuit while the alarm is armed. It also supports automatic arming, automatic locking, ignition-controlled locking, and ignition-controlled unlocking through programmable settings. These options allow the installation to be configured around the vehicle and owner preferences.

Its design supports integration with factory lock circuitry and selected data interfaces. The system has a FlashLogic-compatible data port for supported door-lock or transponder interfaces, plus a telematics and Weblink programming port. With a connected compatible CarLink interface, supported functions may be extended to a smartphone or tablet.

The PRO9233Z fits as a security-focused upgrade path for a factory-keyless vehicle rather than as a replacement remote-start or keyless-entry system. It can be configured for positive or negative lock, unlock, and trunk-shunt signals, helping it adapt to different vehicle wiring arrangements. Professional installation is strongly recommended because proper operation depends on vehicle-specific wiring, circuit testing, and safe placement of the module and sensor.

Key Features

• Factory Remote Operation: Uses the vehicle's existing OEM keyless-entry remotes for arming and disarming.
• Dual-Stage Shock Sensor: Provides separate warning and full-trigger shock detection inputs.
• Starter Interrupt Output: Supports a starter-disable circuit when properly installed.
• Automatic Security Functions: Offers programmable auto arming, locking, and relocking settings.
• FlashLogic Compatibility: Supports FlashLogic-based programming and compatible data-interface integration.
• Telematics Port: Supports compatible CarLink and Weblink-connected expansion options.

Design & Installation

The PRO9233Z uses a modular vehicle-security layout with a 14-pin main input/output harness, a 5-pin control connector, a 2-pin door-lock connector, a 4-pin shock-sensor connection, a DBI port, and a telematics port. Its design separates vehicle inputs, lock-control connections, sensor wiring, and optional interface connections for organized integration. Manufacturer documentation does not specify enclosure material, but it identifies dedicated connections for the supplied shock sensor and LED/valet programming control.

Install the module in a protected location, mount the shock sensor securely to a solid vehicle surface or sturdy harness, and adjust sensitivity after all connections are complete. The LED/valet control requires a 5/16-inch dashboard mounting hole, and wiring must be verified against the specific vehicle before connection. Professional installation is recommended, particularly for ignition, starter-interrupt, factory-lock, parking-light, data-bus, and trigger-circuit connections.
