Rockford Fosgate X317MAX-RSS Dual 10" Can-Am X3 MAX Sub Kit

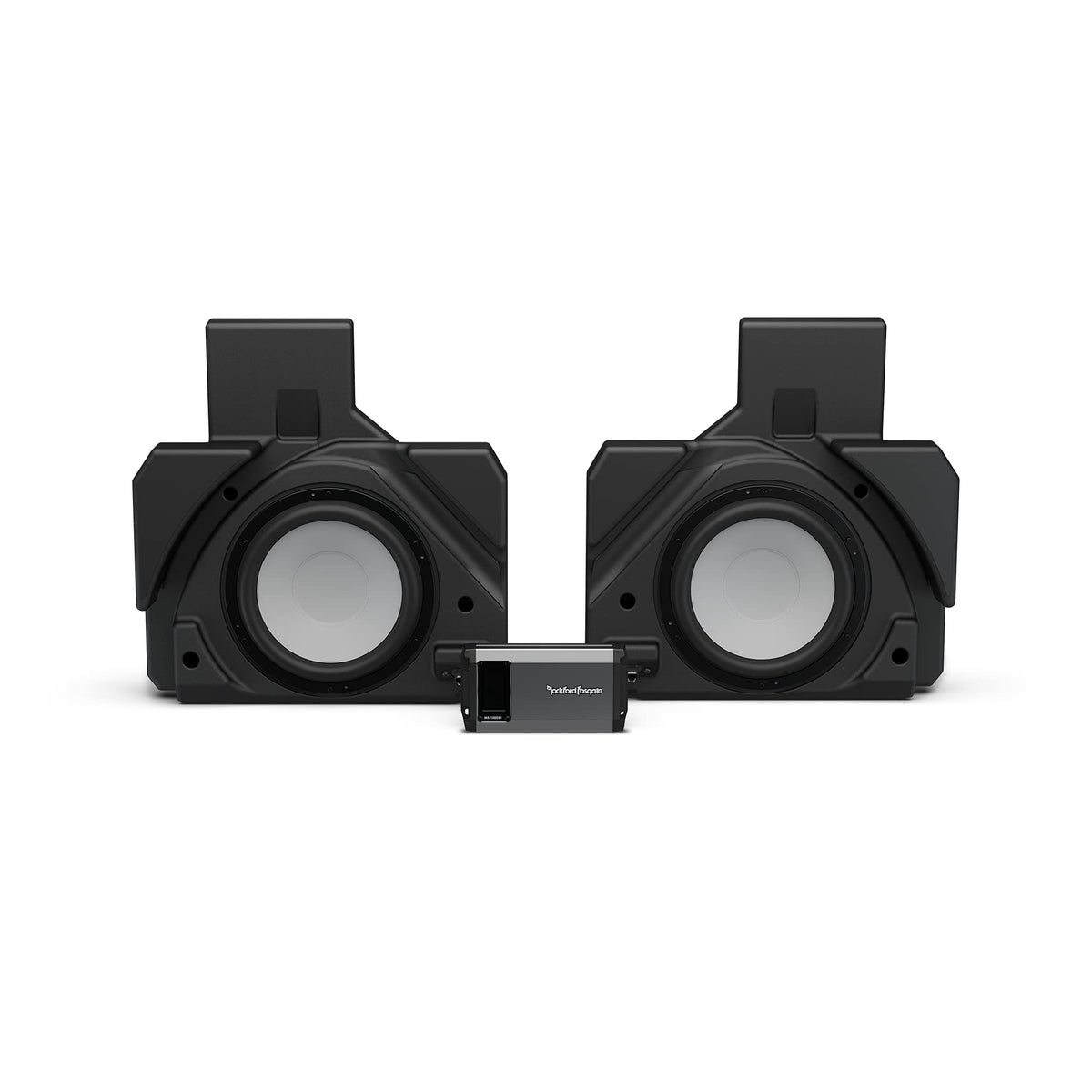

The Rockford Fosgate X317MAX-RSS is a vehicle-specific rear bass upgrade for select Can-Am Maverick X3 MAX four-seat models. It adds two loaded 10-inch subwoofer enclosures and a dedicated mono amplifier to compatible Rockford Fosgate Stage-3, Stage-4, Stage-5, or Stage-6 audio systems. The kit is intended for riders who want to extend their existing system with dedicated low-frequency output without adapting universal enclosures.

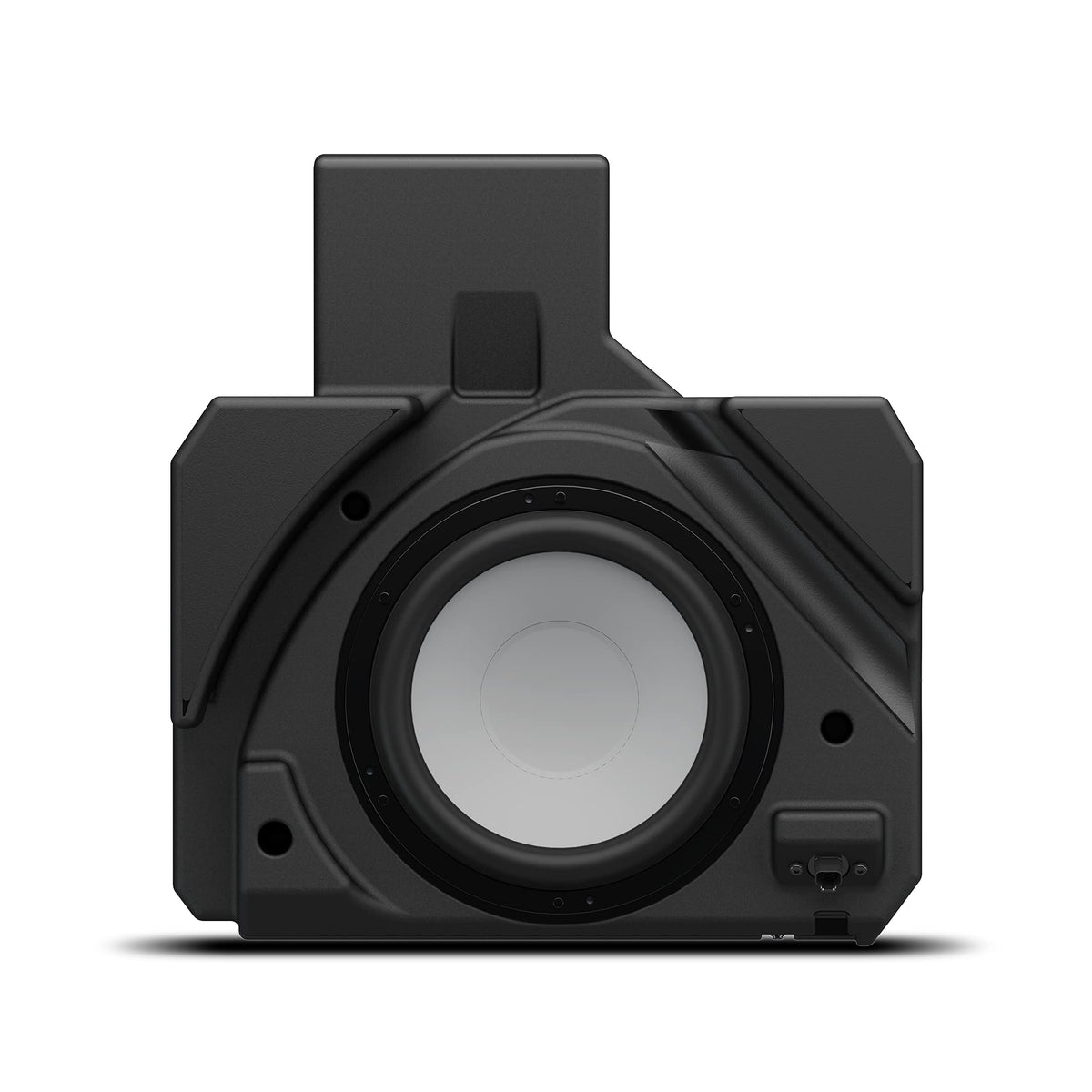

Each sealed enclosure is shaped for placement beneath a rear seat, using a left-and-right arrangement made for the X3 MAX cabin. The down-firing subwoofer layout focuses the system on bass reinforcement while preserving a factory-integrated appearance. Its two M2D2-10IB 10-inch subwoofers use the supplied vehicle-specific wiring to create a 2-ohm amplifier load.

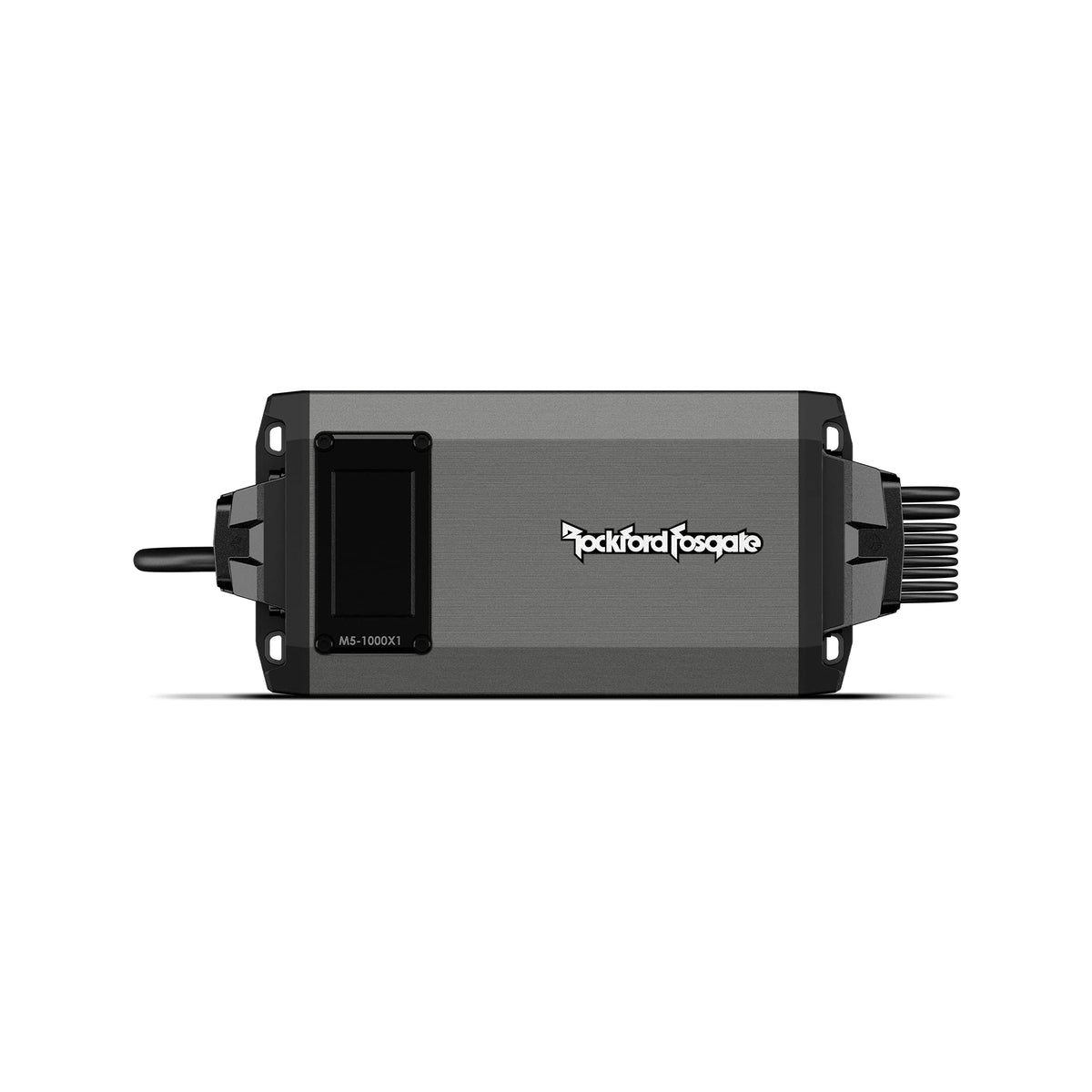

The included M5-1000X1 mono amplifier is an Element Ready, IPX6-rated design with a 30 Hz infrasonic filter and adjustable low-pass crossover. It delivers 750 watts RMS at 2 ohms, matching the kit's wired load configuration. The amplifier's PRESET function is designed for use with compatible Rockford Fosgate UTV systems, reducing the need for manual amplifier adjustment.

This package is built for off-road installations where water spray, dust, vibration, and exposure are practical considerations. The subwoofer enclosures use roto-molded HDPE construction and sealed designs, while the amplifier uses sealed harness and panel interfaces. The system's 2-pin Deutsch/Amphenol speaker connection supports the supplied plug-and-play harness arrangement.

The X317MAX-RSS is an add-on bass solution rather than a standalone source unit or complete audio system. It is designed to use factory mounting locations and includes the primary brackets, hardware, amplifier plate, and harnesses needed for its intended installation. Confirm the vehicle and existing Rockford Fosgate audio-system requirements before purchase, as this kit is not intended for two-seat X3 models.

Key Features

• Dual 10-Inch Subwoofers: Two loaded M2D2-10IB subwoofer enclosures add dedicated bass capability.
• Vehicle-Specific Fit: Left and right enclosures mount beneath the rear seats of compatible X3 MAX models.
• Sealed HDPE Enclosures: Roto-molded enclosures provide a durable, vehicle-integrated installation format.
• M5-1000X1 Mono Amplifier: Included IPX6-rated amplifier powers the supplied subwoofer system.
• PRESET Setup Mode: Compatible Rockford Fosgate UTV systems can use the amp's preset tuning mode.

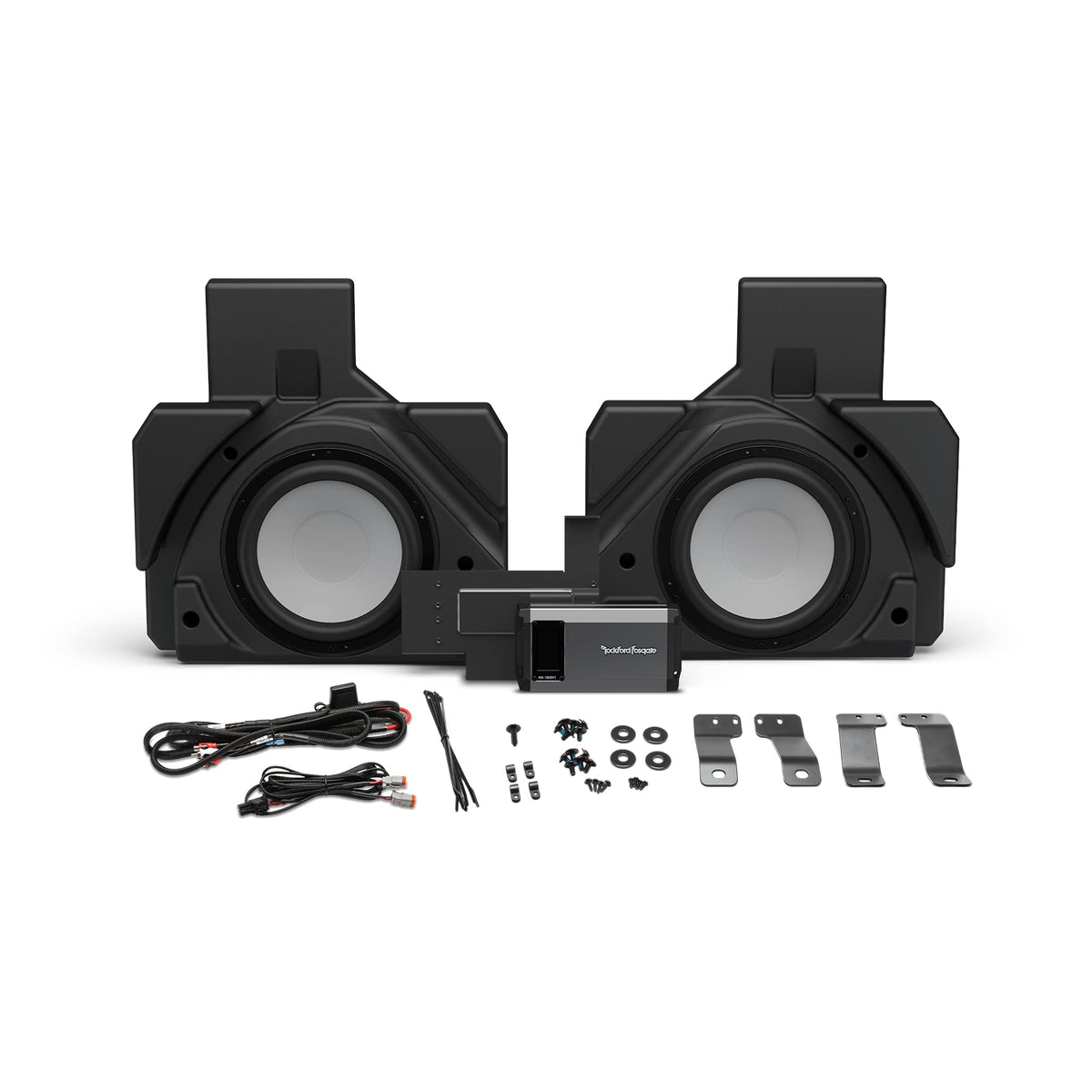

• Complete Installation Hardware: Brackets, harnesses, mounting hardware, and amplifier mounting parts are included.

Design & Installation

The X317MAX-RSS uses sealed, down-firing subwoofer enclosures constructed from roto-molded HDPE and textured to complement the vehicle's factory finish. Its M2D2-10IB subwoofers are 10-inch, dual-2-ohm designs with injection-molded mineral-filled polypropylene cones and rubber surrounds. The included M5-1000X1 amplifier is IPX6 rated and uses an Element Ready design with integrated harness and control-panel seals.

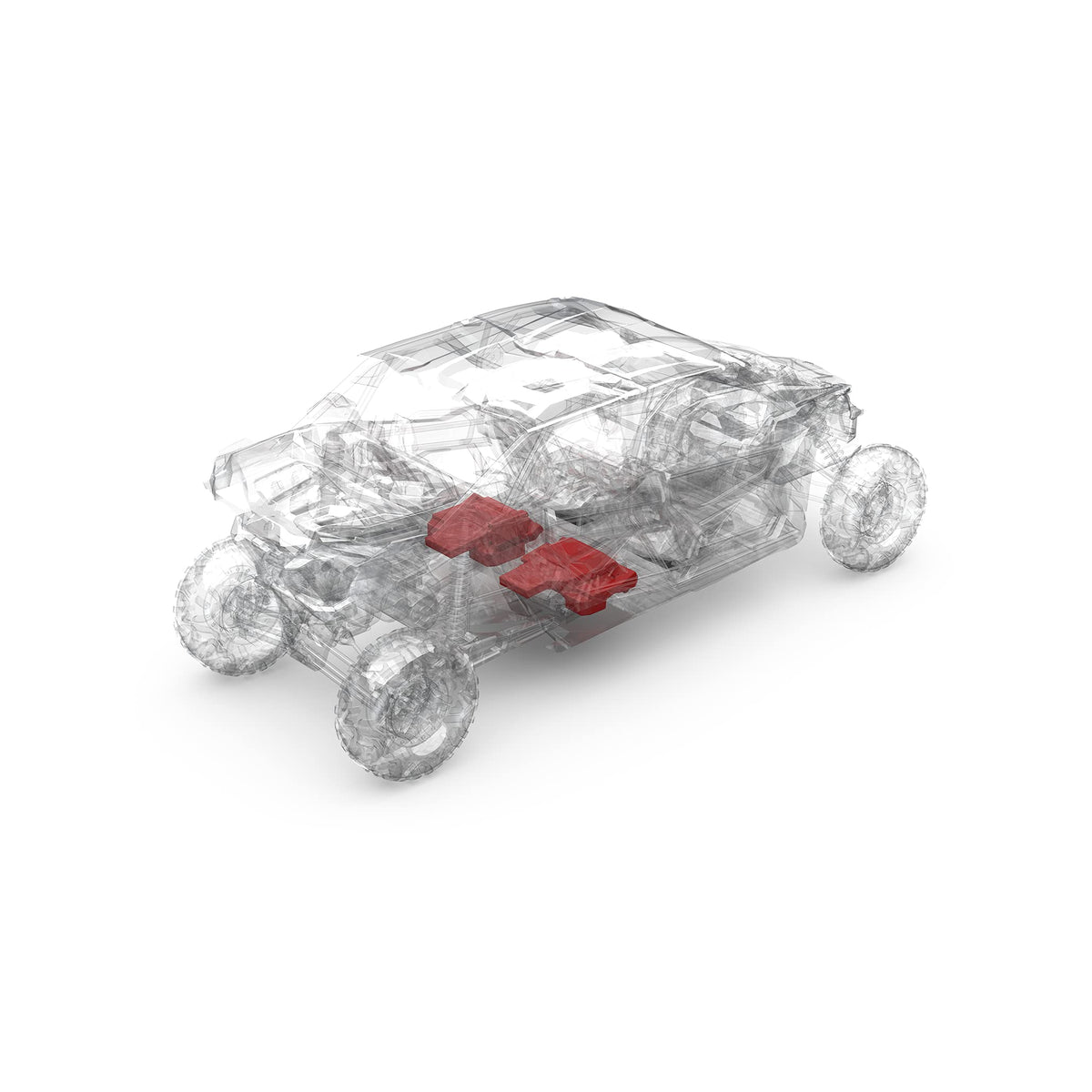

Install the enclosures under the rear driver and passenger seats and mount the amplifier in the rear center tunnel using the supplied vehicle-specific hardware. The kit includes the enclosure speaker harness and amplifier power/input-signal harness for direct integration with the required compatible Rockford Fosgate Stage system. Disconnect vehicle battery power before installation, follow the supplied instructions, and verify X3 MAX fitment and existing-system compatibility before ordering.
