Rockford Fosgate T1S2-10S 10" 2-Ohm Slim Subwoofer

The Rockford Fosgate T1S2-10S is a shallow-mount 10-inch subwoofer designed for systems where enclosure depth and cargo space are limited. Its single 2-ohm voice coil and 500-watt RMS power rating make it suitable for a dedicated mono amplifier setup. It is optimized for compact sealed enclosures, making it a practical choice for trucks, coupes, SUVs, and other tight installation locations.

This T1 Slim sealed version is engineered for controlled low-frequency output in closed cabin environments. Its 27-250 Hz frequency response and 15 mm Xmax support deep bass reproduction while retaining a compact 3.01-inch mounting depth. The sealed-enclosure alignment is intended for listeners who want a space-conscious bass upgrade with defined, responsive output.

Rockford Fosgate uses a high-energy neodymium motor structure and an integrated heat-sink die-cast aluminum frame to manage heat in the shallow design. The 2.5-inch single voice coil uses pure copper windings and a composite former intended to reduce thermal buildup and motor-related distortion. A multi-vent pole structure and aluminum spider spacer further support cooling during sustained operation.

The woofer combines a linear carbon fiber, PMI, and glass-fiber cone with an aluminum dustcap. Its supercritical synthetic organic polymer surround is chemically bonded to the cone body, while dual progressive Nomex spiders help control excursion. Braided flat tinsel leads are designed to remain flexible through repeated cone movement.

The T1S2-10S is designed as a component subwoofer, so it requires a separate enclosure, amplifier, wiring, and source signal. A sealed enclosure with 0.5 to 0.75 cubic feet of net internal volume is specified for this model. With its 2-ohm nominal load, it should be matched with an amplifier that is stable at 2 ohms and appropriately configured for its 500-watt RMS rating.

Key Features

• Shallow 10-Inch Design: Fits installations with limited mounting depth.
• Sealed-Enclosure Optimization: Designed for compact sealed subwoofer boxes.
• 500-Watt RMS Rating: Supports substantial continuous amplifier power.
• Single 2-Ohm Voice Coil: Provides a fixed 2-ohm nominal load.
• Neodymium Motor Structure: Helps achieve shallow depth with thermal capability.
• Carbon Fiber Composite Cone: Combines rigid cone materials with an aluminum dustcap.

Design & Installation

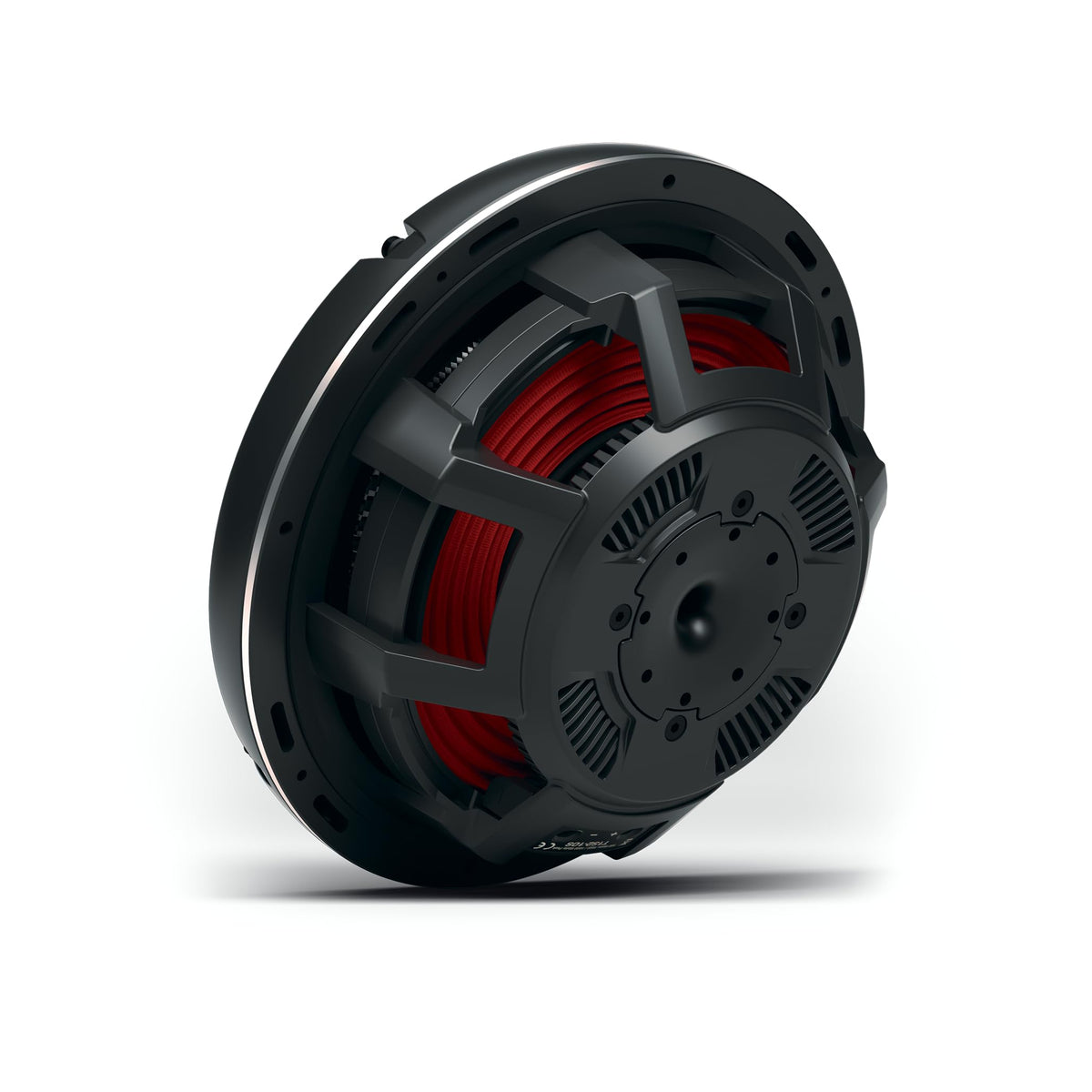

The T1S2-10S uses a die-cast aluminum basket with integrated heat-sink fins, a high-energy neodymium motor, and a removable die-cast aluminum trim ring. Its cone is made from carbon fiber, PMI, and glass fiber, paired with an aluminum dustcap and chemically bonded polymer surround. Dual Nomex progressive spiders, stitched tinsel leads, and a vented motor assembly support controlled movement and heat dissipation.

Plan for a 9.13-inch cutout and 3.01 inches of mounting depth, plus adequate rear clearance for wiring and ventilation. Use a rigid sealed enclosure with 0.5 to 0.75 cubic feet of net internal volume after woofer displacement, and connect it to an amplifier suitable for a 2-ohm load. The speaker uses 10 AWG slot-loaded terminals; installation hardware and a 5 mm driver bit are included.
