Rockford Fosgate R2-2X12 Dual 12" Sealed Subwoofer Enclosure

The Rockford Fosgate R2-2X12 is a loaded car-audio subwoofer enclosure that combines two 12-inch Prime R2 subwoofers in one factory-built sealed cabinet. It is designed for vehicle owners who want to add dedicated low-frequency output without selecting separate drivers and building an enclosure. The enclosure is internally wired and ready to connect to a compatible external amplifier.

This model presents a practical bass upgrade for cars, trucks, SUVs, and hatchbacks with sufficient cargo-area space. Its dual-subwoofer layout increases cone area over a single-sub setup while keeping installation straightforward. The sealed enclosure design is intended for a controlled low-frequency foundation that complements amplified full-range speakers.

The R2-2X12 is rated for 500 watts RMS and 1,000 watts peak power as a complete enclosure. Its factory wiring presents a 2-ohm nominal load to a mono amplifier, so amplifier selection should focus on stable 2-ohm operation and an appropriate continuous-power rating. Rockford Fosgate specifies CTA-2031 power-handling compliance for this enclosure.

Inside are two R2D2-12 dual-voice-coil subwoofers, each using a polypropylene cone, foam surround, stamped steel basket, and copper voice coil on an aluminum former. The driver design also incorporates a poly-cotton spider, stitched flexible lead wires, and vented motor components. These engineering details support the enclosure's role as a complete, purpose-matched bass section.

The R2-2X12 fits well into a system upgrade path where a factory or aftermarket stereo feeds an external mono amplifier. Because the enclosure is already loaded and wired, the primary remaining tasks are choosing a compatible amplifier, running suitable power and signal wiring, and securing the enclosure in the vehicle. Its high-current binding posts provide a direct connection point for the amplifier's speaker output.

Key Features

• Dual 12-Inch Subwoofers: Two factory-installed R2D2-12 drivers provide a complete bass solution.
• 2-Ohm Final Load: Internal wiring simplifies matching with a 2-ohm-stable mono amplifier.
• 500-Watt RMS Rating: Supports continuous power handling for properly matched amplification.
• Sealed Enclosure: Factory-built cabinet avoids separate box design and driver installation.
• 5/8-Inch MDF Cabinet: Dense MDF construction provides a durable enclosure structure.

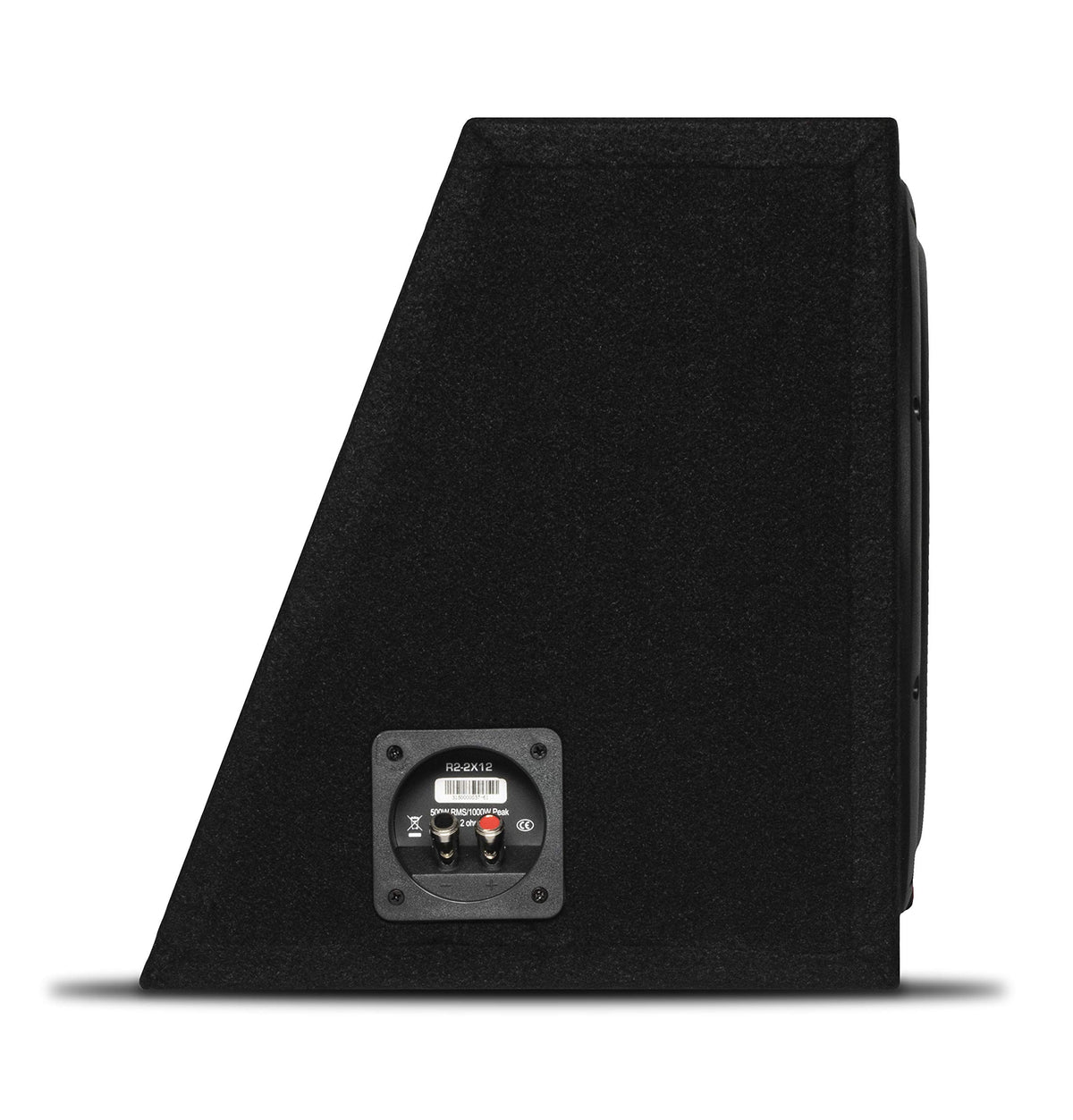

• High-Current Binding Posts: Compression terminals accept 16 AWG to 12 AWG speaker wire.

Design & Installation

The enclosure is constructed from 5/8-inch MDF and finished in high-density carpet. It uses high-current binding posts and houses two dual-voice-coil R2D2-12 subwoofers with integrated trim rings, stamped steel baskets, polypropylene cones, foam surrounds, and aluminum voice-coil formers. The sealed cabinet is pre-loaded, so the subwoofers and enclosure are matched from the factory.

Measure the intended cargo area against the enclosure's 14.37-inch height, 34.06-inch width, and 12.51-inch depth before purchase. Connect an amplifier's positive speaker output to the red enclosure terminal and its negative output to the black terminal, using 16 AWG to 12 AWG speaker wire; Rockford Fosgate identifies a 2-ohm mono amplifier configuration. Disconnect the vehicle battery's negative terminal before installation, route speaker wire away from high-current wiring, and securely mount the enclosure so it cannot shift while driving.
