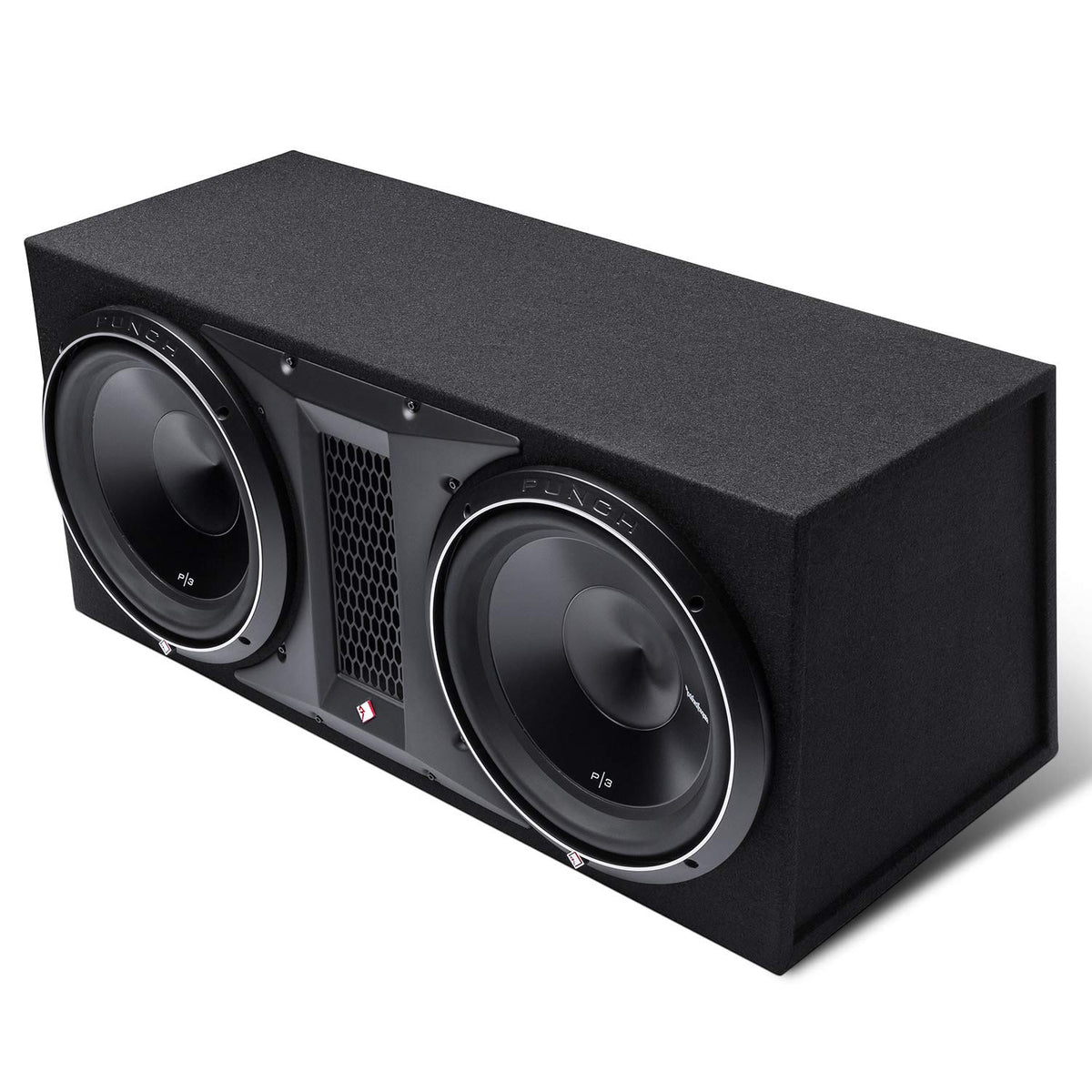

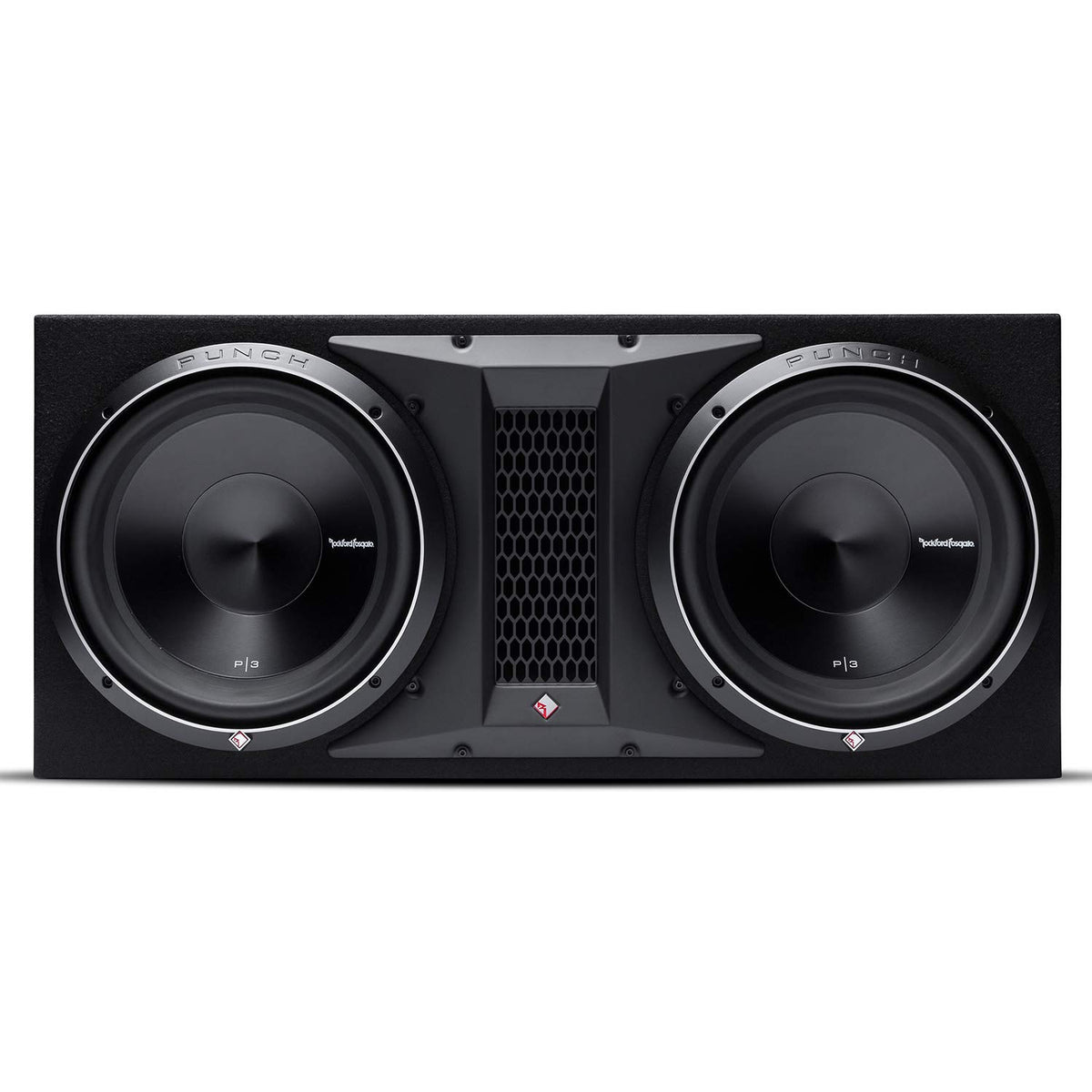

Rockford Fosgate P3-2X12 Dual 12" Ported Subwoofer Enclosure

The Rockford Fosgate P3-2X12 is a factory-loaded, dual 12-inch subwoofer enclosure for adding substantial low-frequency output to a car or truck audio system. It combines two Punch P3 dual-voice-coil woofers in a vented cabinet, eliminating the need to select and build a separate enclosure. The enclosure is internally wired for a 1-ohm final load, making amplifier matching more straightforward for systems built around a stable mono amplifier.

This enclosure is intended for listeners who want deeper bass response and greater output than typical full-range door speakers can provide. Its ported design is engineered to support strong low-bass performance while maintaining the efficiency associated with a vented enclosure. With 1,200 watts RMS total power handling, it is suited to a properly configured high-power subwoofer stage.

Two 12-inch Punch P3 woofers provide the moving surface area needed for impactful bass in larger vehicles and systems that prioritize bass presence. The installed P3D4-12 woofers use dual 4-ohm voice coils, and the enclosure's internal wiring combines them into its rated 1-ohm load. This preconfigured setup avoids the need to rewire the individual subwoofer voice coils for normal use.

The cabinet uses 5/8-inch MDF construction and high-density carpet covering for a durable, vehicle-friendly finish. Rockford Fosgate's high-flow, low-noise port design is built into the enclosure to manage airflow, while high-current binding posts provide the external amplifier connection. The enclosure is sized for trunk, cargo-area, or other protected vehicle installations where its full dimensions can be accommodated.

The P3-2X12 is a passive loaded enclosure, so it requires a separate amplifier, amplifier wiring, and signal integration with the vehicle's audio system. A mono amplifier designed to operate at 1 ohm and matched appropriately to the enclosure's 1,200-watt RMS rating is the intended configuration. It can serve as the bass foundation of a complete aftermarket audio upgrade while the vehicle's existing speakers handle midrange and high-frequency content.

Key Features

• Dual 12-Inch P3 Woofers: Two loaded Punch P3 subwoofers provide substantial cone area for low-frequency reproduction.
• 1-Ohm Final Load: Internal wiring presents a 1-ohm nominal load to a compatible mono amplifier.
• 1,200-Watt RMS Handling: Supports amplifier matching for sustained high-power bass performance.
• Vented Enclosure: The ported cabinet design supports efficient, high-output low-frequency operation.
• 5/8-Inch MDF Cabinet: MDF construction creates a rigid foundation for the installed subwoofers.
• High-Current Binding Posts: External terminals provide a secure connection point for amplifier speaker wire.

Design & Installation

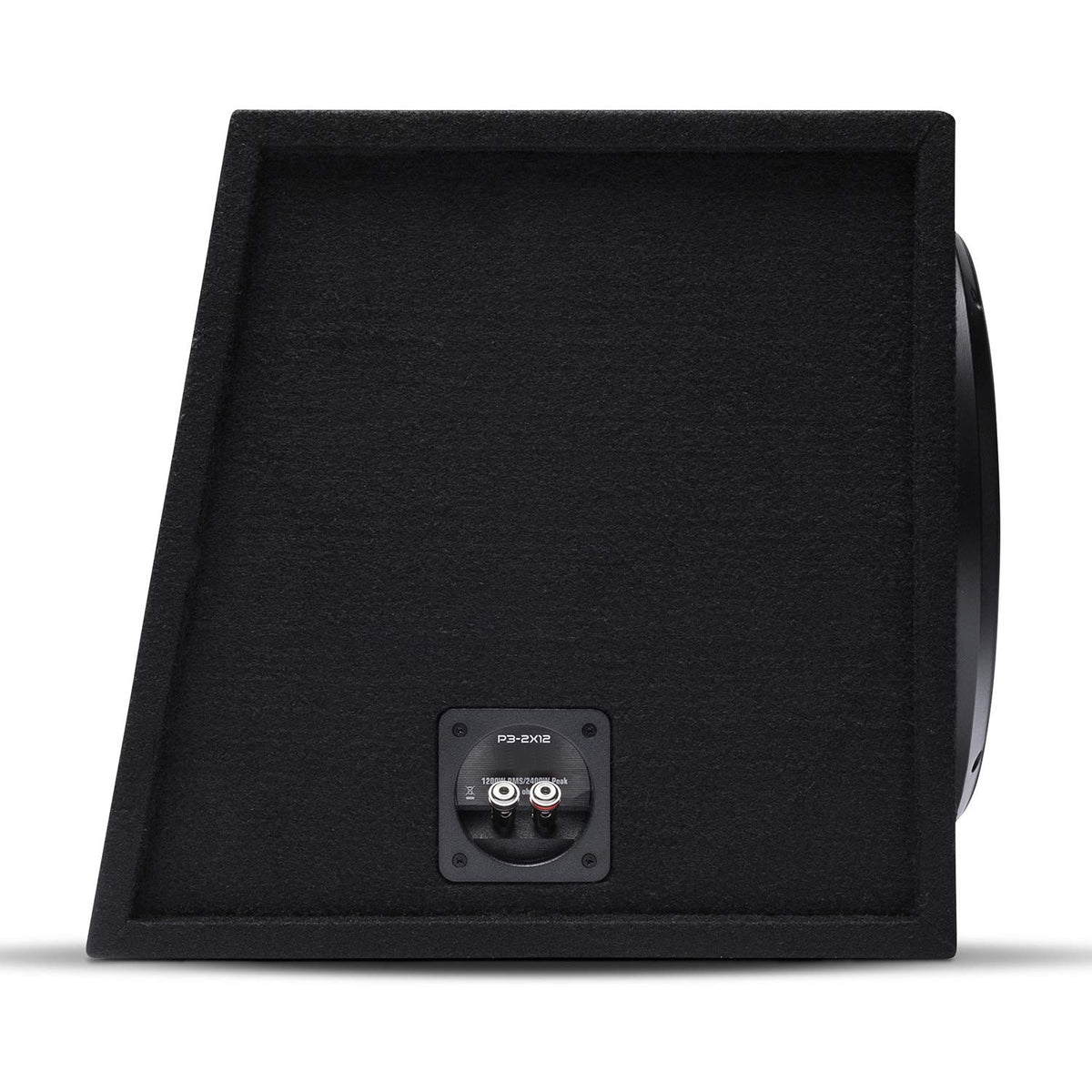

The P3-2X12 enclosure is constructed from 5/8-inch MDF and covered in high-density carpet. Its vented design incorporates proprietary high-flow, low-noise ports, while the cabinet uses high-current binding posts for the amplifier connection. The loaded woofers are P3D4-12 dual 4-ohm models, with aluminum cone and dustcap assemblies, StampCast baskets, integrated spider venting, and protective PVC-textured magnet covers.

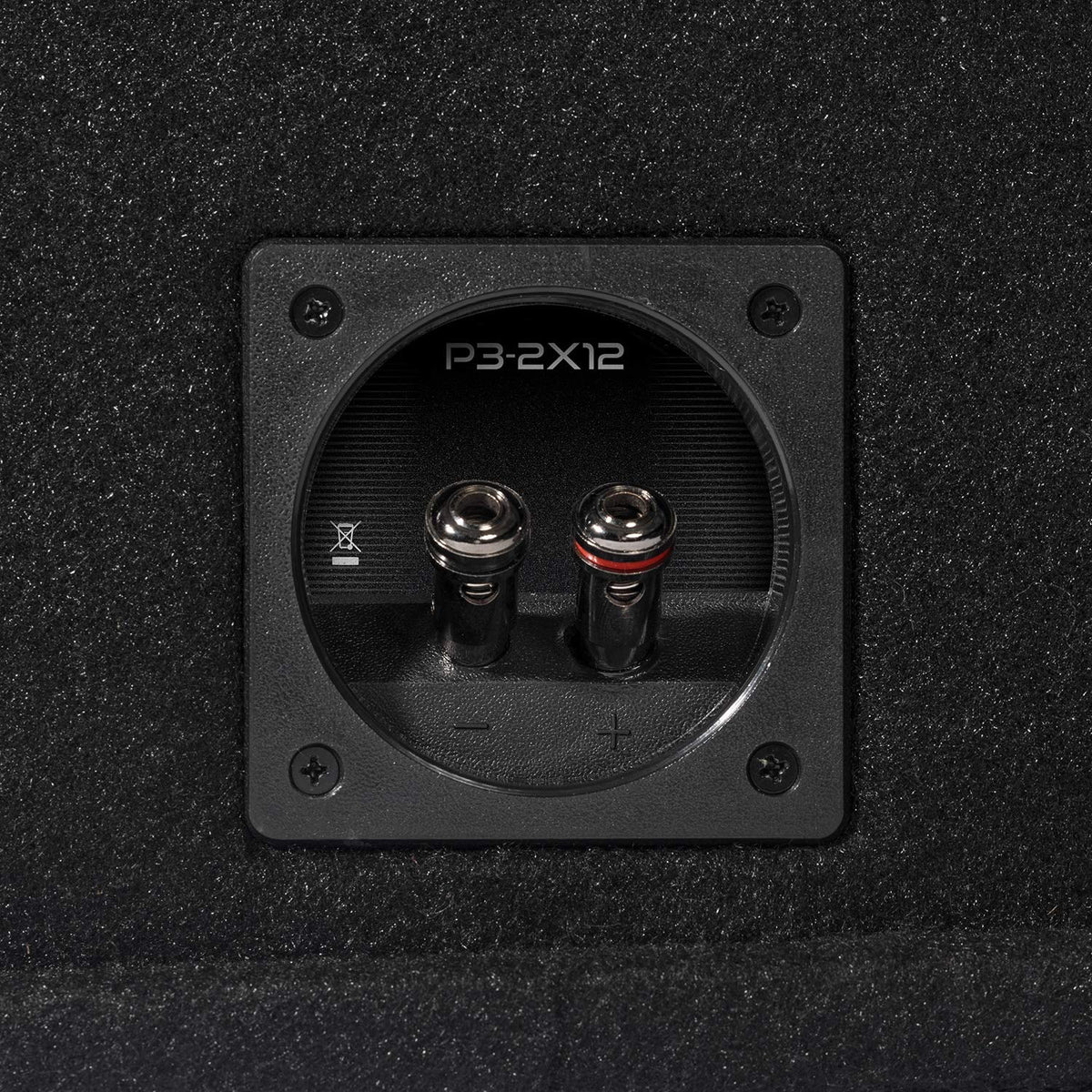

Confirm that the intended mounting location has clearance for the enclosure's 15.125-inch height, 33.875-inch width, and 15.75-inch depth before purchase. Connect the amplifier's positive speaker output to the enclosure's red terminal and its negative output to the black terminal; the enclosure is designed for a 1-ohm mono amplifier connection. Disconnect the vehicle battery's negative terminal before installation, route speaker wire away from high-current vehicle wiring, and secure the enclosure so it cannot shift while driving.
