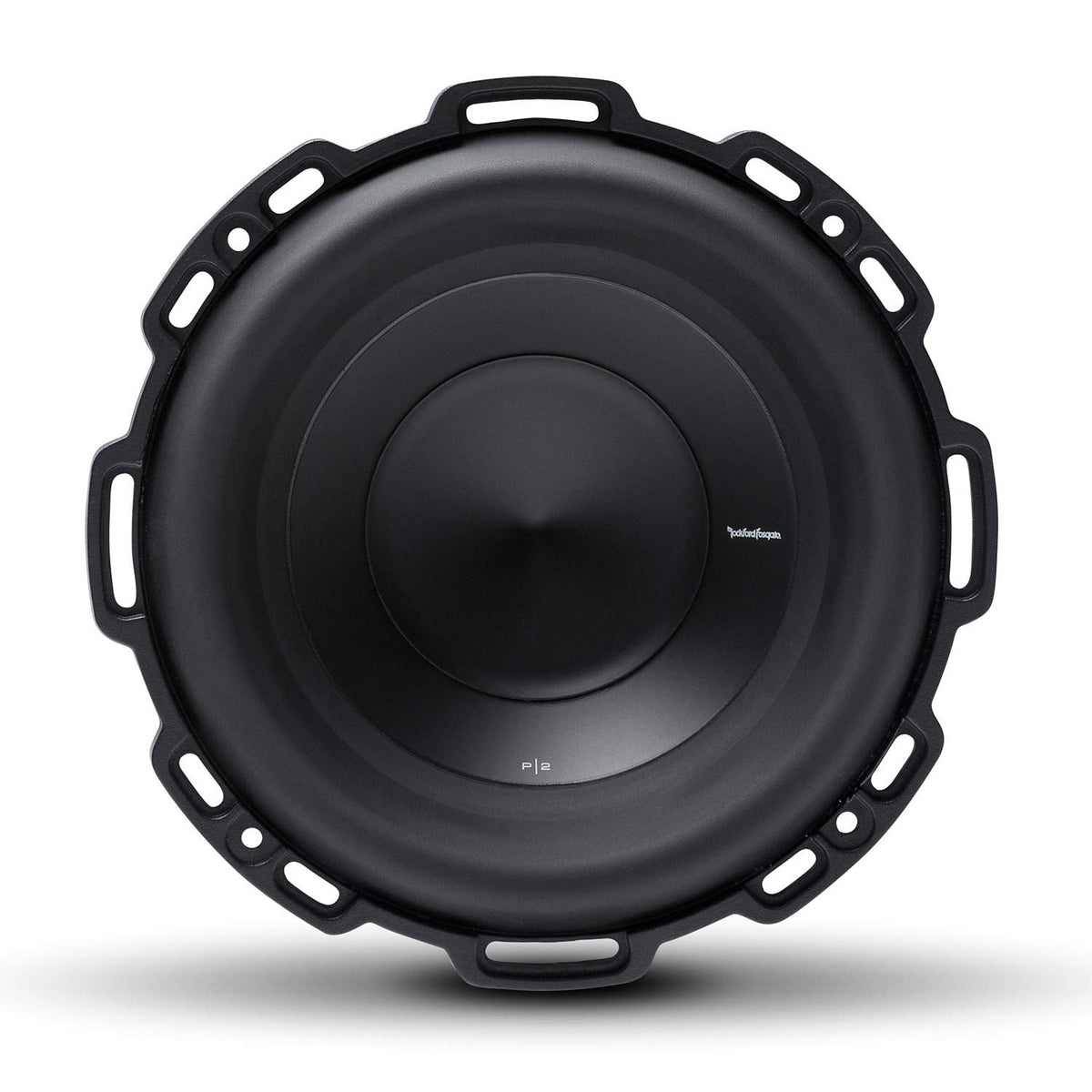

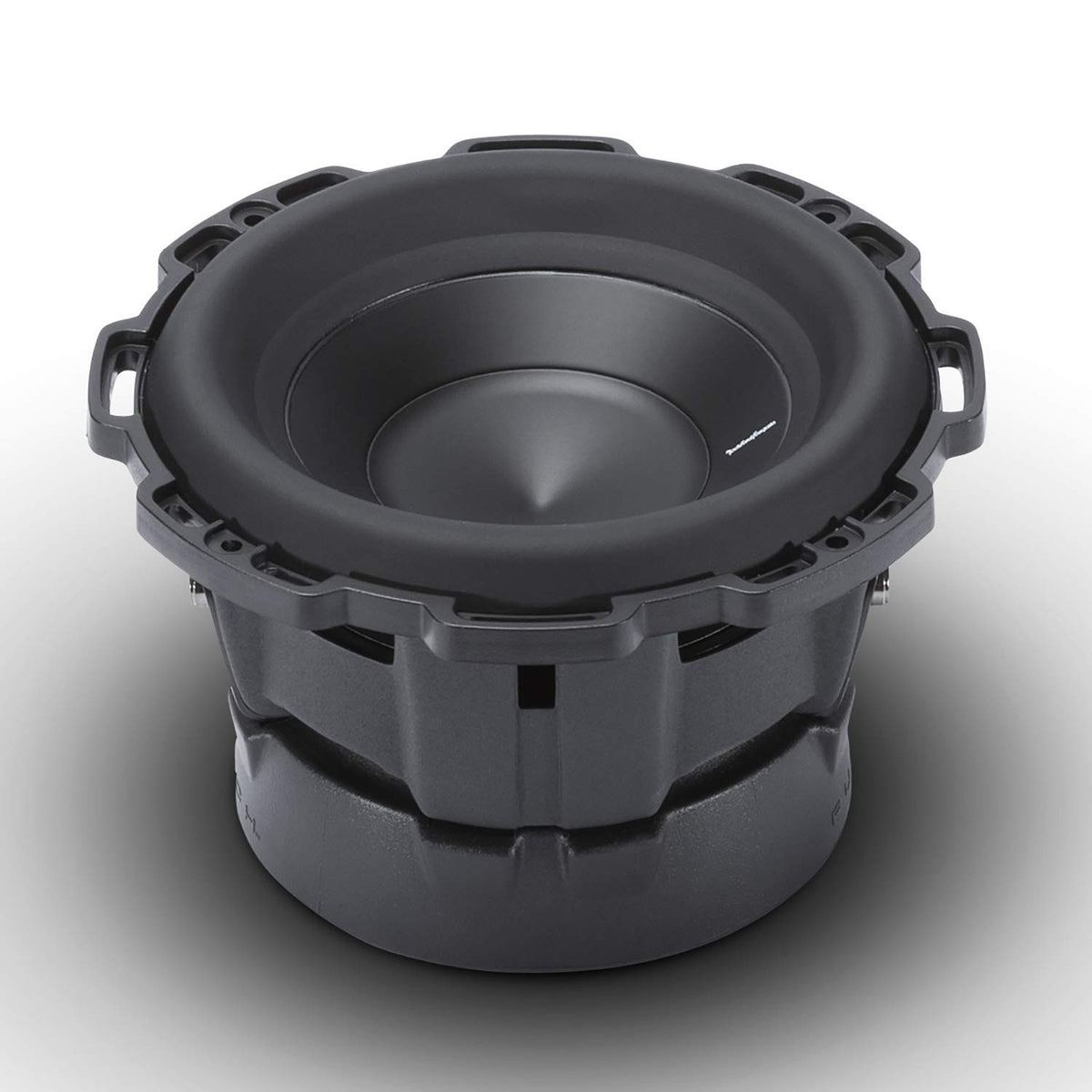

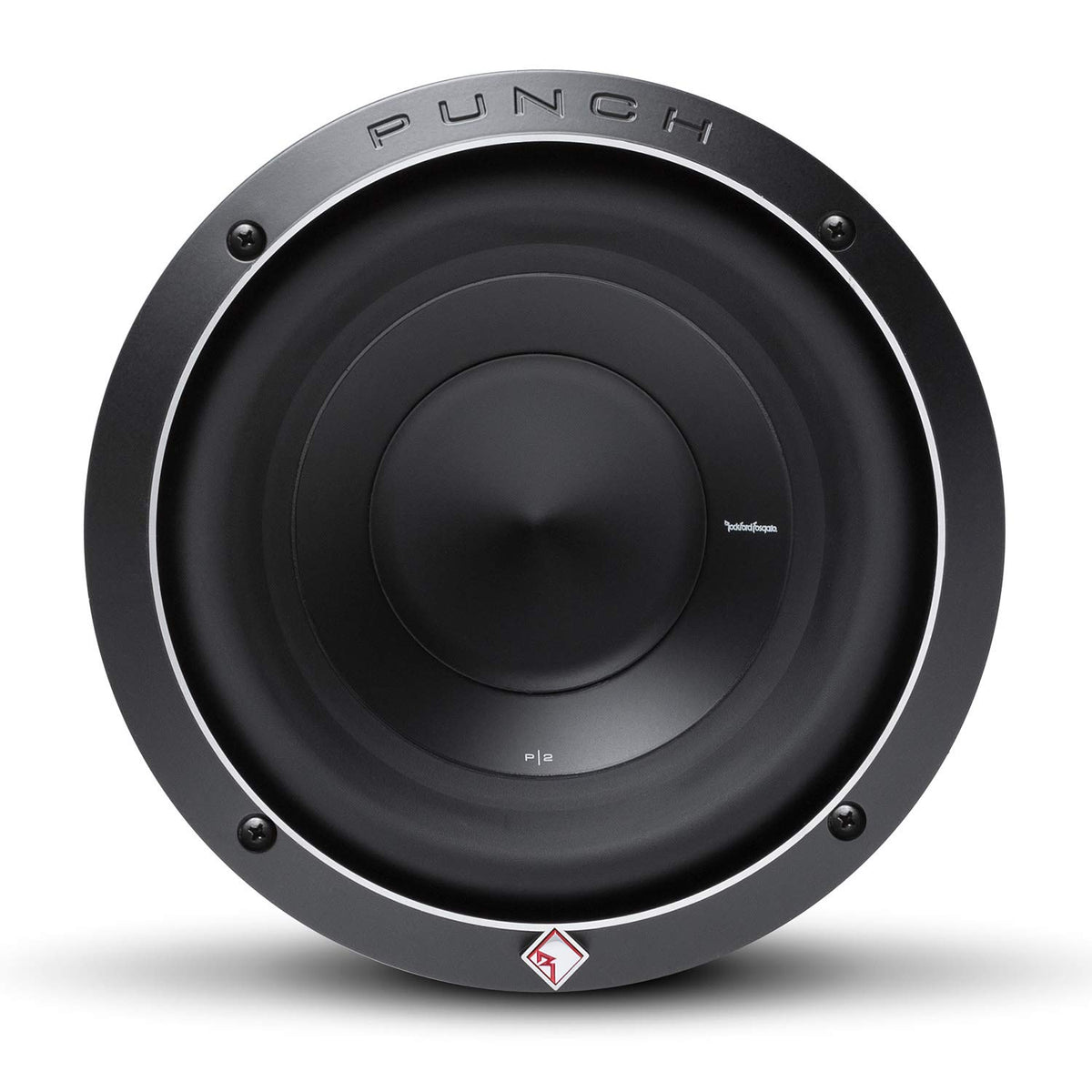

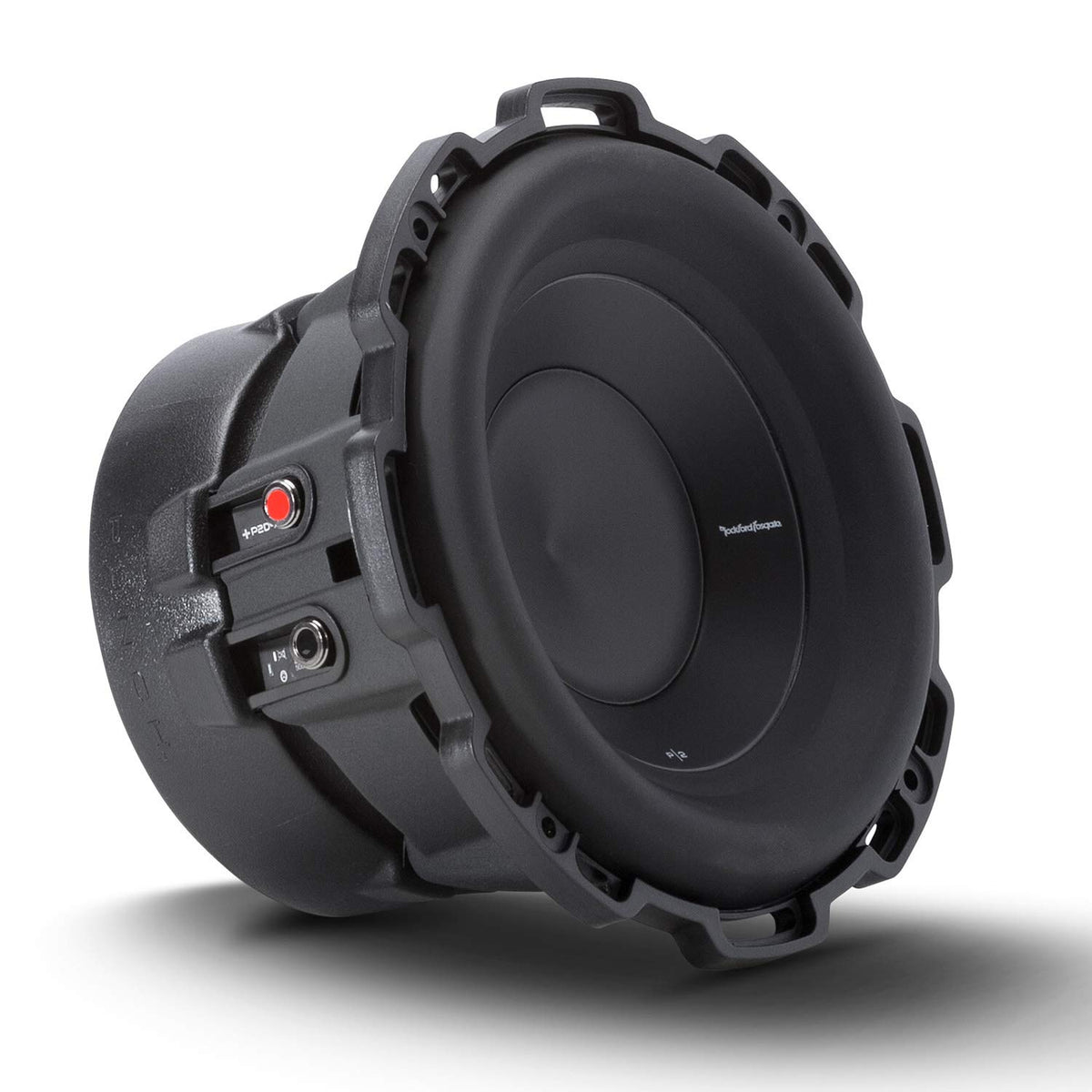

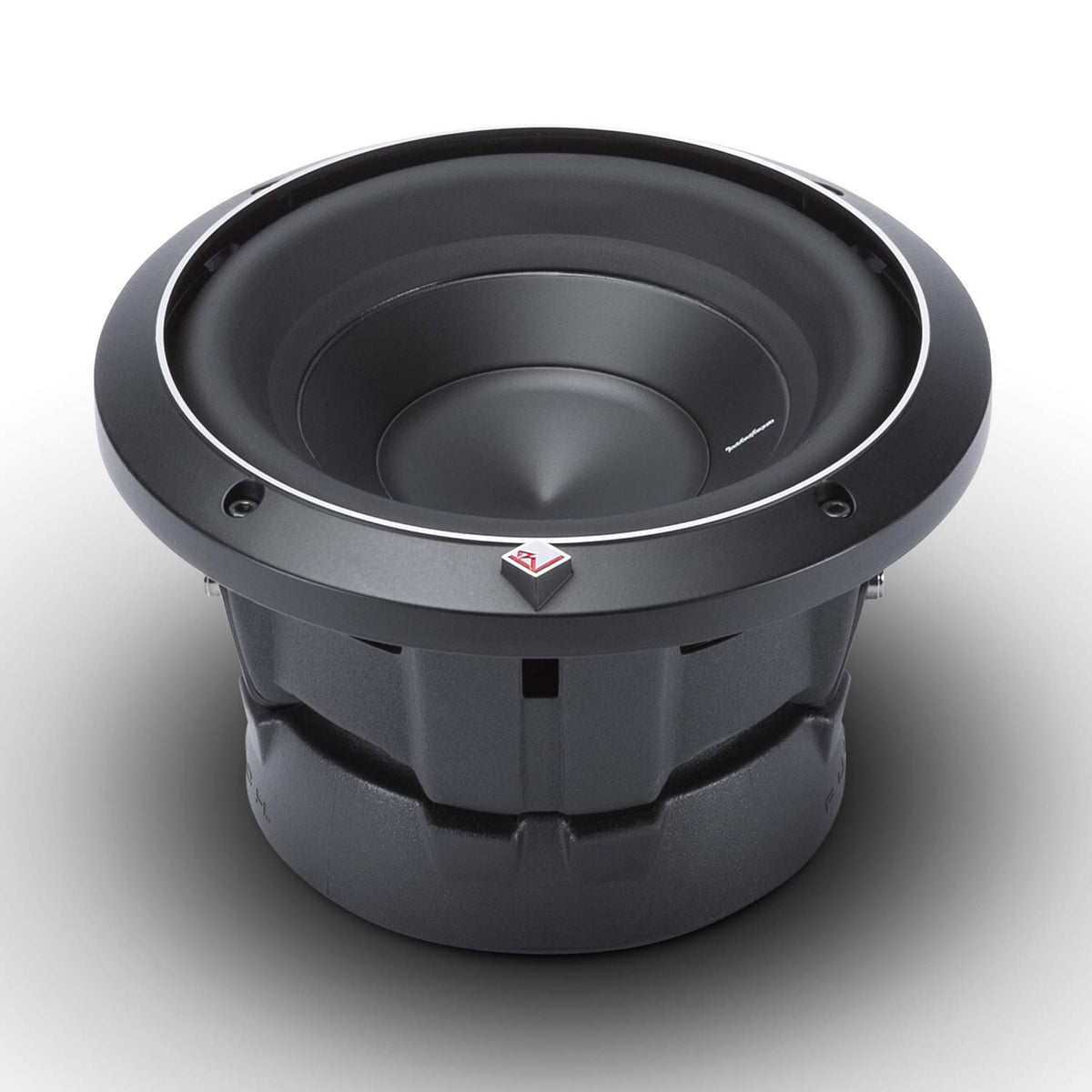

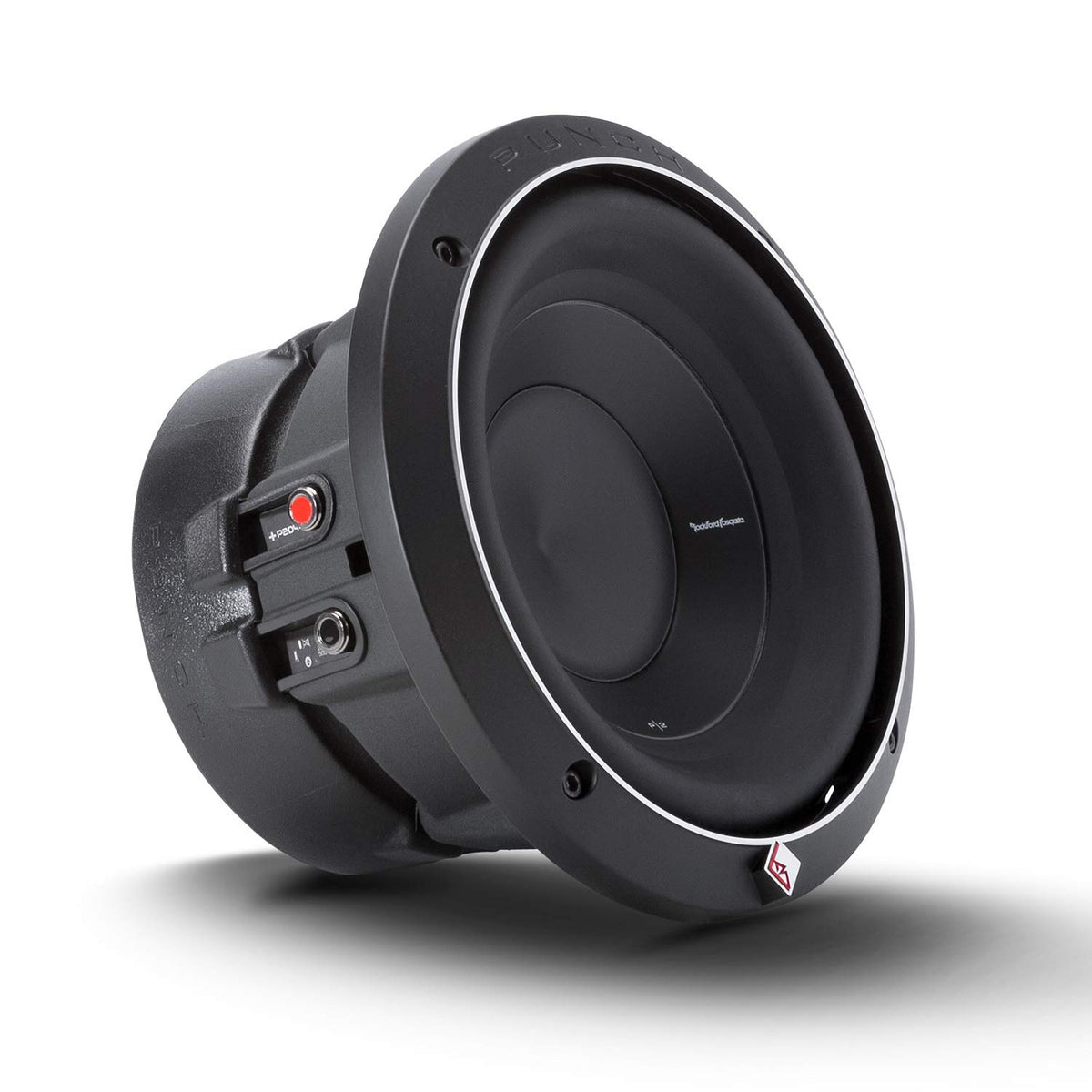

Rockford Fosgate P2D4-8 8" Dual 4-Ohm Subwoofer

The Rockford Fosgate P2D4-8 is an 8-inch car subwoofer designed to add low-frequency output where space is limited. Its dual 4-ohm voice coils provide wiring flexibility for matching a compatible mono or multi-channel amplifier. It is intended for custom sealed or ported enclosures rather than direct replacement of a full-range factory speaker.

With a 250-watt RMS power rating and 500-watt peak rating, this Punch P2 model is suited to compact bass upgrades that need controlled output without requiring a large woofer enclosure. The Kevlar-reinforced paper-pulp cone is paired with a tall-profile Santoprene surround for durable cone movement. Its 83 dB sensitivity and 43 Hz free-air resonance support use in purpose-built subwoofer systems.

The P2D4-8 uses dual 4-ohm voice coils, allowing one subwoofer to be wired for either a 2-ohm or 8-ohm final load. This makes amplifier selection and future system expansion more flexible, provided the amplifier is stable at the chosen impedance. Use an amplifier with power delivery appropriate for the subwoofer's 250-watt RMS thermal rating.

Rockford Fosgate equips this model with a high-temperature 2.25-inch voice coil, an aluminum former, and a Nomex reinforcement collar. Its vented motor structure, extended pole piece, bumped backplate, and spider venting are designed to help manage heat during operation. Dual linear spiders and stitched flexible leads support controlled movement and repeated use.

This subwoofer can be used in a compact sealed enclosure for a space-conscious installation or in a larger vented enclosure for lower extension. The recommended sealed volume is 0.23 cubic foot, while the recommended vented volume is 0.65 cubic foot tuned to 38.5 Hz. Its FlexFit mounting arrangement, 7.13-inch cutout requirement, and 4.76-inch mounting depth should be checked against the enclosure before installation.

Key Features

• Dual 4-Ohm Voice Coils: Supports 2-ohm or 8-ohm final wiring configurations.
• 250-Watt RMS Rating: Matches appropriately powered subwoofer amplifiers for sustained use.
• Kevlar-Reinforced Paper Cone: Provides a rigid, lightweight cone structure for bass reproduction.
• 2.25-Inch High-Temperature Voice Coil: Helps handle thermal demands during higher-output playback.
• Spider Plateau Venting: Helps promote voice-coil cooling through the motor assembly.
• Flexible Enclosure Options: Works in recommended sealed or vented custom enclosures.

Design & Installation

The P2D4-8 uses a Kevlar-reinforced paper-pulp cone, Santoprene surround, dual poly-cotton spiders, aluminum voice-coil former, and a protective PVC motor cover. Its compound-bend steel frame, cast aluminum trim ring, and all-metal radial compression terminal assembly support a durable installation. The trim ring can accommodate an optional grille insert, but a grille is not included.

Install the subwoofer in an enclosure that meets its volume, port, cutout, and depth requirements. Allow for the subwoofer's 0.071-cubic-foot displacement when planning net enclosure volume, and use wiring appropriate for the amplifier and final impedance. A sealed enclosure volume range of 0.20 to 0.30 cubic foot is specified; the recommended vented alignment uses a 0.65-cubic-foot enclosure with one 2-inch by 8.8-inch port.
