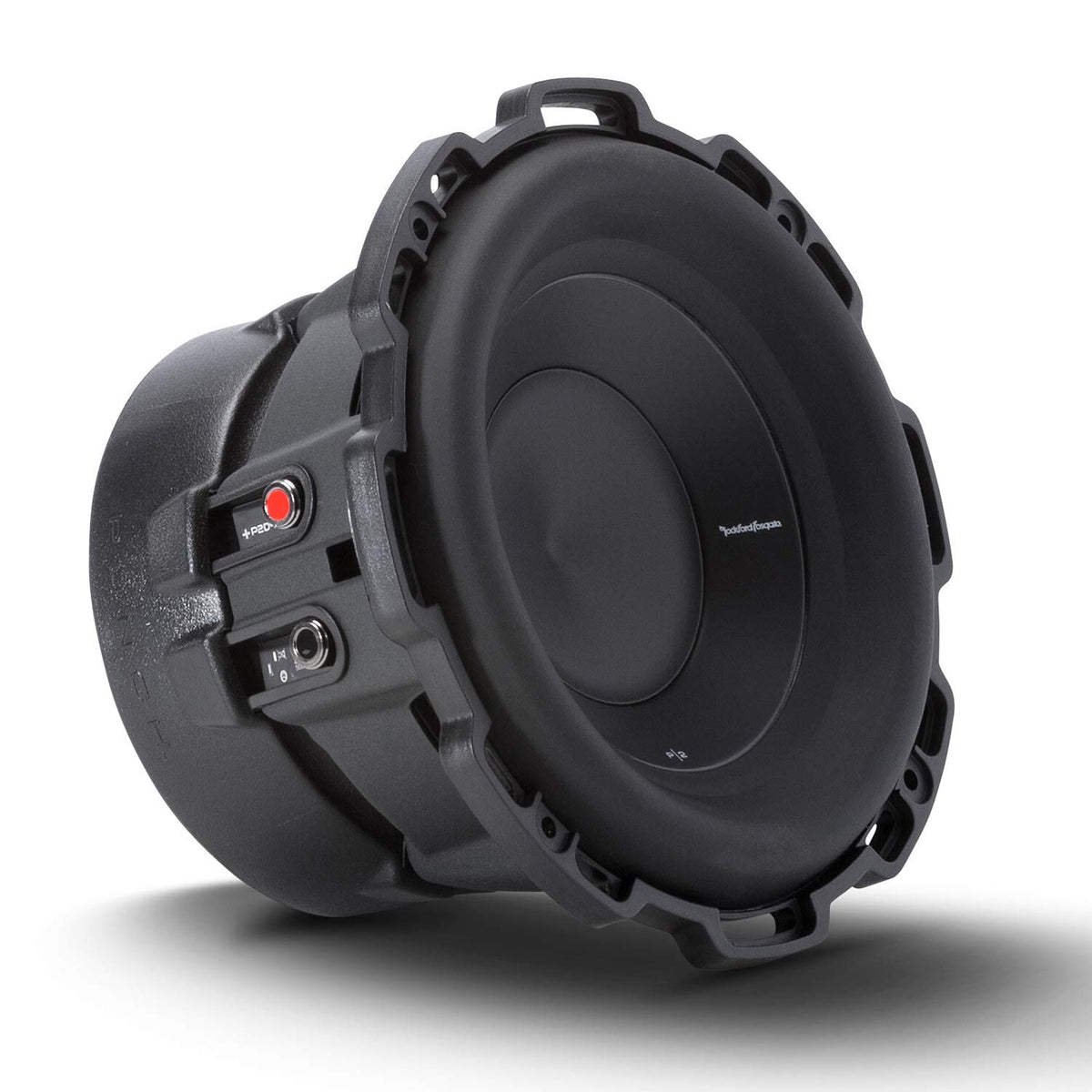

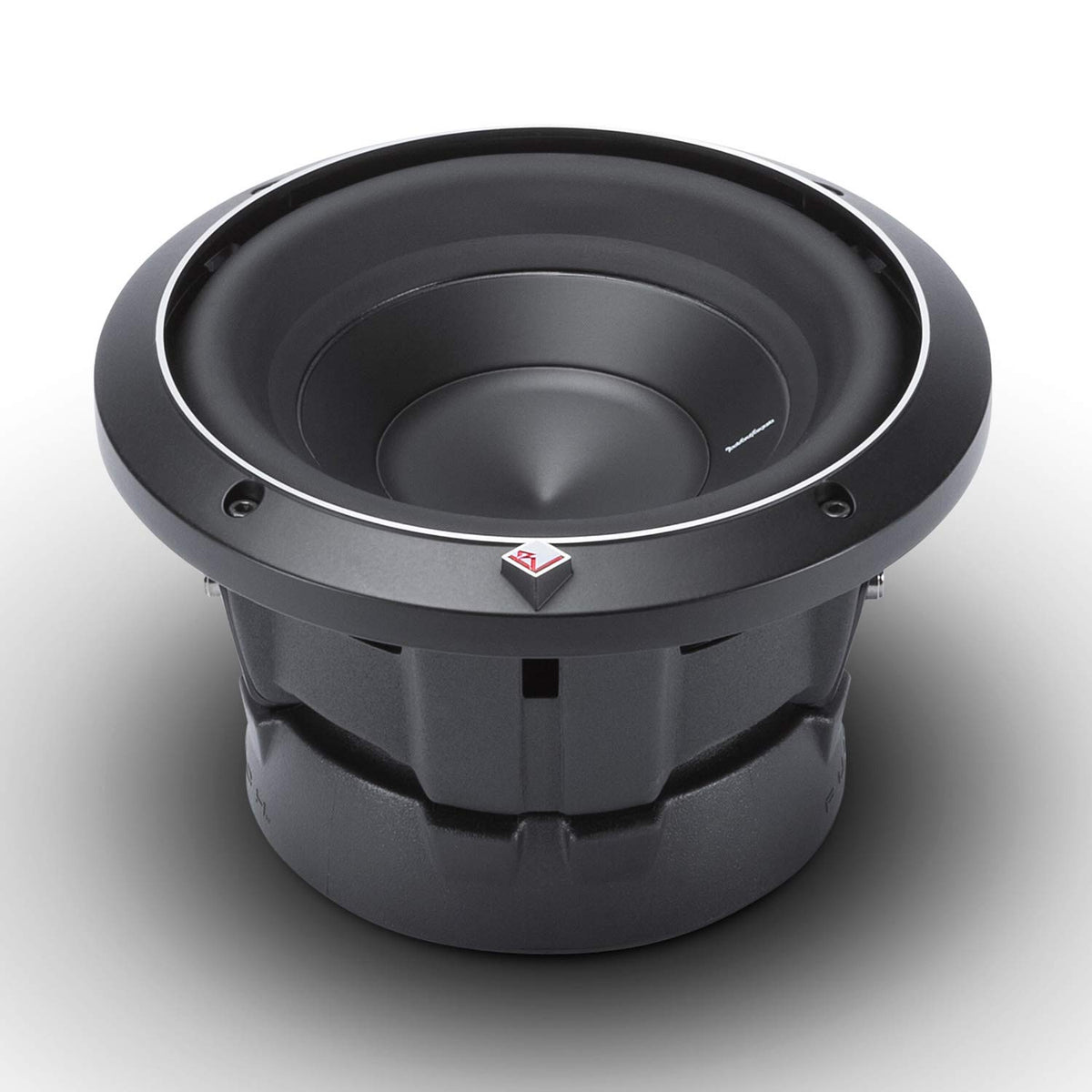

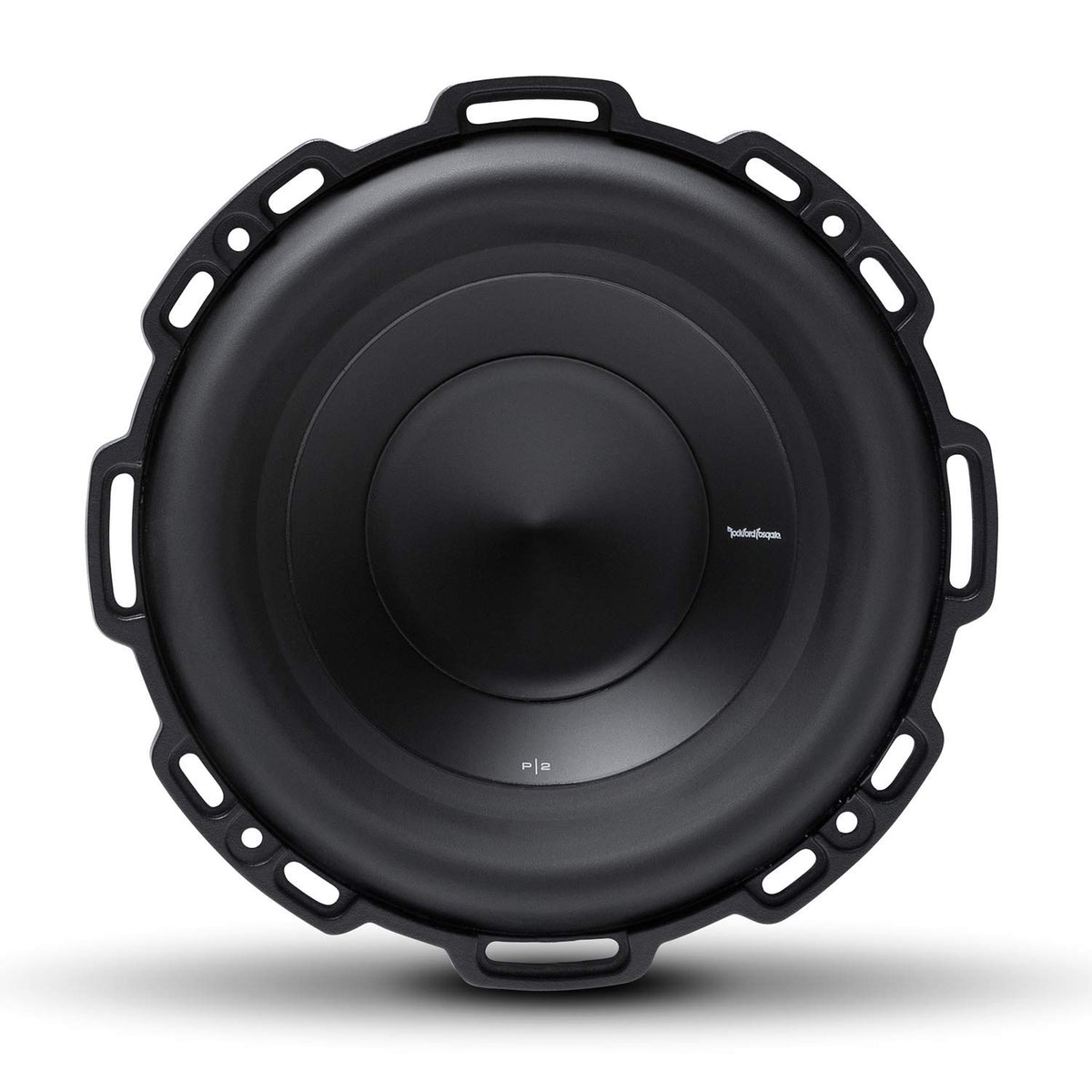

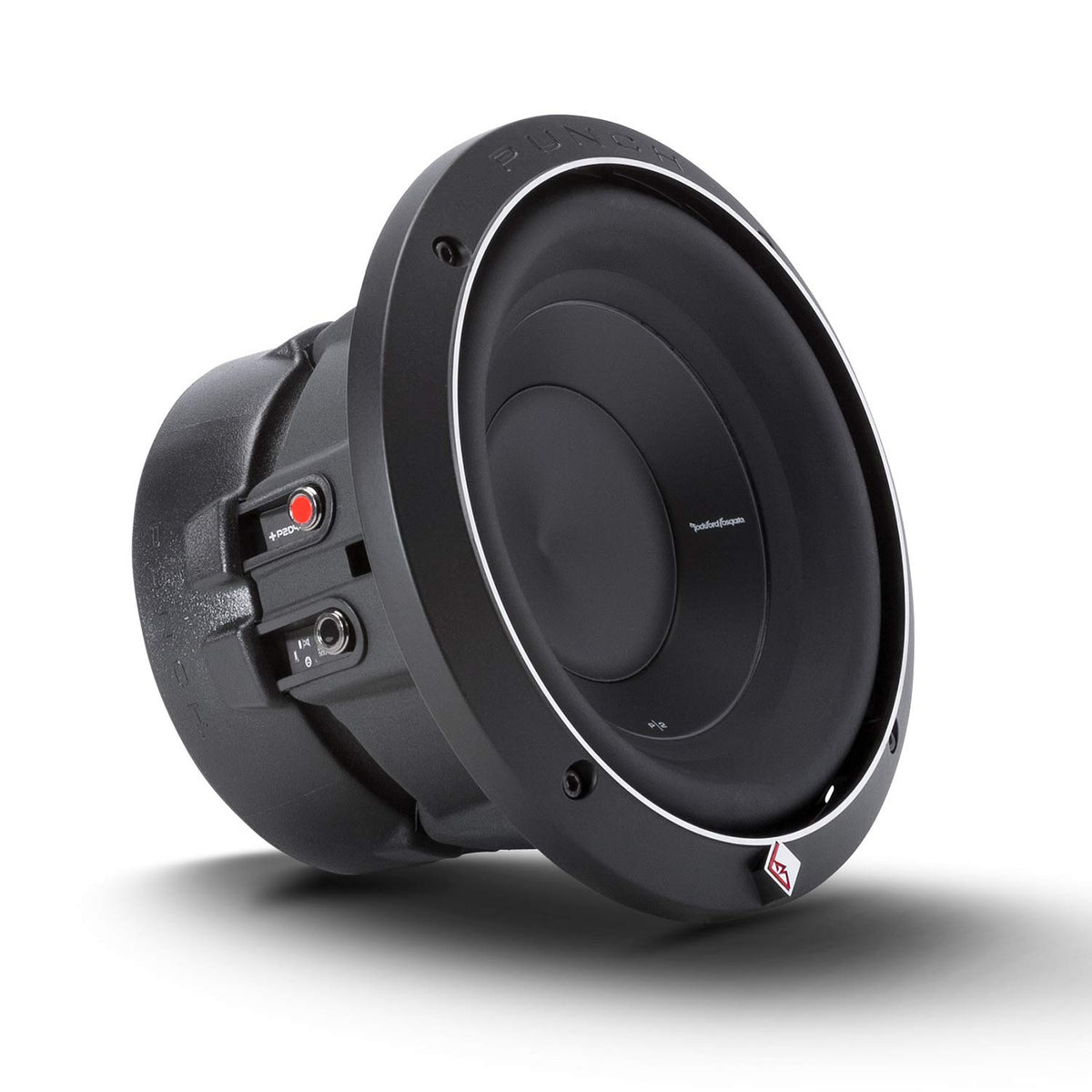

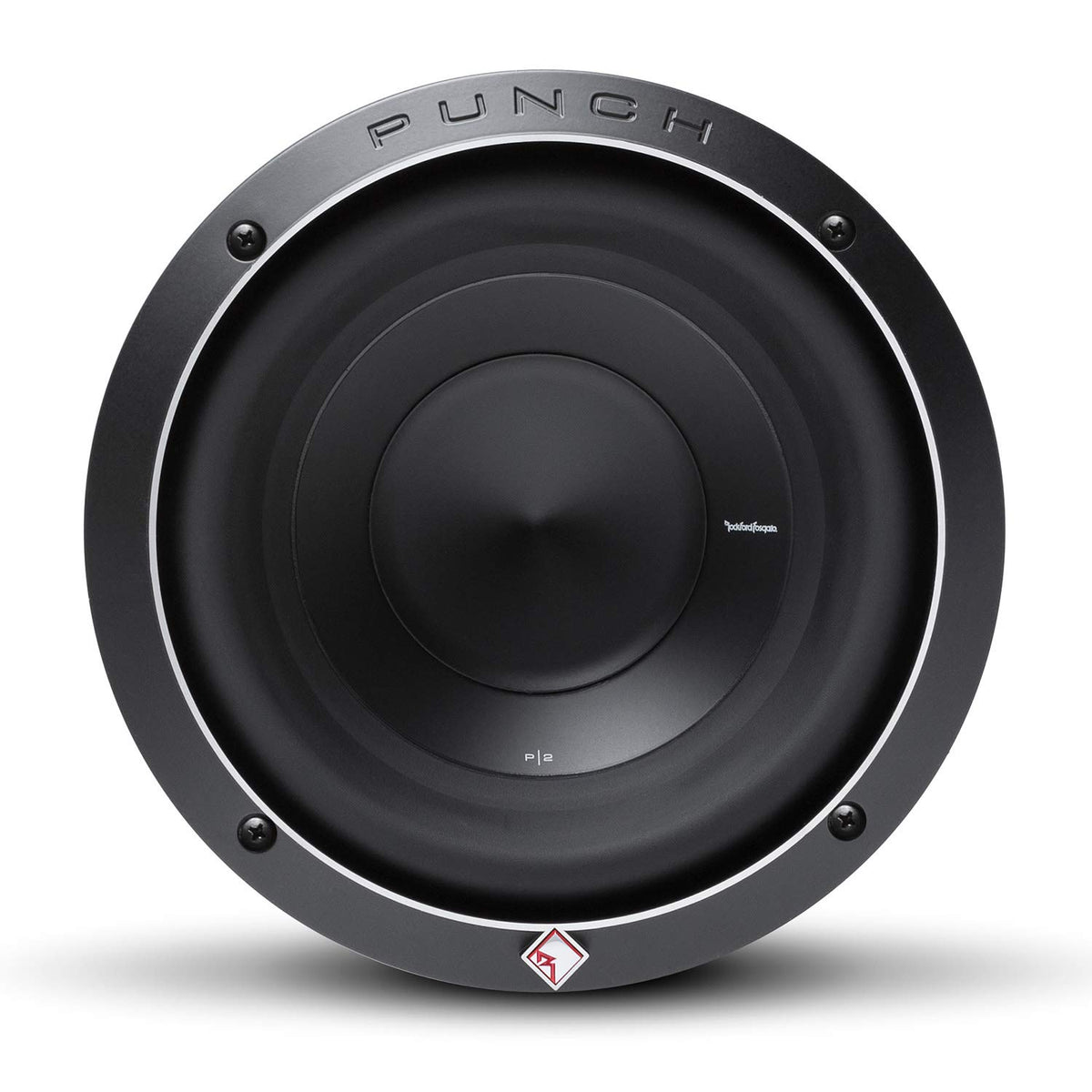

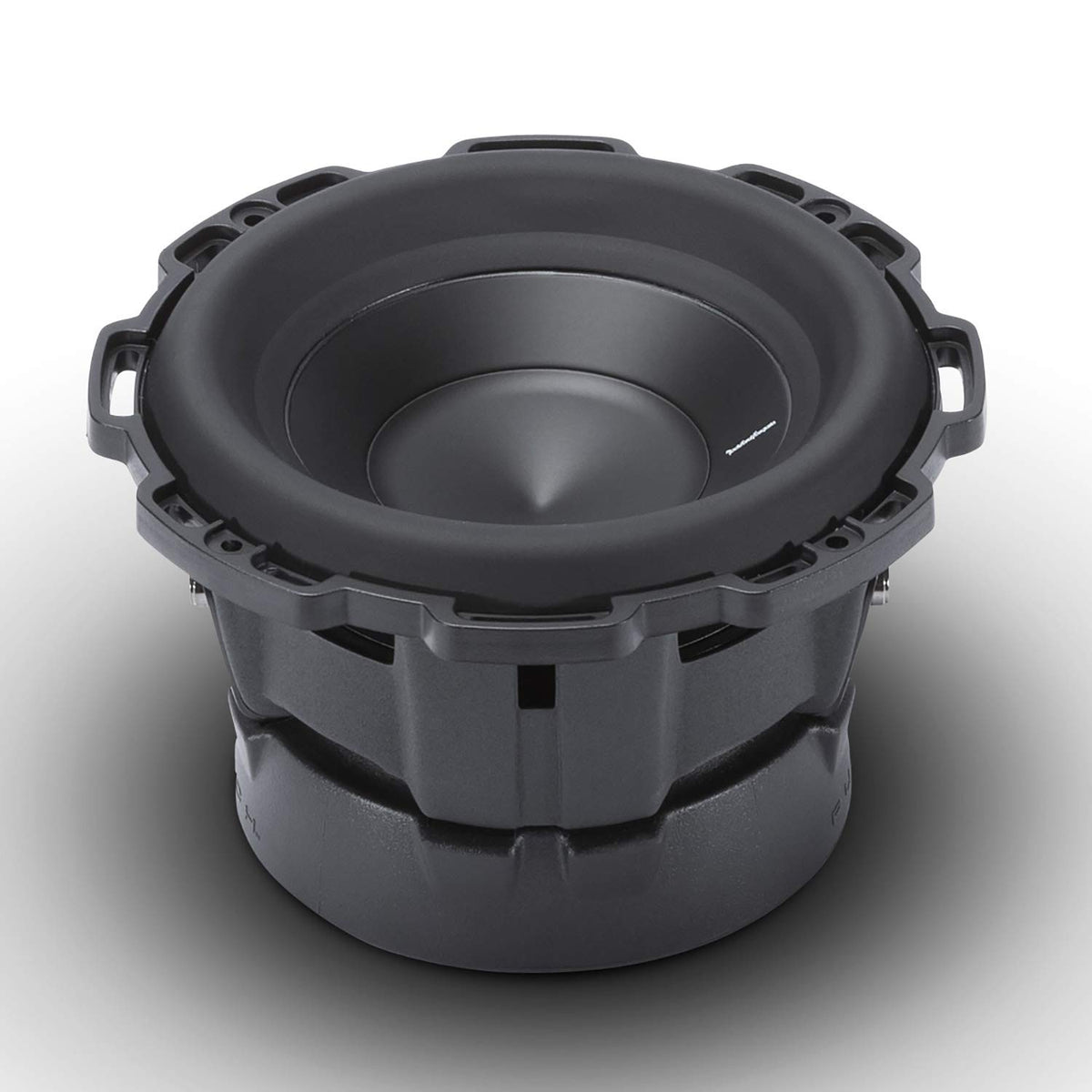

Rockford Fosgate P2D2-8 Punch 8" Dual 2-Ohm Subwoofer

The Rockford Fosgate P2D2-8 is an 8-inch dual voice coil subwoofer designed to add controlled low-frequency output to a car audio system without requiring the enclosure space of a larger woofer. Its dual 2-ohm voice coils provide wiring flexibility when matching the subwoofer to a compatible amplifier. With 250 watts RMS power handling, it is suited to compact bass upgrades in cars, trucks, and custom installations.

This Punch P2 model is intended for listeners who want stronger bass foundation for music while maintaining practical enclosure dimensions. It works in either a compact sealed enclosure or a larger vented enclosure, allowing the system to be tailored toward controlled response or deeper low-frequency extension. An amplifier and correctly designed enclosure are required for operation.

The P2D2-8 uses a Kevlar fiber-reinforced paper-pulp cone and tall-profile VAST Santoprene surround. This combination supports a rigid cone structure and increased usable cone area while accommodating the woofer's excursion. Its 83 dB sensitivity rating and 39.6 Hz free-air resonance help define its performance characteristics in a properly built enclosure.

Rockford Fosgate equips this subwoofer with a 2.25-inch high-temperature voice coil, a spun-laced Nomex reinforcement collar, and an optimized motor structure with an extended pole piece and bumped vented backplate. The StampCast basket incorporates spider venting intended to promote voice-coil cooling. Dual linear spiders and stitched flexible leads support controlled movement and reduce strain at the lead connections.

For a complete bass system, pair the P2D2-8 with an amplifier selected for its final wired impedance and continuous power capability. Each voice coil is rated at 2 ohms, so wiring must be planned before choosing an amplifier. The included trim ring provides a finished appearance, while an optional compatible grille insert can be added where driver protection is needed.

Key Features

• Dual 2-Ohm Voice Coils: Supports series or parallel wiring options with a compatible amplifier.
• 250 Watts RMS Handling: Provides a continuous-power target for amplifier matching.
• Kevlar-Reinforced Paper Cone: Combines paper-pulp cone construction with fiber reinforcement.
• VAST Santoprene Surround: Uses a tall-profile surround to support usable cone area.
• Spider Venting: Helps promote airflow around the voice-coil assembly.
• 10-AWG Compression Terminals: Accept substantial speaker wire for secure connections.

Design & Installation

The P2D2-8 is built around a 16-gauge compound-bend steel frame, dual poly-cotton spiders, an aluminum voice-coil former, and a removable textured PVC motor cover. A die-cast aluminum trim ring is included, and its mounting pattern is designed to accommodate normal installation tolerances. The motor uses a 49-ounce magnet, while the cone assembly uses a Kevlar-reinforced paper-pulp cone, Santoprene surround, and injected polypropylene dustcap.

Allow for a 7.13-inch cutout and 4.76 inches of mounting depth, plus adequate clearance behind the driver for wiring and ventilation. Rockford Fosgate specifies a 0.23 cubic-foot sealed enclosure or a 0.65 cubic-foot vented enclosure; enclosure volumes are gross internal volumes before driver and port displacement. Set amplifier gain carefully, follow the selected series or parallel voice-coil wiring scheme, and use a compatible grille if the woofer will be exposed to cargo or passenger contact.
