Rockford Fosgate P1-S4-10 10" 4-Ohm SVC Subwoofer

The Rockford Fosgate P1-S4-10 is a 10-inch single-voice-coil subwoofer designed to add dedicated low-frequency output to a vehicle audio system. Its 4-ohm nominal impedance makes it suited to systems using a compatible mono or bridged amplifier channel. With 250 watts RMS power handling, it is intended for balanced aftermarket bass upgrades rather than extreme-power competition systems.

This Punch P1 model is a practical choice for listeners who want fuller impact from music without moving to a larger subwoofer. Its 10-inch format can work well where cargo space and enclosure size are important considerations. The subwoofer is designed for either sealed or vented enclosures, allowing the installation to be tailored for compactness or deeper extension.

A Kevlar-reinforced paper-pulp cone provides the moving surface, while a high-density NBR rubber surround supports cone travel. The high-temperature 2-inch voice coil uses a spun-laced Nomex insulating reinforcement collar. These materials are paired with a poly-cotton spider and flexible stitched-on lead wires for dependable operation under normal rated use.

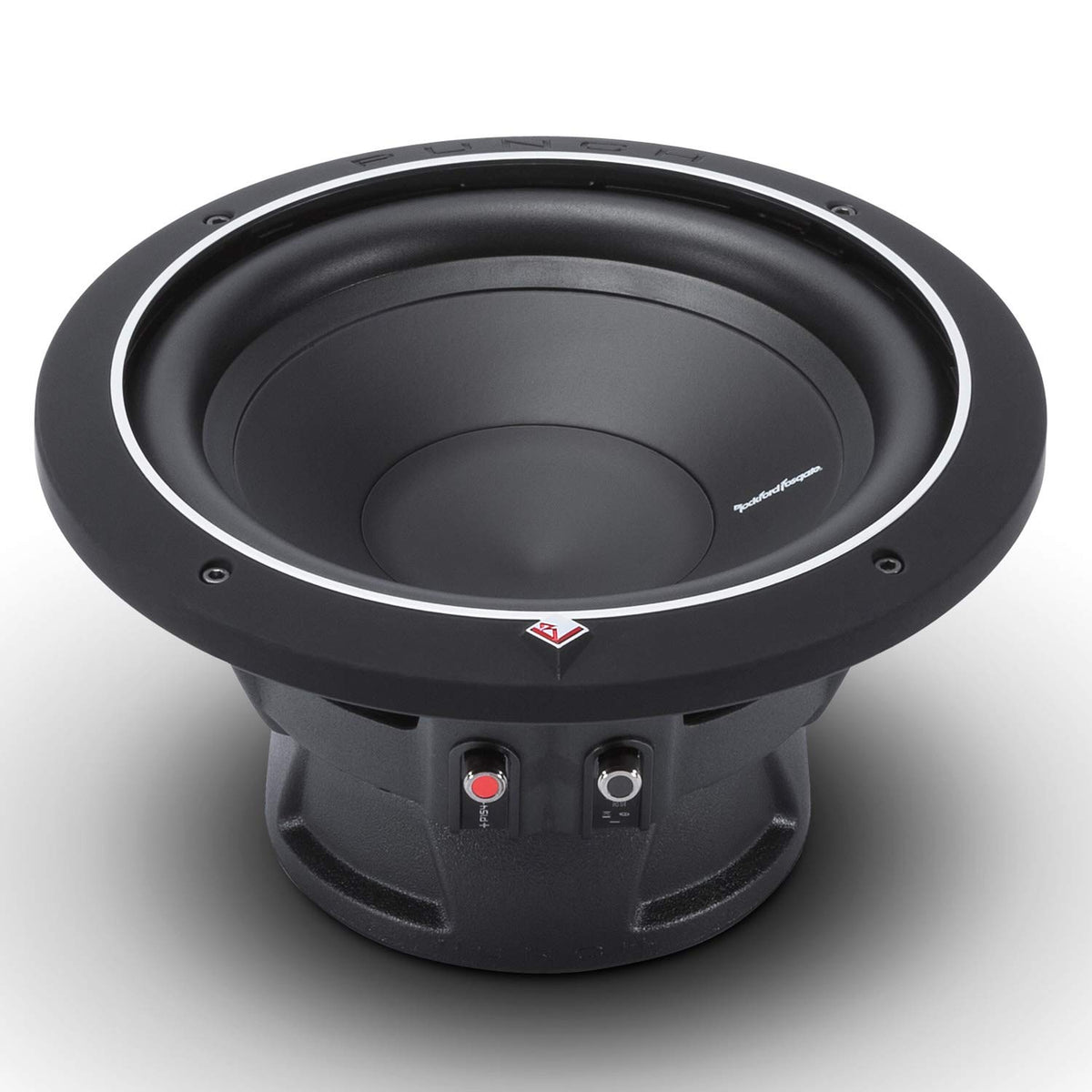

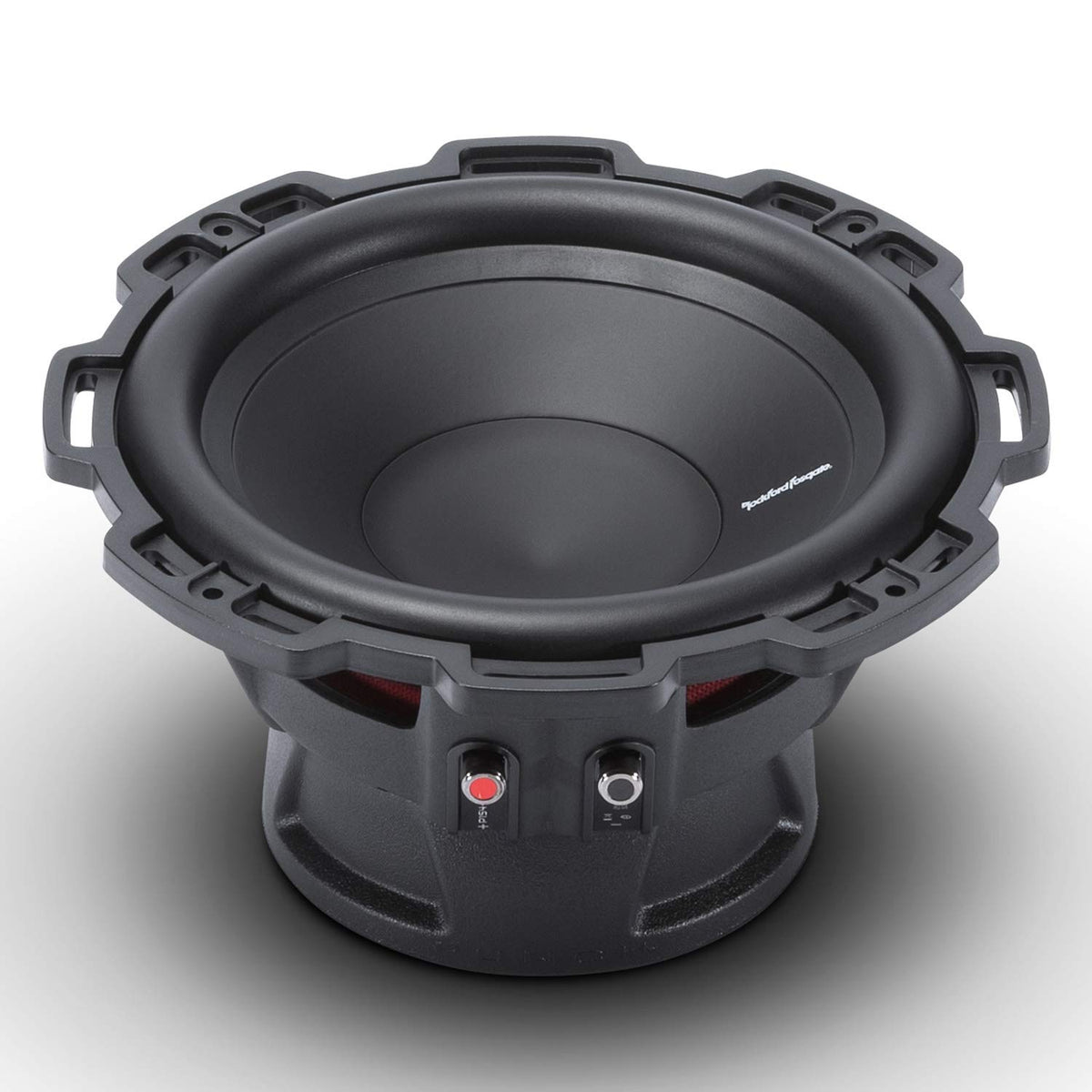

Rockford Fosgate uses a vented motor structure with an extended pole piece and bumped backplate to support voice-coil cooling and movement. Its integrated spider venting design helps manage heat around the motor assembly. The stamped-steel frame, removable PVC motor cover, and radial compression terminals complete a purpose-built woofer design.

The P1-S4-10 works as a single-subwoofer upgrade or as part of a matched multi-subwoofer system when the amplifier can safely support the final wiring load. A sealed enclosure offers a smaller recommended box option, while the specified vented enclosure is tuned for lower system extension. Proper amplifier gain setting, enclosure construction, and polarity are important for getting consistent performance from the subwoofer.

Key Features

• 250-Watt RMS Handling: Supports amplifier matching around its continuous power rating.
• 4-Ohm Single Voice Coil: Provides a straightforward nominal load for compatible amplifiers.
• Kevlar-Reinforced Paper Cone: Balances rigidity and controlled low-frequency response.
• High-Temperature 2-Inch Voice Coil: Built for thermal durability at rated power.
• Spider Venting Design: Helps promote airflow around the voice-coil area.
• Sealed Or Vented Compatibility: Allows enclosure selection based on space and bass goals.

Design & Installation

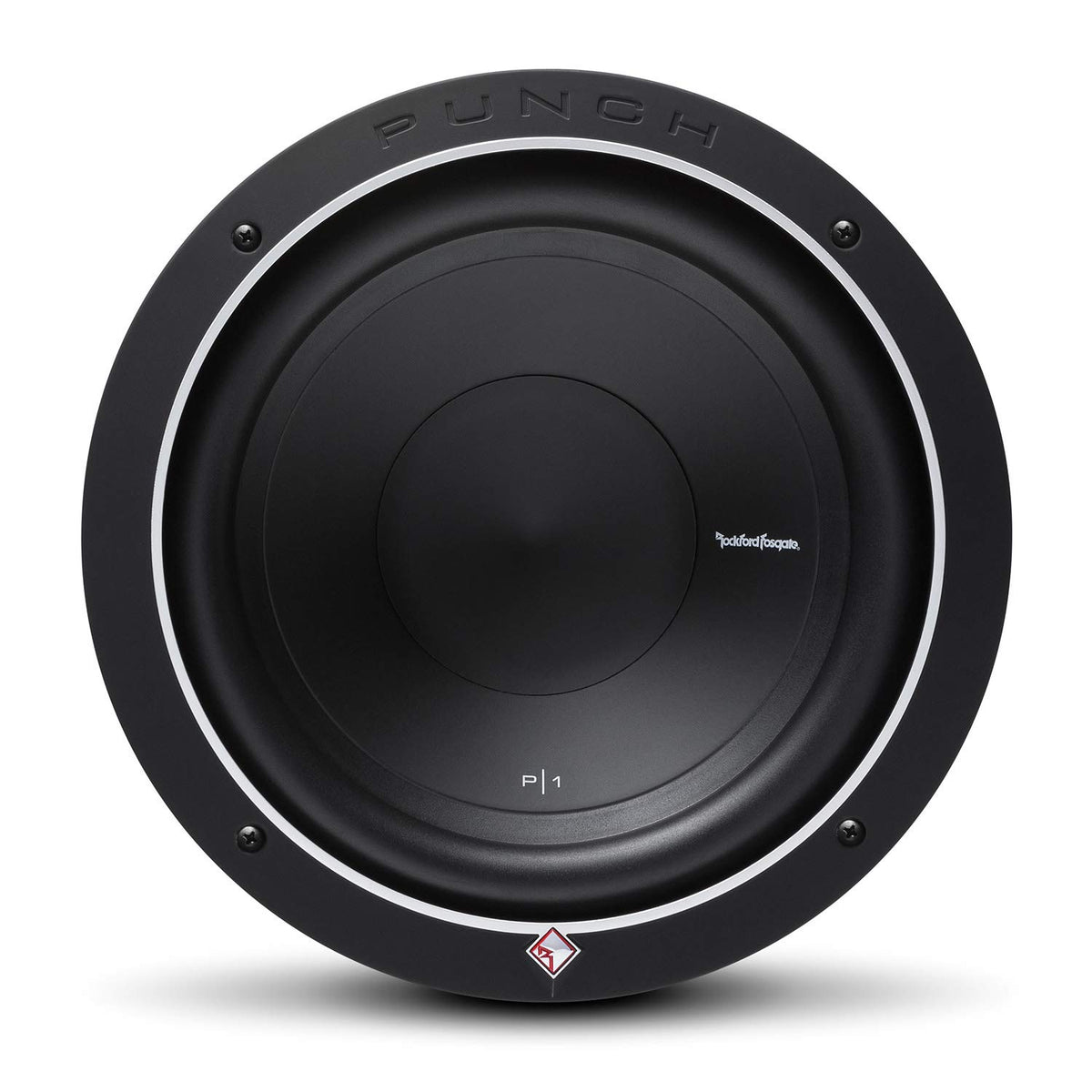

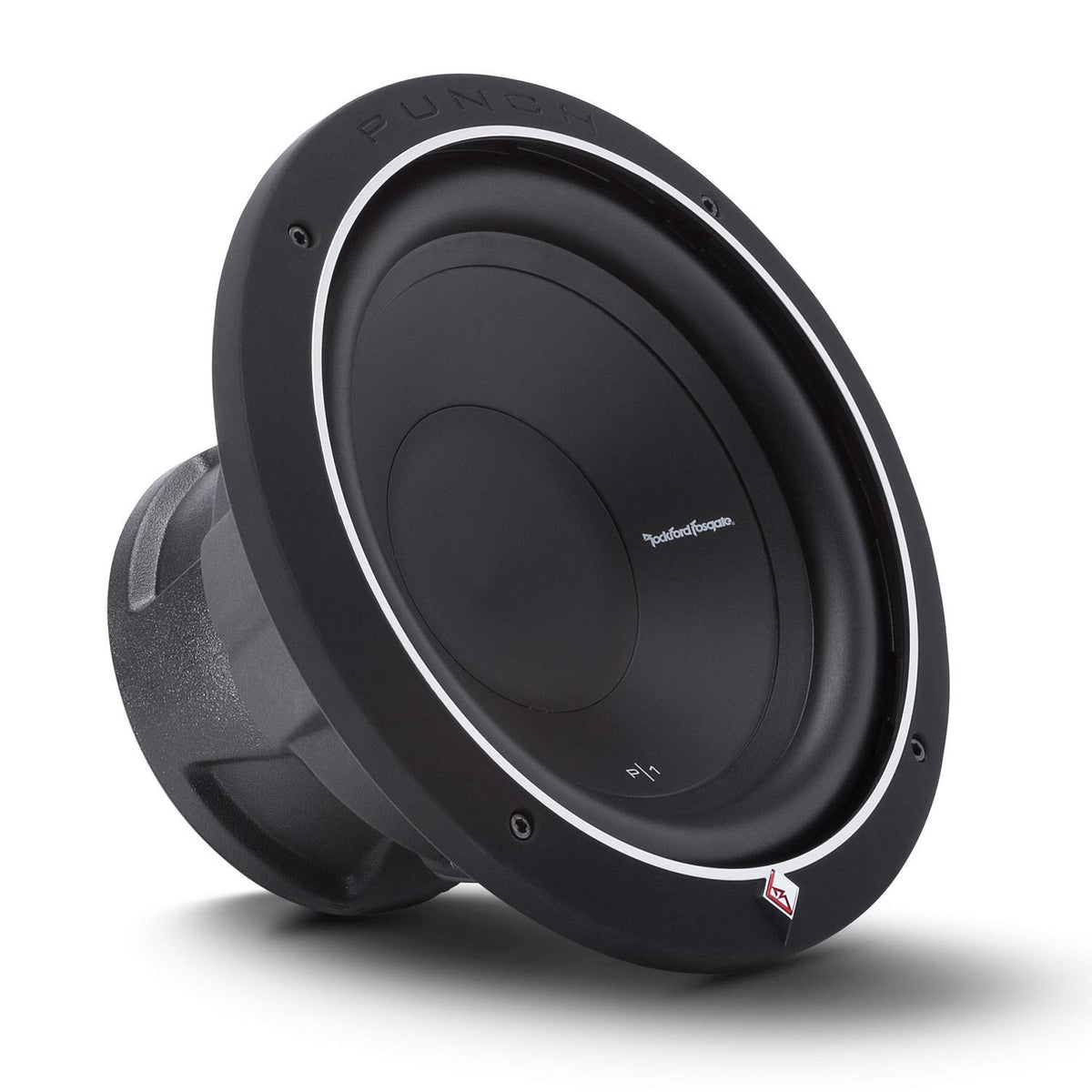

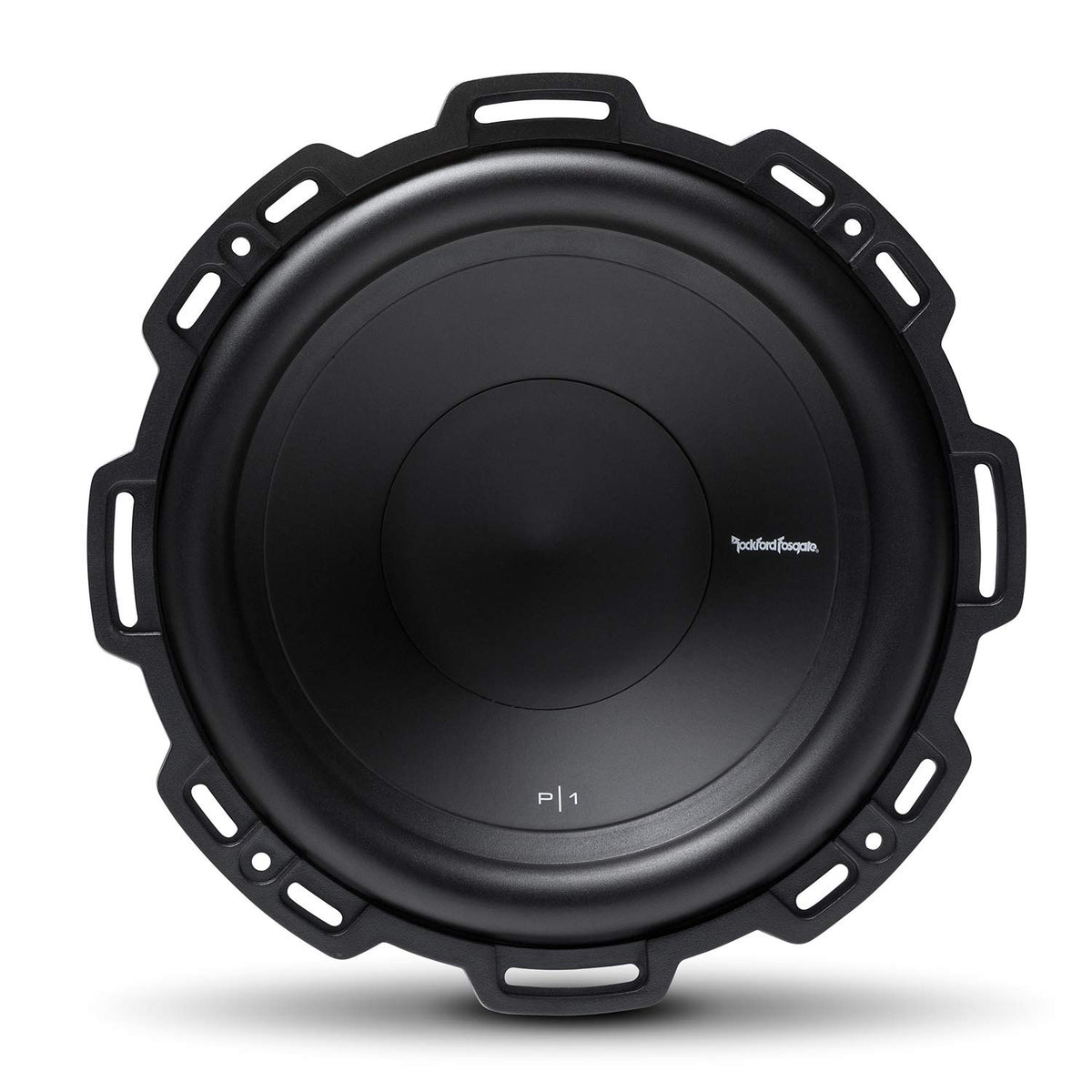

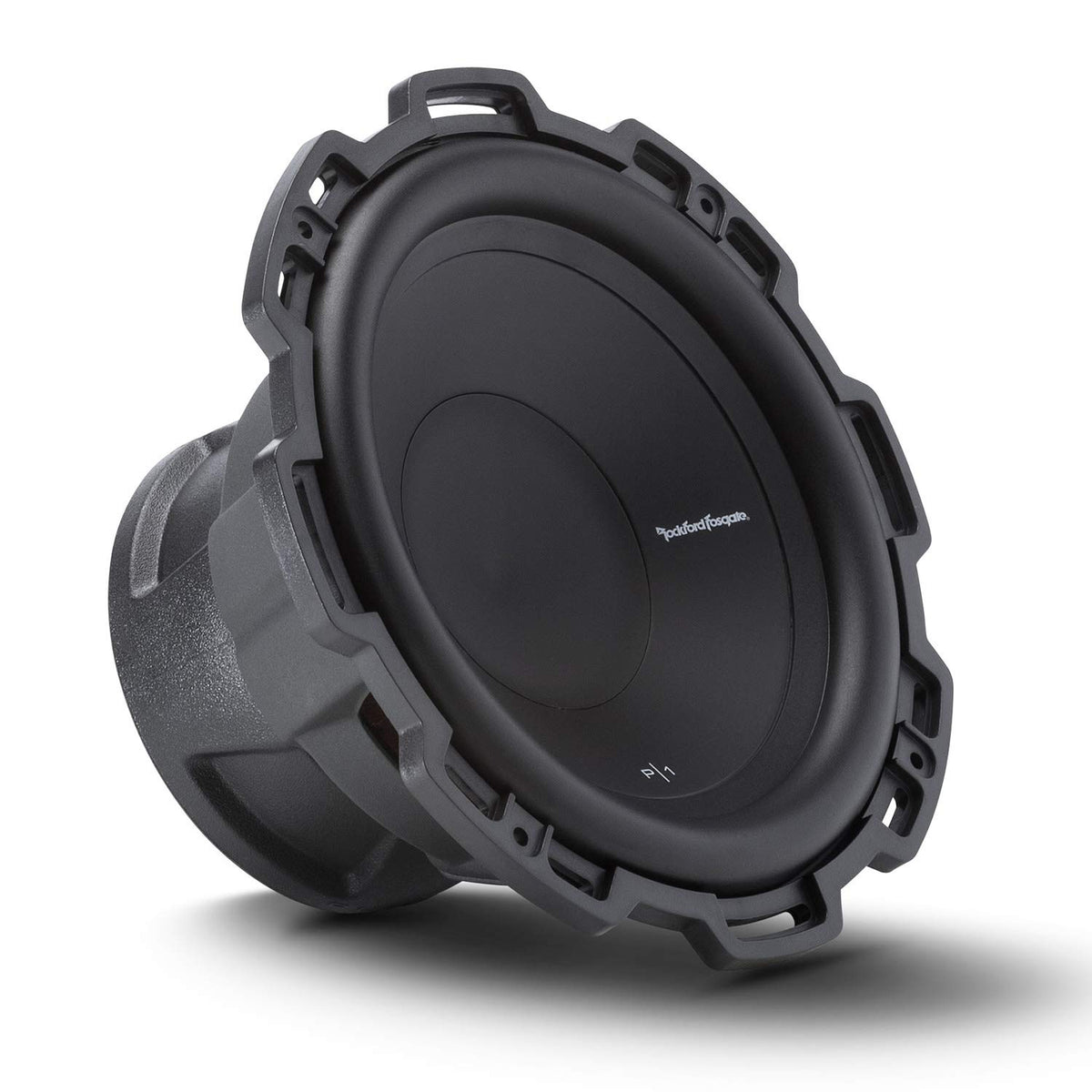

The P1-S4-10 uses a heavy-gauge stamped-steel frame with compound-bend geometry, a high-density NBR rubber surround, and a tear- and fatigue-resistant poly-cotton spider. Its motor assembly includes optimized magnetics, an extended pole piece, and a bumped vented backplate. A soft-touch trim ring is included and is designed to accommodate an optional integrated grille.

Plan for a 9.14-inch cutout diameter and 5.33 inches of mounting depth, plus clearance behind the magnet and wiring terminals. Rockford Fosgate specifies a 0.59-cubic-foot sealed enclosure or a 1.40-cubic-foot vented enclosure; these are gross internal volumes before driver and port displacement. Connect the subwoofer to an amplifier stable at its 4-ohm load, observe polarity, and set amplifier gain conservatively to avoid distortion.
