Rockford Fosgate M1D2-10B 10" Color Optix Marine Subwoofer

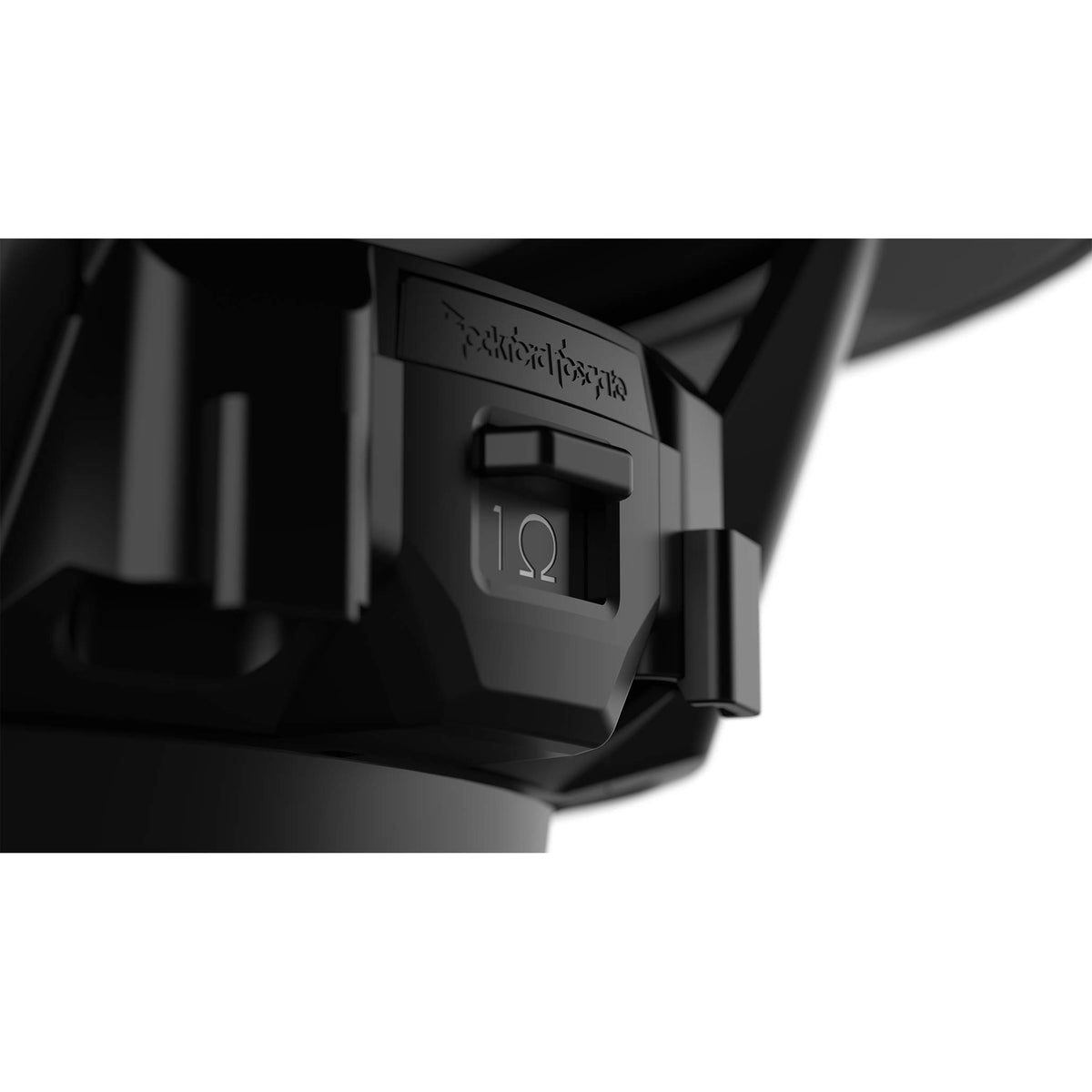

The Rockford Fosgate M1D2-10B is a 10-inch marine subwoofer designed to add dedicated low-frequency output to boat and motorsports audio systems. Its dual 2-ohm voice-coil design and built-in VersaSwitch provide selectable 1-ohm or 4-ohm system impedance. The black Sport grille and integrated RGB lighting give it a coordinated appearance in exposed marine installations.

This subwoofer is intended for listeners building a system that needs bass beyond what full-range marine speakers can provide. It handles 300 watts RMS and 1,200 watts maximum power, making it suitable for pairing with a properly matched external amplifier. With a 20 Hz to 750 Hz frequency-response rating and 91.5 dB sensitivity, it is designed for low-frequency system duties.

Color Optix RGB lighting is integrated into the subwoofer and uses optically clear, UV-stable lighting encapsulation with wide-angle LEDs. When paired with the separately sold Rockford Fosgate PMX-RGB controller, the lighting can be controlled through the RF Connect app. Integrated Deutsch and Amphenol-style connectivity helps support a cleaner lighting installation.

The M1D2-10B uses a mineral-filled polypropylene cone, Santoprene VAST surround, synthetic-fiber-blend spider, and high-temperature Kapton dual voice coil. Its vented motor uses a water-repelling nano-coated mesh screen, while insulated silicone tinsel leads and marine-grade terminals support use in exposed environments. The Element Ready construction carries an IP67 rating for marine and motorsports applications.

For a complete audio upgrade, the M1D2-10B can be installed in a suitable sealed, vented, or infinite-baffle arrangement as appropriate for the application. Its 4.23-inch mounting depth and 8.90-inch cutout diameter should be verified before installation. Rockford Fosgate recommends an active 80-100 Hz low-pass crossover at 12 dB per octave for subwoofer operation.

Key Features

• 300-Watt RMS Handling: Supports amplifier matching for substantial bass output.
• VersaSwitch Impedance: Selects 1-ohm or 4-ohm configuration without rewiring coils.
• Color Optix RGB LEDs: Adds customizable lighting with a compatible controller.
• IP67 Element Ready Design: Built for water, UV, and marine-environment exposure.
• Mineral-Filled Polypropylene Cone: Provides a durable cone structure for marine use.
• Integrated Connectors: Simplify speaker and RGB lighting connections during installation.

Design & Installation

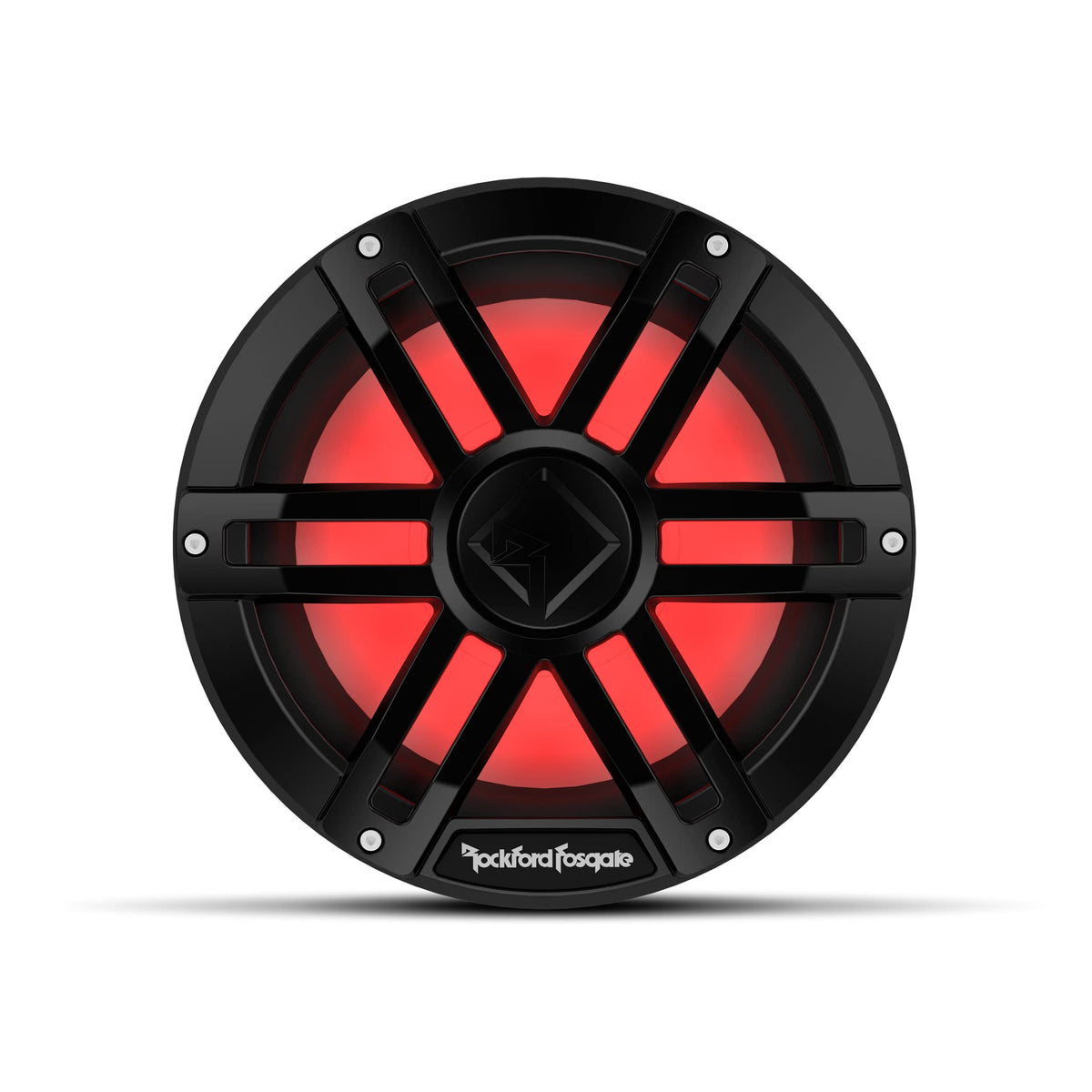

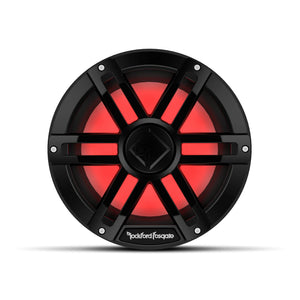

The M1D2-10B combines a black UV-stable ASA plastic frame and grille with a mineral-filled polypropylene cone, Santoprene surround, synthetic-fiber-blend spider, and zinc nickel-plated marine-grade brass terminals. A vented motor and water-repelling nano-coated mesh screen support its Element Ready, IP67-rated construction. The fixed Sport grille is included with the subwoofer.

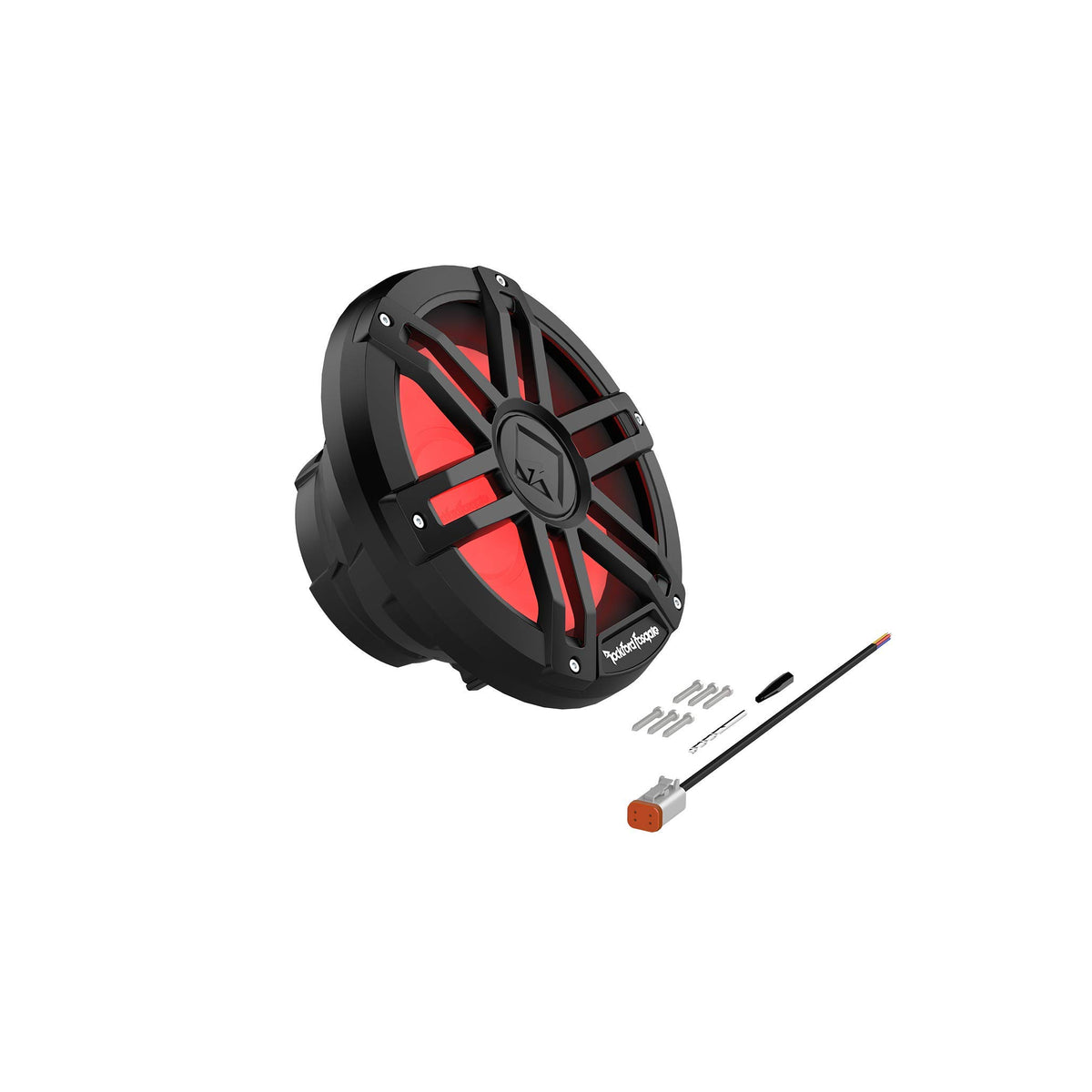

Plan for an 8.90-inch mounting cutout and 4.23 inches of mounting depth. The included Color Optix harness supports lighting hookup, while a PMX-RGB controller is required for RF Connect app control and is sold separately. For hard-wired lighting, Rockford Fosgate specifies a 9-16V supply, a 1-amp fuse, and at least 20-gauge wire; do not connect the lights directly to 12V.
