Rockford Fosgate GNRL-STAGE4 Polaris General 6.5"/10" Audio Kit

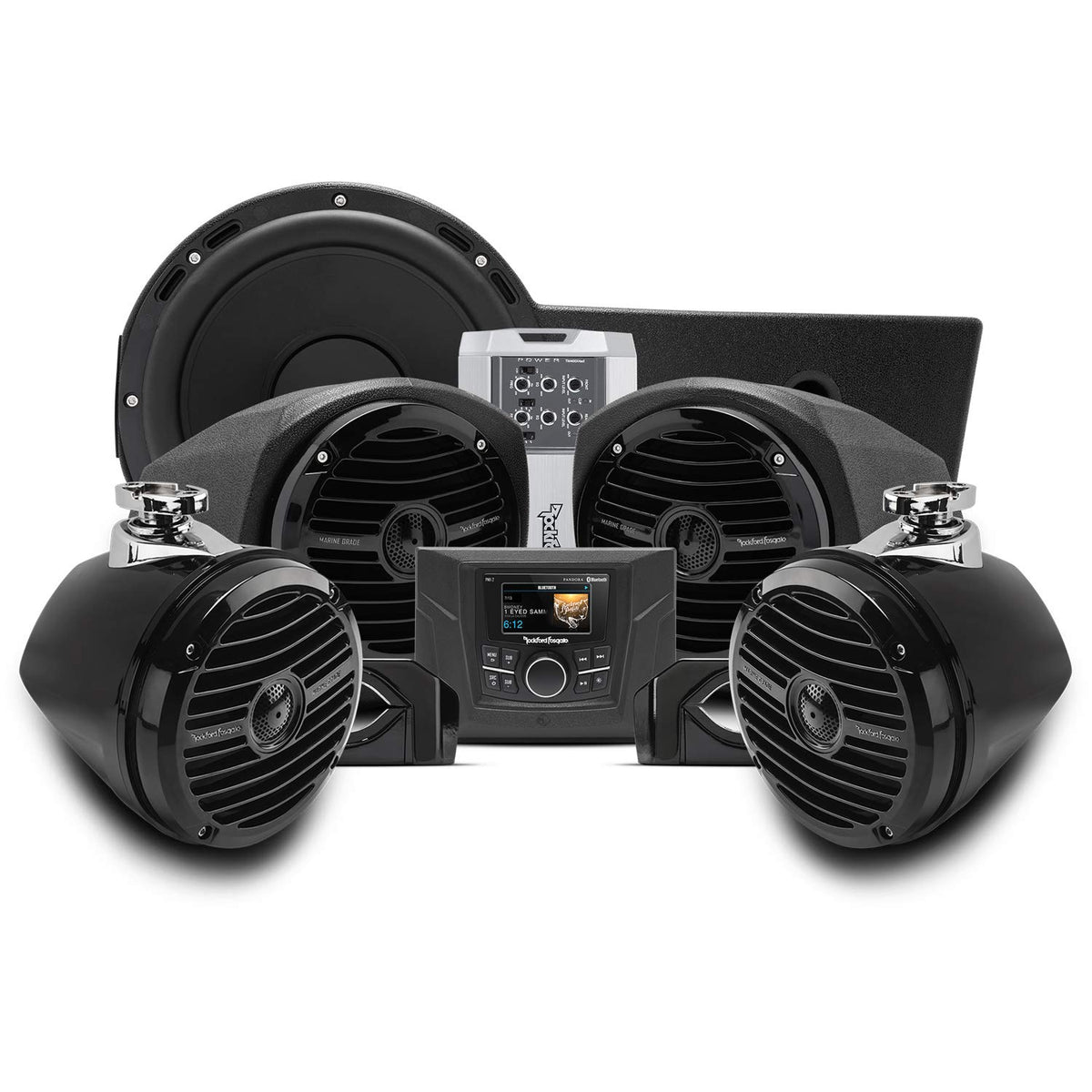

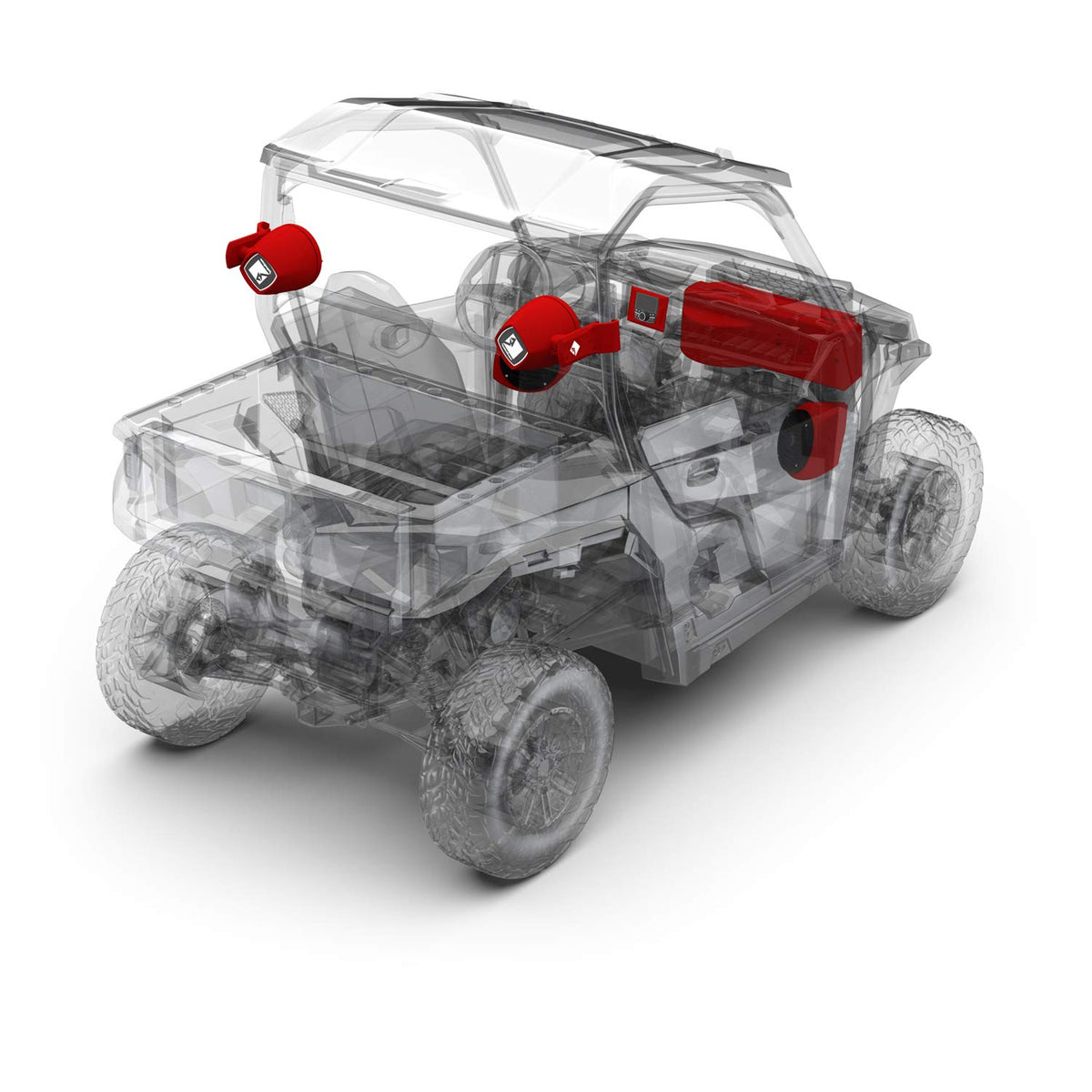

The Rockford Fosgate GNRL-STAGE4 is a vehicle-specific audio upgrade kit for select 2016-2021 Polaris GENERAL models. It combines a digital media receiver, front and rear 6.5-inch speakers, a 10-inch subwoofer, amplifier, enclosures, mounting hardware, and model-specific wiring. The package is designed to add a complete amplified sound system without requiring the buyer to assemble the primary audio components individually.

This kit suits GENERAL owners who want music playback, radio reception, and stronger full-range sound while riding. The PMX-2 receiver provides AM, FM, weather-band radio, Bluetooth audio, USB, and auxiliary input connectivity. Its compact 2.7-inch color TFT display is integrated through the included dash kit.

The system uses a pair of RM1652B 6.5-inch marine coaxial speakers in front lower enclosures and a pair of RM1652W-MB 6.5-inch enclosed rear speakers. This layout adds front and rear sound coverage while retaining purpose-built mounting locations. The RM110D2B 10-inch dual 2-ohm subwoofer supplies low-frequency output from the included front subwoofer enclosure.

Power comes from the TM400X4ad, a compact four-channel marine amplifier using Rockford Fosgate Class-AD topology. It is rated for 100 watts RMS per channel at either 4 or 2 ohms, with 200 watts RMS per bridged channel at 4 ohms. Its variable crossovers, Punch EQ, differential inputs, and protection circuitry support setup for the included speaker and subwoofer system.

Vehicle-specific integration is central to the GNRL-STAGE4 package. The RFGNRL-PMXDK dash kit, RFGNRL-K8 amplifier wiring kit, RFGNRL-FSE front speaker enclosures, front subwoofer enclosure, rear speaker harnesses, and roll-cage clamps are included for GENERAL installation. An AM/FM antenna is not included, so one is required for terrestrial radio reception.

Key Features

• Vehicle-Specific Package: Includes GENERAL-focused mounting, enclosure, and wiring components.
• PMX-2 Digital Receiver: Adds Bluetooth, USB, auxiliary, AM, FM, and weather-band playback.
• Four 6.5-Inch Speakers: Provides front lower and rear speaker coverage.
• 10-Inch Marine Subwoofer: Adds dedicated low-frequency output through a front enclosure.
• 400-Watt Four-Channel Amplifier: Supplies constant 100-watt-per-channel RMS output at 2 or 4 ohms.
• Element-Ready Components: Built for exposure to dust, water, UV, corrosion, and vibration.

Design & Installation

The kit combines marine-grade audio components with molded vehicle-specific enclosures and a dash panel matched to the GENERAL interior. The rear RM1652W-MB speaker enclosures use high-density polyethylene with UV inhibitors, while the PM-CL3B cast-aluminum clamps secure them to the Polaris Lock & Ride roll cage. The system components are intended for outdoor motorsports use and include corrosion- and weather-conscious construction features.

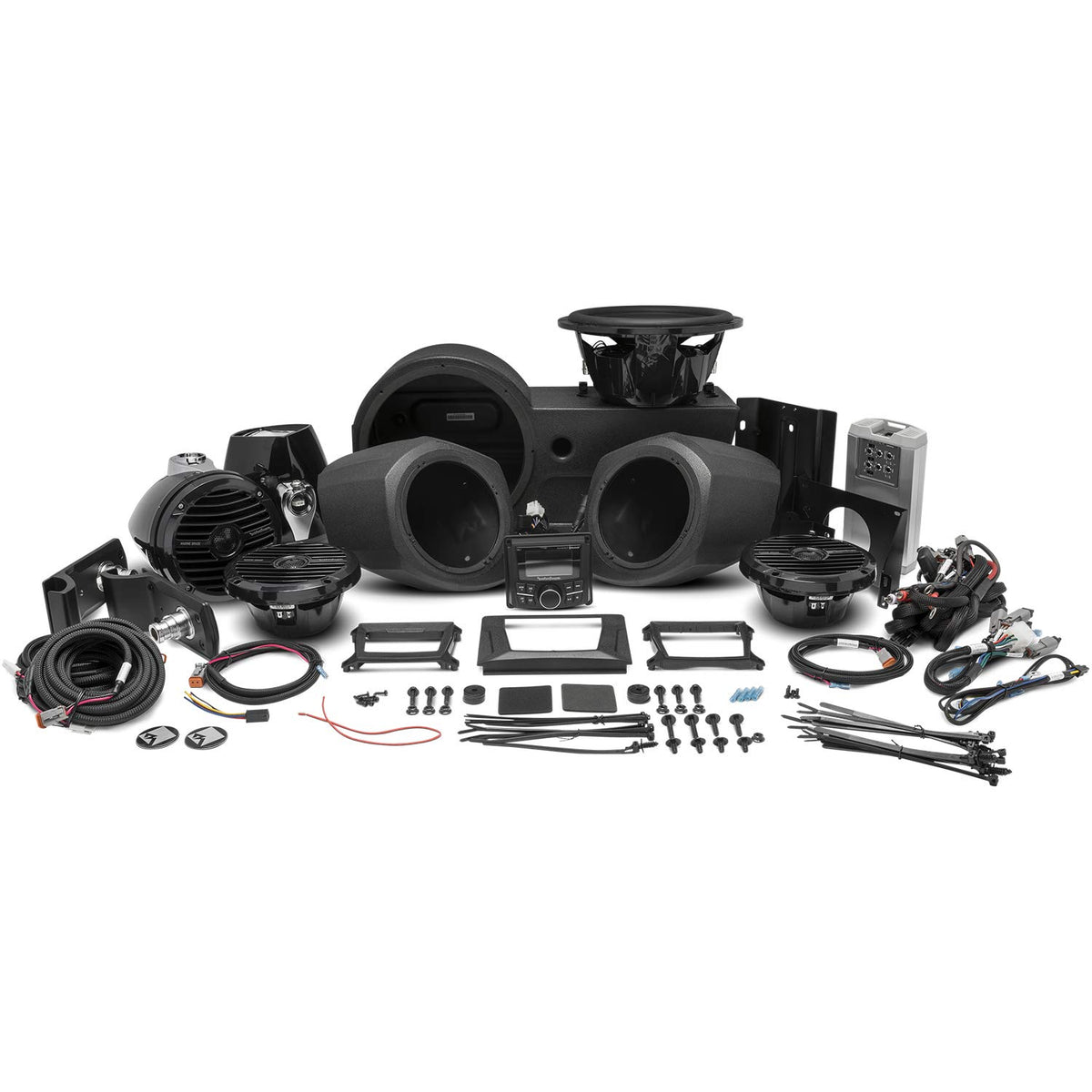

Installation uses the included dash kit, amplifier mounting bracket, front speaker enclosures, front subwoofer enclosure, direct-connect harnesses, rear speaker harnesses, and rear speaker clamps. Rockford Fosgate lists an estimated installation time of three hours for the complete Stage 4 system. Confirm fitment for the exact GENERAL configuration before purchase, and supply an antenna separately if AM/FM reception is needed.
