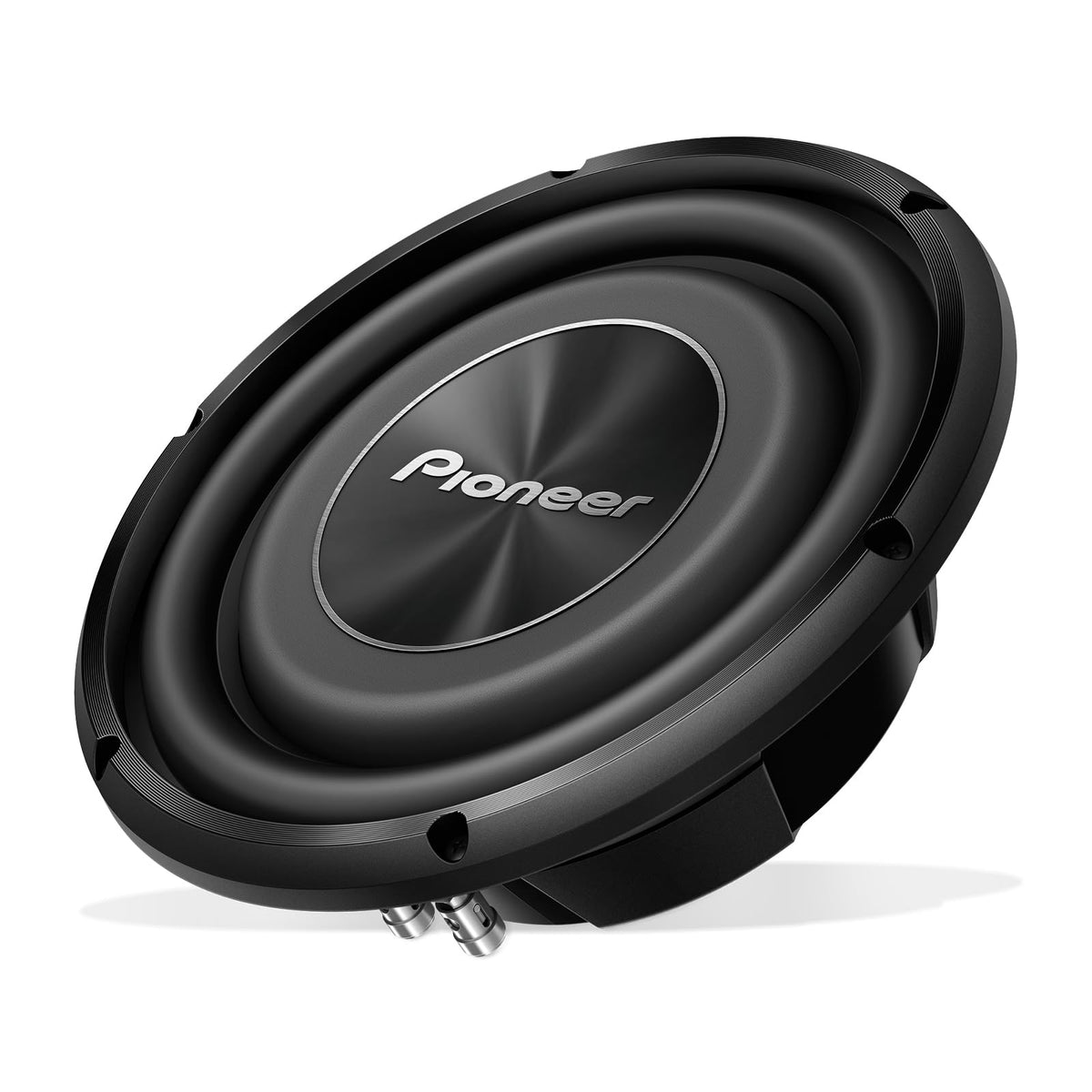

Pioneer TS-A2500LS4 10" Shallow-Mount Subwoofer

The Pioneer TS-A2500LS4 is a 10-inch shallow-mount component subwoofer designed to add low-frequency output where conventional deep subwoofers may not fit. Its compact 87 mm mounting depth supports installations in space-limited locations such as behind seats or in slim custom enclosures. This passive subwoofer requires an external amplifier and enclosure for operation. It is a practical choice for vehicle owners building a bass upgrade without dedicating a large amount of cabin or cargo space.

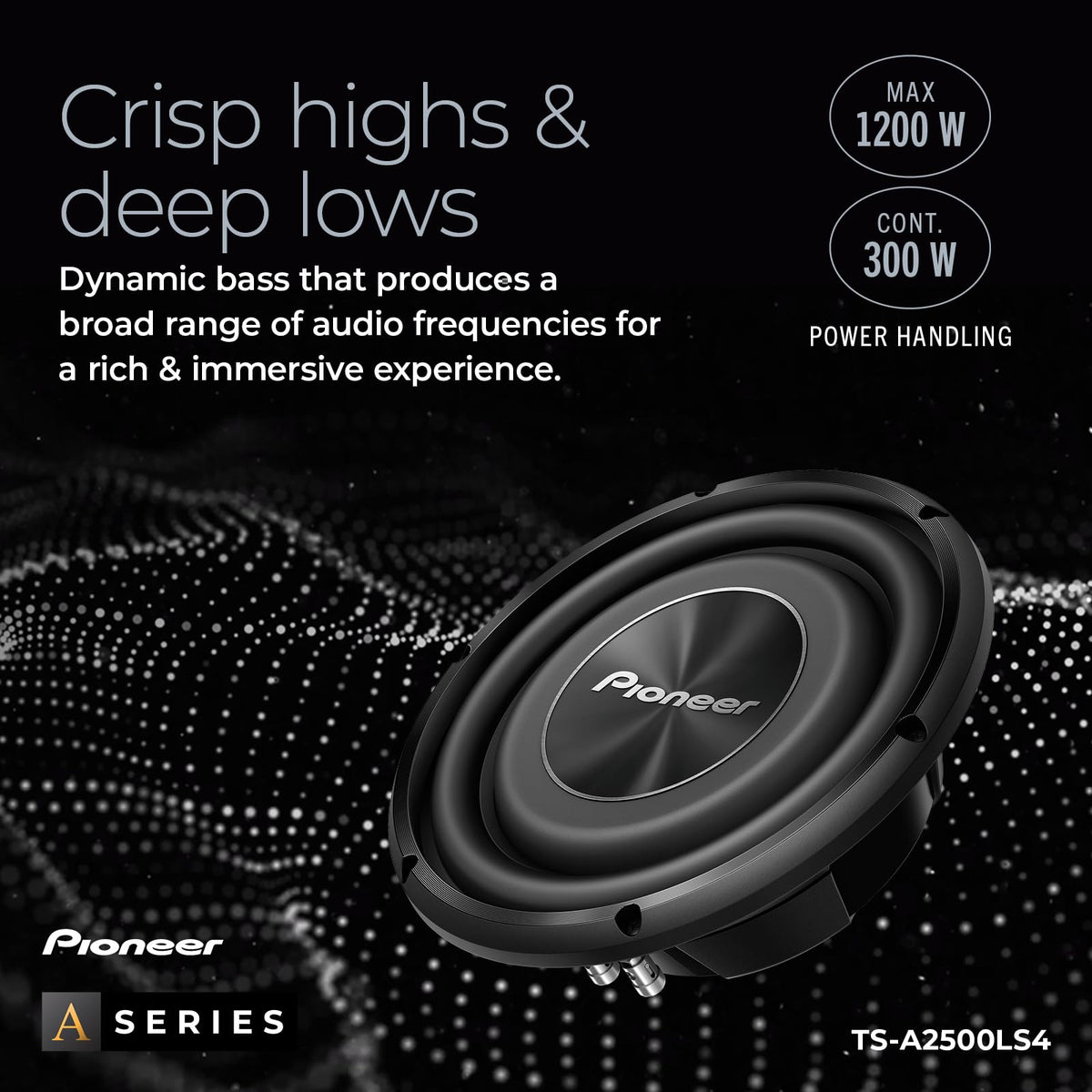

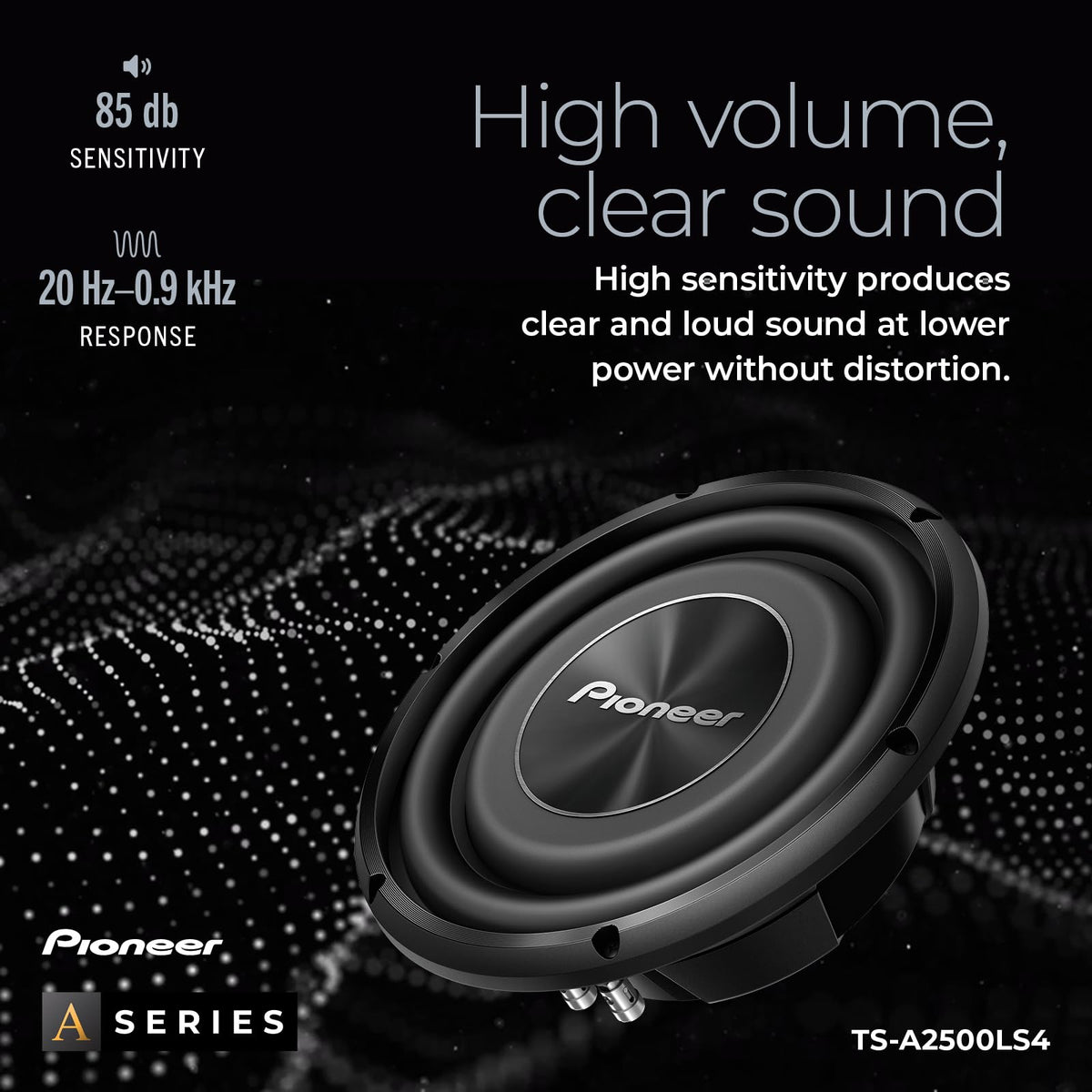

With 300 watts RMS power handling and 1,200 watts maximum music power handling, the TS-A2500LS4 is intended for systems matched to a properly configured amplifier. Its single 4-ohm voice coil provides a straightforward load for compatible mono or bridged amplifier channels. The 85 dB sensitivity rating and 20 Hz to 900 Hz frequency response describe its operating characteristics. Careful amplifier gain adjustment and crossover setup are important for clean integration with full-range speakers.

The woofer uses a glass-fiber and mica-reinforced injection-molded polypropylene cone. This rigid cone construction is paired with a rubber surround to support controlled cone movement during bass reproduction. A double-reinforced spider helps stabilize the moving assembly. Together, these components are designed for the demands of compact subwoofer installation.

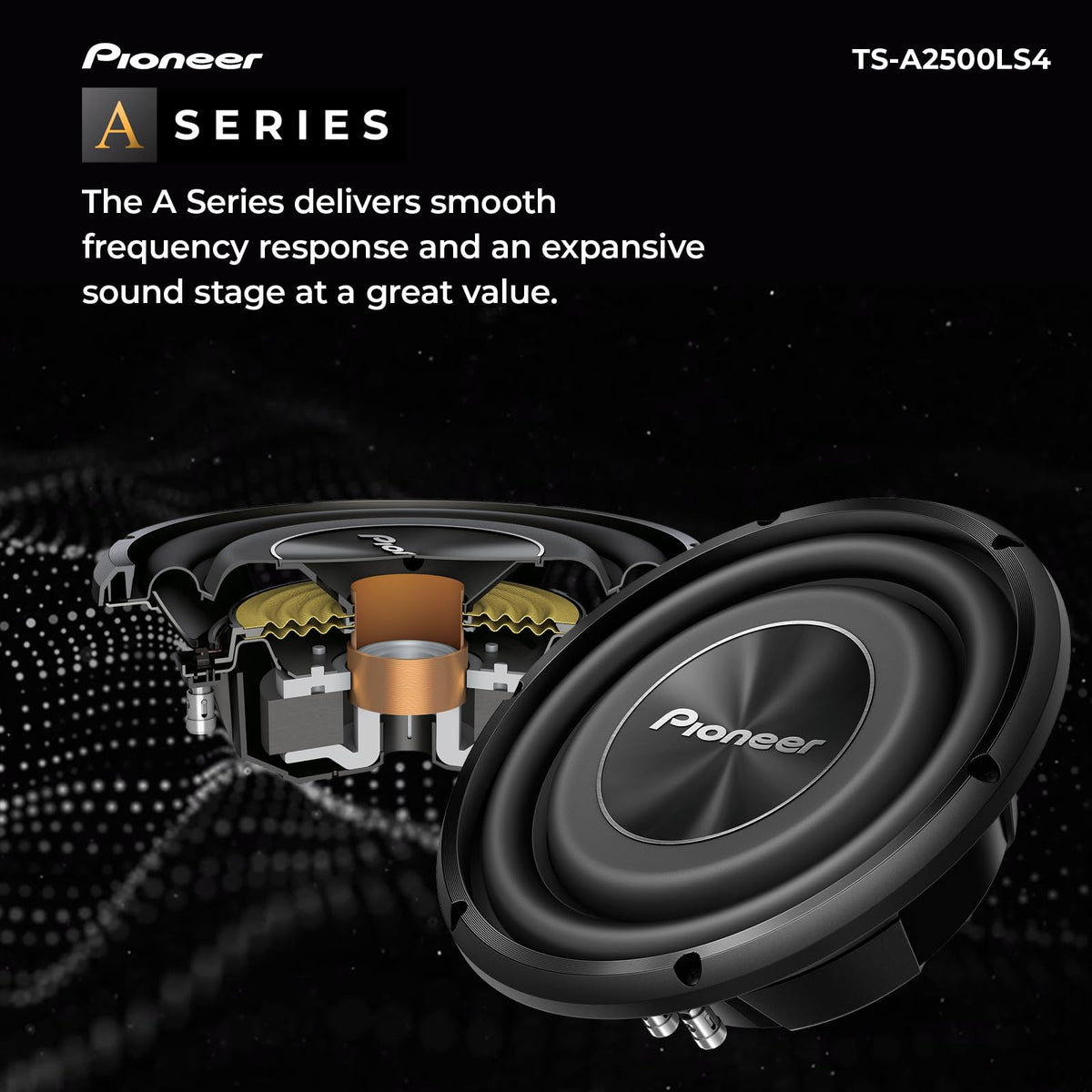

The TS-A2500LS4 is part of Pioneer’s A-Series lineup and is designed to complement Pioneer A-Series full-range speakers. It can be used in a dedicated subwoofer system with an aftermarket amplifier, appropriate power wiring, and a low-pass crossover. The single-voice-coil design makes system planning simpler than multi-coil wiring configurations. It is suitable for listeners seeking added bass presence while retaining useful vehicle space.

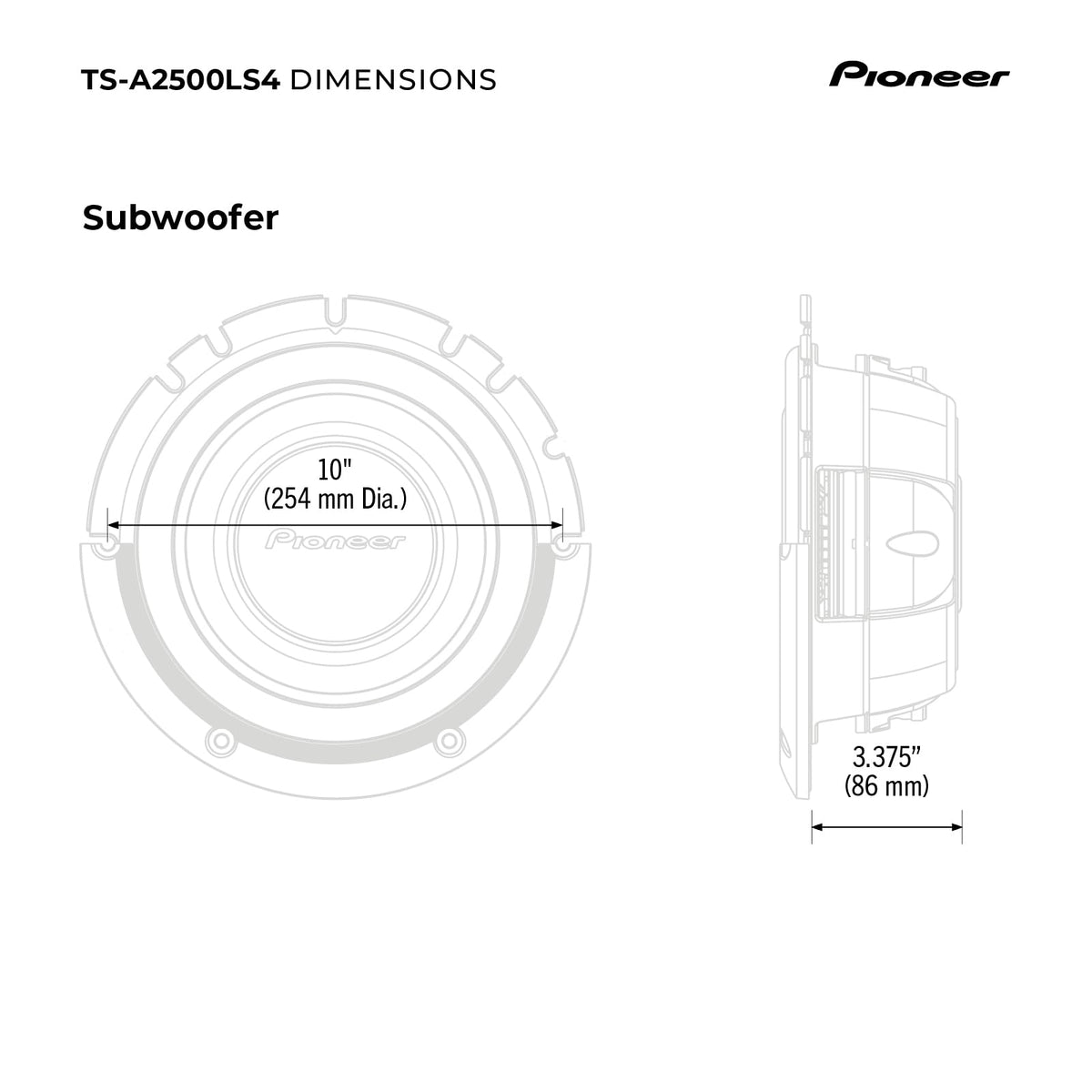

Installation flexibility is a central part of this model’s design. The subwoofer has a 230 mm cutout requirement, a 267 mm overall diameter, and a 103 mm overall height. Pioneer provides sealed and ported enclosure guidance, including a recommended 17.0-liter enclosure volume. Confirm available clearance, enclosure volume, amplifier compatibility, and wiring before beginning installation.

Key Features

• Shallow-Mount Profile: The 87 mm mounting depth helps accommodate compact enclosure locations.
• 300W RMS Handling: Supports amplifier matching based on continuous power, not peak power alone.
• Single 4-Ohm Voice Coil: Provides a simple, consistent impedance load for compatible amplifiers.
• Reinforced IMPP Cone: Glass-fiber and mica reinforcement adds rigidity to the polypropylene cone.
• Double-Reinforced Spider: Helps support controlled movement of the woofer assembly.
• Flexible Enclosure Options: Manufacturer guidance is provided for sealed and ported enclosures.

Design & Installation

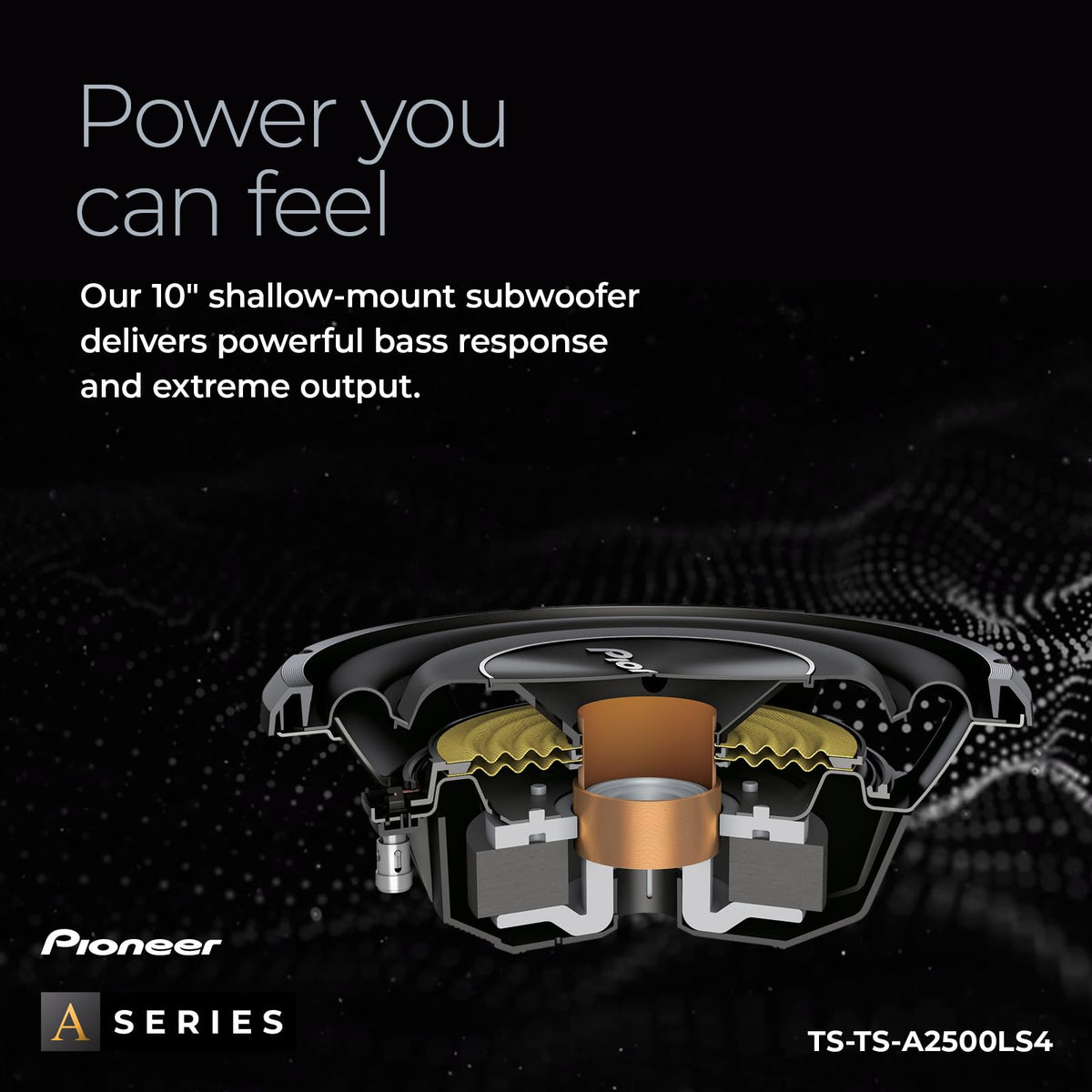

The TS-A2500LS4 combines a glass-fiber and mica-reinforced IMPP cone, rubber surround, ferrite magnet, Kapton voice-coil bobbin, copper voice-coil wire, ABS dust cap, and steel basket. Its compact chassis measures 267 mm in diameter and 103 mm in overall height. The subwoofer uses push terminals and a single voice coil. A trim ring and six mounting screws are shown in the installation documentation.

Mount the subwoofer in a rigid enclosure with a 230 mm cutout and at least 87 mm of mounting-depth clearance. For a sealed installation, Pioneer specifies 17.0 liters as the recommended enclosure volume, with a stated range of 9.9 to 19.8 liters. For a ported enclosure, Pioneer specifies 17.0 liters with one 76 mm by 191 mm port; use a compatible external amplifier, set an appropriate low-pass crossover, and verify polarity before final assembly.
