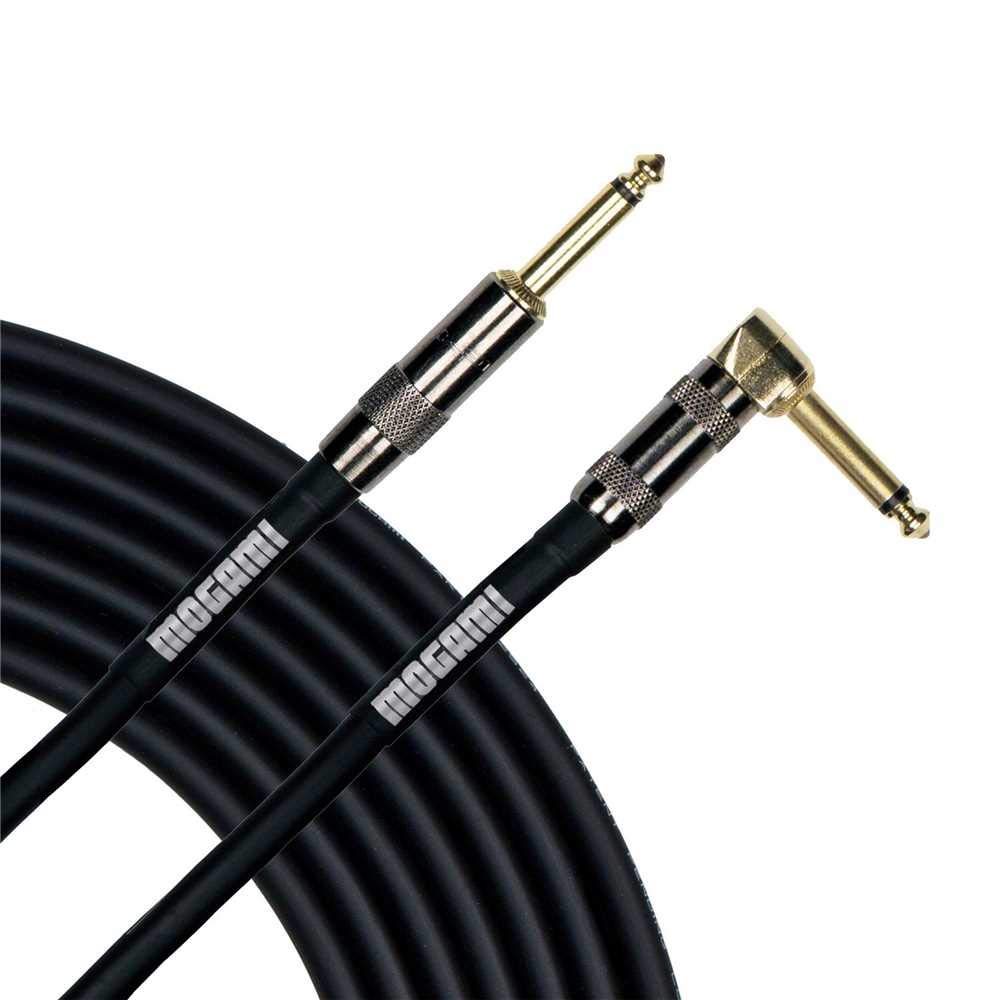

Mogami PLATINUM GUITAR-30R 30' Right-Angle Instrument Cable

The Mogami PLATINUM GUITAR-30R is a 30-foot unbalanced instrument cable with one right-angle 1/4-inch TS plug and one straight 1/4-inch TS plug. It is intended to connect electric guitars, basses, keyboards, and effects devices using standard mono instrument connections. The mixed plug layout helps accommodate instruments or pedals where a low-profile right-angle connection is useful.

This cable is built for players who need a longer run from an instrument to an amplifier, pedalboard, or compatible input without using an extension. Its 30-foot length provides room for stage movement and flexible equipment placement. Mogami notes that cable length can affect an instrument signal, so this length is suited to setups that need the extra reach.

The Platinum construction uses Mogami 3302 instrument cable with an oxygen-free copper core and a low-loss cellular polyethylene dielectric. This design is specified for low capacitance and signal transfer with extended high-frequency response. It is an unbalanced TS cable, making it appropriate for instrument-level connections rather than balanced audio wiring.

An ultra-high-density copper spiral shield provides 100 percent coverage around the signal conductor. Conductive PVC is used to help reduce handling noise when the cable is moved during playing or setup. Together, these construction elements are designed for a quiet signal path in studio, rehearsal, and live-performance applications.

The GUITAR-30R uses G&H copper-core plugs with gold-plated contacts. One connector is right-angled and the other is straight, allowing the cable to be oriented according to the jack location and available clearance. This R version does not include a Neutrik Silent Plug, so it should not be treated as a silent hot-swap cable.

Key Features

• 30-Foot Length: Provides extended reach for stage, studio, or rehearsal setups.
• Right-Angle and Straight Plugs: Supports low-profile routing at one connection point.
• Mogami 3302 Cable: Uses Mogami's Platinum-series instrument cable construction.
• 100% Copper Spiral Shield: Helps protect the unbalanced signal from external noise.
• Conductive PVC Layer: Helps reduce noise caused by cable handling.
• G&H Copper-Core Plugs: Uses gold-plated 1/4-inch TS male contacts.

Design & Installation

The PLATINUM GUITAR-30R combines an oxygen-free copper conductor, cellular polyethylene insulation, conductive PVC, and a full-coverage copper spiral shield. Its G&H copper-core connectors have gold-plated contacts, with a right-angle plug at one end and a straight plug at the other. The cable is specified as 20 AWG and has a black outer finish.

Connect the 1/4-inch TS plugs between compatible unbalanced instrument jacks, such as a guitar output and an amplifier, effects pedal, or instrument input. Use the right-angle end where jack clearance or cable routing benefits from a lower-profile plug, and use the straight end at the remaining connection. This is an instrument cable and should not be used in place of a speaker cable between an amplifier head and speaker cabinet.
