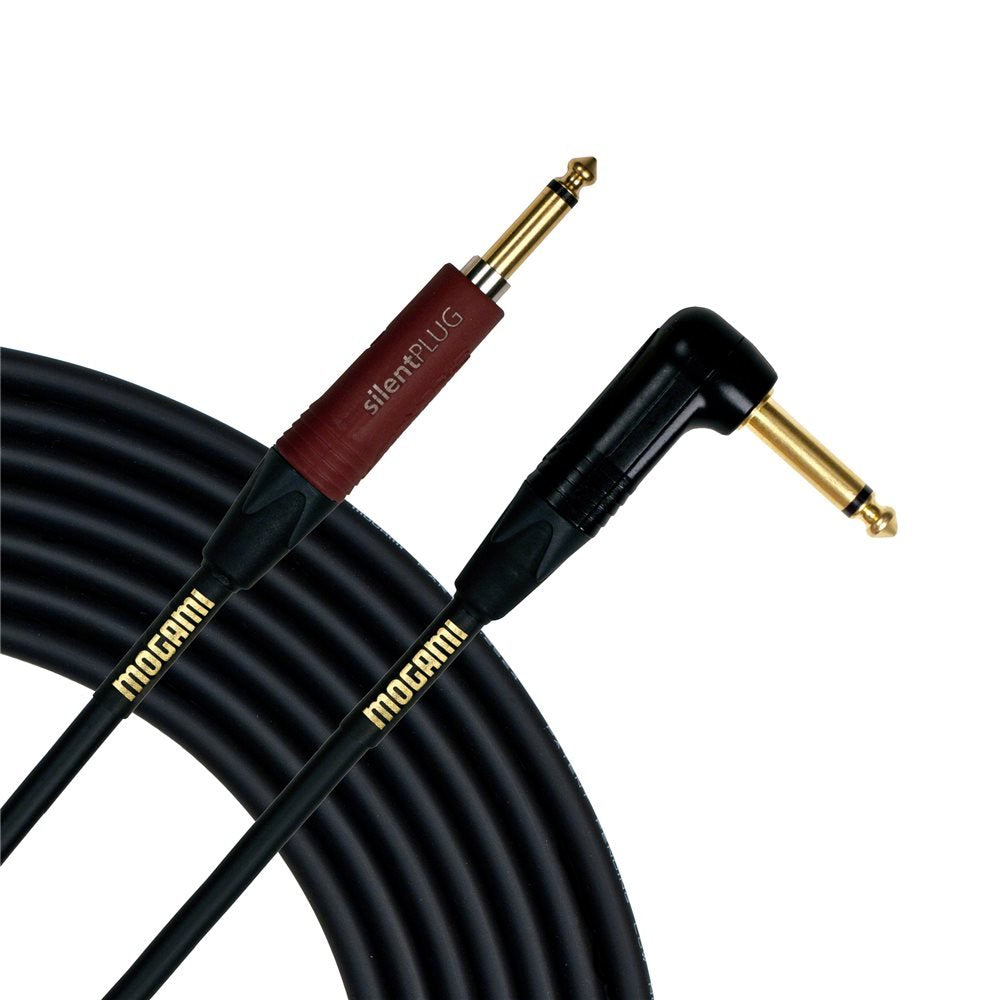

Mogami GOLD INST SILENT S 18R 18' Guitar Instrument Cable

The Mogami GOLD INST SILENT S 18R is an 18-foot unbalanced instrument cable for connecting an electric guitar, bass, keyboard, or similar instrument to an amplifier or pedal system. It uses 1/4-inch TS plugs, with a straight silentPLUG at one end and a right-angle plug at the other. This configuration helps keep the cable routing practical when an instrument or pedal setup benefits from a low-profile right-angle connection.

The straight Neutrik silentPLUG is designed for the instrument end of the cable. Its internal switch mutes the cable while it is unplugged, helping reduce pops and squeals when changing instruments under load. The red finish identifies the silent end for quicker setup onstage or in a studio.

Mogami builds this cable with W2524 instrument cable, which uses an oxygen-free copper center conductor and a conductive PVC sub-shield. The cable construction is intended to reduce handling-related noise that can occur as an instrument cable is moved, flexed, or stepped on. Its high-density shield supports dependable signal transfer in typical instrument-level signal paths.

This is a passive, mono TS cable intended for unbalanced instrument connections rather than balanced TRS lines or amplifier-to-speaker connections. The 18-foot length provides useful reach between a player and an amp, pedalboard, or recording input without requiring an extension. The right-angle end can be especially useful at pedal inputs or side-mounted instrument jacks.

As part of a guitar or bass setup, the GOLD INST SILENT S 18R can replace a standard instrument lead where quieter instrument changes and durable connector construction are priorities. It pairs naturally with pedals, amplifiers, DI inputs, and other equipment that accepts a 1/4-inch TS instrument signal. A limited lifetime manufacturer warranty is included with the cable.

Key Features

• Straight Silent Plug: Mutes the instrument cable during unplugging to help reduce switching noise.
• Right-Angle TS Plug: Provides a space-conscious connection for pedals, amps, and side-mounted jacks.
• 18-Foot Length: Gives practical reach for stage, rehearsal, and studio instrument setups.
• Mogami W2524 Cable: Uses a #20 AWG oxygen-free copper center conductor.
• Conductive PVC Layer: Helps drain microphonic noise created by cable movement.
• High-Density Shielding: Supports low-noise unbalanced instrument signal transmission.

Design & Installation

The cable has a black PVC outer jacket with a 6.0 mm outside diameter and a conductive carbon-PVC sub-shield beneath its served main shield. Neutrik connector components are used, including gold-plated contacts and a red rubber-overlaid straight silentPLUG housing. The right-angle connector helps reduce cable protrusion where space is limited.

Connect the straight silentPLUG end to the instrument and the right-angle TS end to an amplifier input, pedal input, or other compatible 1/4-inch TS instrument input. It is intended for instrument-level connections and should not be connected between an amplifier output and a speaker cabinet. For active instruments using a TRS output jack to switch battery power, the silent-muting function may not operate as expected.
