Mogami GOLD-KEY-SB-10R 10' Balanced Stereo Keyboard Cable

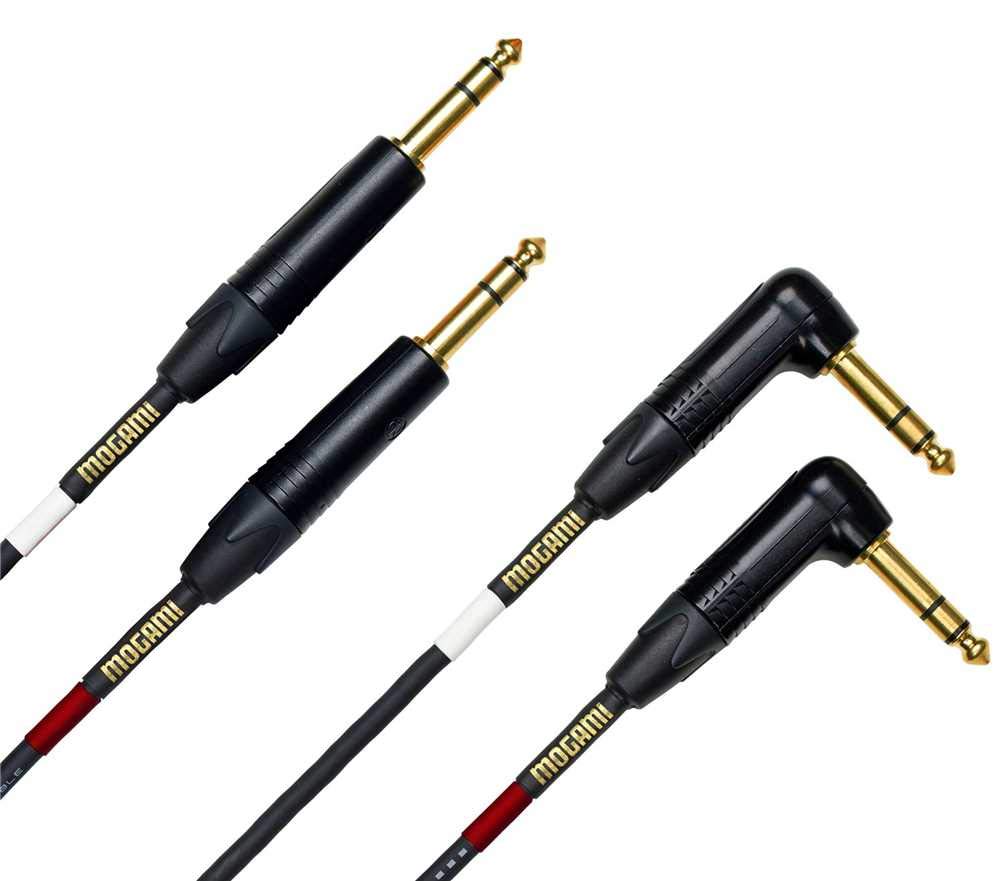

The Mogami GOLD-KEY-SB-10R is a 10-foot balanced stereo cable designed for keyboards, synthesizers, organs, digital pianos, and other equipment with separate left and right 1/4-inch balanced outputs. It provides two matched audio paths in one cable assembly, helping keep stereo connections organized between an instrument and a mixer, powered speaker system, amplifier, or audio interface. The cable uses two straight TRS plugs at one end and two right-angle TRS plugs at the other.

This cable is intended for balanced line-level stereo connections, where the source and destination both provide 1/4-inch TRS balanced jacks. Its dual-channel format supports separate left and right signals without needing two individual cables. The 10-foot length suits nearby stage rigs, desktop studio systems, keyboard stands, and rack-based setups.

Mogami specifies oxygen-free copper conductors and dual twisted-pair construction inside a single stereo microphone cable. Each channel is shielded to support clean signal transfer in installations where electrical interference may be present. Gold-contact 1/4-inch TRS connectors complete the balanced signal path.

The right-angle connector pair is useful at the instrument end when rear or side panel clearance is limited. The straight connector pair can be routed to a mixer, powered speakers, audio interface, or other balanced stereo destination. This arrangement helps reduce cable protrusion around a keyboard or synth while retaining a straightforward connection at the receiving equipment.

Use the GOLD-KEY-SB-10R as part of a balanced keyboard rig rather than as a speaker cable or an unbalanced guitar lead. It is a practical upgrade for users who want a dedicated left/right cable assembly with matched channel lengths and durable professional-style construction. Mogami includes its Limited Lifetime "No Excuses" Warranty for new cables purchased through authorized resellers.

Key Features

• Balanced Stereo Format: Carries separate left and right balanced audio signals.
• 10-Foot Length: Fits compact stage and studio equipment layouts.
• Dual TRS Connections: Supports balanced 1/4-inch left/right input and output pairs.
• Right-Angle Plug End: Helps manage clearance at keyboard or synth jacks.
• OFC Conductors: Uses oxygen-free copper cable cores.
• Lifetime Warranty: Covered by Mogami's Limited Lifetime warranty.

Design & Installation

The GOLD-KEY-SB-10R combines two channels within one stereo microphone-cable assembly, using dual twisted-pair conductors, oxygen-free copper cores, and Ultra High Density spiral shielding. The channels are individually shielded and use numbered protected jackets. Its 1/4-inch TRS connectors have gold contacts, with two straight plugs on one end and two right-angle plugs on the other.

Connect the two TRS plugs to the left and right balanced outputs of a compatible keyboard, synthesizer, organ, or digital piano, then connect the matching pair to balanced TRS inputs on a mixer, interface, amplifier, powered speaker, or loudspeaker system. Confirm that both devices use 1/4-inch TRS balanced connections; this cable is not intended to convert between balanced and unbalanced formats. Place the right-angle end where lower-profile routing is most useful, and avoid tightly bending the cable at the connector exits.
