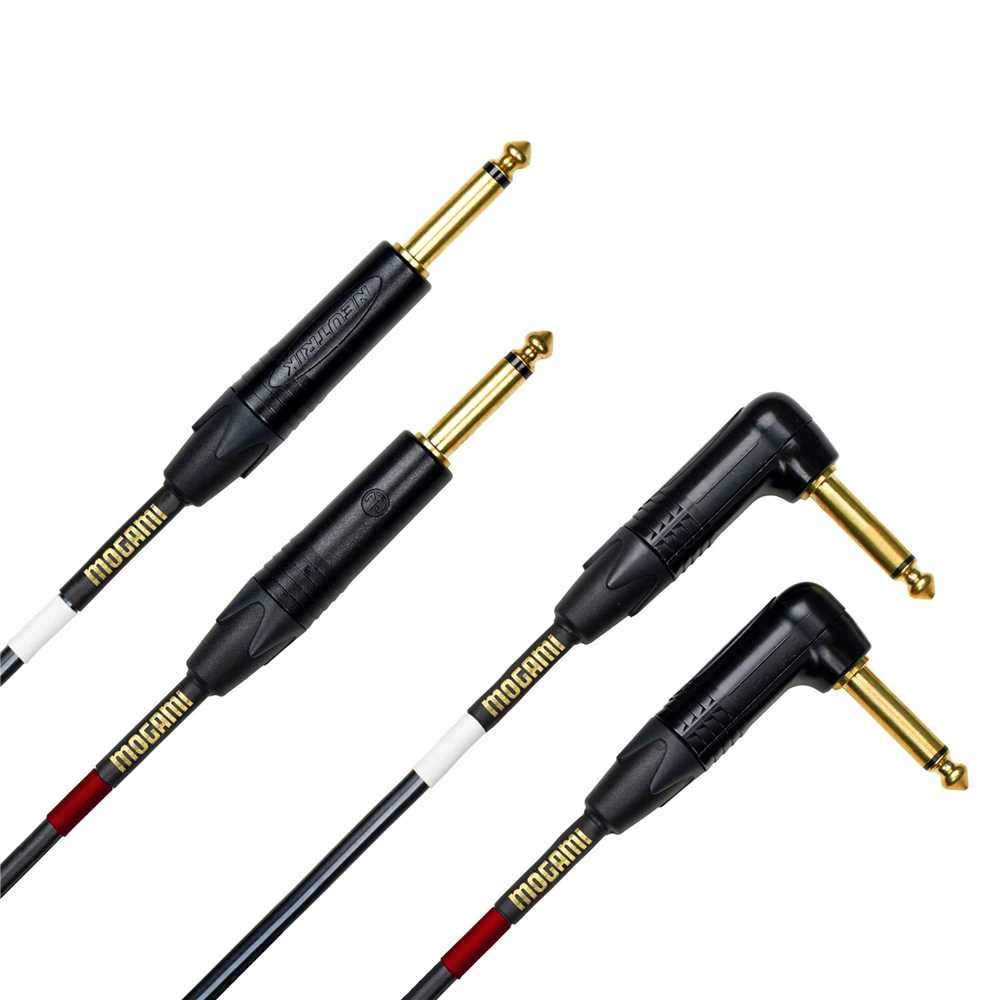

Mogami GOLD KEY S-15R 15' Stereo Keyboard Cable

The Mogami GOLD KEY S-15R is a 15-foot unbalanced stereo keyboard cable set for connecting a keyboard, synthesizer, or other stereo instrument with dual 1/4-inch TS outputs. It provides two matched signal paths in a Siamese side-by-side cable construction, keeping left and right channels together for cleaner routing. One end uses straight plugs, while the other uses right-angle plugs for more flexible placement around instrument panels, mixers, amplifiers, and interfaces.

This cable is intended for players and engineers who need to carry separate left and right unbalanced signals without using two loose instrument cables. The paired layout helps keep a stereo keyboard connection organized between an instrument and a destination with dual 1/4-inch TS inputs. Red and white channel markers help identify the two cable runs during setup and troubleshooting.

Mogami builds the Gold Key S series with 2965 Siamese left/right cable and oxygen-free copper conductors. Its Ultra High Density Spiral Shield is designed to support a low-noise unbalanced signal path. The cable is specified with low capacitance for accurate signal response in keyboard and instrument applications.

Each channel terminates in a Neutrik 1/4-inch TS male connector, with a straight plug at one end and a 90-degree plug at the other. The right-angle ends can help reduce protrusion from closely spaced jacks and support more compact cable routing. Gold contacts are specified for the connectors.

The GOLD KEY S-15R fits stereo keyboard rigs, synthesizer setups, stage amplifiers, mixers, audio interfaces, and other equipment using dual unbalanced 1/4-inch TS connections. It is not a balanced TRS cable and should be matched to equipment with separate left and right unbalanced outputs and inputs. The package includes a pair of 15-foot stereo keyboard cables and is covered by Mogami's lifetime warranty.

Key Features

• Dual Stereo Channels: Carries separate left and right unbalanced instrument signals.
• 15-Foot Length: Provides 15 feet of reach per channel.
• Siamese Cable Layout: Keeps the two stereo channels together.
• OFC Conductors: Uses oxygen-free copper core conductors.
• Spiral Shielding: Uses an Ultra High Density Spiral Shield.
• Mixed Plug Orientation: Straight and 90-degree TS plugs support flexible routing.

Design & Installation

The GOLD KEY S-15R uses Mogami 2965 Siamese left/right cable construction, black outer cabling, oxygen-free copper conductors, and spiral shielding. Neutrik connectors are fitted at both ends of each channel, with gold contacts specified for the plugs. Red and white identification tape distinguishes the stereo channels.

Connect the two straight or right-angle 1/4-inch TS plugs to the separate left and right outputs of a stereo keyboard, then connect the matching ends to two unbalanced TS inputs on a mixer, amplifier, interface, or other audio device. Choose the right-angle end where reduced connector clearance is useful, such as at a keyboard output panel or tightly spaced equipment rack. Keep the red and white channel identifiers consistent from source to destination to preserve left/right orientation.
