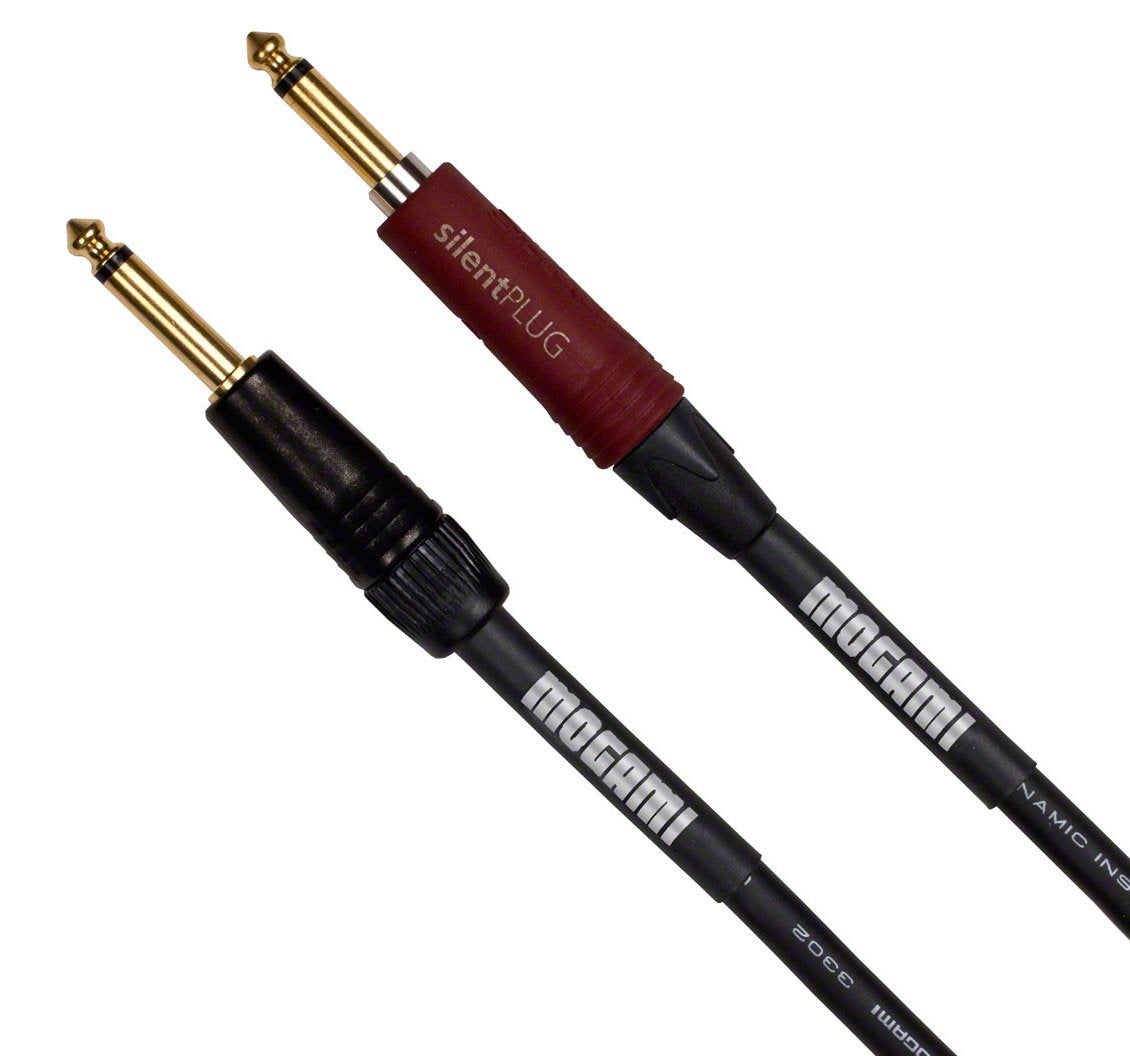

Mogami PLATINUM GUITAR-20 20' TS Instrument Cable

The Mogami PLATINUM GUITAR-20 is a 20-foot mono instrument cable for connecting a guitar, bass, keyboard, pedalboard, or other unbalanced instrument to compatible 1/4-inch TS equipment. It provides the reach needed for stage, rehearsal, studio, and home practice setups while maintaining a straightforward instrument-level connection. This is not a car-audio interconnect or speaker cable; it is designed for 1/4-inch instrument connections.

This cable suits players who need a longer run from an instrument to an amplifier, pedalboard, DI, or interface with 1/4-inch TS inputs. Its two straight plugs work well with standard top-, side-, and front-mounted instrument jacks where a right-angle connector is not required. The 20-foot length offers useful movement room without adding adapters or extension cables.

The PLATINUM GUITAR-20 uses a 20 AWG oxygen-free copper center conductor and low-capacitance cable construction. Its specified capacitance is 21.4 pF per foot at 1 kHz, helping preserve signal detail across the full 20-foot run. A conductive PVC layer is used to reduce handling-related noise when the cable is moved.

Mogami pairs the cable with Neutrik 1/4-inch TS plugs, including a Neutrik silentPLUG connection. The silentPLUG is designed to reduce pops and squeals associated with plugging or unplugging an instrument under load. Gold-plated contacts and shielding are included as part of the cable assembly.

Use the PLATINUM GUITAR-20 as a primary instrument lead, a connection from guitar to pedalboard, or a longer cable between a pedalboard and amplifier. Its black PVC jacket and 8.0 mm overall cable diameter are intended for regular handling in performance and recording environments. Factory-assembled Mogami cables are covered by the company's lifetime warranty for the original purchaser.

Key Features

• 20-Foot Length: Provides a 20-foot, or approximately 6-meter, instrument connection.
• Neutrik silentPLUG: Helps reduce noise when connecting or disconnecting an instrument.
• Straight TS Plugs: Uses two straight 1/4-inch mono male instrument connectors.
• 20 AWG OFC Core: Uses an oxygen-free copper center conductor for signal transfer.
• Composite Shielding: Helps protect the unbalanced instrument signal from external interference.
• Conductive PVC Layer: Helps minimize handling noise when the cable is moved.

Design & Installation

The cable uses a black PVC outer jacket over a composite braid shield, conductive PVC sub-shield, cellular polyethylene insulation, and a conductive polyethylene layer. The complete cable has an 8.0 mm outer diameter, while the internal 20 AWG OFC conductor uses a 50-strand, 0.12 mm strand construction. Neutrik connectors, gold-plated contacts, and a red-jacket silentPLUG are part of the factory assembly.

Connect either straight 1/4-inch TS plug to a compatible unbalanced instrument jack, pedalboard input or output, amplifier input, DI, or other 1/4-inch TS device. For the silent connection feature, use the silentPLUG end at the instrument side when changing instruments. Do not use this instrument cable between a power amplifier or amp head and a passive speaker cabinet; that application requires a proper speaker cable.
