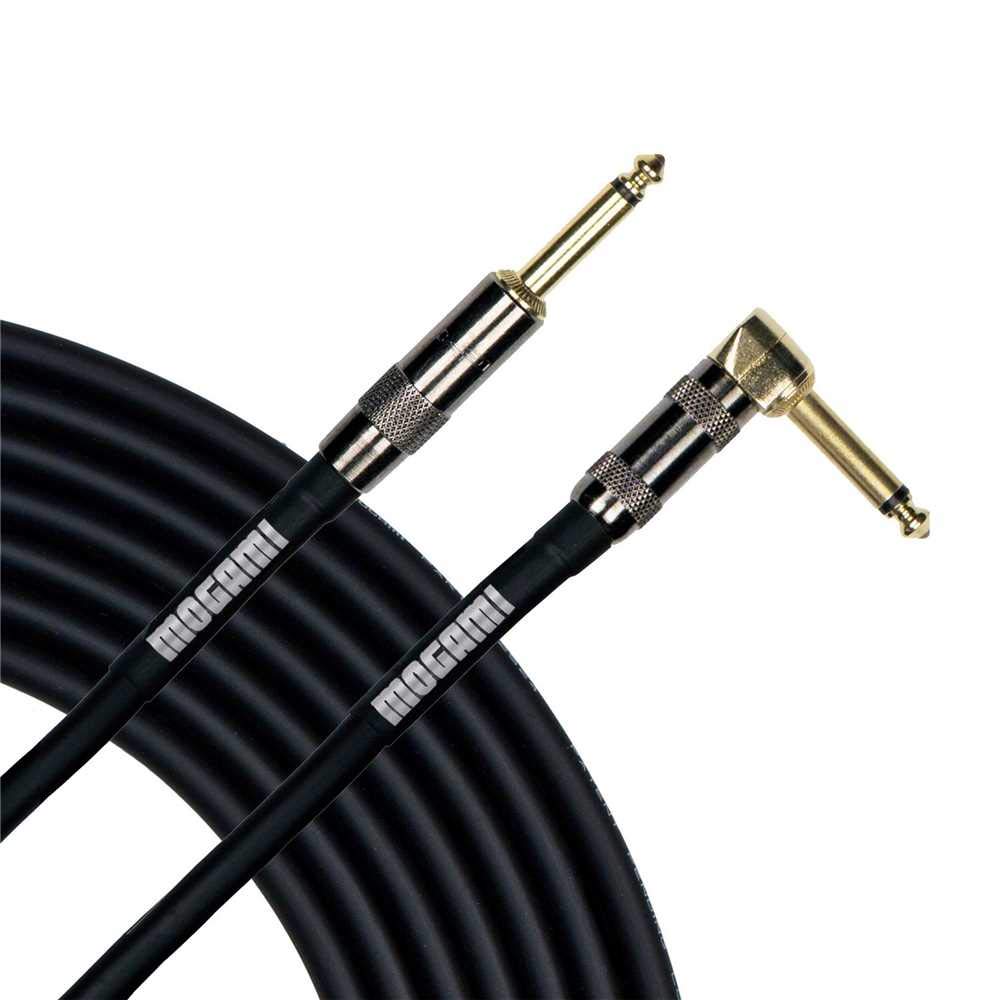

Mogami PLATINUM GUITAR-12R 12' Instrument Cable

The Mogami PLATINUM GUITAR-12R is a 12-foot unbalanced instrument cable with one straight and one right-angle 1/4-inch TS connector. It is made for connecting guitars, basses, keyboards, and effects-equipped instrument rigs to compatible amplifiers, pedals, or audio inputs. The mixed connector layout helps accommodate instruments or equipment where a low-profile right-angle plug is more practical.

This cable is intended for players who want a dependable instrument lead with a compact right-angle connection at one end. Its 12-foot length suits nearby amp, pedalboard, rehearsal, stage, and recording setups without adding unnecessary cable length. Both ends use male 1/4-inch TS plugs for standard unbalanced instrument connections.

Mogami builds the Platinum series around a low-capacitance cable design intended to preserve the character of an instrument signal. The cable uses an oxygen-free copper core, cellular polyethylene insulation, and a stated nominal capacitance of 74 pF per meter. These construction details support extended high-frequency response and detailed signal transfer in passive-instrument applications.

A high-density, 100% coverage copper spiral shield surrounds the signal conductor to help protect the unbalanced signal path. The conductive PVC jacket layer is designed to reduce handling noise when the cable is moved during use. This construction makes the PLATINUM GUITAR-12R suitable for active performance, rehearsal, and studio environments.

The PLATINUM GUITAR-12R uses G&H copper-core plugs with gold-contact 1/4-inch TS connections. Unlike Mogami Platinum models with a Silent Plug, this R version is specifically configured with a standard straight plug and a 90-degree plug. It can serve as a primary instrument cable or as an upgrade for a guitar, bass, keyboard, or pedal-based signal chain using 1/4-inch TS connections.

Key Features

• 12-Foot Length: Provides practical reach for close-range instrument, amp, and pedalboard setups.
• Straight And Right-Angle Ends: Offers two connector profiles for different jack locations and layouts.
• 1/4-Inch TS Connections: Supports standard unbalanced instrument signal paths.
• Oxygen-Free Copper Core: Forms the cable's single signal conductor.
• 100% Copper Spiral Shield: Adds high-density coverage around the signal conductor.
• Limited Lifetime Warranty: Mogami covers new Platinum cables for the original purchaser.

Design & Installation

The PLATINUM GUITAR-12R combines an oxygen-free copper core with precision cellular polyethylene insulation, a copper spiral shield, and a conductive PVC jacket. Its G&H copper-core plugs use gold contacts, with one straight connector and one 90-degree connector. The cable is an unbalanced, single-conductor instrument lead rather than a balanced audio, speaker, or microphone cable.

Connect either plug to a compatible 1/4-inch TS instrument output, pedal input or output, amplifier input, or other unbalanced instrument-level connection. Use the right-angle end where reduced plug projection is helpful, such as a side-mounted instrument jack or tightly spaced pedalboard connection. Do not use this instrument cable between an amplifier head and a passive speaker cabinet; that application requires a speaker cable.
