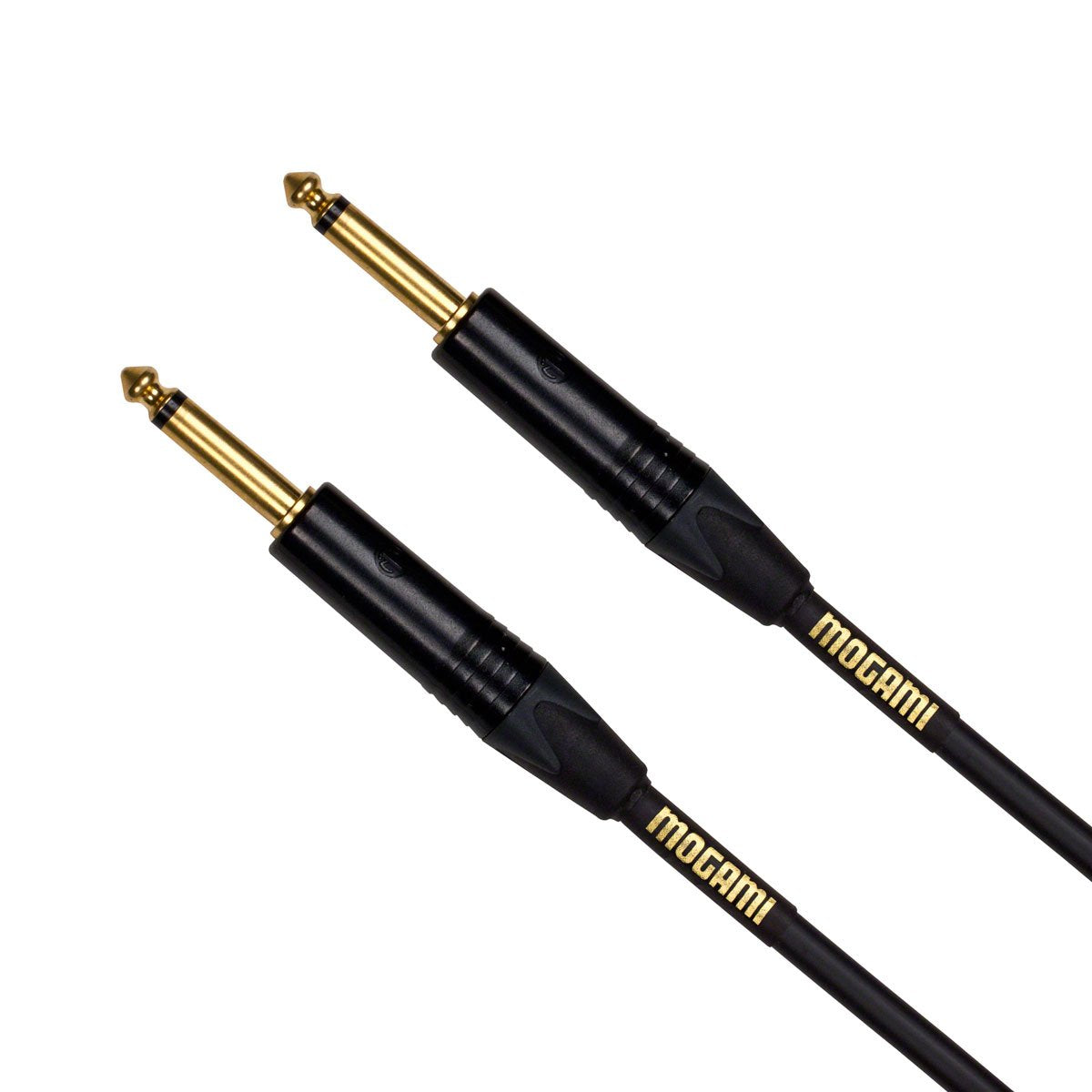

Mogami GOLD INSTRUMENT-25 25 ft TS Instrument Cable

The Mogami GOLD INSTRUMENT-25 is a 25-foot unbalanced instrument cable for connecting an electric guitar, bass, keyboard, or effects device to an amplifier, pedalboard, or compatible audio input. It uses straight 1/4-inch TS male connectors at both ends for traditional instrument-cable connections. Its length suits stage setups, rehearsal spaces, and studio rigs that need more reach than a short patch cable.

This cable is built around Mogami 2524 high-impedance instrument cable, using a 20 AWG oxygen-free copper center conductor. Its low-capacitance construction is intended to help retain the character of passive instrument pickups over a longer cable run. It is designed for musicians and audio users who want a durable, shielded cable for regular performance or recording use.

A conductive carbon-PVC sub-shield is used to reduce handling-related noise caused by movement and flexing. The cable also uses a high-density served shield to help limit interference around unbalanced instrument signals. This makes it a practical choice for guitar-to-amp, bass-to-pedalboard, and instrument-to-DI or interface connections where a quiet signal path is important.

Both ends terminate in straight 1/4-inch TS male plugs with gold-plated contacts and a black epoxy finish. The TS format carries a mono, unbalanced signal and is the standard connection used by most passive electric instruments, stompboxes, and guitar amplifiers. It is not a speaker cable and should not be used between a power amplifier and a passive speaker cabinet.

The 25-foot length can serve as a main instrument lead between a player and an amp or as a longer connection in a pedal-based rig. Its 6.0 mm outer cable diameter provides a substantial jacket while retaining flexibility for routing and coiling. Mogami backs the Gold Instrument cable line with a lifetime warranty.

Key Features

• 25-Foot Length: Provides extra reach for stage, rehearsal, and studio setups.
• Mogami 2524 Cable: Uses low-capacitance high-impedance instrument cable construction.
• 20 AWG OFC Conductor: Uses an oxygen-free copper center conductor for signal transmission.
• Carbon PVC Sub-Shield: Helps reduce noise from cable movement and handling.
• High-Density Served Shield: Helps reduce electromagnetic interference in unbalanced signal paths.
• Straight Gold-Plated TS Plugs: Fits standard 1/4-inch mono instrument connections.

Design & Installation

The GOLD INSTRUMENT-25 uses a 6.0 mm black PVC outer jacket, polyethylene insulation, a conductive PVC sub-shield, and a served shield made with oxygen-free copper strands. Its 20 AWG center conductor is constructed from 50 strands of 0.12 mm oxygen-free copper. Straight TS plugs at both ends have gold-plated contacts and a black epoxy finish.

Connect one end to a guitar, bass, keyboard, pedal output, or other 1/4-inch TS instrument output, then connect the other end to a compatible amplifier, pedal input, DI box, or instrument input. Route the cable away from AC adapters, power transformers, and high-current power wiring when possible. Coil it loosely after use and avoid using it as a speaker-level cable.
