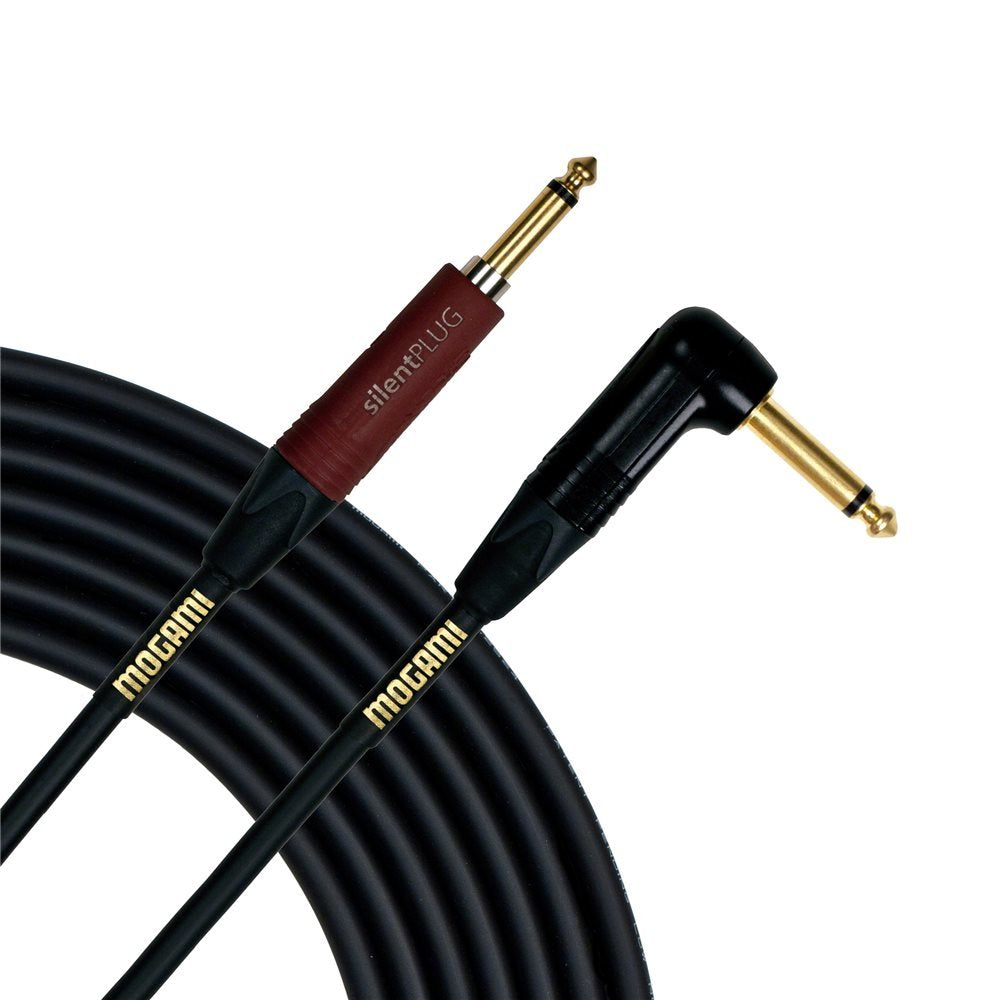

Mogami GOLD INST SILENT S 10R 10' Instrument Cable

The Mogami GOLD INST SILENT S 10R is a 10-foot unbalanced instrument cable for connecting an electric guitar, bass, keyboard, or pedal-equipped instrument to an amplifier, pedalboard, interface, or other compatible 1/4-inch TS input. It combines a straight Neutrik silentPLUG connector with a right-angle 1/4-inch TS connector. This configuration is useful when an instrument jack or pedalboard layout benefits from a lower-profile right-angle connection.

The straight silentPLUG is designed to mute the cable while it is disconnected, helping reduce the pop associated with swapping guitars or basses with an active signal path. It is intended for musicians who change instruments during rehearsals, recording sessions, or live performances. The cable carries a mono, unbalanced instrument signal rather than a balanced TRS or speaker-level connection.

Mogami builds this Gold Instrument Silent cable around its W2524 instrument cable design. Its oxygen-free copper center conductor, conductive carbon-PVC sub-shield, and ultra-high-density spiral shield are designed to support low handling noise and shielding in typical instrument-cable use. The construction is suited to high-impedance passive pickup applications where cable handling and capacitance can matter.

At 10 feet long, this cable suits short runs between an instrument and amp, pedalboard, or recording input. The right-angle plug can help reduce protrusion from side-mounted or recessed instrument jacks. The straight silentPLUG should be used at the end where silent instrument swapping is desired.

The GOLD INST SILENT S 10R is a complete terminated cable, so no separate connectors or soldering are required. It can be used as part of a guitar or bass rig, or with other unbalanced 1/4-inch TS instruments that accept this connection type. Mogami covers the cable with its lifetime warranty.

Key Features

• 10-Foot Length: Provides a compact instrument-cable run for stage, studio, or practice setups.
• Neutrik silentPLUG: Mutes the cable while disconnected to reduce switching pops.
• Straight-To-Right-Angle Ends: Accommodates standard inputs and space-conscious instrument jack locations.
• 1/4-Inch TS Connectors: Supports mono, unbalanced instrument-signal connections.
• W2524 Cable Construction: Uses Mogami's high-impedance guitar cable design.
• Lifetime Warranty: Includes Mogami lifetime warranty coverage.

Design & Installation

This cable uses a black PVC jacket over an ultra-high-density served spiral shield, conductive carbon-PVC sub-shield, polyethylene insulation, and oxygen-free copper conductor. The cable's finished connector arrangement is one straight Neutrik silentPLUG and one right-angle TS plug, with gold-plated contacts. Its 6.0 mm outer cable diameter provides a substantial yet manageable instrument-cable profile.

Connect the silentPLUG end to the instrument when silent swapping is the priority, then connect the right-angle end where its compact orientation is most useful. Use the cable only between compatible unbalanced 1/4-inch TS instrument-level connections; it is not a speaker cable. Keep the cable away from sharp edges, avoid tightly kinking it, and route it so plugs are not subjected to excessive side force.
