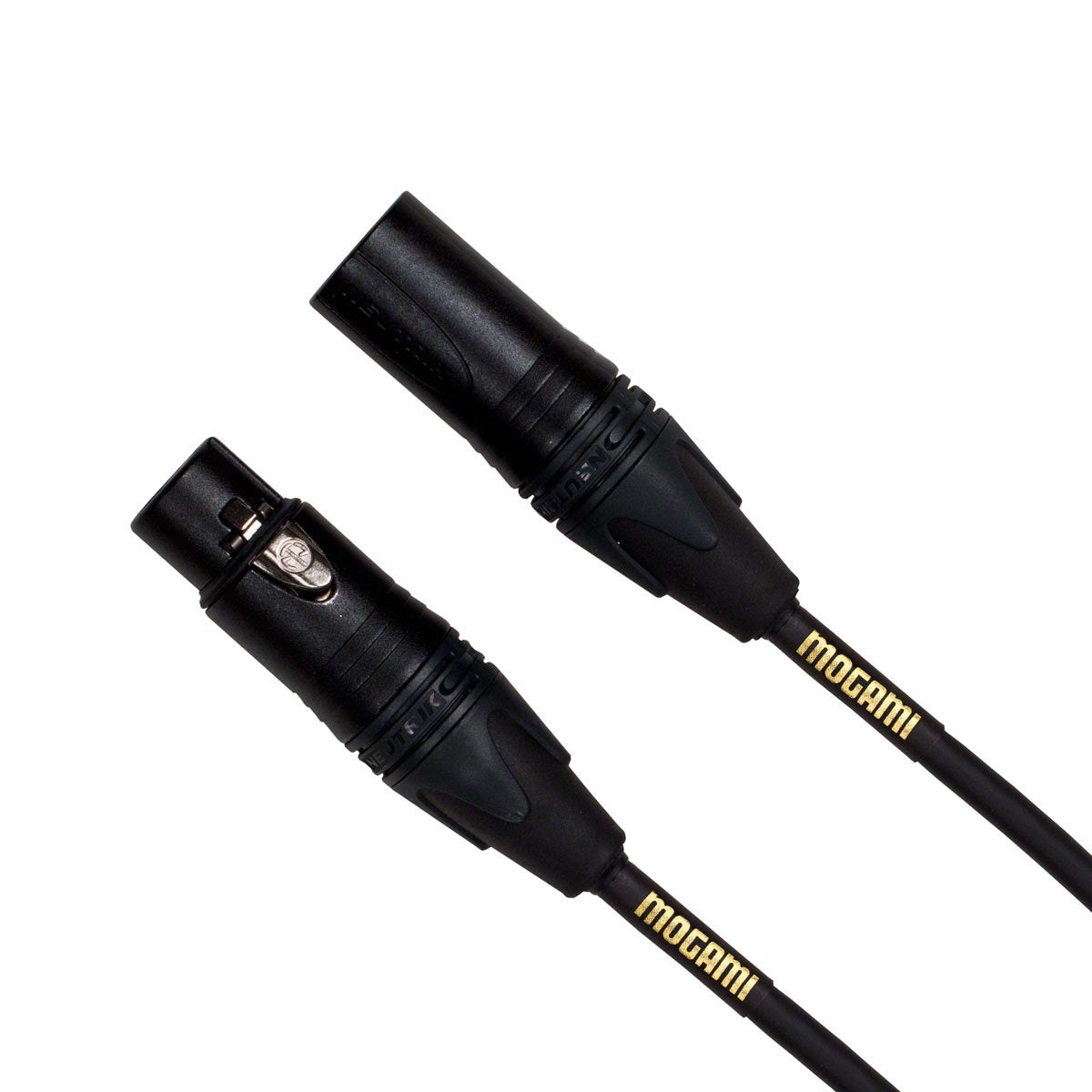

Mogami GOLD STAGE-20 20 Ft XLR Microphone Cable

The Mogami GOLD STAGE-20 is a 20-foot balanced microphone cable with a 3-pin XLR female connector on one end and a 3-pin XLR male connector on the other. It is intended for connecting microphones, mixers, stage boxes, preamps, and other equipment with balanced XLR connections. Its stage-oriented construction addresses the handling, coiling, and repeated setup demands common in live sound, broadcast, and studio environments.

Built around Mogami W2791 Stage/Broadcast cable, the GOLD STAGE-20 uses two 24 AWG conductors made from 105 strands of annealed bare copper each. This high-strand-count construction is designed to retain flexibility during frequent handling. A braided shield and twisted-pair balanced configuration help support low-noise signal transfer in electrically active environments.

The cable is suited to vocal microphones, instrument microphones, DI boxes, and balanced analog audio connections that use standard 3-pin XLR ports. Its electrical design includes controlled resistance, capacitance, and inductance characteristics for balanced microphone cable applications. Gold-contact, black-body XLR connectors provide a ready-to-use connection without requiring separate termination.

For touring rigs and installed production systems, the 5.5 mm flexible PVC jacket is compact enough for practical routing while remaining intended for rugged use. The W2791 cable construction is rated for operation from -20°C to +70°C (-4°F to +158°F). Its specified 131,000-cycle flex life supports applications involving repeated coiling and deployment.

The GOLD STAGE-20 can serve as a dependable primary microphone lead or as a standard-length connection between balanced XLR audio components. It is a direct fit for systems that already use XLR microphones and balanced inputs or outputs. Mogami backs this cable with a lifetime warranty.

Key Features

• 20-Foot XLR Cable: Provides a practical length for microphone, stage, and studio connections.
• Balanced Two-Conductor Design: Supports balanced analog microphone and line-level signal paths.
• 105-Strand Copper Conductors: Helps maintain flexibility during frequent handling and coiling.
• Braided Shield: Adds durable shielding around the internal conductors.
• Gold-Contact XLR Connectors: Uses 3-pin XLR male and female terminations.
• Lifetime Warranty: Covered by Mogami's stated lifetime warranty.

Design & Installation

The GOLD STAGE-20 uses Mogami W2791 cable with 24 AWG, 105-strand annealed bare-copper conductors, XLPE insulation, a braided shield, and a flexible PVC jacket. The cable has a 5.5 mm outer diameter and black jacket finish. Its XLR terminations use black connector bodies with gold contacts.

Connect the female XLR end to a microphone or source with a male XLR output, then connect the male XLR end to a mixer, interface, stage box, preamp, or other device with a female XLR input. Confirm that both connected devices use standard 3-pin balanced XLR wiring. No separate adapter is specified, so an adapter may be needed when connecting to TRS, RCA, USB, or other connector formats.
