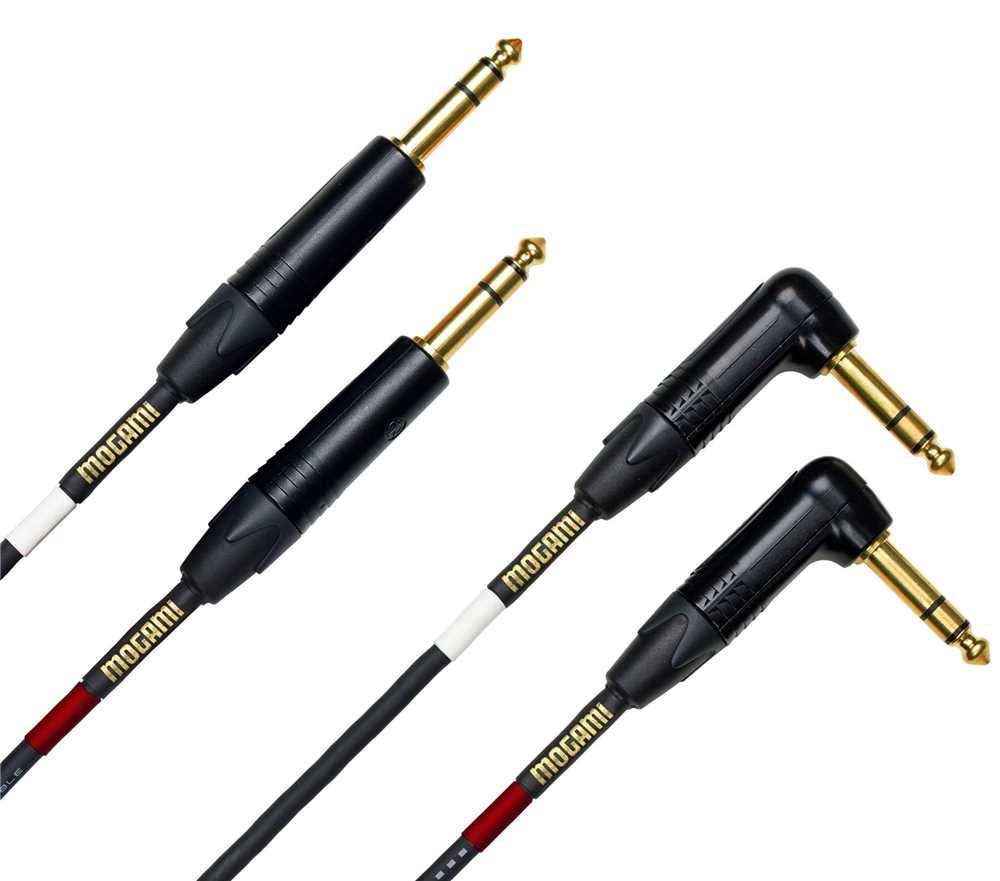

Mogami GOLD-KEY-SB-20R 20' Balanced Stereo Keyboard Cable

The Mogami GOLD-KEY-SB-20R is a 20-foot balanced stereo cable pair designed to connect keyboards, synthesizers, organs, and digital pianos with left and right 1/4-inch TRS outputs. It provides two matched signal paths in a Siamese-style joined cable layout, keeping a stereo connection organized between an instrument and a mixer, audio interface, powered speaker system, or amplifier. One end uses dual right-angle TRS plugs, while the other uses dual straight TRS plugs.

This cable is intended for balanced stereo line-level connections where separate left and right channels are required. Its balanced TRS wiring helps support noise rejection in compatible balanced audio systems, which is useful for longer runs on stage or in a recording setup. The 20-foot length provides placement flexibility without requiring two separate loose cables.

Mogami builds the Gold Key SB series with Mogami 3106 stereo line/microphone cable, using oxygen-free copper conductors and a high-density spiral shield. The joined left/right construction helps simplify cable routing while retaining separate channels for stereo operation. Red and white identification markings distinguish the two cable paths.

Dual right-angle connectors are suited to keyboards and other equipment where jack clearance is limited or where a cable needs to route closely along the rear panel. The opposite straight connectors provide a conventional connection at the receiving end of the signal chain. All four plugs are 1/4-inch TRS male connectors with gold contacts.

The GOLD-KEY-SB-20R is a practical choice for musicians, engineers, and installers building a balanced stereo instrument connection. It can serve as a direct keyboard-to-mixer run or as part of a larger live sound, studio, or powered-speaker system. A limited lifetime manufacturer warranty is included.

Key Features

• Balanced Stereo Pair: Carries separate left and right balanced TRS signals.
• 20-Foot Length: Supports flexible equipment placement and organized routing.
• Right-Angle Ends: Helps conserve space at keyboard output jacks.
• Mogami 3106 Cable: Uses joined stereo line/microphone cable construction.
• OFC Conductors: Oxygen-free copper conductors support reliable signal transfer.
• Spiral Shielding: High-density shielding helps reduce unwanted noise pickup.

Design & Installation

The cable uses a black Siamese left/right configuration that keeps its two balanced channels together for cleaner routing. Its Mogami 3106 cable construction uses 24 AWG oxygen-free copper conductors, XLPE insulation, PVC jacketing, and an ultra-high-density spiral shield. The connectors are Neutrik 1/4-inch TRS plugs, with right-angle plugs at one end and straight plugs at the other.

Connect the paired right-angle TRS plugs to the left and right balanced outputs of a keyboard, synthesizer, organ, or digital piano, then connect the straight TRS plugs to corresponding balanced line inputs. Match the red and white channel identifiers consistently at both ends to preserve left/right orientation. This is a stereo cable pair for balanced TRS connections; it is not a speaker cable and does not convert balanced outputs to unbalanced connections.
