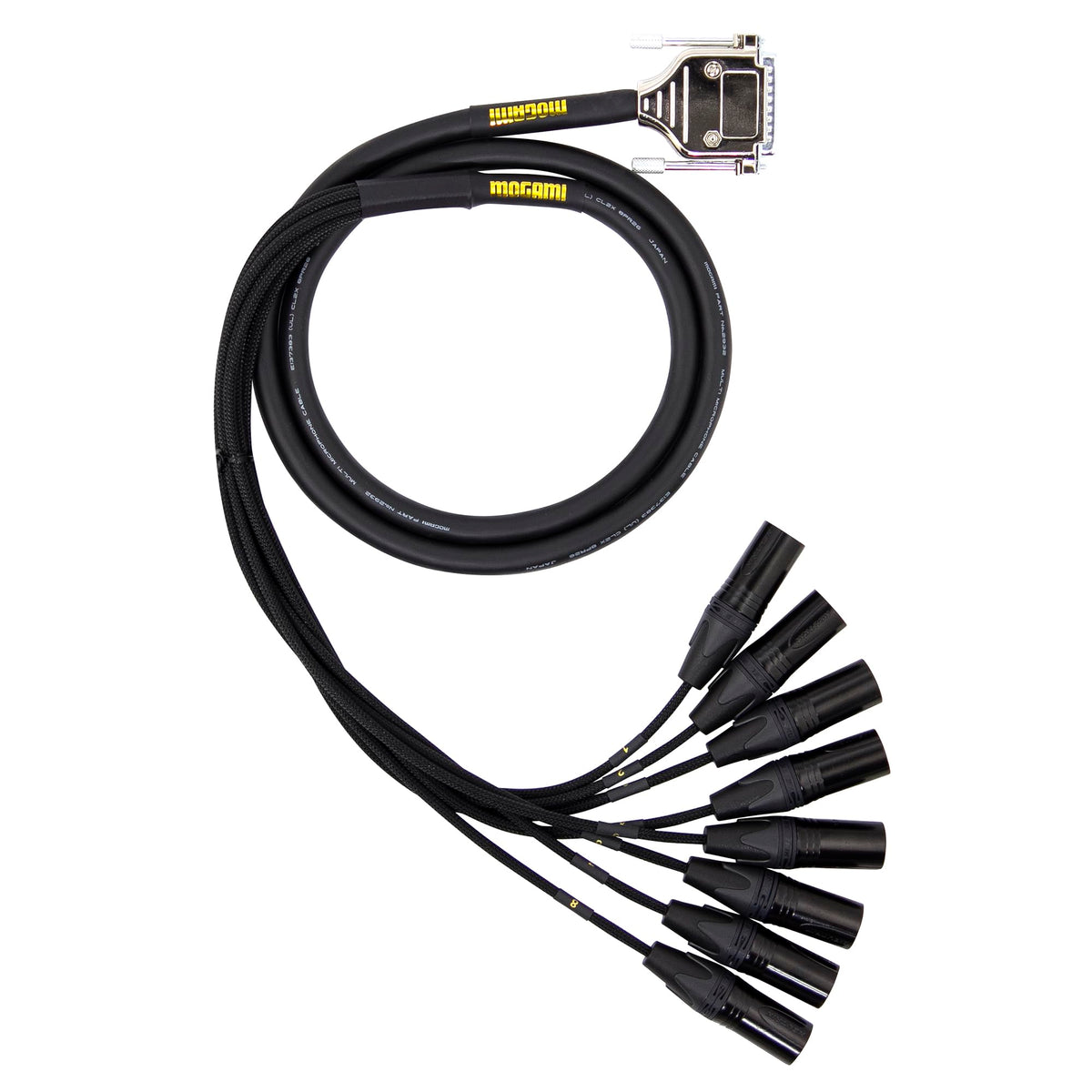

Mogami GOLD-DB25-XLRM-05 8-Channel DB25 to XLRM Snake

The Mogami GOLD-DB25-XLRM-05 is a 5-foot, eight-channel analog interface snake with one DB25 male connector and eight XLR male fan-out connectors. It is designed for linking equipment that uses an industry-standard analog DB25 interface to balanced XLR connections. This configuration is useful for patch bays, recording interfaces, consoles, converters, and outboard equipment.

Each channel uses individually twisted and shielded conductors to help maintain separation between channels in a compact multicore cable. The cable's low-capacitance construction and copper shielding are intended for clean balanced analog signal routing. It provides an organized alternative to running eight separate XLR cables between compatible devices.

The DB25 end uses a rugged all-metal D-sub shell with precision pin termination and extended metal thumb screws. These screws provide a secure connection while allowing hand-tightened installation and removal. The XLR male fan-out connectors use gold contacts and are protected with Techflex braided sleeving.

Channel identification is simplified with individually numbered jackets at the fan-out end. This makes it easier to trace corresponding channels during installation, troubleshooting, and equipment changes. The eight-channel layout is especially practical where rack-mounted interfaces and patch bays concentrate multiple balanced analog lines in a small space.

This cable is wired to the industry-standard analog DB25 pinout and is intended for compatible analog equipment. It is a passive connection cable and does not add microphone preamps, conversion, processing, or amplification. Confirm the pinout and connector gender of the equipment being connected before purchase.

Key Features

• Eight Analog Channels: Routes up to eight balanced analog channels through one DB25-to-XLRM assembly.
• Industry-Standard Analog Pinout: Supports analog devices using the common DB25 audio wiring format.
• Gold-Contact XLRM Connectors: Provides eight male XLR fan-out terminations for compatible balanced connections.
• Individual Channel Shielding: Twisted, shielded pairs help reduce interference and channel-to-channel interaction.
• Metal D-Sub Shell: The DB25 connector uses a durable metal shell for physical protection and shielding.
• Numbered Techflex Fan-Outs: Individually numbered, braided-protected channels aid routing and identification.

Design & Installation

The GOLD-DB25-XLRM-05 combines OFC conductors, XLPE insulation, a PVC outer jacket, individually shielded pairs, and a bare-copper served spiral shield. Its DB25 connector has an all-metal shell, while the eight XLR male connectors use gold contacts. Techflex braided sleeves protect the individual fan-out legs.

Connect the DB25 male end to a compatible analog DB25 port and secure it using the attached metal thumb screws. Route the numbered XLR male ends to matching XLR female inputs, outputs, or patch-bay points as required by the connected equipment. Verify that the destination equipment uses the industry-standard analog DB25 pinout and that male XLR connectors are appropriate for the application.
