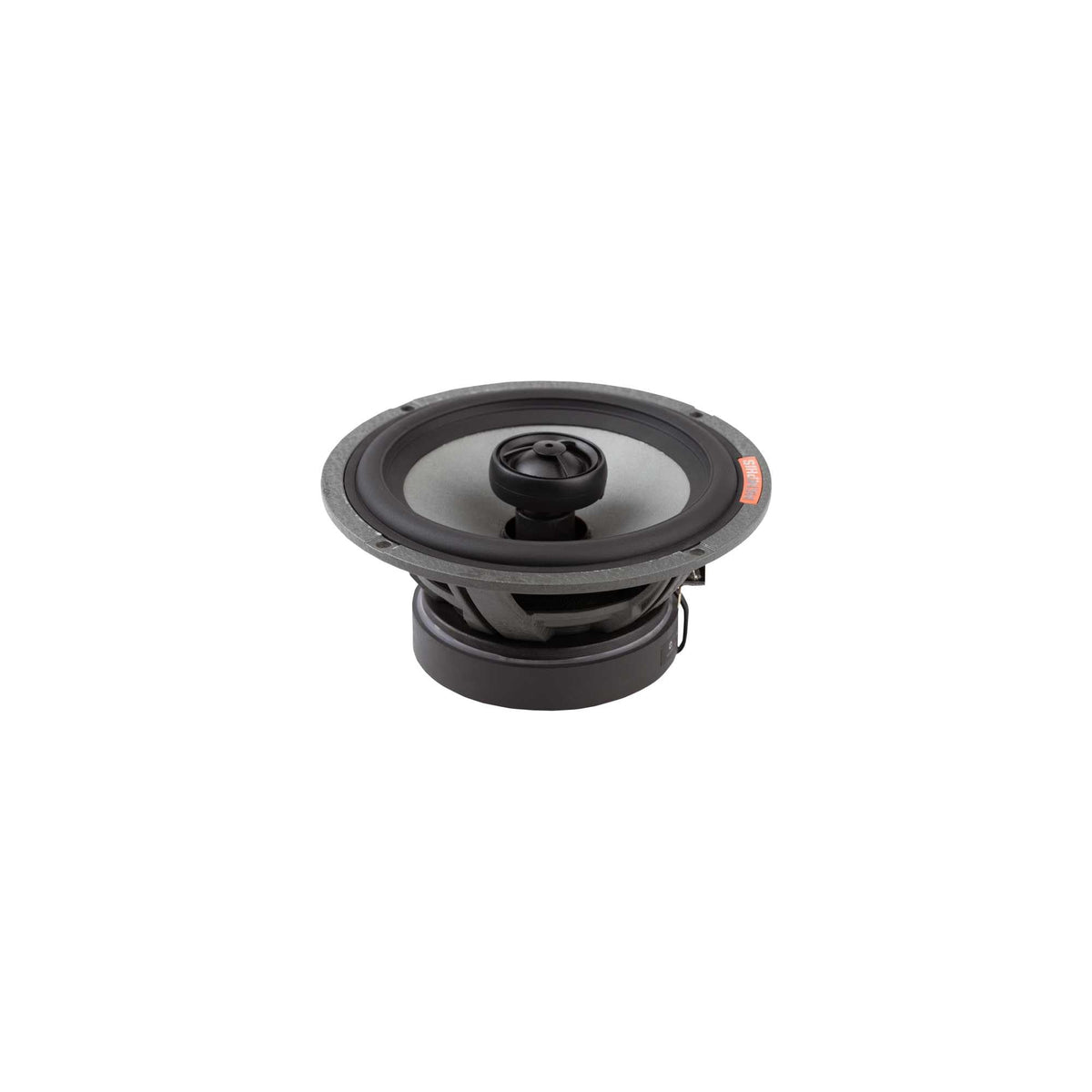

Memphis VIV60V2 6.5" Coaxial Speakers

The Memphis VIV60V2 is a pair of 6.5-inch, 2-way coaxial car speakers designed for listeners upgrading factory door or rear-deck speakers. Each speaker combines a woofer and tweeter in one assembly to provide a practical full-range replacement solution. With a 2-ohm nominal impedance and 75-watt RMS power handling per speaker, they are intended for systems that can support their electrical load and power requirements.

These speakers are built for balanced everyday listening with defined midbass and clear high-frequency detail. The published 75 Hz to 20 kHz frequency response covers much of the audible range used by vocals, instruments, and general music playback. Their 90 dB sensitivity rating can help them produce useful output with an appropriately matched source or amplifier.

A dual-layer fiberglass-and-foam composite cone forms the woofer section, while the rubber surround is tuned for controlled cone movement. Memphis pairs this construction with a cast-aluminum basket for a rigid speaker foundation. The result is a coaxial speaker platform focused on accurate response and dependable physical support for the driver assembly.

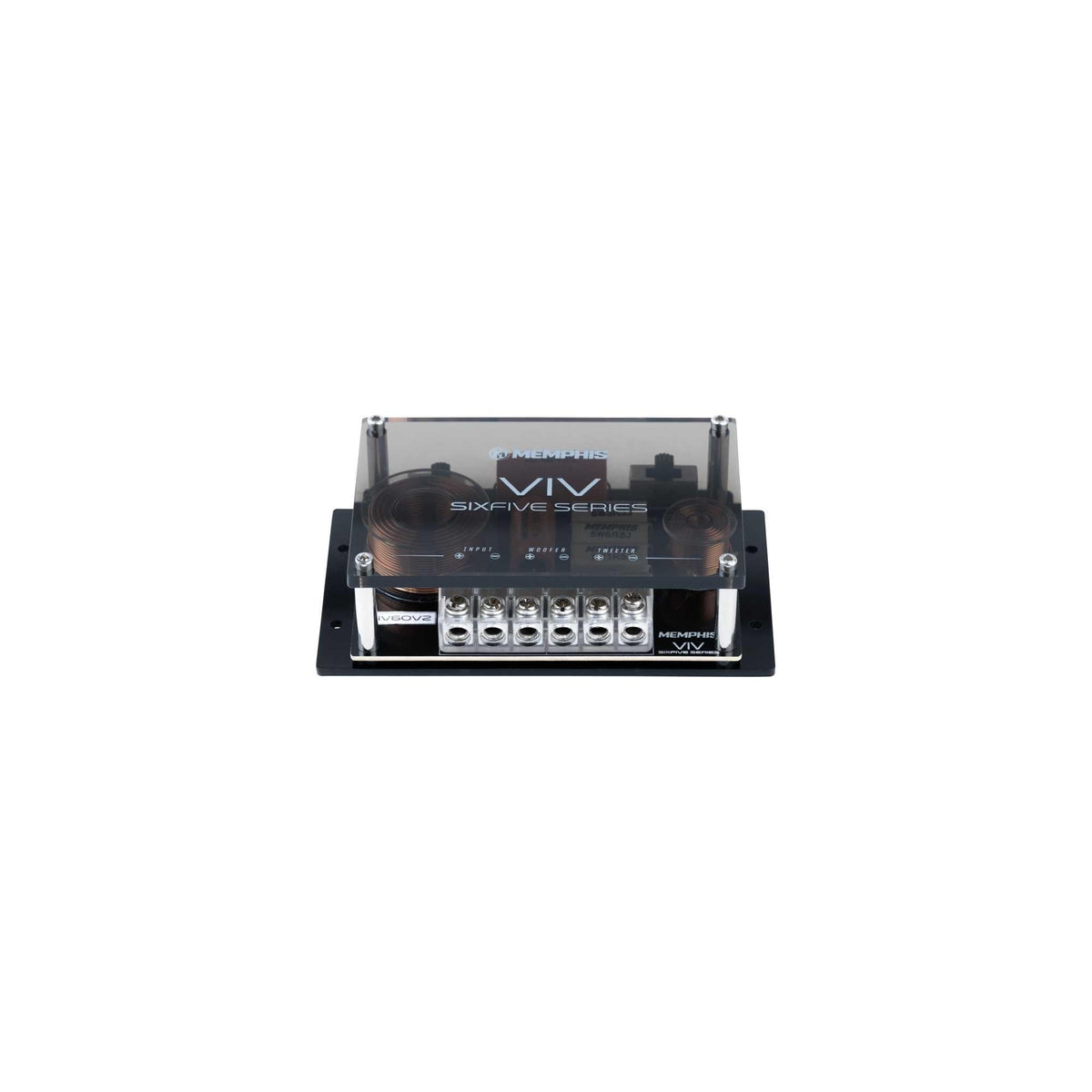

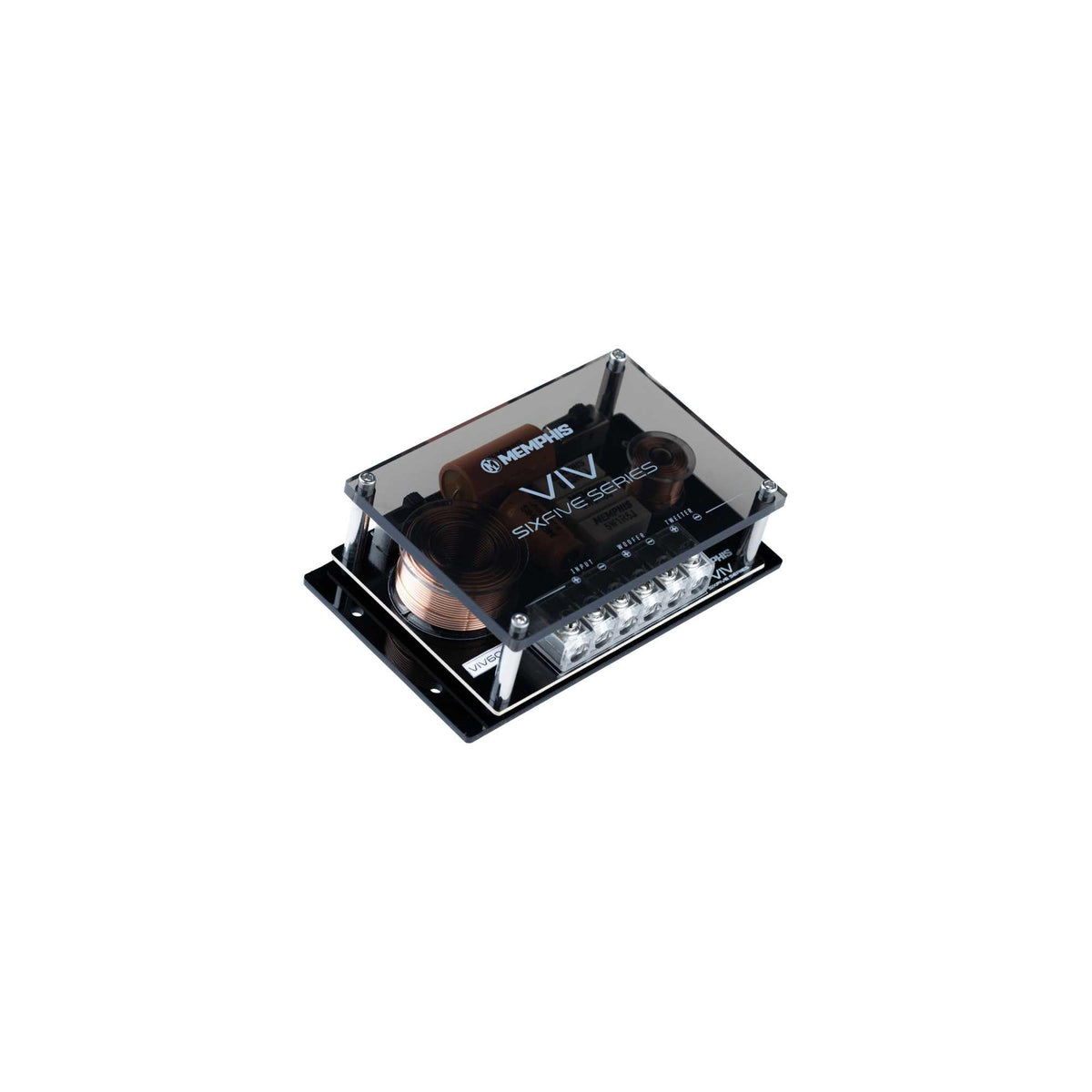

The VIV60V2 uses a silk-dome tweeter with a swivel-mount aluminum tweeter structure. Its crossover network provides selectable tweeter output settings of +3 dB, 0 dB, or -3 dB, allowing the upper-frequency balance to be adjusted for the vehicle and listener preference. The woofer crossover slope is also selectable between 6 dB and 12 dB.

These speakers suit a system refresh where fitment depth, impedance, and amplifier compatibility have been checked before installation. Their 2.95-inch listed mounting depth should be compared with the available space behind the factory mounting location. Grilles are included for installations where the speaker face will be exposed.

Key Features

• 6.5-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker.
• Cast-Aluminum Basket: Provides a rigid foundation for the speaker assembly.
• Composite Fiber Cone: Uses fiberglass-and-foam composite cone construction for midrange and midbass reproduction.
• Silk-Dome Tweeter: Handles high frequencies with a 1.45-inch silk dome.
• Adjustable Crossover: Offers tweeter level and woofer slope adjustment options.
• Included Grilles: Adds protection for exposed speaker installations.

Design & Installation

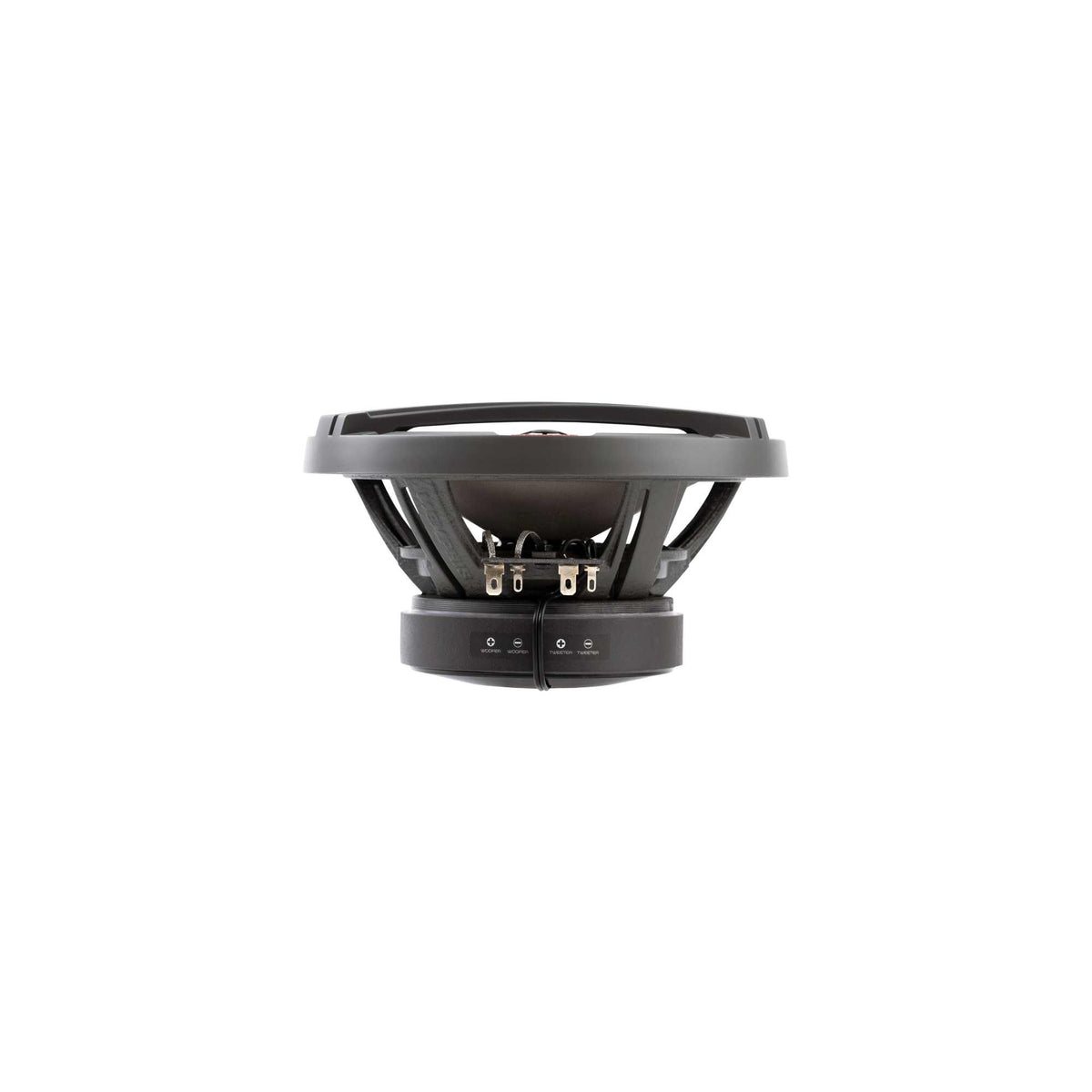

The VIV60V2 combines a cast-aluminum basket, 20-ounce magnet, KSV voice-coil former, composite woofer cone, rubber surround, and silk-dome tweeter. The nominal woofer diameter is 6.49 inches, while the speaker is sold as a 6.5-inch model. The speaker's published weight is 1,520 g per driver.

Confirm the vehicle's mounting opening, panel clearance, and available depth before purchasing, using the 2.95-inch listed mounting depth as a primary reference. Connect each speaker only to a compatible 2-ohm-capable channel and observe polarity during wiring. Use the selectable crossover settings after installation to tailor the tweeter level and woofer crossover slope to the system.
