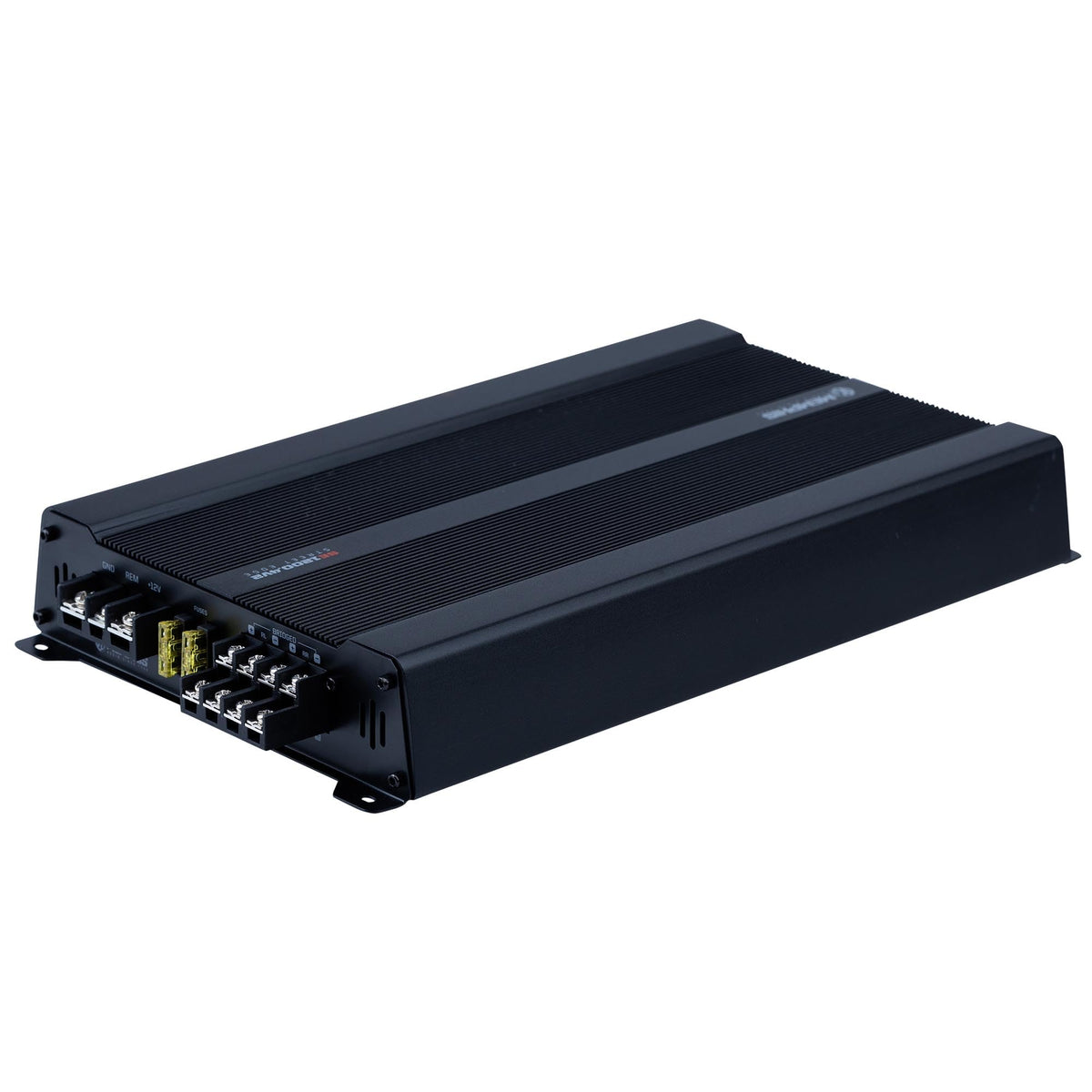

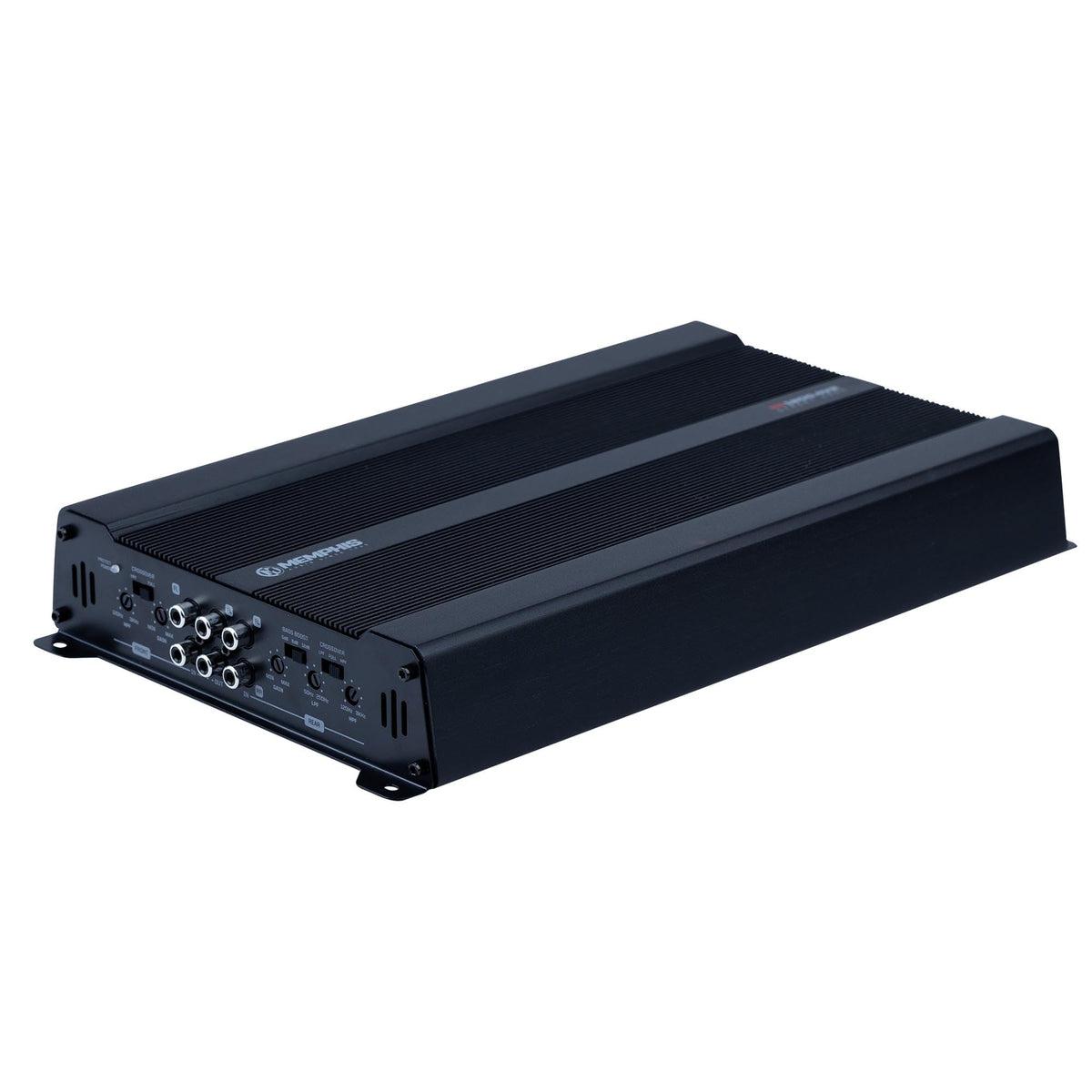

Memphis SE1200.4V2 Street Edge 4-Channel Car Amplifier

The Memphis SE1200.4V2 Street Edge is a four-channel car amplifier designed to add dedicated power for front and rear speakers in an upgraded vehicle audio system. It delivers 60 watts RMS per channel at 4 ohms or 85 watts RMS per channel at 2 ohms. This makes it a practical choice for powering component speakers, coaxial speakers, or a mix of mids and highs beyond head-unit power.

Its four-channel layout supports conventional four-speaker operation, while paired channels can also be bridged for higher-power two-channel use. The amplifier can be configured in 4-channel, 3-channel, or 2-channel bridged arrangements. Use it when a system needs more speaker output capability and more flexible channel assignment.

Variable high-pass and low-pass crossovers allow the amplifier to be matched to the role of the speakers it powers. The high-pass filter helps remove deep bass from smaller speakers, while the low-pass filter can limit high frequencies when channels are assigned to compatible midbass or subwoofer duty. A full-range setting is also available for systems using external crossover processing.

The SE1200.4V2 uses an extruded aluminum heatsink to help manage heat during operation. Its crossover sections use 12 dB-per-octave Butterworth filtering, and the amplifier includes selectable bass-boost settings of 0 dB, 6 dB, or 12 dB. Front and rear RCA input pairs provide separate signal connections for multi-channel source units.

This amplifier fits well in a speaker-focused Street Edge system, whether powering four speakers directly or running two speakers plus a bridged channel pair. It is rated for 2-ohm stereo loads and 4-ohm bridged loads, so speaker wiring should be planned carefully before installation. Proper power wiring, fusing, ventilation, and gain adjustment are important for dependable operation.

Key Features

• Four-Channel Output: Powers up to four speaker channels from one amplifier.
• 85W RMS at 2 Ohms: Provides 85 watts RMS to each channel.
• Bridged Capability: Delivers 170 watts RMS across each bridged channel pair.
• Variable Crossovers: Lets you tailor frequency range to speaker duties.
• 12 dB/Octave Filters: Provides controlled high-pass and low-pass frequency separation.
• Aluminum Heatsink: Helps dissipate heat from the amplifier chassis.

Design & Installation

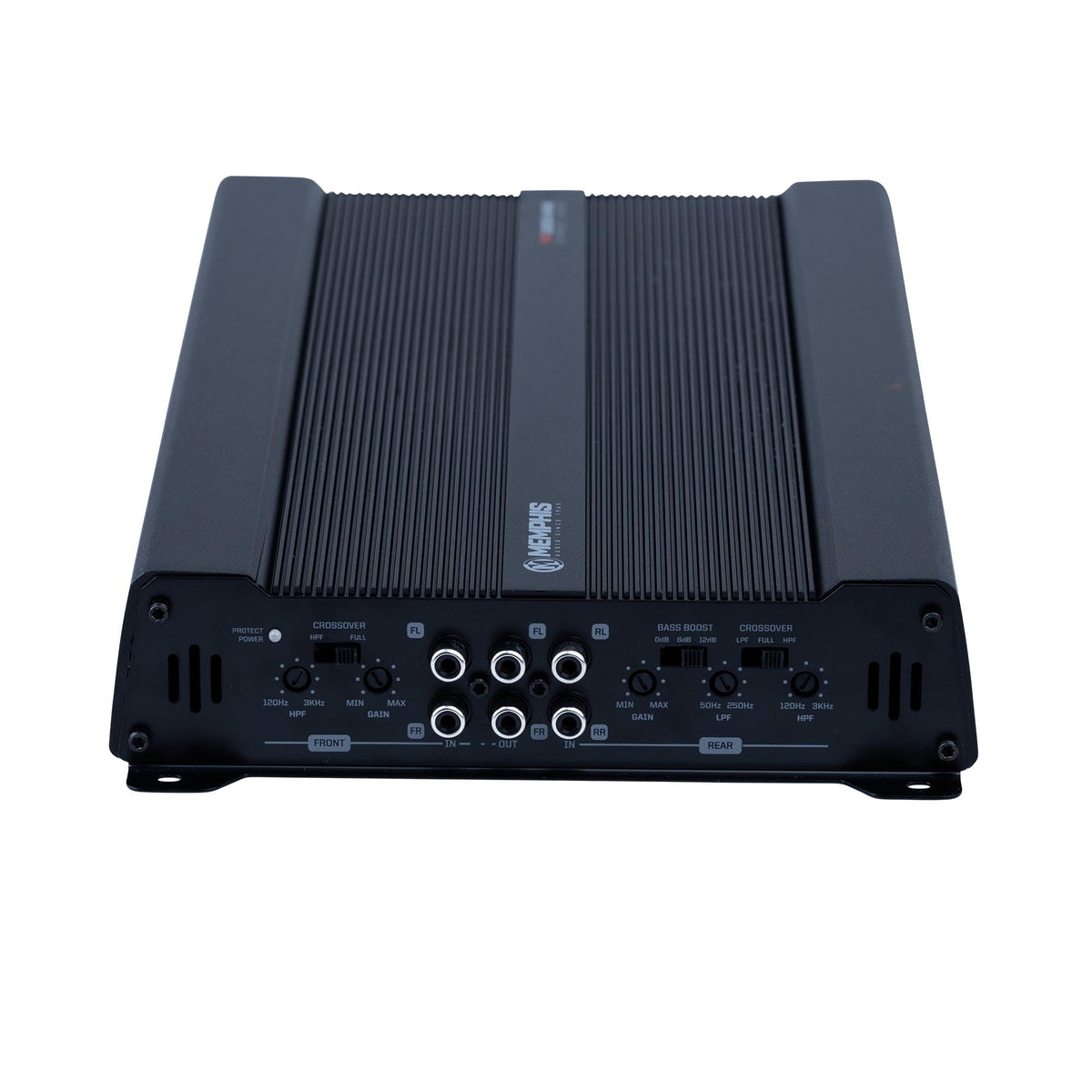

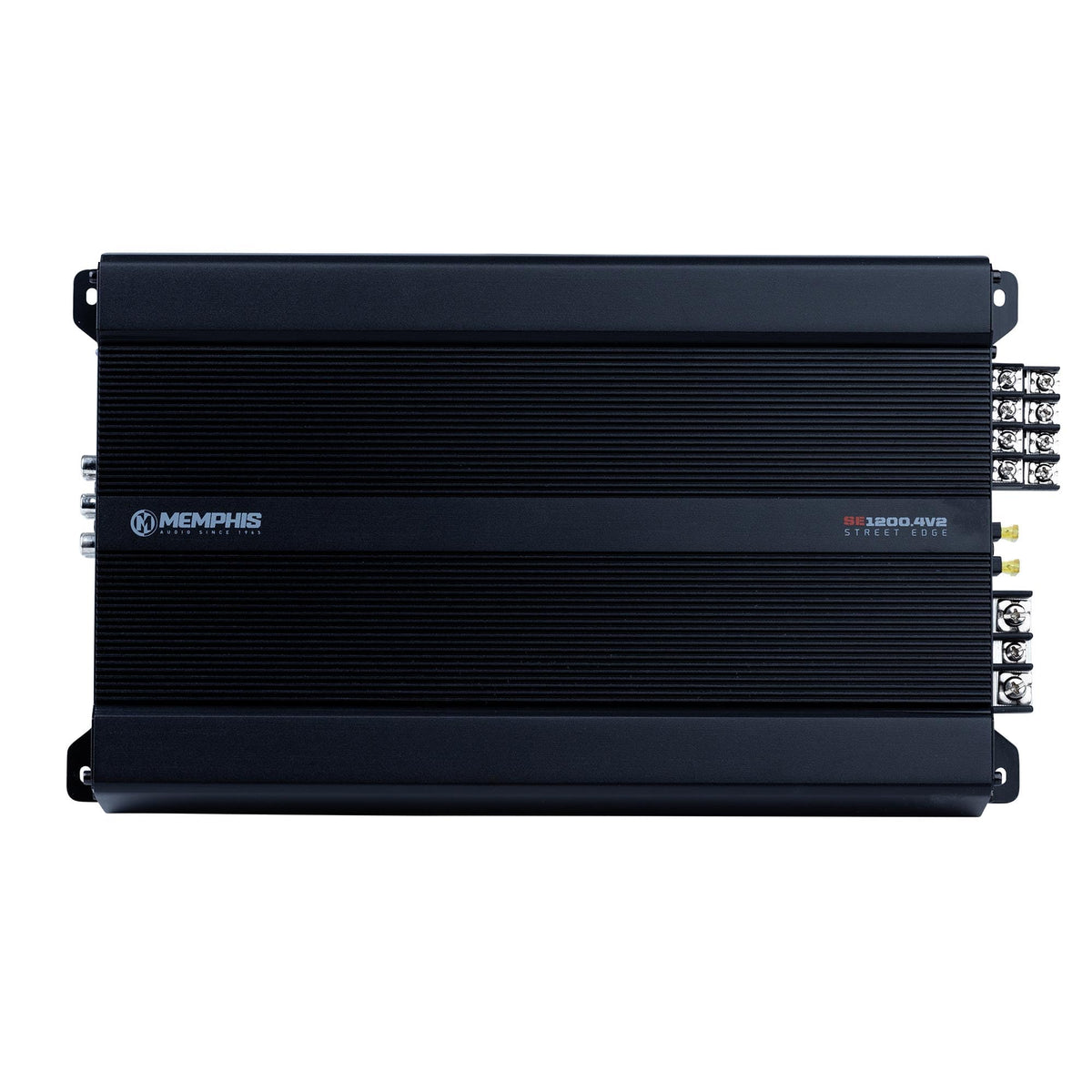

The SE1200.4V2 has a compact chassis with an extruded aluminum heatsink and integrated power, speaker, RCA, gain, crossover, and bass-boost controls. Its dimensions are 12.6 inches long, 8.07 inches wide, and 2 inches high. A power/protect indicator provides operating-status feedback.

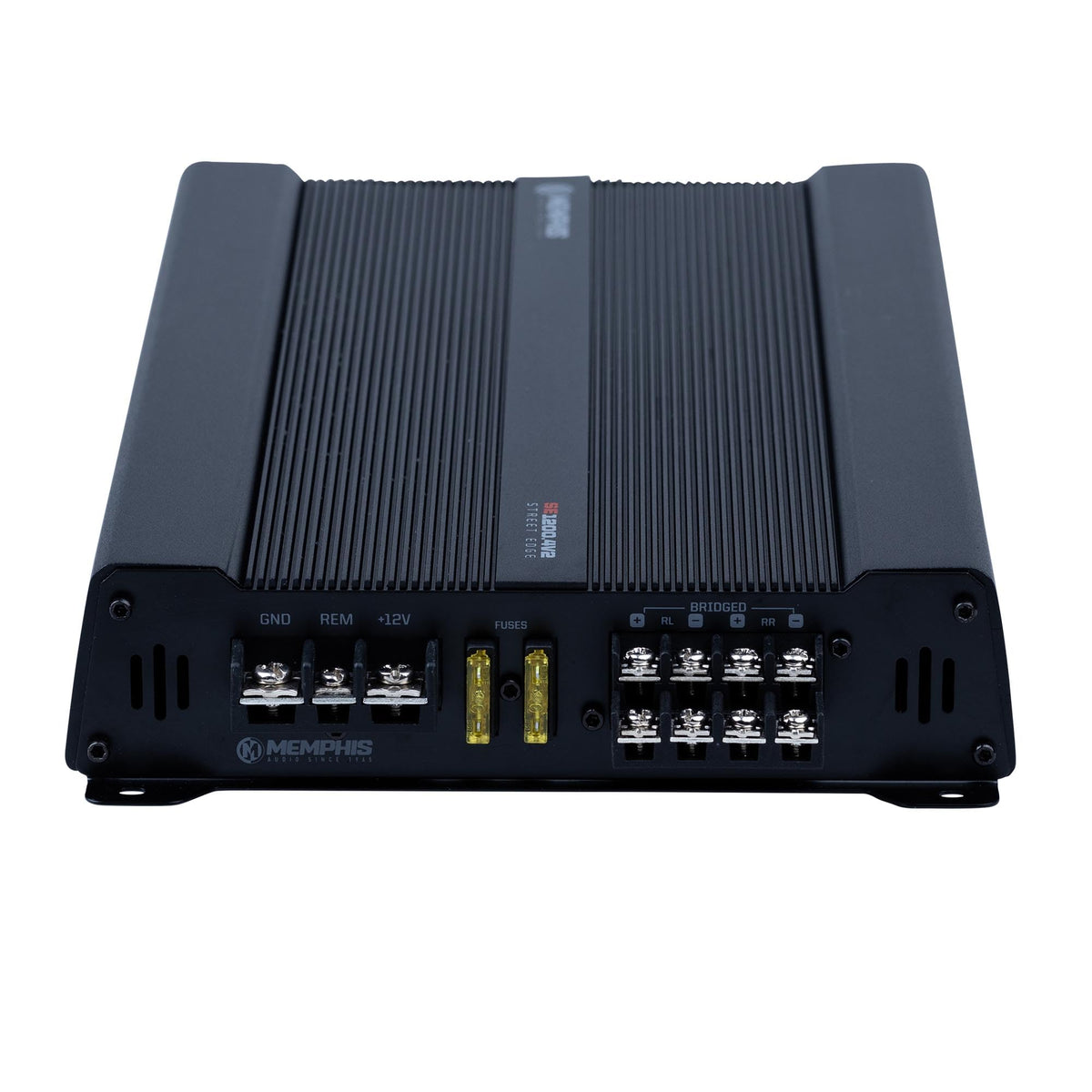

Mount the amplifier securely in a ventilated location such as a trunk, hatch area, or behind a pickup-truck seat, with the heatsink fins facing upward rather than downward. Use a fused battery connection, a secure chassis ground, and wire of 10 AWG or larger for the amplifier's +12V and ground leads; the manual notes that 18 AWG wire is sufficient for the remote turn-on lead. Confirm that each stereo channel sees no lower than 2 ohms and that bridged channel pairs see no lower than 4 ohms.
