Memphis SRXS1044V 10" Dual 4Ω Shallow-Mount Subwoofer

The Memphis SRXS1044V is a 10-inch shallow-mount car subwoofer designed to add low-frequency output where installation depth is limited. Its 3.3-inch mounting depth helps it fit applications that cannot accommodate a conventional full-depth woofer. The dual 4-ohm voice-coil design provides flexibility when planning a compatible amplifier and wiring layout.

This Street Reference shallow subwoofer is intended for vehicle audio upgrades that need bass reinforcement without taking up excessive space. It is suitable for compact trunks, behind-seat locations, and custom enclosures where depth is a primary concern. The driver is rated for 250 watts RMS and 500 watts peak power handling.

A polypropylene cone and rubber surround form the primary moving assembly. These materials are paired with a progressive poly-cotton spider intended to support controlled cone movement. Memphis also uses a sub-cone design intended to improve efficiency.

The SRXS1044V works with either sealed or ported enclosures, allowing the enclosure design to be selected around available space and preferred system goals. A sealed enclosure can be chosen for a compact installation, while a ported design can be used when the enclosure is engineered specifically for the driver. Proper enclosure construction and amplifier setup remain important for reliable operation.

An anodized aluminum voice-coil former and stamped-steel frame support the subwoofer's shallow-format construction. The speaker uses 12 AWG compression terminals for its connections. It can serve as a single-driver bass upgrade or as part of a larger multi-subwoofer system when impedance and amplifier capability are matched correctly.

Key Features

• Shallow-Mount Profile: A 3.3-inch mounting depth supports tight installation locations.
• Dual 4Ω Voice Coils: Supports flexible system wiring and amplifier matching.
• 250W RMS Handling: Designed for compatible moderate-power subwoofer amplification.
• Polypropylene Cone: Provides a durable cone material for mobile-audio use.
• Sealed Or Ported Ready: Accommodates either enclosure approach when properly designed.

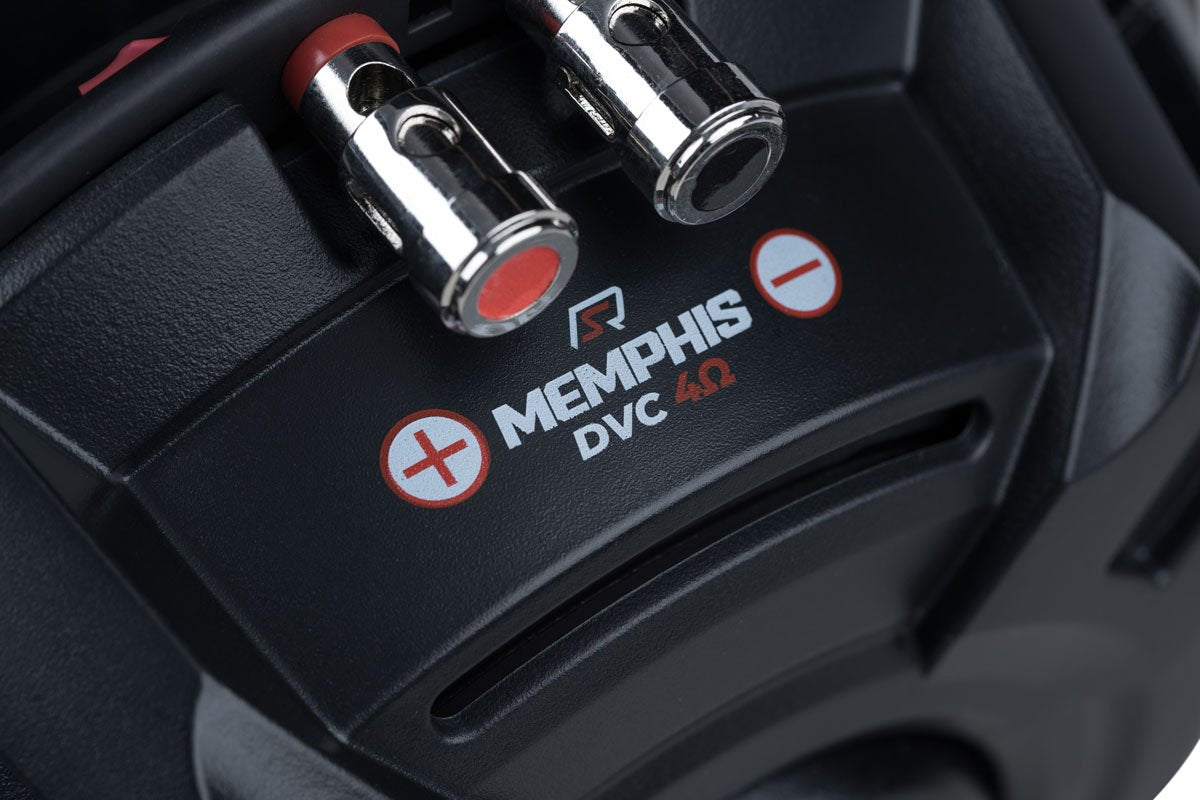

• 12 AWG Compression Terminals: Provides secure speaker-wire connection points.

Design & Installation

The SRXS1044V combines a polypropylene cone, rubber surround, progressive poly-cotton spider, anodized aluminum voice-coil former, and stamped-steel frame. Its shallow architecture is designed to reduce required mounting depth while retaining a 10-inch woofer format. The listed 40-ounce magnet and 2-inch voice-coil diameter are part of its compact driver design.

Confirm that the mounting location has at least 3.3 inches of mounting depth and accommodates the 9.22-inch cutout diameter before installation. Use an enclosure designed for this driver, choose sealed or ported construction as appropriate, and pair it with an amplifier whose output and impedance capability match the final voice-coil wiring. A compatible grille option is the Memphis PRXG10; it is sold separately.
