Memphis PRX60C 6.5" Component Speaker System

The Memphis PRX60C is a 6.5-inch oversized, two-way component speaker system designed to replace factory door speakers with a more configurable front-stage upgrade. It combines separate woofers, separate tweeters, and external crossover networks rather than placing every driver in one speaker basket. This layout is suited to vehicles with dedicated tweeter locations or installations where the tweeters can be mounted separately.

This system is intended for listeners upgrading common OEM speaker locations while retaining a conventional 4-ohm speaker load. Each set is rated for 50 watts RMS and 100 watts peak power handling, making power matching straightforward when selecting an aftermarket amplifier or compatible head-unit power. The 88 dB sensitivity rating and component layout support a practical daily-driver audio upgrade.

The PRX60C uses polypropylene woofer cones and butyl rubber surrounds for the midrange drivers. Separate 1-inch poly dome tweeters handle high-frequency reproduction, while the included external crossovers direct the appropriate signal range to each driver. Separating the tweeters from the woofers allows more flexibility when aiming and positioning the high-frequency drivers.

Memphis supplies multi-mount tweeter hardware so the tweeters may be installed in flush, surface, or angled surface-mount configurations. This is useful when factory sail panels, dash locations, or custom panels determine where the tweeters can be placed. The woofers have a 2.5-inch mounting depth, so installation should begin with a check of door-panel and window-clearance space.

The PRX60C can serve as a front-speaker upgrade in a factory-system refresh or as part of a larger amplified system. Its included crossovers, wiring leads, mounting hardware, and grilles provide the core pieces needed for speaker installation, although vehicle-specific adapters or harnesses may still be required. Confirm the vehicle's speaker opening, mounting depth, wiring polarity, and available tweeter location before installation.

Key Features

• Two-Way Component Design: Separate woofers and tweeters allow more flexible speaker placement than coaxial designs.

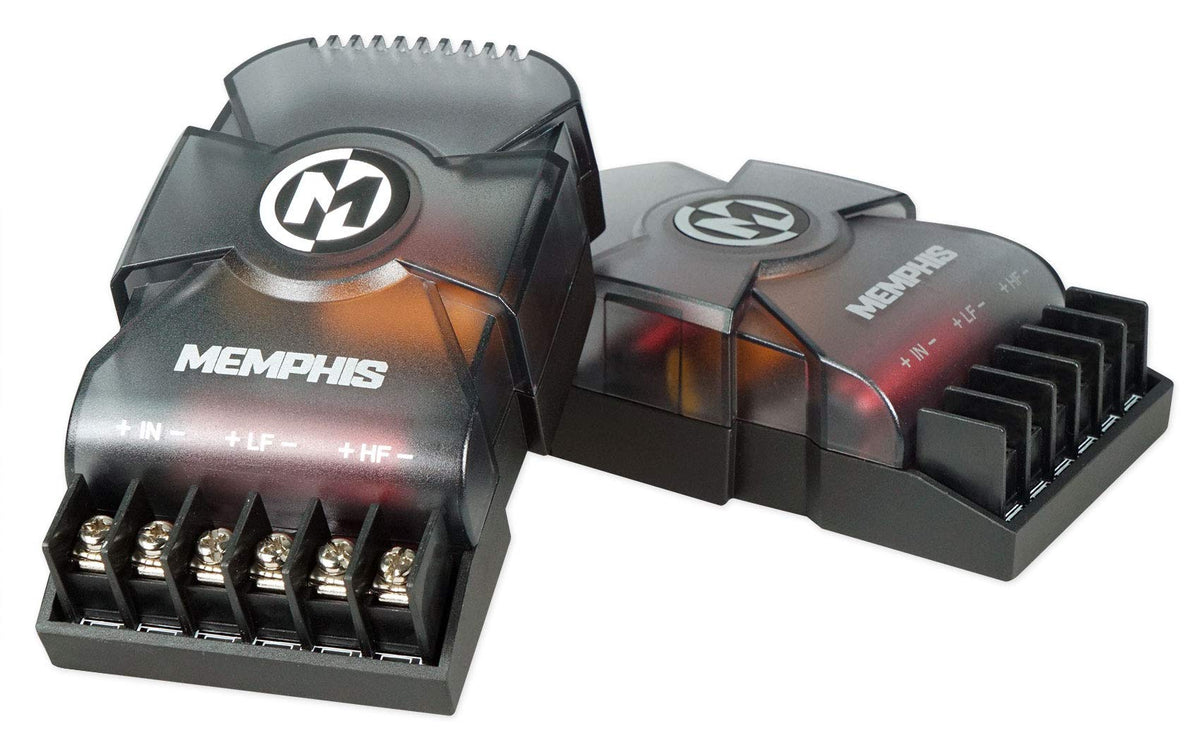

• External Crossovers: Included passive networks route appropriate frequencies to the woofer and tweeter.
• 1-Inch Poly Dome Tweeters: Separate tweeters can be positioned for the desired installation layout.

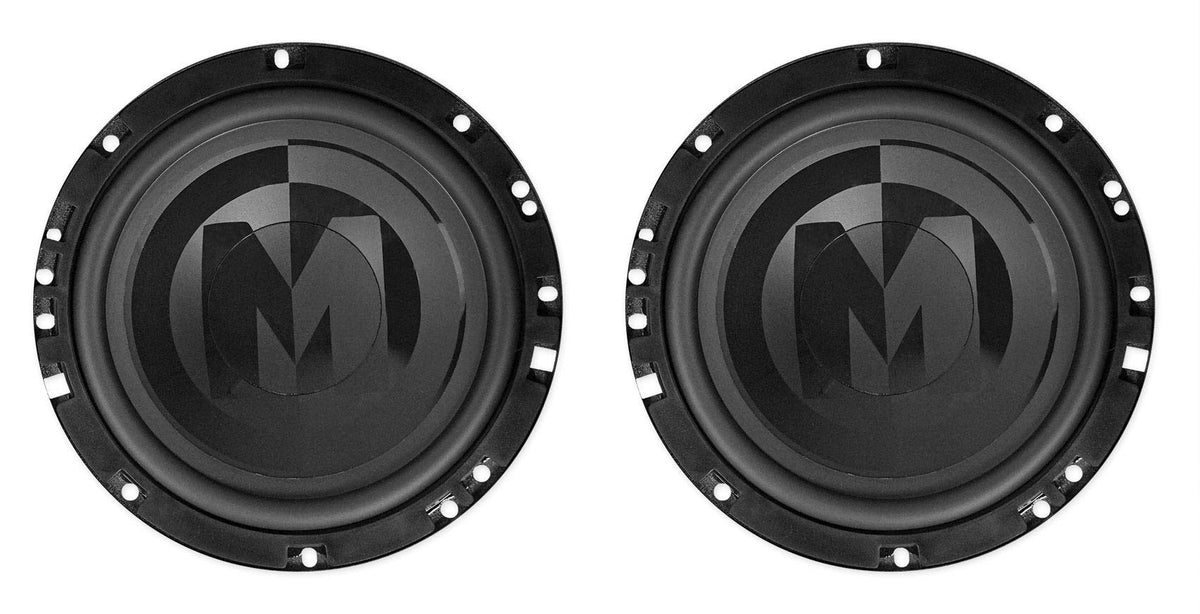

• Polypropylene Woofer Cones: Lightweight cones provide the primary midrange and midbass output.
• Butyl Rubber Surrounds: Durable surrounds support controlled woofer movement in automotive use.
• 4-Ohm Load: Compatible with typical car-audio speaker channels designed for 4-ohm speakers.

Design & Installation

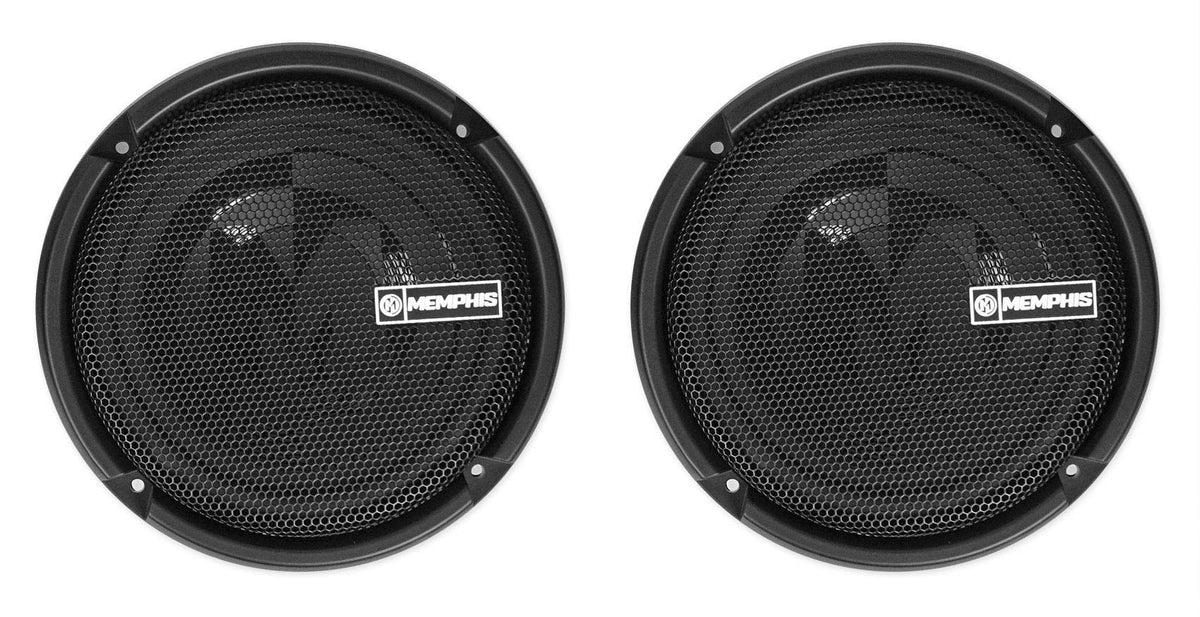

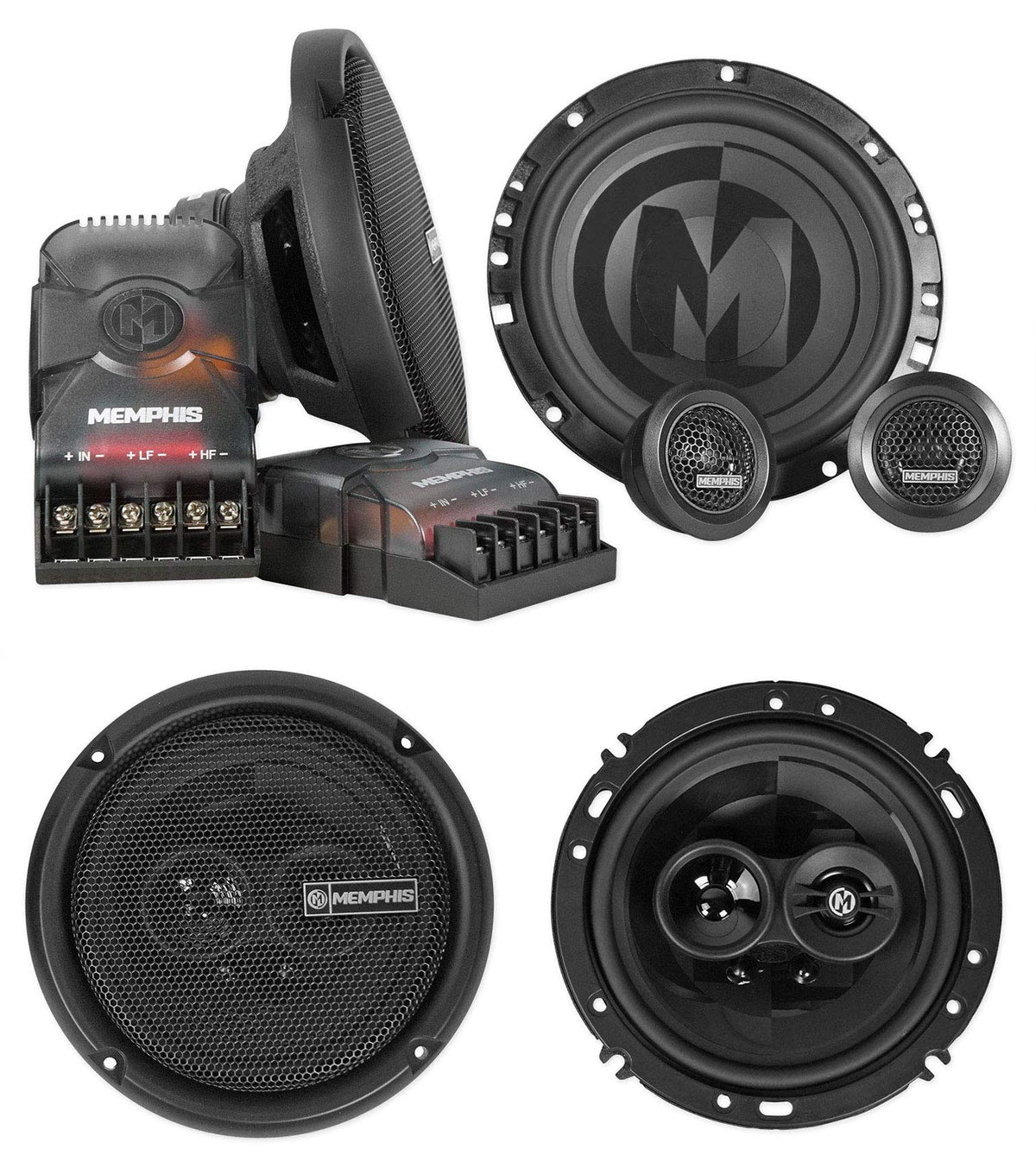

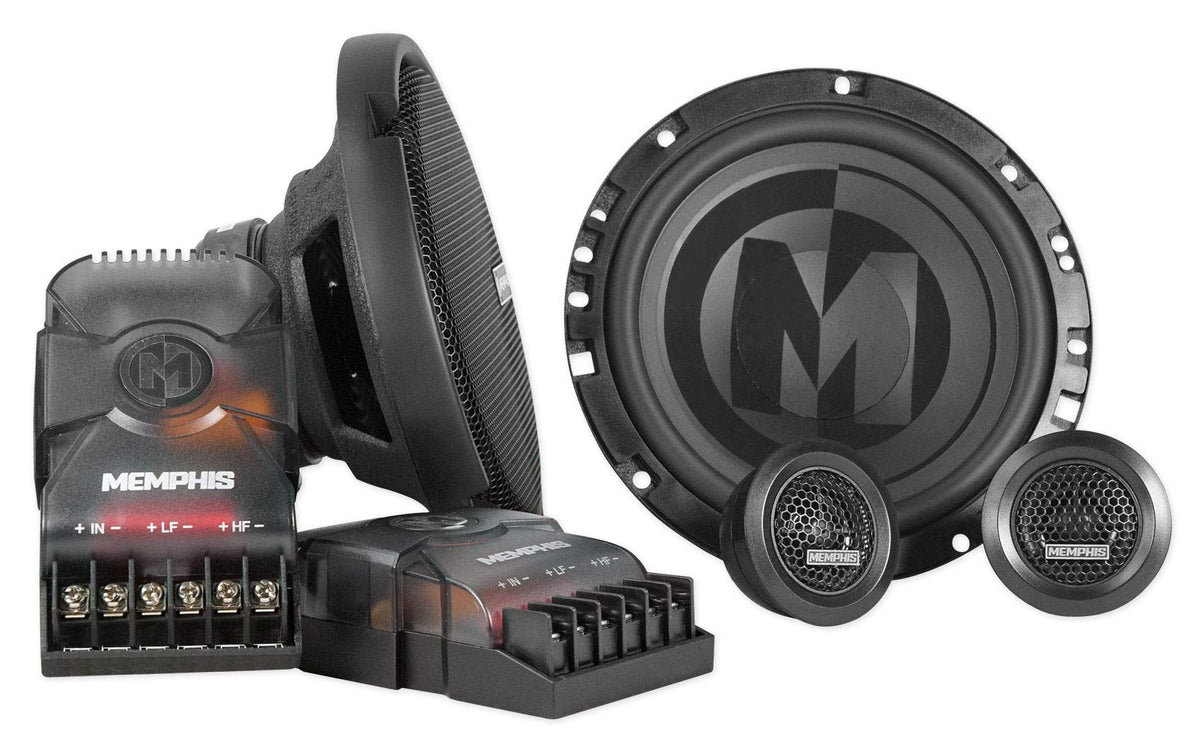

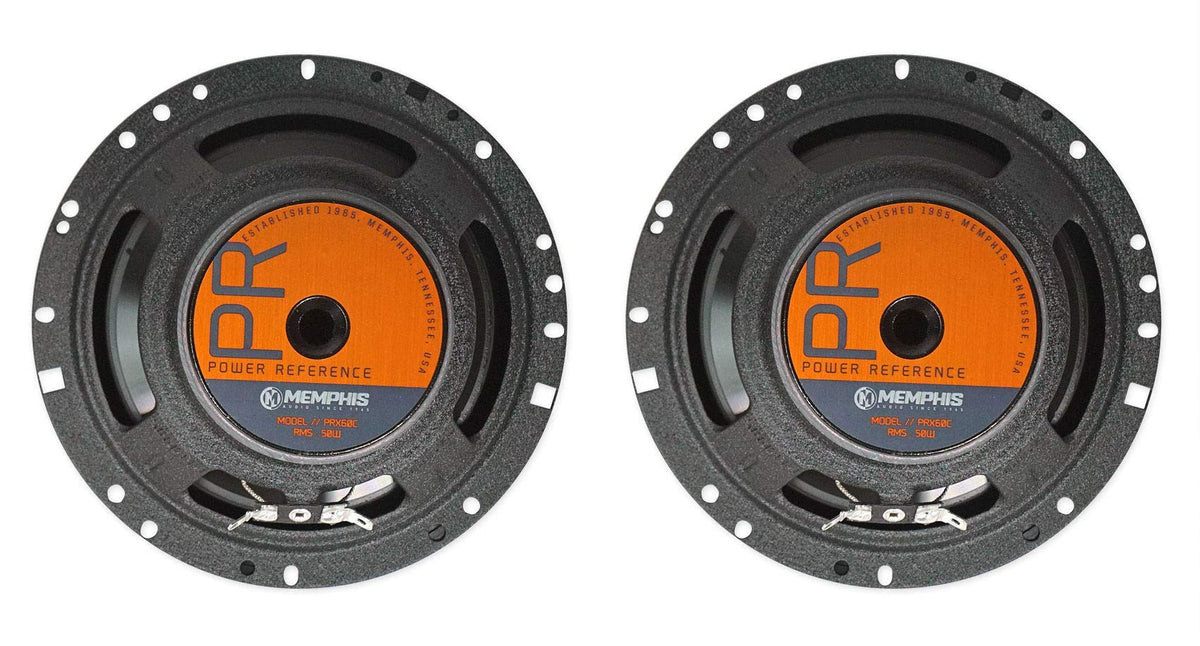

The PRX60C includes two oversized 6.5-inch woofers, two 1-inch tweeters, and two external crossover networks. The woofer design uses polypropylene cones, butyl rubber surrounds, and 10-ounce magnets. Included grilles provide an option for custom or exposed speaker installations.

Measure the factory opening against the 5.557-inch woofer cutout requirement and verify the 2.5-inch top-mount depth before mounting. Connect each amplifier or radio channel to its crossover input, then connect the crossover's woofer and tweeter outputs to their respective drivers. The tweeters can be flush-mounted, surface-mounted, or installed in angled surface-mount housings; use the supplied template and hardware where appropriate.
