Memphis MJP6C 6.5" MOJO Pro Component Speaker System

The Memphis MJP6C is a 6.5-inch, two-way component speaker system designed for high-output vehicle audio upgrades. It separates midrange and high-frequency reproduction into dedicated woofers and tweeters, with passive crossovers to direct the appropriate frequencies to each driver. This makes it a practical choice for listeners replacing basic full-range speakers with a more focused component layout.

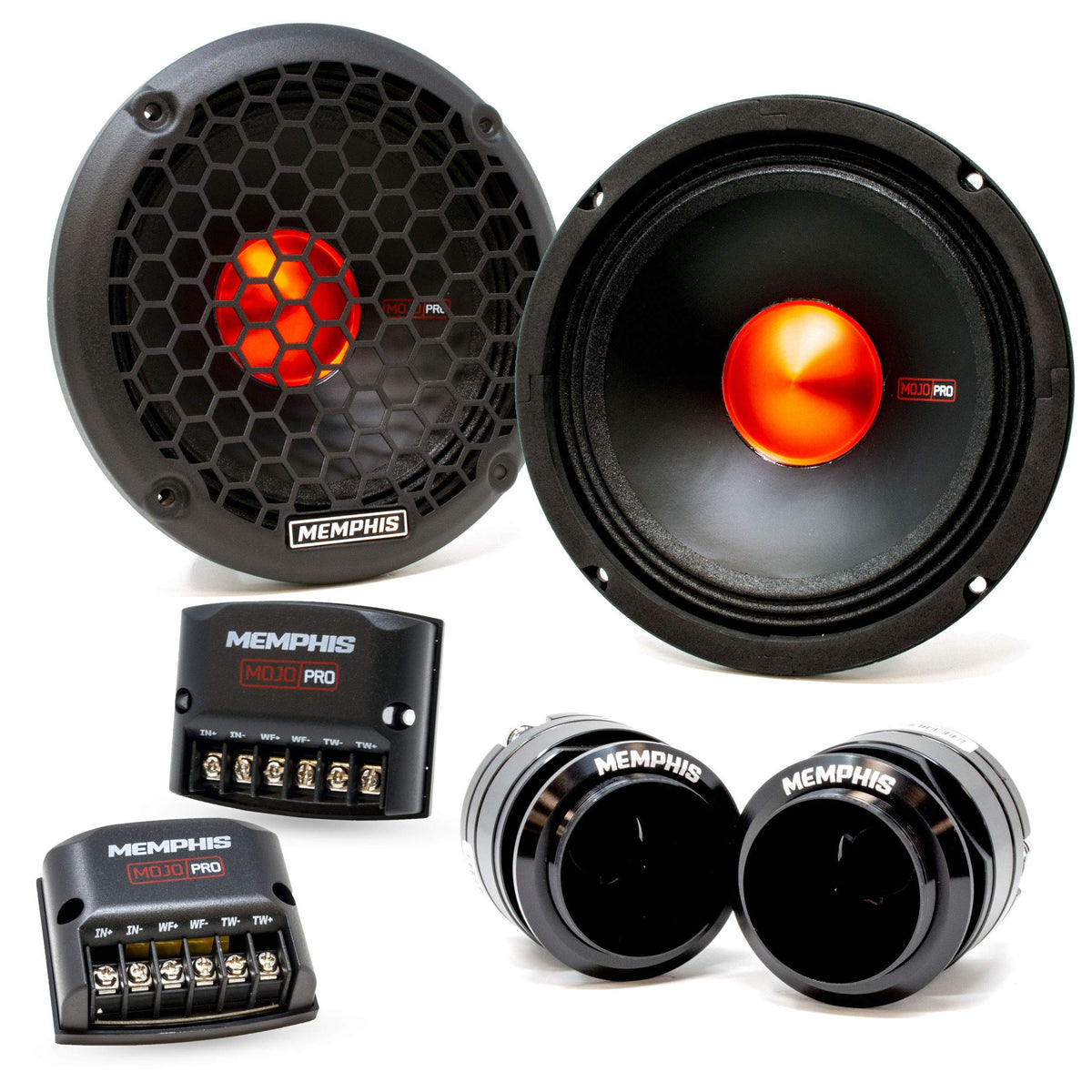

The set includes two MJP6 midrange woofers, two MJPT25 bullet tweeters, and two passive crossover networks. Its 4-ohm design is intended for use with compatible aftermarket amplification or a suitable speaker channel. Mesh woofer grilles are also included for installations where the woofers need added physical protection.

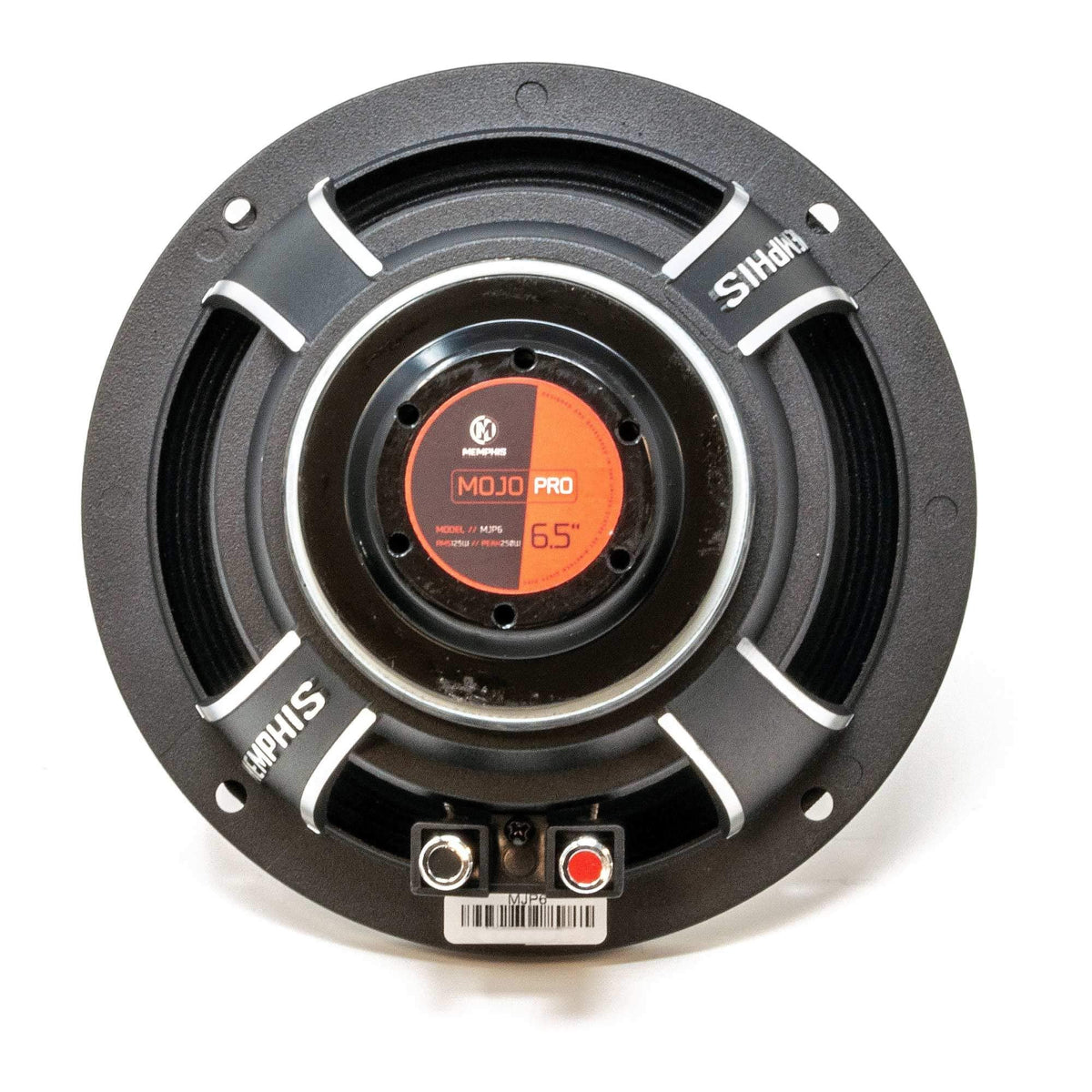

Each MJP6 woofer uses a die-cast aluminum basket, neodymium magnet, accordion-style cloth surround, and billet phase plug. The combination is intended to support efficient midrange output while keeping the driver assembly compact. The MJPT25 tweeters use 25mm aluminum bullet-dome diaphragms for dedicated high-frequency reproduction.

Memphis lists the MJP6C with treated water-resistant construction, expanding its potential use beyond conventional car-door installations. It can be considered for motorcycle fairings, side-by-sides, Jeeps, and other vehicle applications where exposure to the elements may be a concern. Proper enclosure, mounting location, and wiring protection remain important for long-term installation reliability.

The MJP6C fits well in a system built around an external amplifier and subwoofer, where the front-stage speakers can concentrate on mids and highs. Its included passive crossovers simplify the connection between each woofer, tweeter, and amplifier channel. Before purchase, confirm available mounting depth, cutout size, tweeter location, and vehicle-specific installation hardware requirements.

Key Features

• Complete Component Set: Includes two woofers, two tweeters, and two crossovers.
• 6.5-Inch MJP6 Woofers: Dedicated midrange drivers for component-system installations.

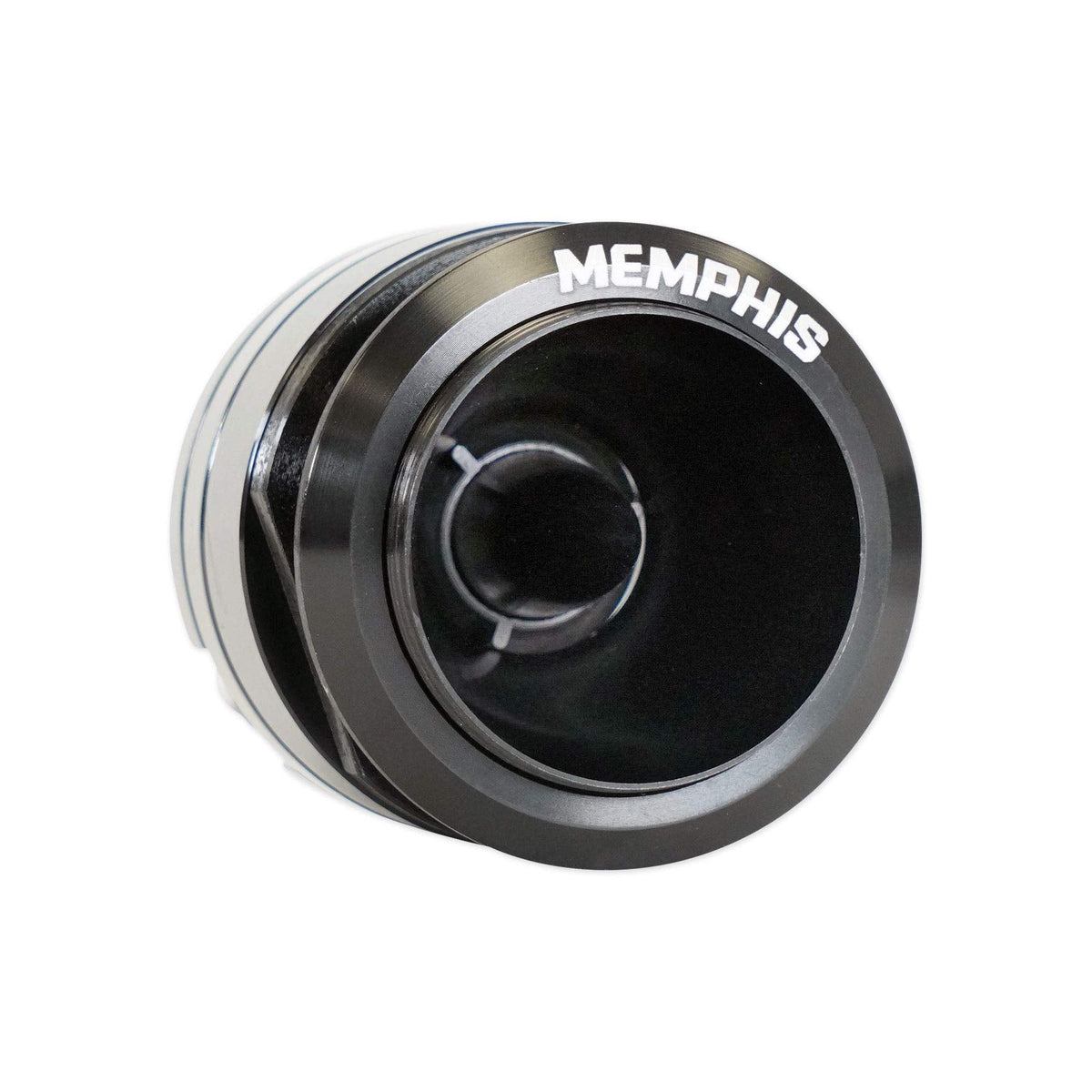

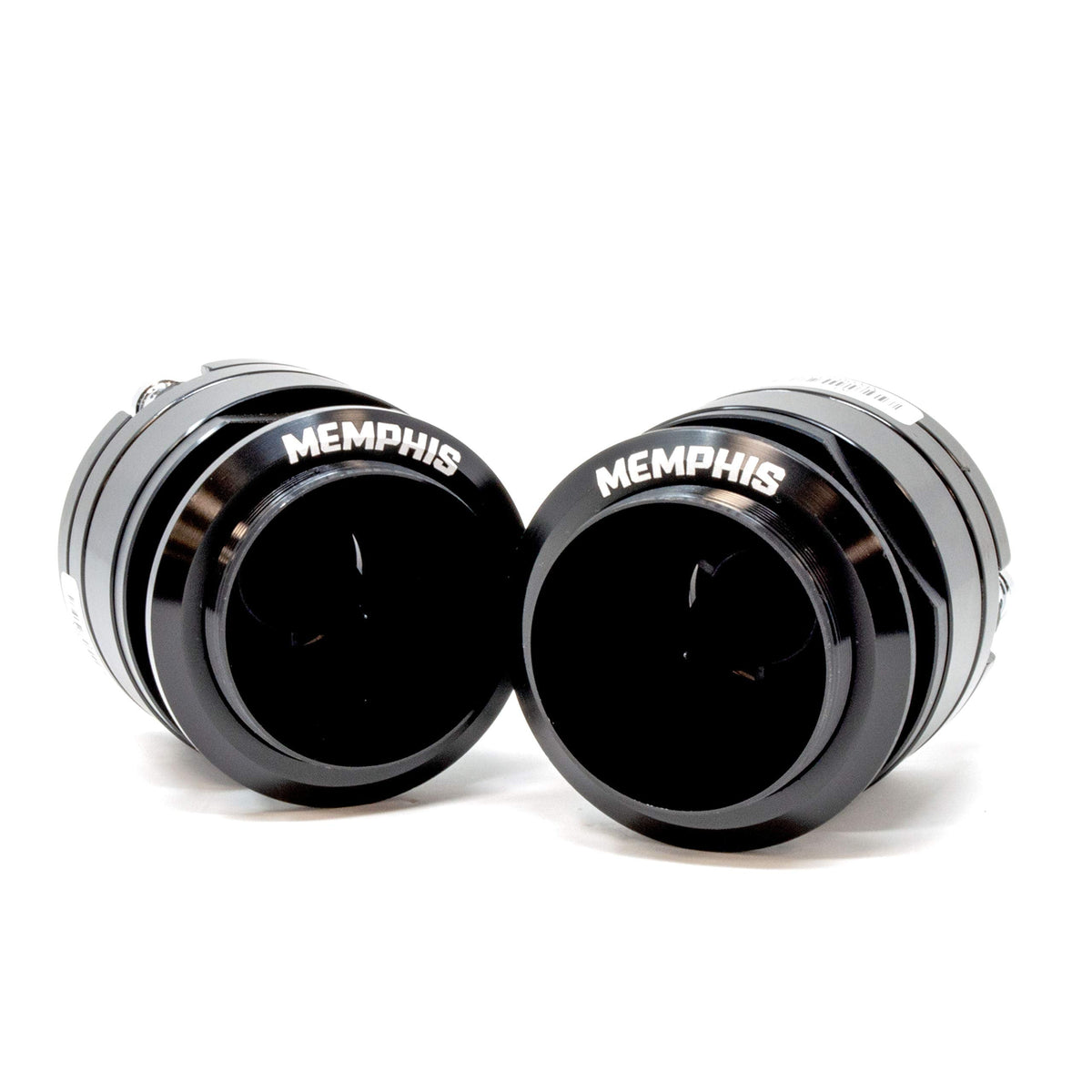

• 25mm Bullet Tweeters: Separate aluminum tweeters reproduce upper-frequency detail.
• Passive Crossovers: Directs appropriate frequencies to each speaker driver.
• Neodymium Magnets: Provide strong motor performance in a compact format.

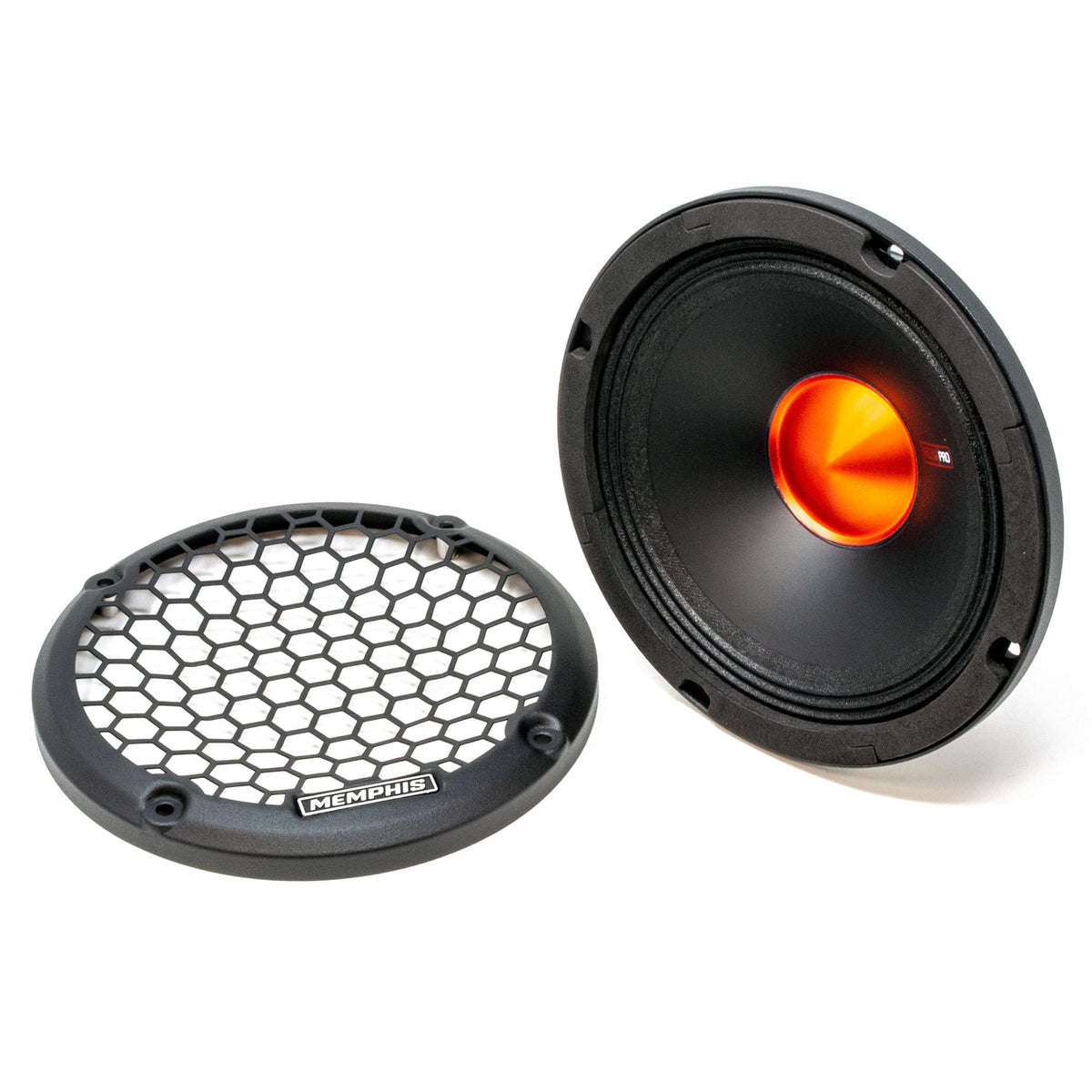

• Mesh Woofer Grilles: Add protection for exposed woofer installations.

Design & Installation

The MJP6C woofers use die-cast aluminum baskets, neodymium magnets, cloth surrounds, and billet phase plugs. The system also uses aluminum bullet-dome tweeters and treated water-resistant construction. These materials support a durable, purpose-built component-speaker design for vehicle audio applications.

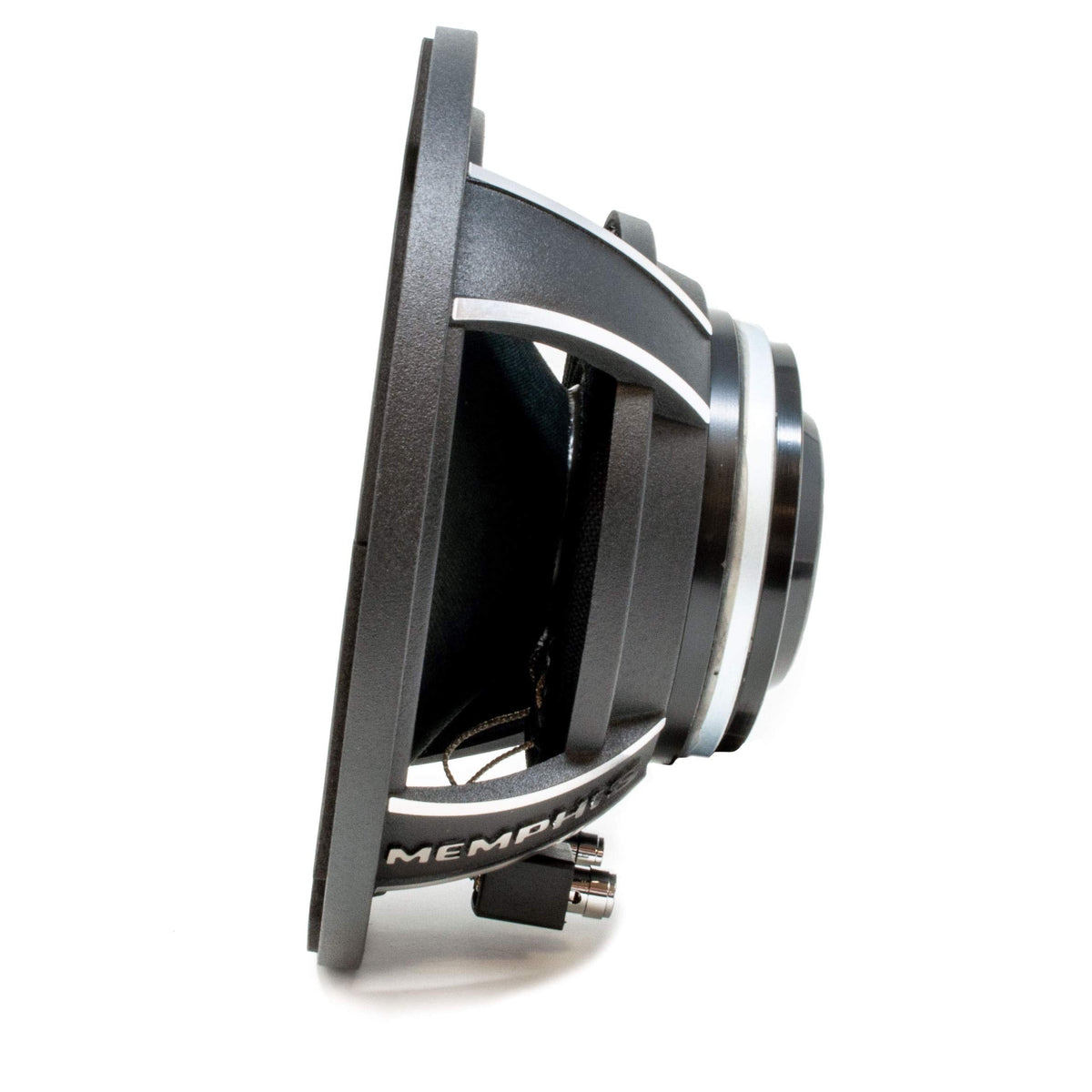

Mount each woofer in a location that accommodates its 2.75-inch top-mount depth and approximately 5.625-inch cutout requirement. Connect each woofer and tweeter through its supplied passive crossover rather than wiring the tweeter directly to a full-range amplifier output. Verify polarity, secure all crossover connections, and use vehicle-specific mounting adapters or wiring harnesses when required.
