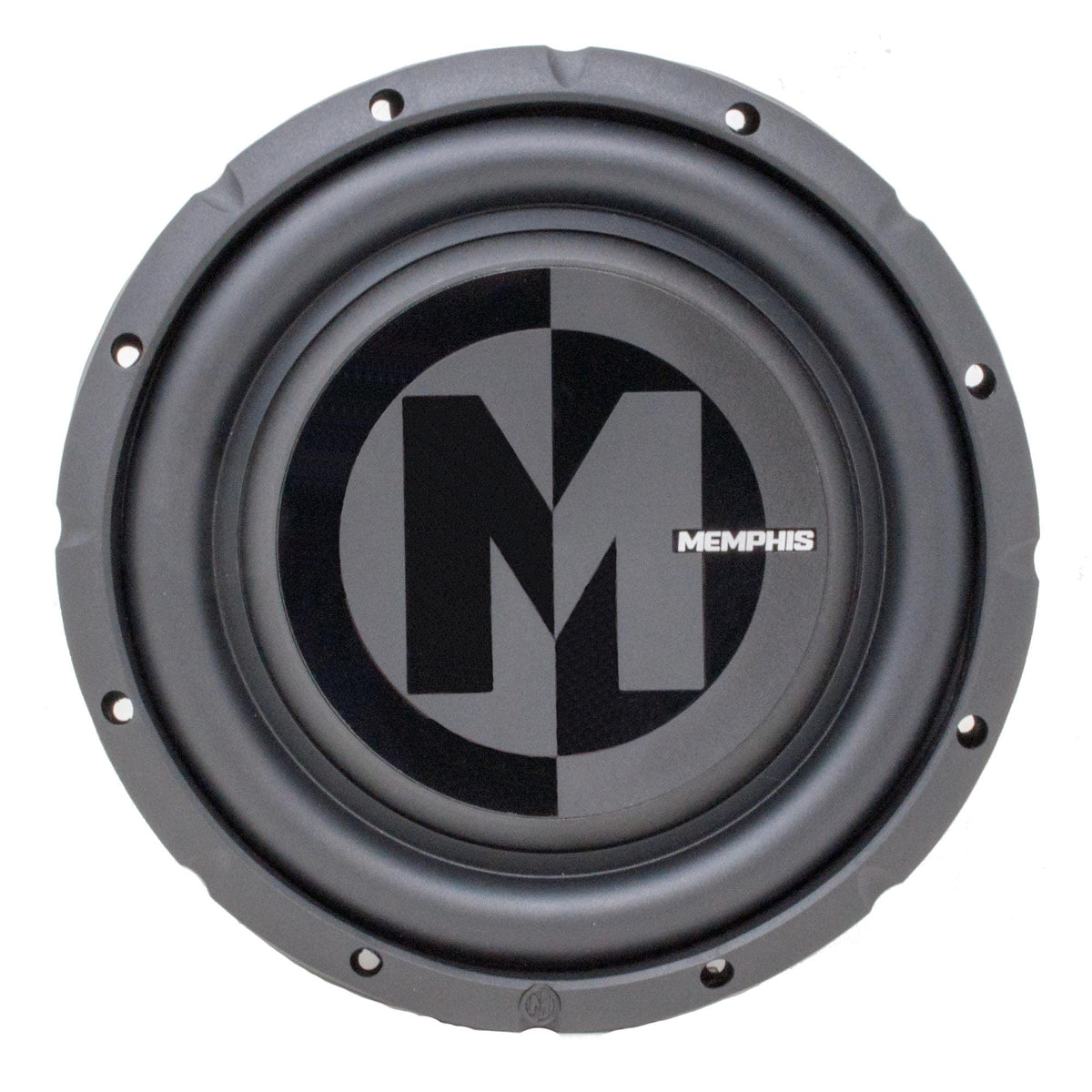

Memphis 76PRXL12FTV 12" RGB LED Selectable-Impedance Subwoofer

The Memphis 76PRXL12FTV is a 12-inch Power Reference subwoofer designed for vehicle audio systems that need substantial low-frequency output while retaining installation flexibility. Its 500-watt RMS rating makes it suitable for a dedicated bass upgrade with a properly matched amplifier. This special-edition model pairs its performance focus with commemorative 250th Anniversary presentation details.

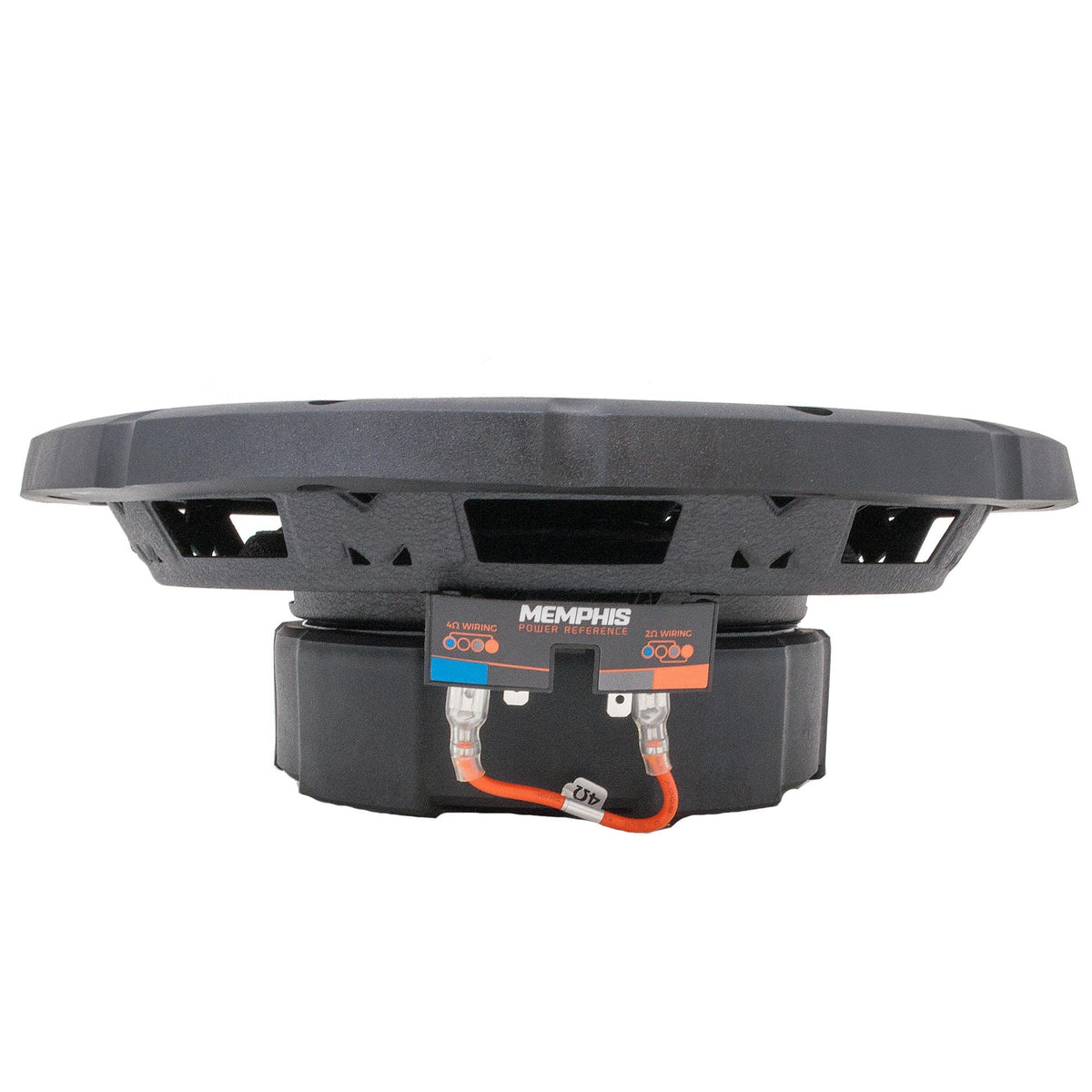

The subwoofer uses Memphis FLEX Triple Voice Coil technology to let the installer select 1-ohm, 2-ohm, or 4-ohm operation through a jumper plug. That flexibility can simplify amplifier matching when system plans change or when choosing between different mono amplifier configurations. Select the impedance setting that is compatible with the amplifier before final wiring and setup.

For visual integration in a custom build, the 76PRXL12FTV includes an RGB LED illuminated cone accent. The lighting gives an enclosure or display-oriented installation an added visual element without changing the subwoofer's primary role as a bass driver. It is a practical fit for systems where the equipment will remain visible.

Its black-on-black polypropylene cone, stitched butyl rubber surround, reinforced spider, and improved suspension are specified to support controlled cone movement. Woven tinsel leads provide the electrical connection to the moving assembly. Memphis also uses Direct Voice Coil Cooling technology to support thermal efficiency during extended playback.

The 76PRXL12FTV is intended for a custom subwoofer enclosure and a compatible external amplifier; it is not a self-powered subwoofer. With a 5.5-inch mounting depth and 11-inch cutout requirement, it can be planned into many conventional 12-inch enclosure designs after verifying internal clearance. The selectable impedance design makes it especially useful for an installer building around a specific amplifier load target.

Key Features

• 500W RMS Power Handling: Supports amplifier matching for a substantial dedicated bass channel.
• FLEX Triple Voice Coil: Select 1-, 2-, or 4-ohm operation with a jumper plug.
• RGB LED Cone Accent: Adds customizable illumination to visible enclosure installations.
• DVVC Cooling: Direct Voice Coil Cooling supports thermal efficiency during playback.
• Reinforced Moving Assembly: Reinforced spider and improved suspension support controlled bass response.
• Compact 12-Inch Fitment: Requires 5.5 inches of depth and an 11-inch cutout.

Design & Installation

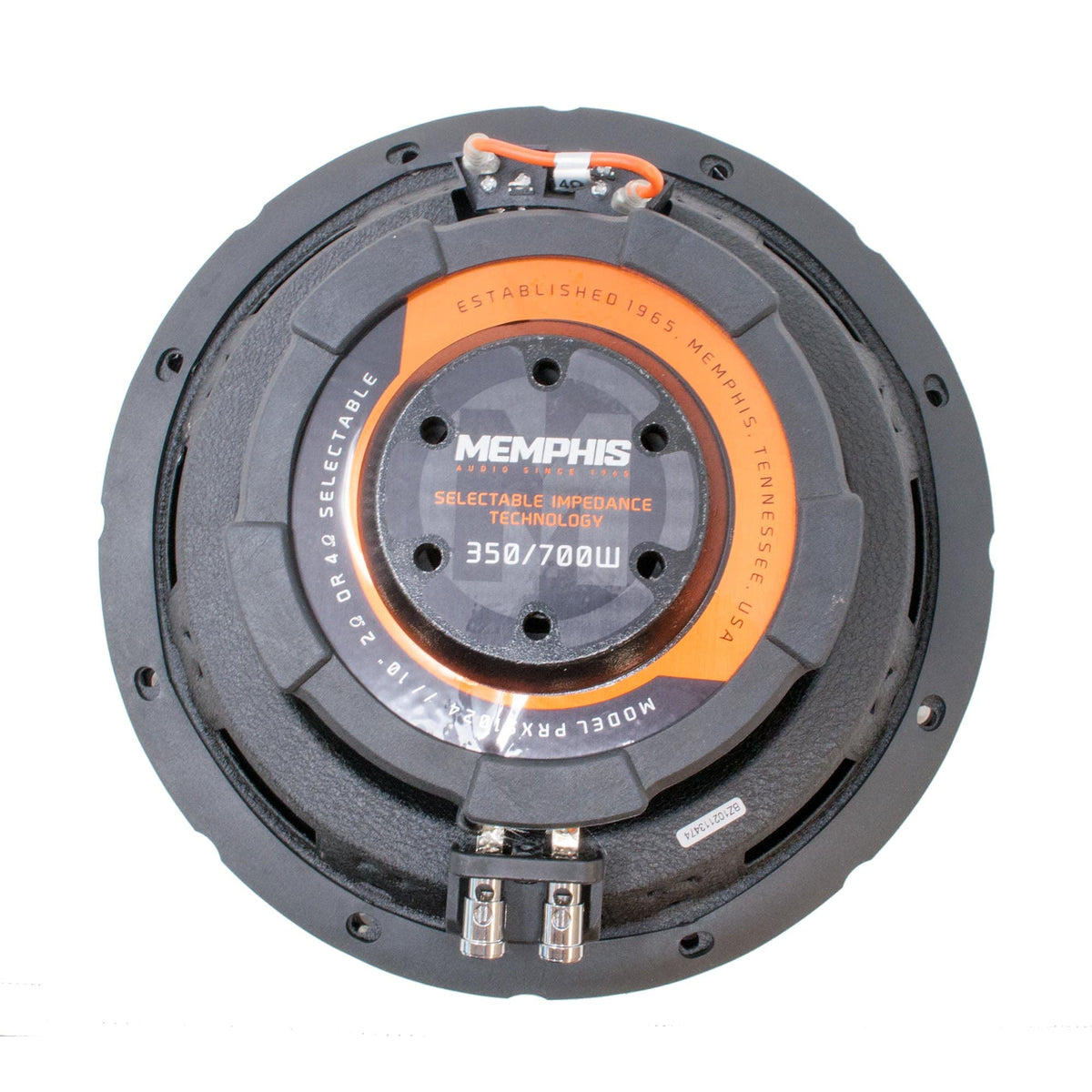

The 76PRXL12FTV uses a black-on-black polypropylene cone with a stitched butyl rubber surround for a durable, understated appearance. Its 63-ounce magnet, 2-inch voice coil, reinforced spider, improved suspension, and woven tinsel leads form the specified motor and moving-system package. The RGB LED illuminated cone accent complements the special-edition styling for installations where the subwoofer is on display.

Install this subwoofer in an enclosure designed for a 12-inch driver, confirming the 11-inch cutout and 5.5-inch mounting-depth requirements before cutting or mounting. A compatible external subwoofer amplifier, appropriate enclosure, wiring, and installation hardware are needed for a complete system. Set the jumper plug for the amplifier-compatible 1-, 2-, or 4-ohm impedance option before completing the final wiring.
