KENWOOD CA-DR1130 Dash Cam Hardwire Kit

The KENWOOD CA-DR1130 is a dedicated hardwire kit designed to provide permanent vehicle power for compatible KENWOOD dash cameras. It replaces routine use of a vehicle’s 12-volt accessory outlet with a direct fuse-box installation. This is a practical option for drivers who want a cleaner dash cam installation and power available when the vehicle is parked.

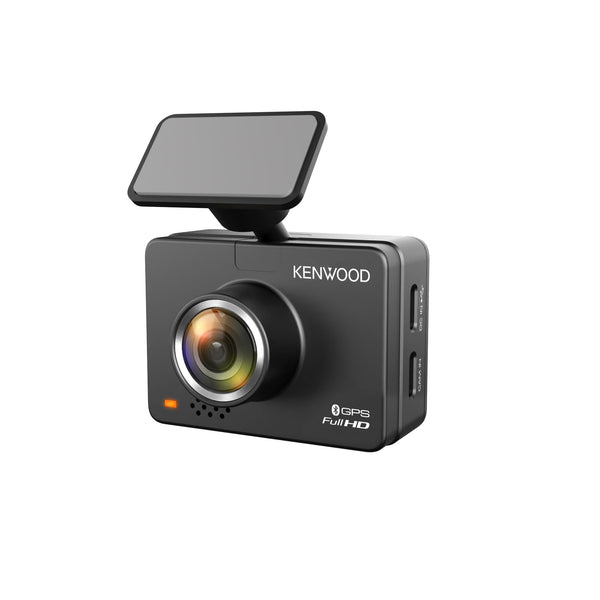

Designed for the KENWOOD DRV-A310W, DRV-A510W, and DRV-A610W dash cameras, the CA-DR1130 connects through a USB Type-C power connection. Its regulated design accepts 12V or 24V vehicle electrical systems and supplies 5V power at up to 2A to the connected camera. It is intended only for compatible dashboard cameras.

The kit supports the compatible camera’s parking-monitoring functions by maintaining power after the engine is switched off. Depending on the dash camera setting, parking monitoring can use motion detection, vibration detection, or time-lapse recording. Parked monitoring time can extend up to 24 hours, though actual duration depends on vehicle battery condition and operating conditions.

Rather than changing a vehicle’s audio performance, the CA-DR1130 focuses on dependable power integration for a dash cam system. Separate ACC and constant-battery connections allow the compatible camera to recognize driving and parked states. This two-wire arrangement supports automatic transition into parking mode after the engine is turned off.

The CA-DR1130 is suited to cars, trucks, and other vehicles with compatible 12V or 24V electrical systems and a suitable fuse-box location. Four supplied fuse-tap styles help accommodate common automotive fuse formats. It is a useful upgrade path for owners of a compatible KENWOOD dash cam who want a concealed, hardwired installation instead of a plug-in power lead.

Key Features

• Permanent Dash Cam Power: Connects a compatible KENWOOD dash cam to vehicle power.
• Parking Mode Support: Enables compatible dash camera monitoring after engine shutdown.
• 12V/24V Compatibility: Works with standard 12V and heavy-duty 24V vehicle systems.
• USB Type-C Output: Delivers regulated 5V, 2A power to the dash cam.

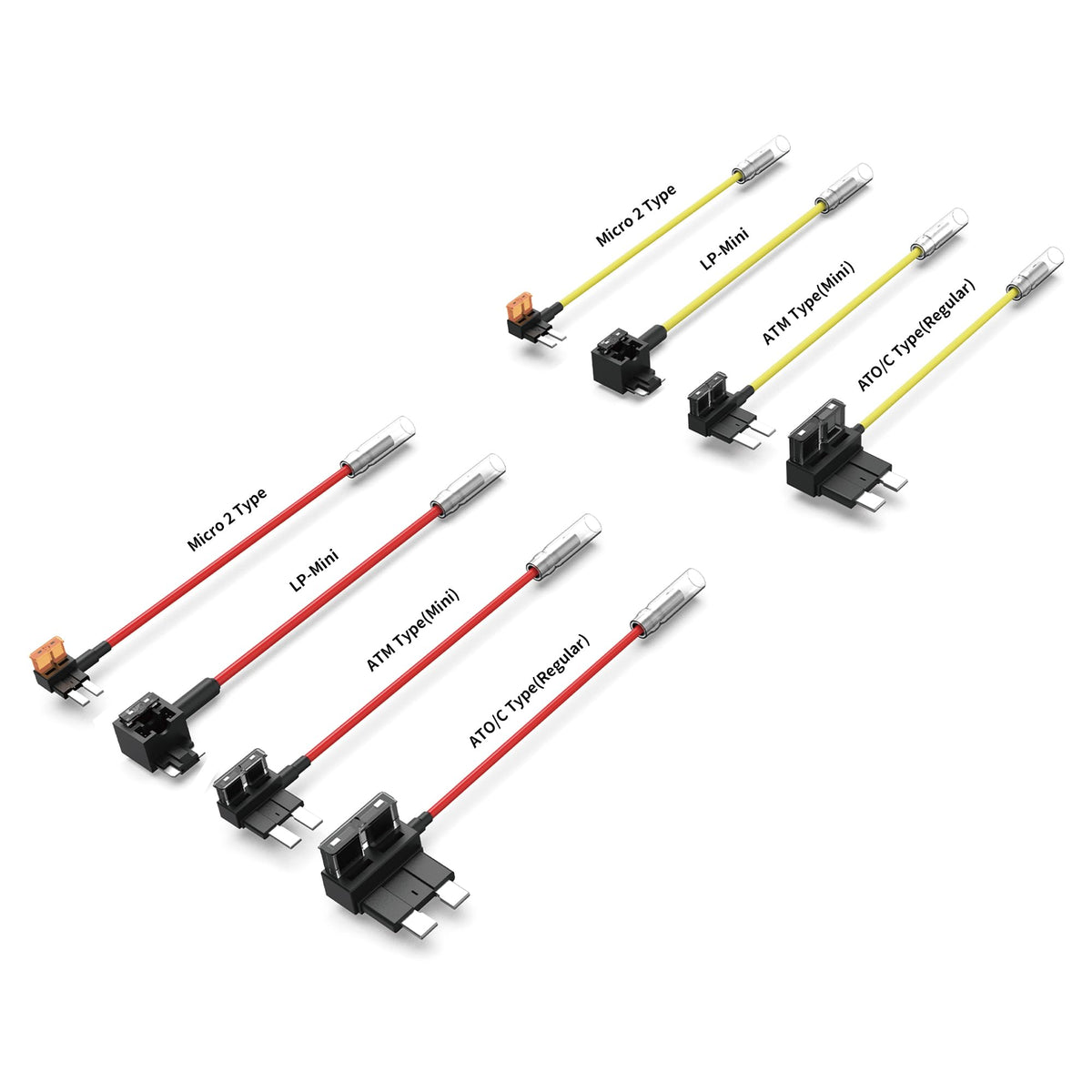

• Four Fuse-Tap Styles: Includes ATO/C, ATM, LP-mini, and Micro2 fuse taps.
• ACC and Battery Leads: Uses switched and constant-power connections for automatic operation.

Design & Installation

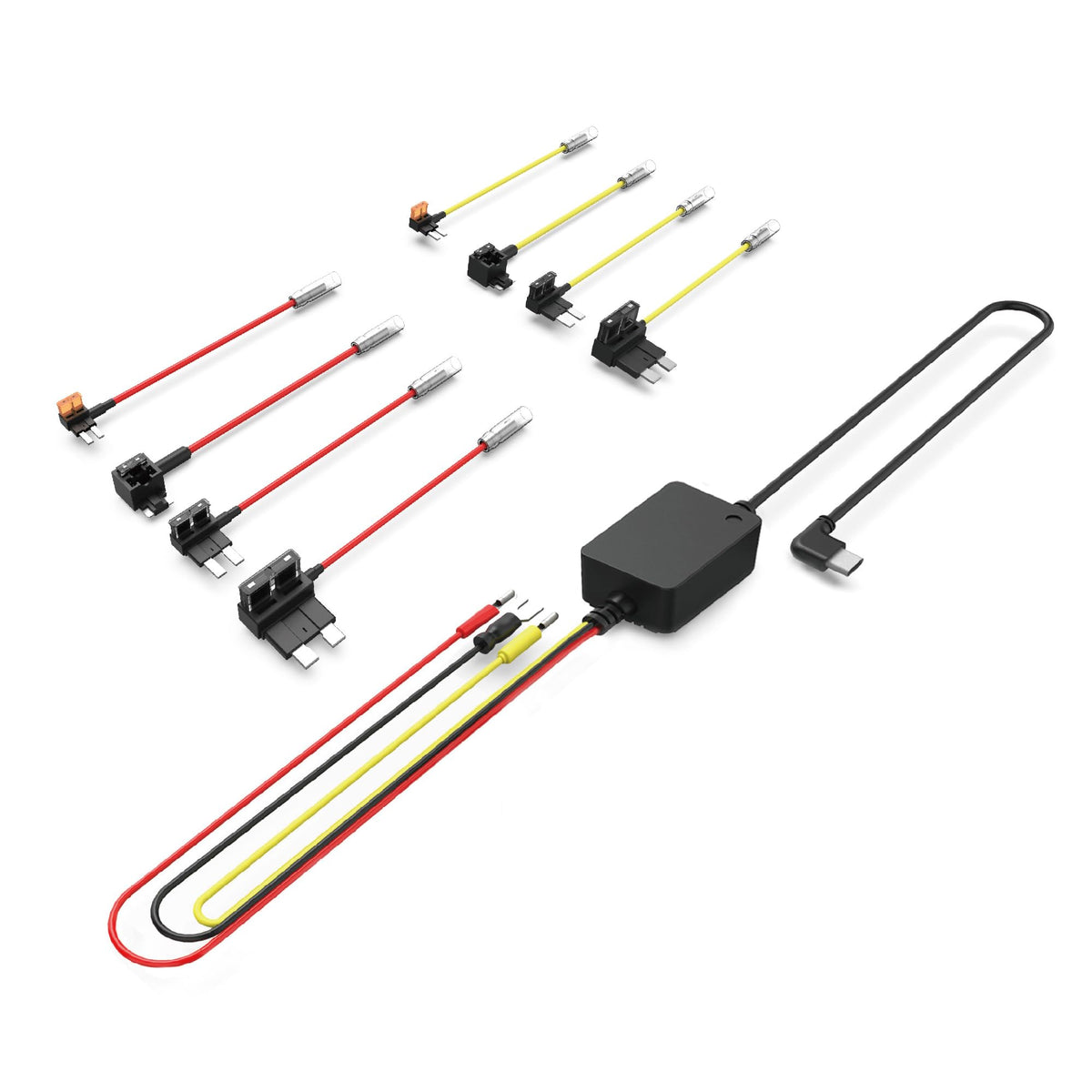

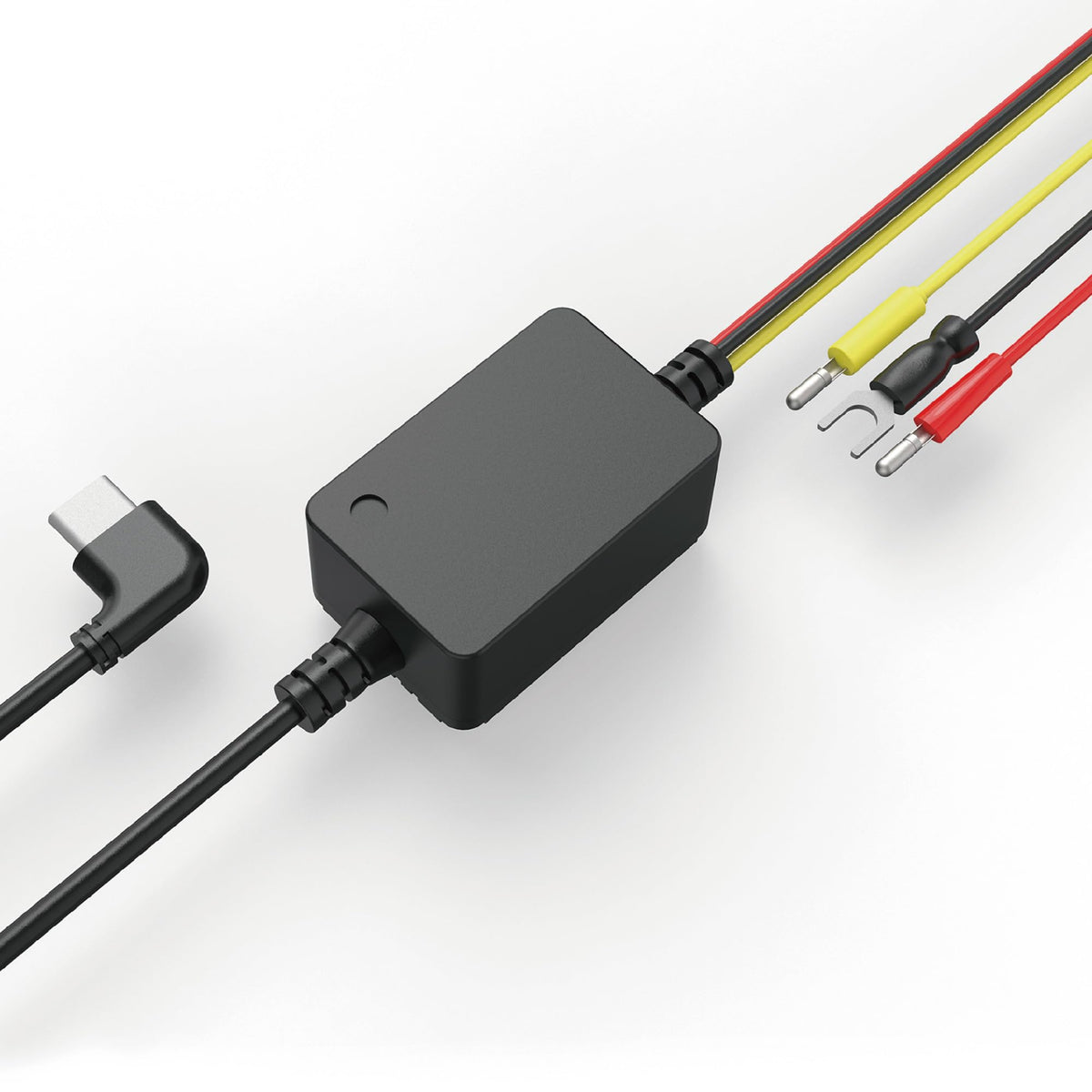

The CA-DR1130 uses a compact inline power-regulator design with a USB Type-C camera connection, fused tap connections, and separate power and ground leads. KENWOOD specifies the electrical connections and included fuse formats, but does not publish construction-material details. Its layout is intended to support a concealed installation with the cable routed behind trim rather than across the cabin.

Installation requires access to the vehicle fuse box, an ACC/switched circuit, a constant-power circuit, and an unpainted metal grounding point. Select the supplied fuse tap that matches the vehicle fuse type, retain the vehicle’s original fuse in the designated fuse-tap socket, and connect red to ACC and yellow to constant battery power. Review the vehicle manual and route wiring so it does not interfere with driving; professional installation may be appropriate for users unfamiliar with vehicle electrical systems.
