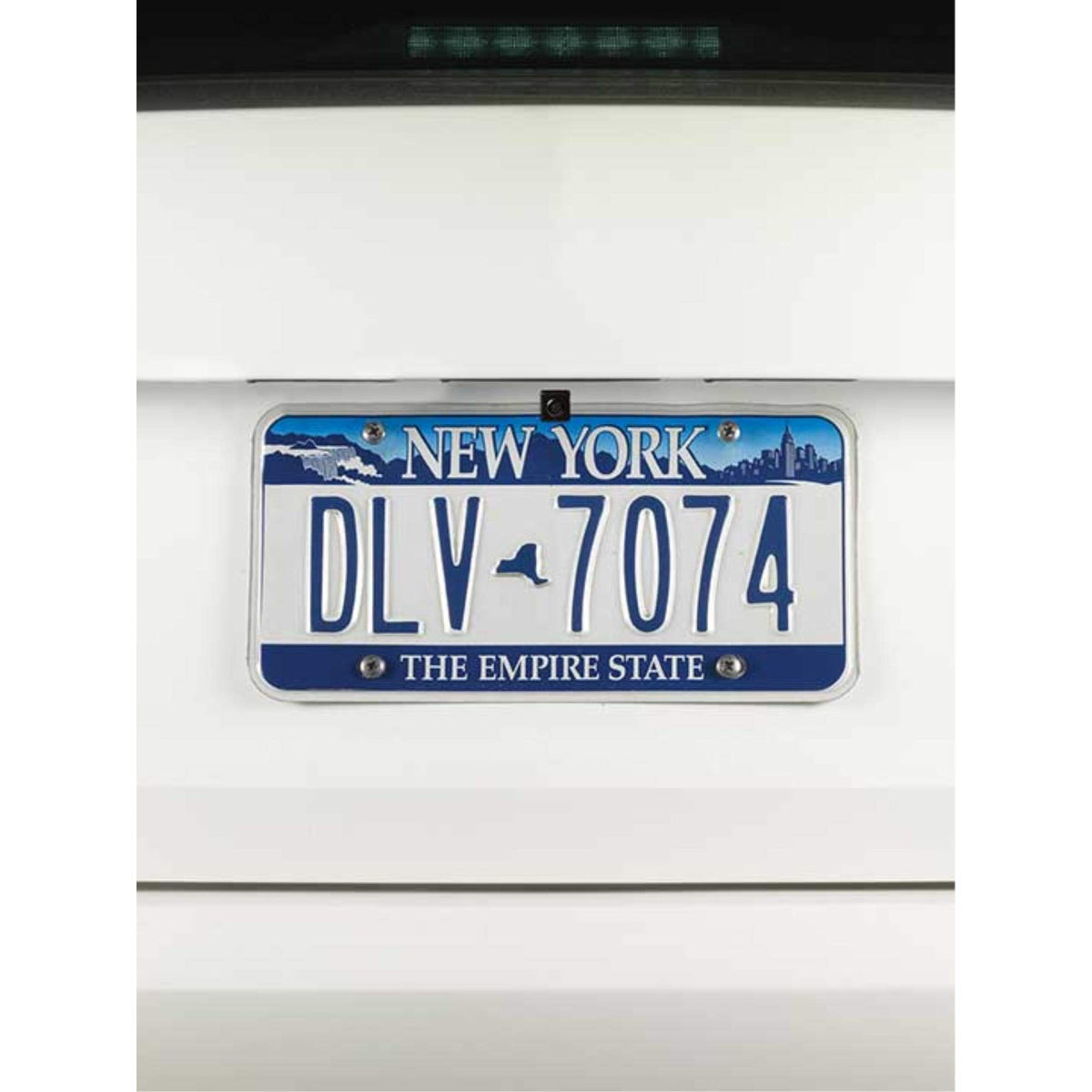

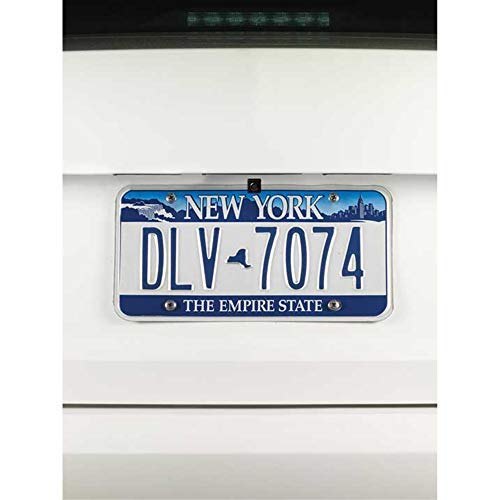

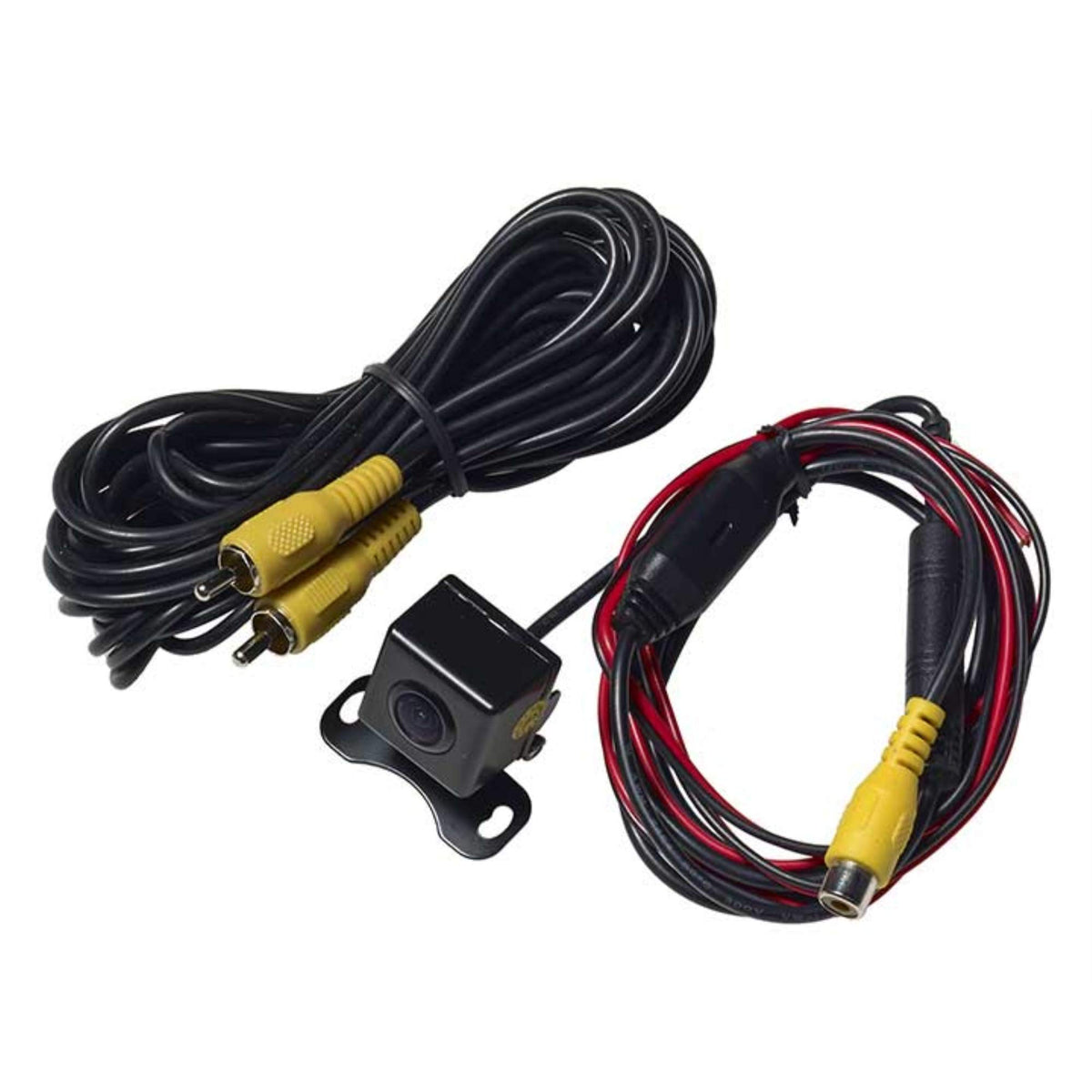

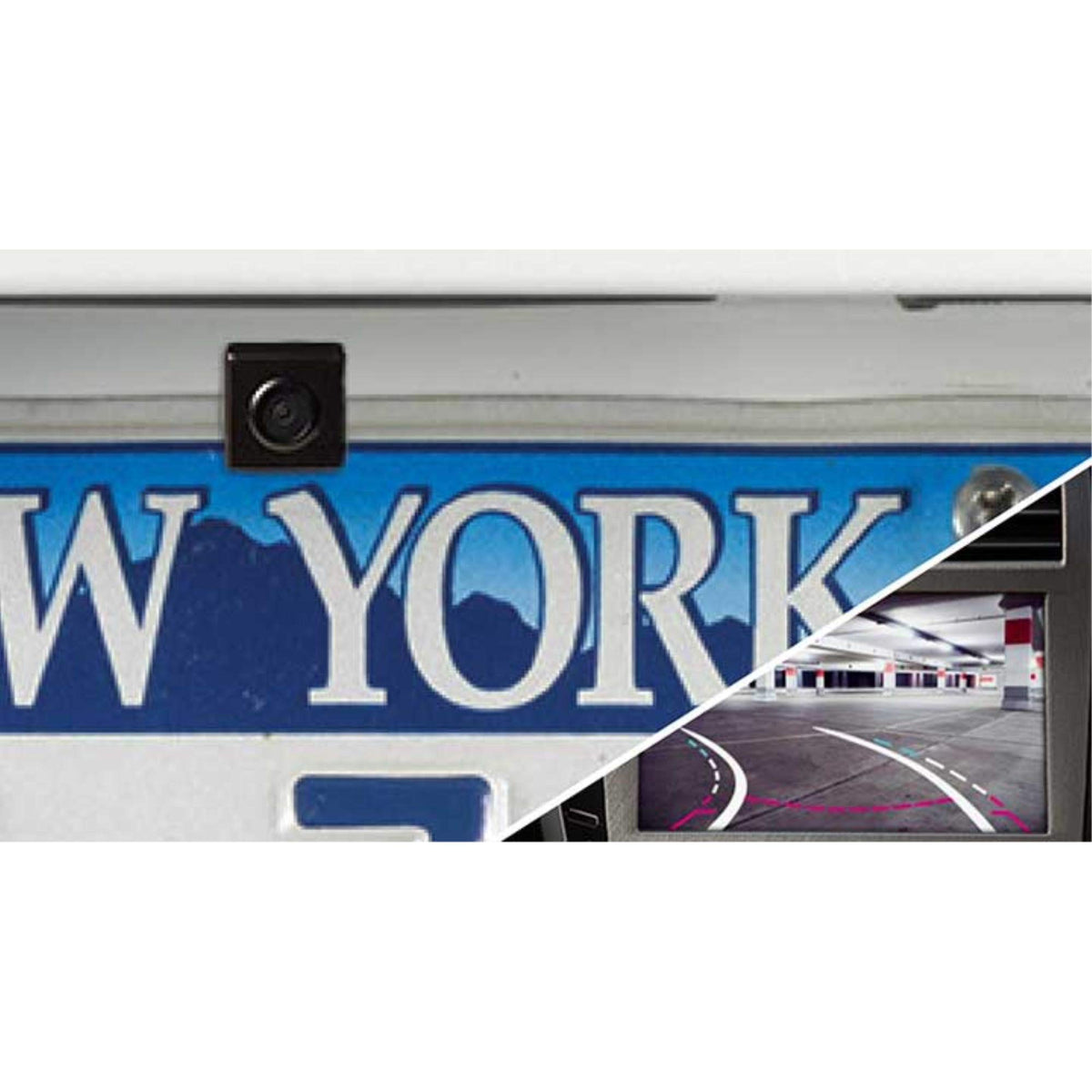

Audiovox ACA801 License Plate-Mounted Backup Camera

The Audiovox ACA801 is a compact rear-view camera designed to add a backup view to vehicles equipped with a compatible video display. Its license-plate mounting arrangement helps position the camera at the rear of the vehicle without requiring a large external camera housing. The wide-angle view is intended to improve awareness of the area behind the vehicle during parking and reversing.

This camera is suited to drivers upgrading an aftermarket multimedia receiver or adding a rear-view display with an RCA video input. It can also be used with select factory display systems when an appropriate RCA-compatible video input is available. The included power and video cable help support a wired installation from the rear of the vehicle to the display location.

A high-performance 1089 HD CCD camera design and low-light sensitivity of less than 0.1 Lux support a usable rear image in dim parking areas and nighttime conditions. The 180-degree viewing angle provides a broad horizontal perspective behind the vehicle. NTSC and PAL video compatibility adds flexibility for use with compatible video systems.

The ACA801 offers selectable normal or mirror imaging, allowing it to serve as either a front-facing or rear-facing camera depending on installation needs. Dynamic trajectory grid lines provide a visual reference while maneuvering, with the on-screen path designed to curve with steering input. Parking lines can also be disabled when a cleaner camera image is preferred.

With IP68-rated waterproof construction, the ACA801 is built for exterior vehicle placement. It includes both a license-plate bracket and a surface-mount bracket for installation flexibility. It is a practical addition to a compatible receiver, mirror monitor, or standalone rear-view display when a wired backup-camera solution is needed.

Key Features

• 1089 HD CCD Camera: Delivers a clear rear-view image for parking assistance.
• 180-Degree Viewing Angle: Provides a wide view behind the vehicle.
• Dynamic Trajectory Grid Lines: Shows a projected path that responds to steering direction.
• Normal/Mirror Image Selection: Supports front- or rear-camera installation configurations.
• Low-Light Sensitivity: Helps maintain visibility in dim surroundings below 0.1 Lux.
• IP68 Waterproof Rating: Supports dependable exterior-mounted use in wet conditions.

Design & Installation

The ACA801 uses a compact, IP68-rated waterproof camera housing intended for exterior installation. Its compact profile is designed to integrate near a license plate, while the included bracket options allow either license-plate or surface mounting. Audiovox does not specify the housing material.

Install the camera at the rear of the vehicle, then route the included cable to a compatible display with an RCA composite-video input. The package includes a pre-installed license-plate bracket, a surface-mount bracket, mounting screws, and an adhesive pad. For backup use, configure the compatible display and camera wiring so the image is available when reverse gear is selected; professional installation can help with cable routing and vehicle-specific integration.
