XtremeVision XV-104RV 10.2" RV Backup Camera System

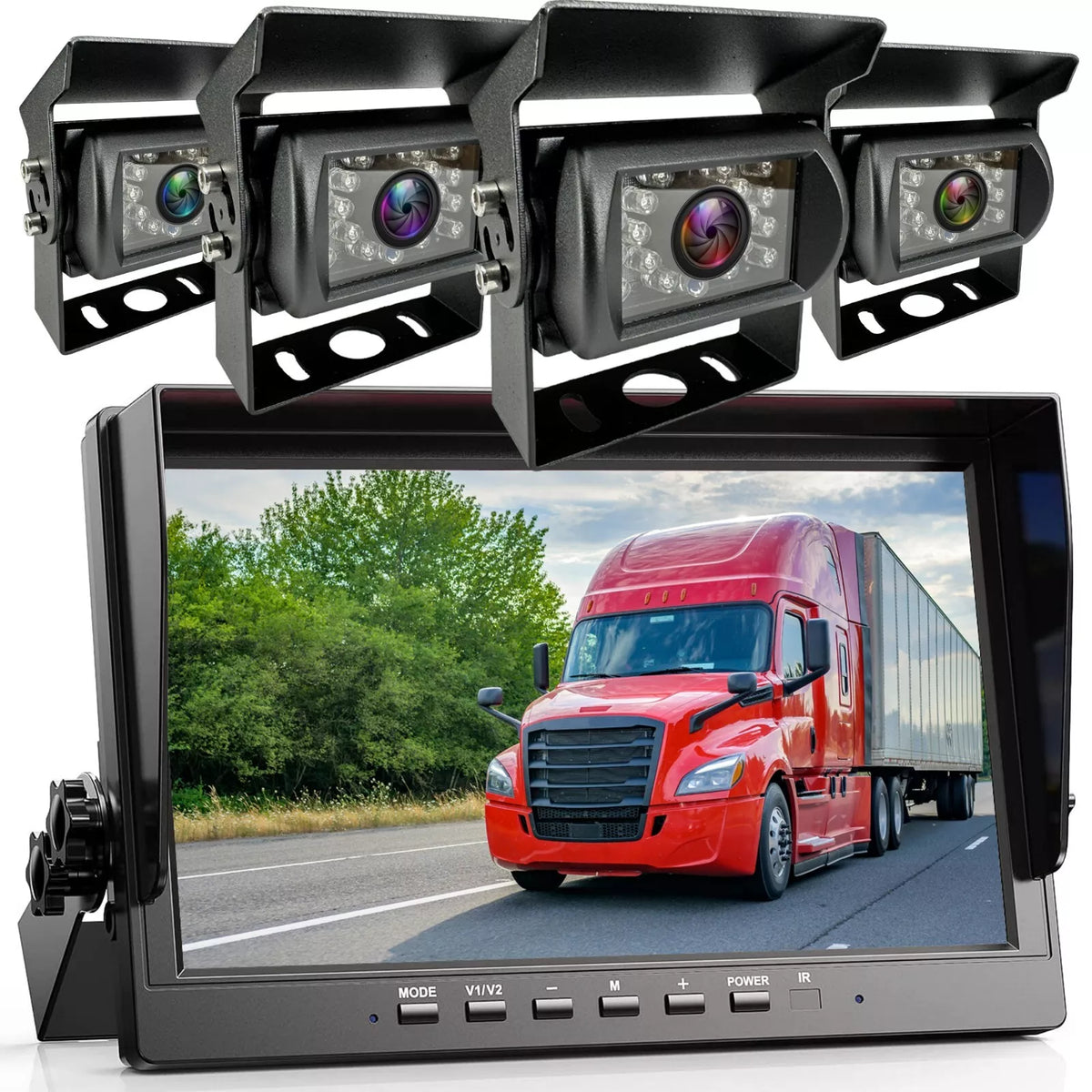

The XtremeVision XV-104RV is a wired multi-camera visibility system designed for RVs, trucks, trailers, box trucks, and other large vehicles. It pairs a 10.2-inch monitor with 1080p AHD cameras to help provide views around the vehicle while reversing, maneuvering, or changing lanes. Its universal vehicle application and 9-35V input range make it suited to a broad range of commercial and recreational installations.

This system is intended for drivers who need more visual awareness than a conventional rear-view camera can provide. Side-view coverage helps address blind-spot areas, while the monitor supports a quad-split display for viewing multiple camera feeds. The 140-degree camera viewing angle is designed to provide a broad perspective around the vehicle.

Video performance centers on 1080p camera resolution, AHD camera format, and a TFT-LCD display. The system also supports color starlight night vision for improved low-light camera viewing. A built-in DVR records camera footage, allowing driving events to be captured for later review.

Loop recording is included to support ongoing DVR operation by replacing older recordings as storage fills. This makes the XV-104RV a practical choice for drivers who want recorded video capability in addition to live camera monitoring. The monitor is specified with touch-screen functionality for system operation.

The XV-104RV can serve as a complete camera-monitor upgrade for larger vehicles that need a dedicated visual monitoring display. Its wired camera connection is appropriate for permanent installations where cables can be routed securely through the vehicle. The supplied installation kit is described as including the necessary wiring and mounting hardware.

Key Features

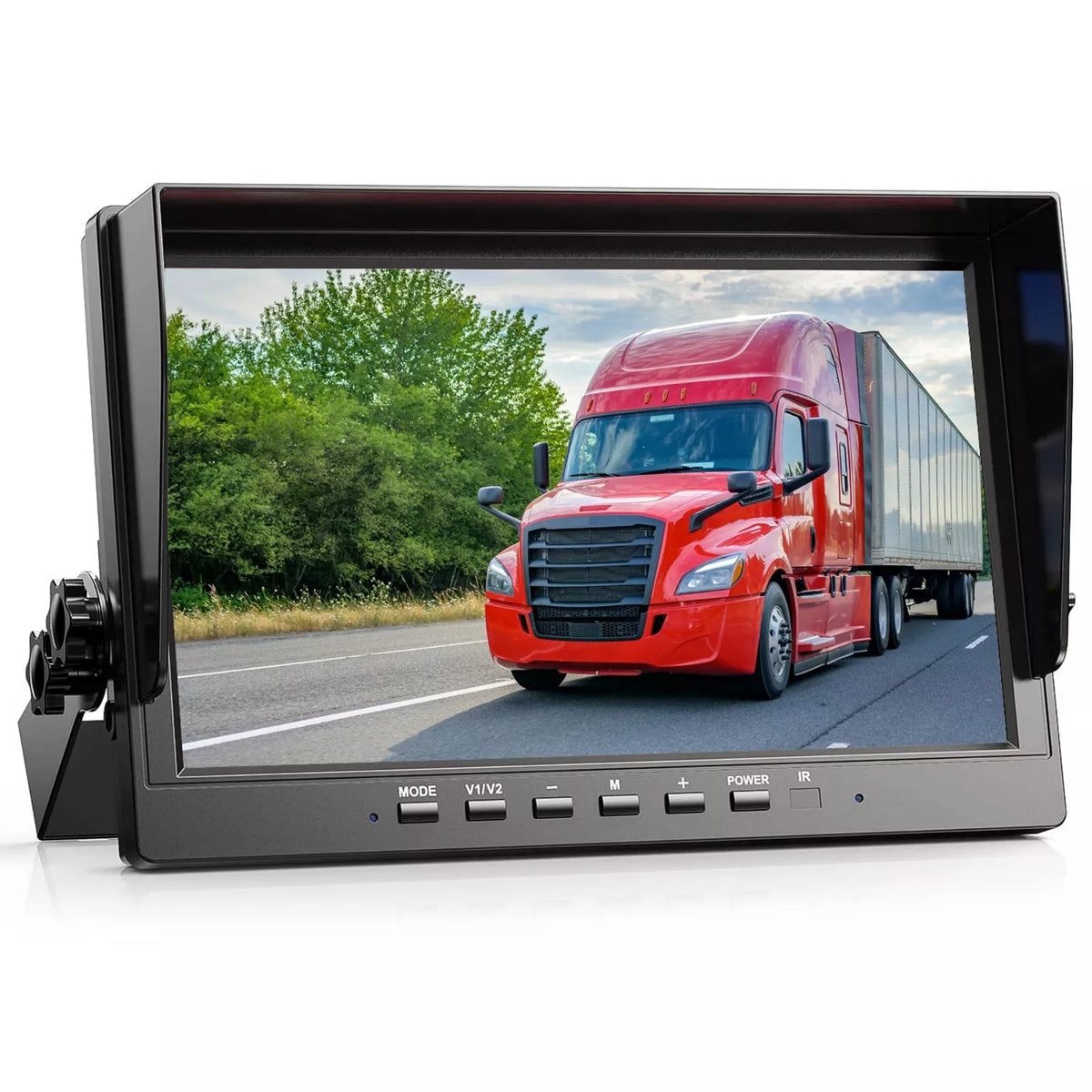

• 10.2-Inch Monitor: Provides a large dedicated display for camera viewing.
• Quad-Split Display: Supports viewing multiple camera feeds on one screen.

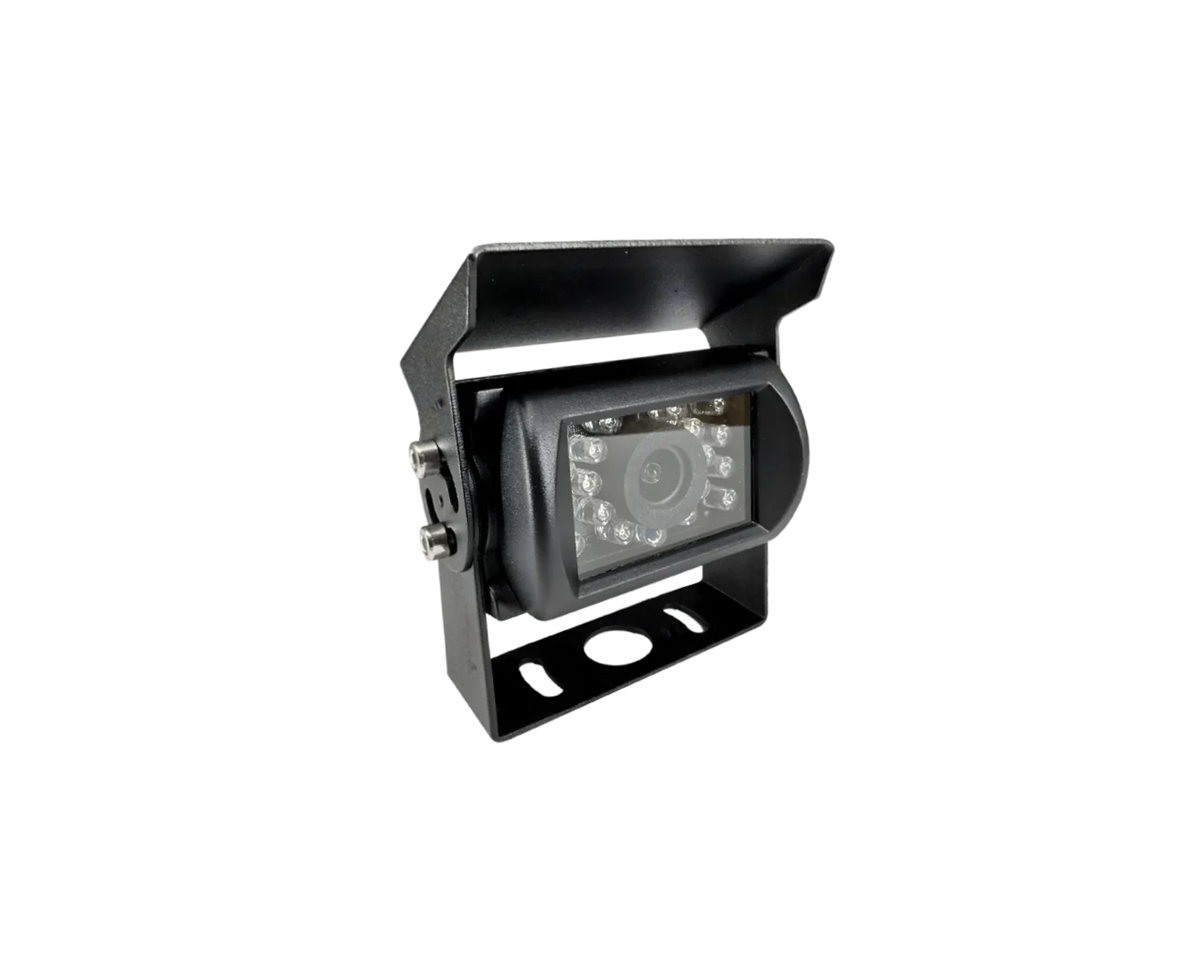

• 1080p AHD Cameras: Delivers high-definition camera video through a wired connection.
• Built-In DVR: Records video footage for review after driving events.
• Loop Recording: Replaces older recordings to support continuous recording.
• IP67 Camera Rating: Helps protect the cameras against weather exposure.

Design & Installation

The XV-104RV uses a dedicated monitor-and-camera design for larger vehicles. Its cameras are specified with an IP67 waterproof rating, and the system uses wired AHD camera connections rather than wireless links. Specific housing and monitor construction materials are not published.

Plan the installation around secure monitor placement, protected cable routing, and camera locations that provide the desired side and surrounding views. Confirm the vehicle electrical system is within the specified 9-35V input range before installation. The product description states that wiring and mounting hardware are included, but the exact accessory list should be confirmed with the seller before purchase.
