XtremeVision XV-20C Waterproof Backup Camera

The XtremeVision XV-20C is a wired rear-view backup camera designed to add a dedicated view behind a vehicle when reversing. Its compact camera body and adjustable bracket support practical placement around a license-plate area or other suitable rear mounting point. It is intended for drivers adding a camera to a compatible monitor or receiver with a composite RCA camera-video input.

This camera uses a color CMOS image sensor and a 170° diagonal lens to provide a broad rearward perspective. The mirror-image output is configured for rear-view use, helping the image correspond naturally with the vehicle's direction of travel. Projected distance-scale lines provide an additional visual reference while maneuvering.

The XV-20C is built for regular exterior vehicle use with an IP67 dustproof and waterproof rating. Its low-light specification is 0.1 to 0.5 lux at f/1.2, supporting rearward visibility in dim conditions. The camera is also described as suitable for use as a reversing or security camera.

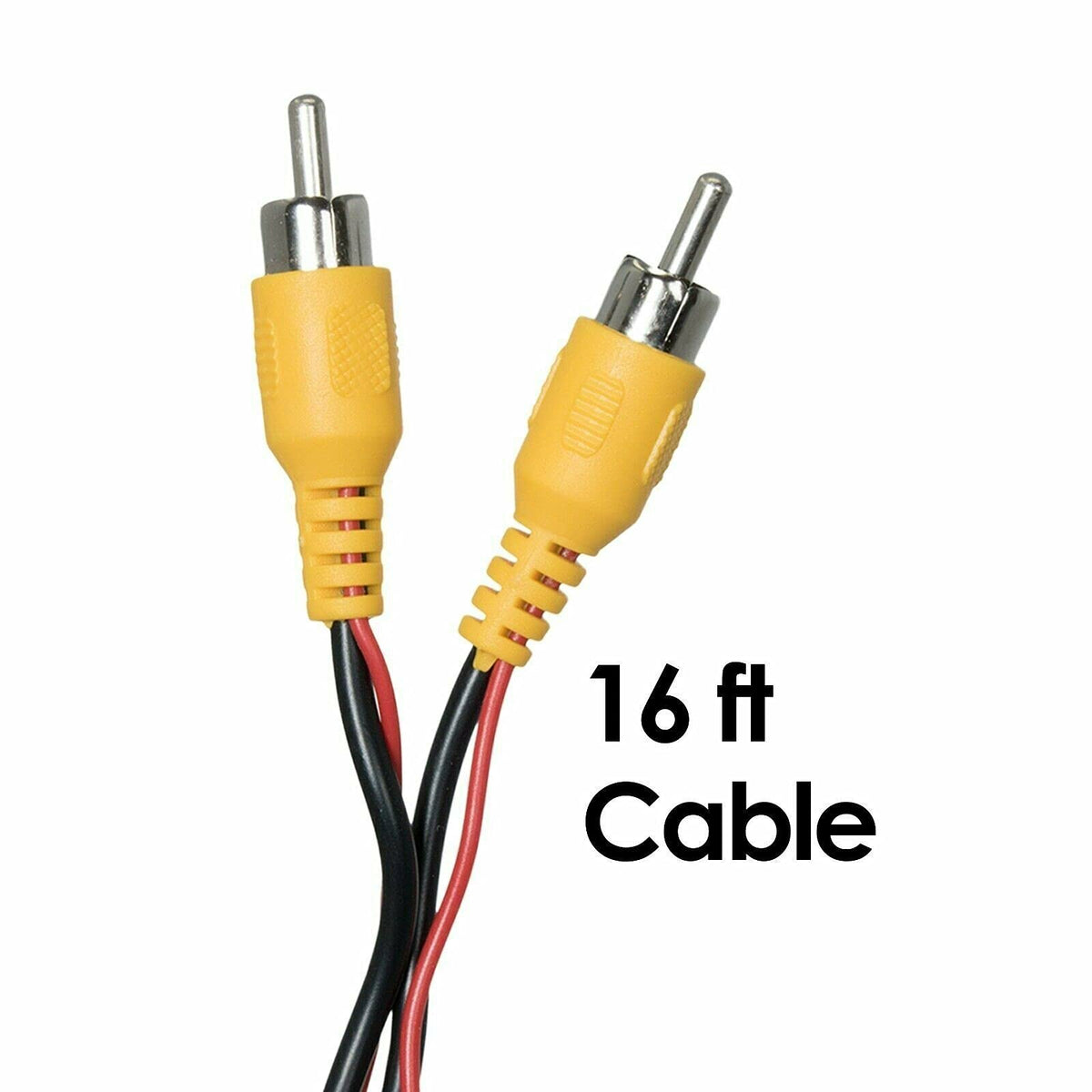

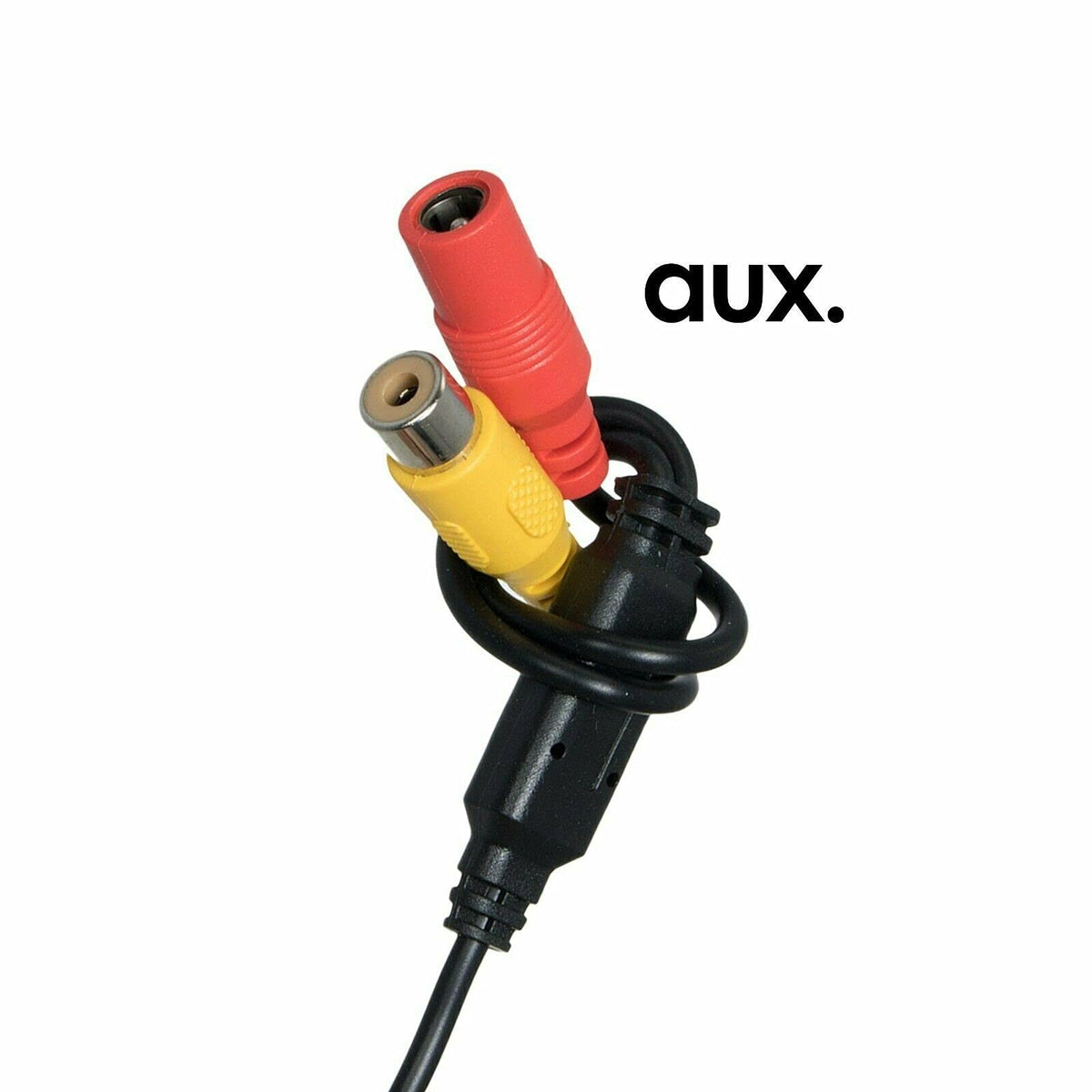

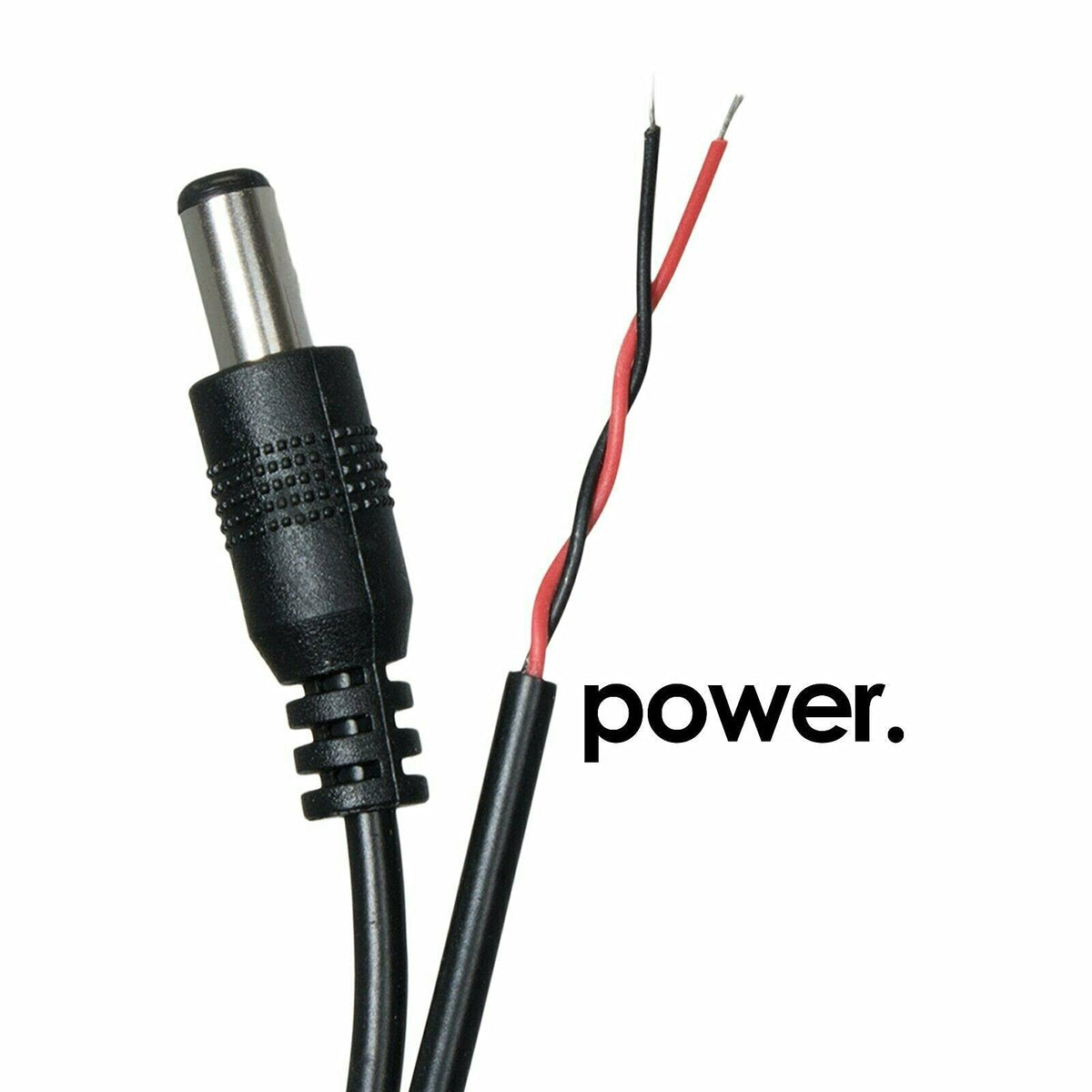

Video is delivered through an RCA composite-video connection rated at 1.0 Vp-p into 75 ohms. The camera operates from a 12-volt DC supply and lists 60 mA power consumption. This makes it a straightforward match for installations that can provide switched reverse-light power and accept an RCA camera signal.

For a system upgrade, the XV-20C can be paired with an aftermarket multimedia receiver, standalone vehicle monitor, or another compatible display. The 120° up/down bracket adjustment helps tailor the viewing angle after mounting. It is suited to cars, trucks, boats, trailers, campers, and other vehicles using a standard U.S. license plate.

Key Features

• 170° Diagonal Lens: Provides a broad rearward field of view for reversing maneuvers.
• Color CMOS Sensor: Produces a color video image through a compact camera assembly.

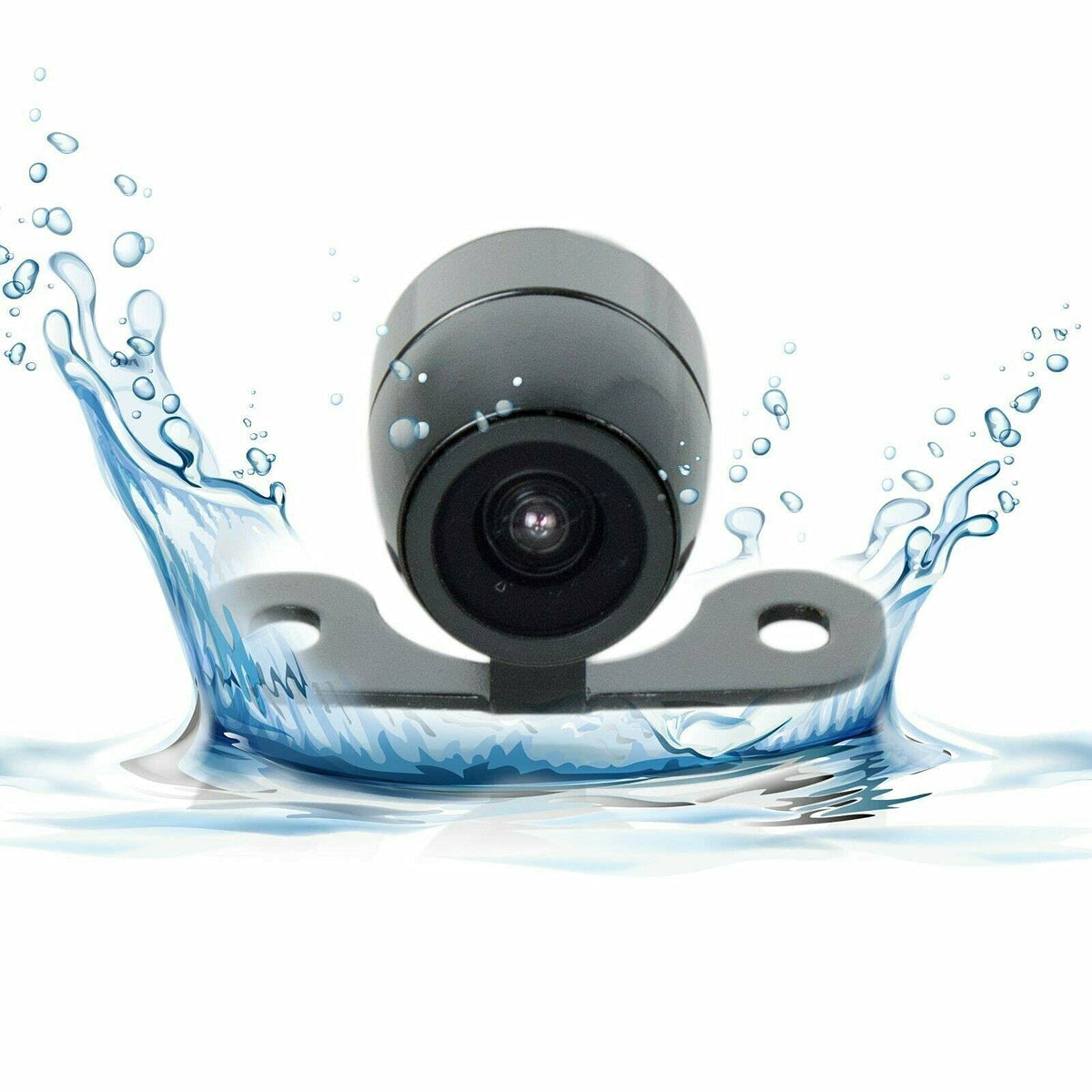

• IP67 Protection: Helps protect the camera from dust and water exposure.
• Mirror Image: Presents the rear view in a format suited to backup-camera use.
• Distance-Scale Lines: Adds on-screen reference lines to the monitored image.

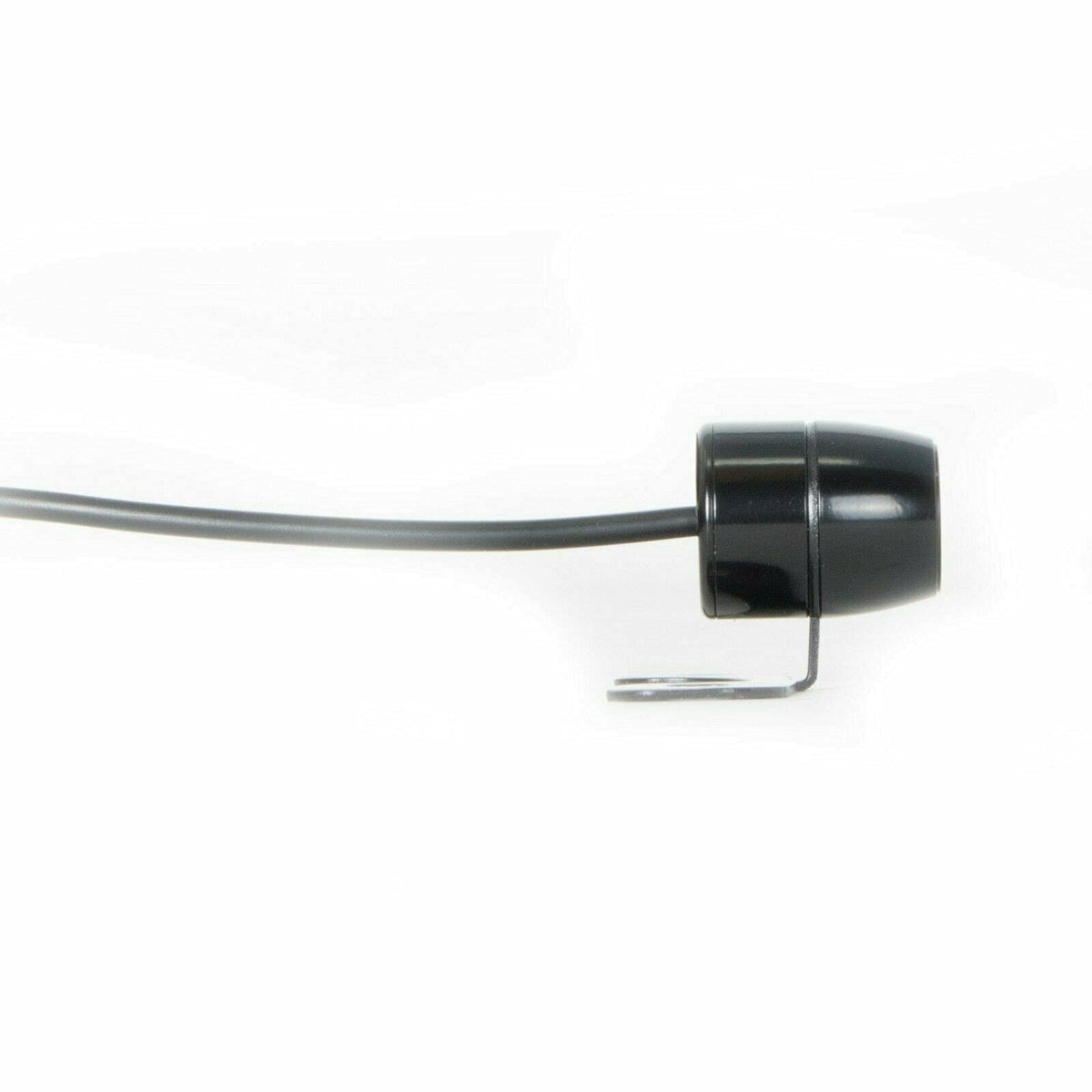

• Adjustable Bracket: Allows up/down camera-angle adjustment through a 120° range.

Design & Installation

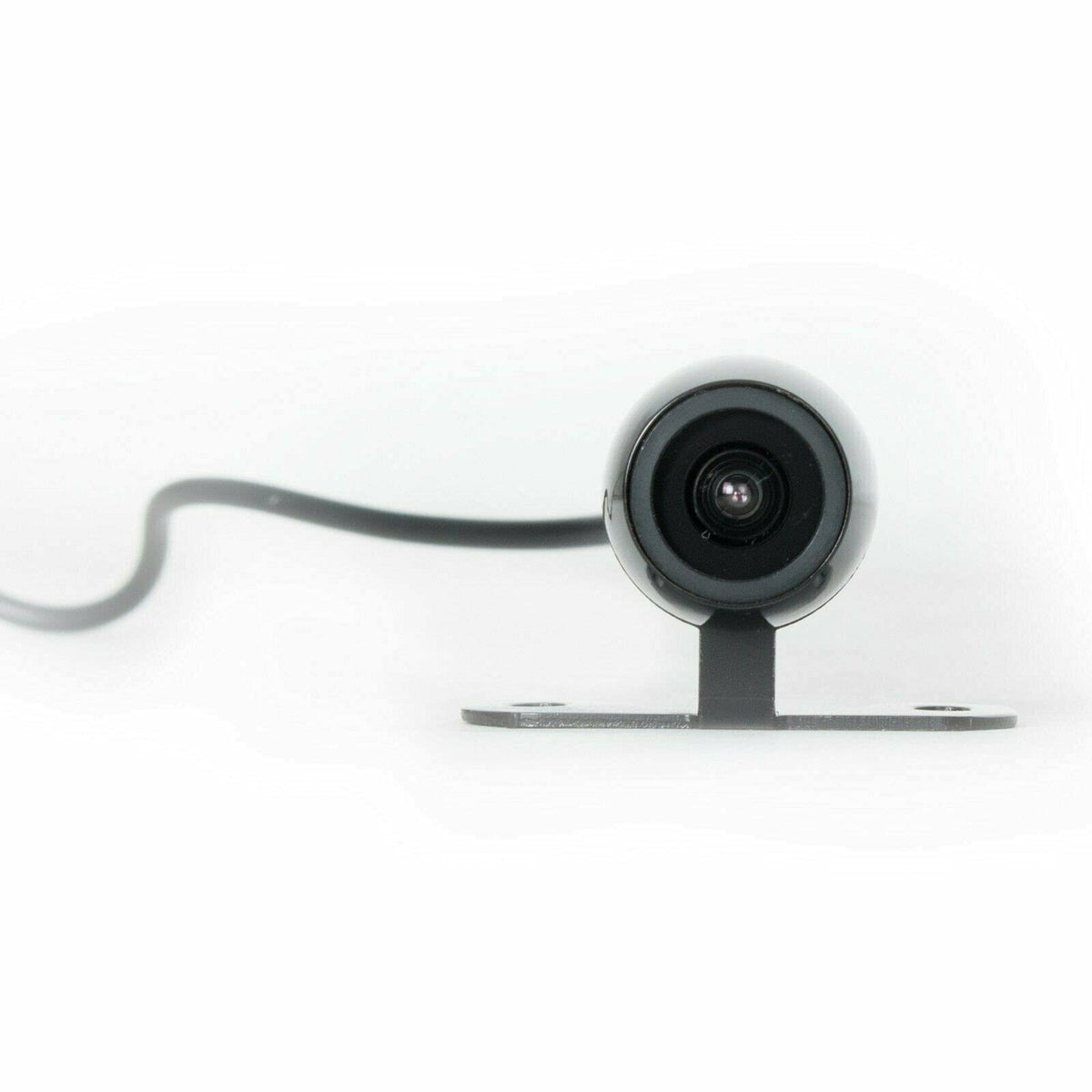

The XV-20C uses a small, compact camera design with a color CMOS image sensor, weather-resistant IP67 construction, and an adjustable mounting bracket. Its 170° diagonal macro lens is designed to produce a wide mirror-image rear view. The camera is specified for 12-volt DC operation and low 60 mA power consumption.

Mount the camera at the rear of the vehicle where it has a clear rearward view, using existing license-plate screw locations when appropriate or another secure mounting method. Connect its RCA video output to a compatible monitor or receiver, then supply 12-volt DC power according to the vehicle installation plan; reverse-light-triggered power is commonly used for backup-camera operation. Adjust the bracket angle after mounting to frame the desired view.
