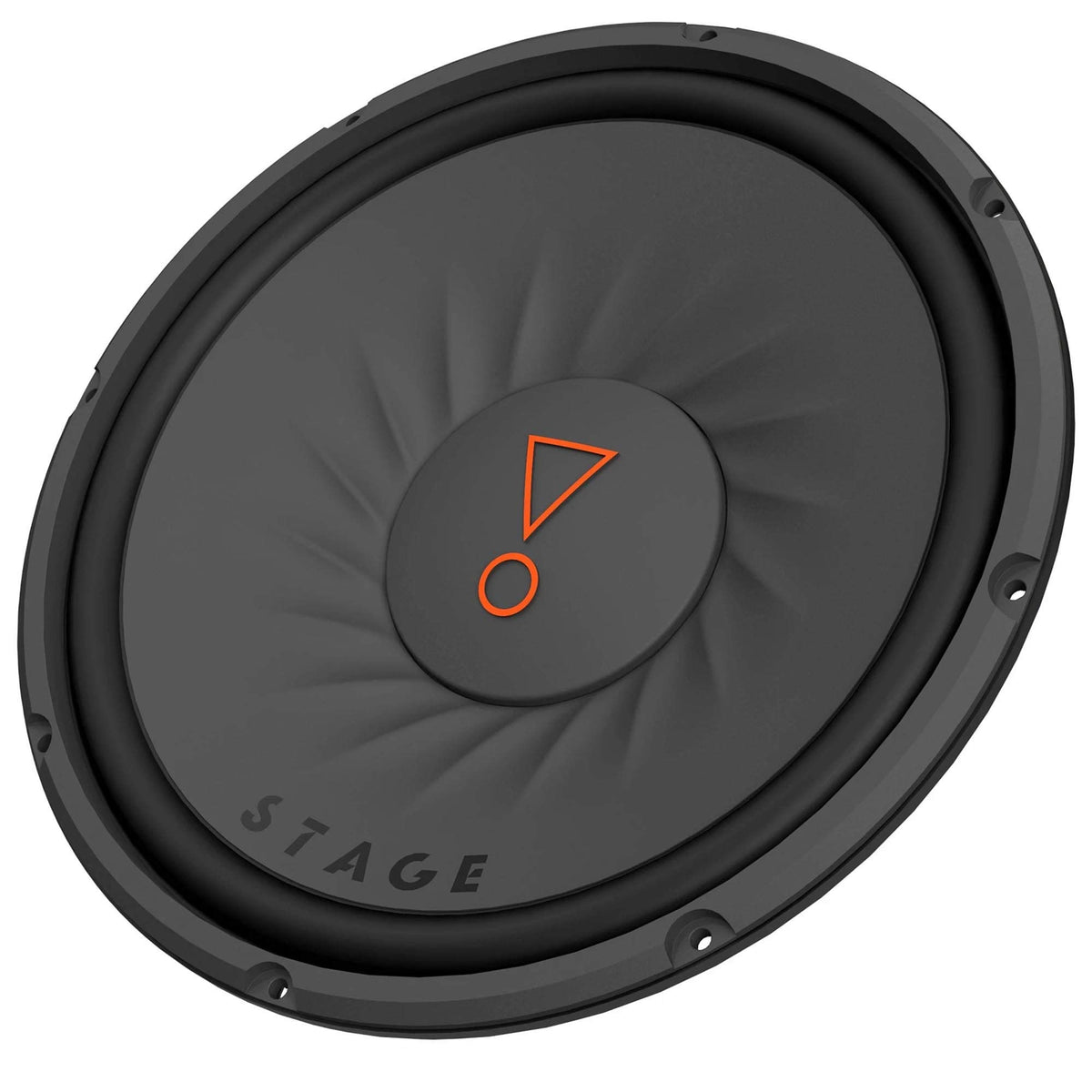

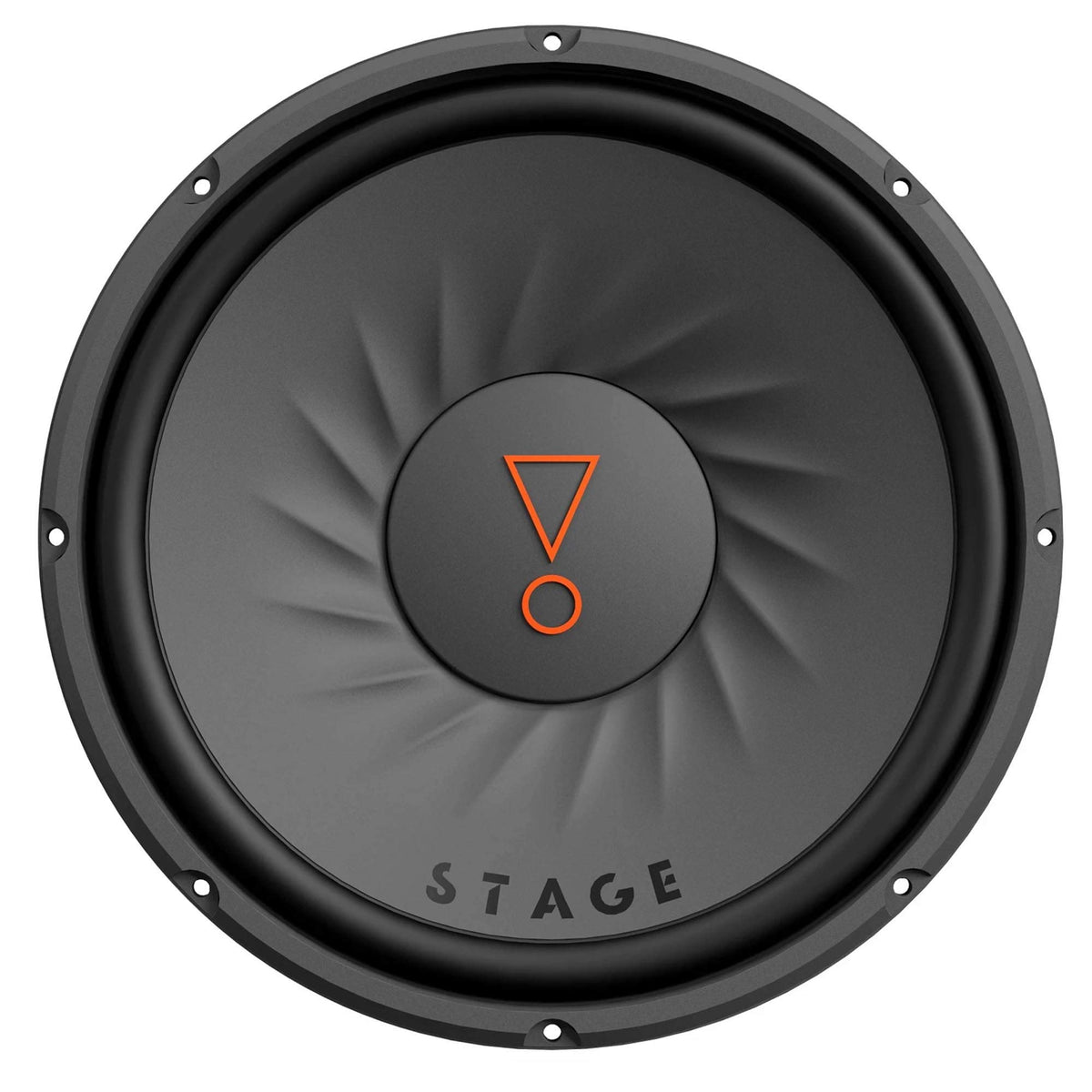

JBL STAGE102 10" Car Audio Subwoofer

The JBL STAGE102 is a 10-inch passive car audio subwoofer designed to add dedicated low-frequency output to an aftermarket sound system. It is intended for shoppers building a bass upgrade around a separate amplifier and enclosure. With a 4-ohm nominal impedance and 225-watt RMS power handling, it provides a practical match for appropriately rated mono or multi-channel amplifier systems.

This subwoofer is suited to drivers who want more weight and impact from kick drums, bass guitar, electronic music, and movie soundtracks than typical full-range car speakers can provide. Its rated frequency response is 35Hz to 200Hz, allowing it to cover the low-bass range while a crossover directs higher frequencies to the main speakers. The final bass character depends on the enclosure, amplifier setup, vehicle cabin, and crossover settings.

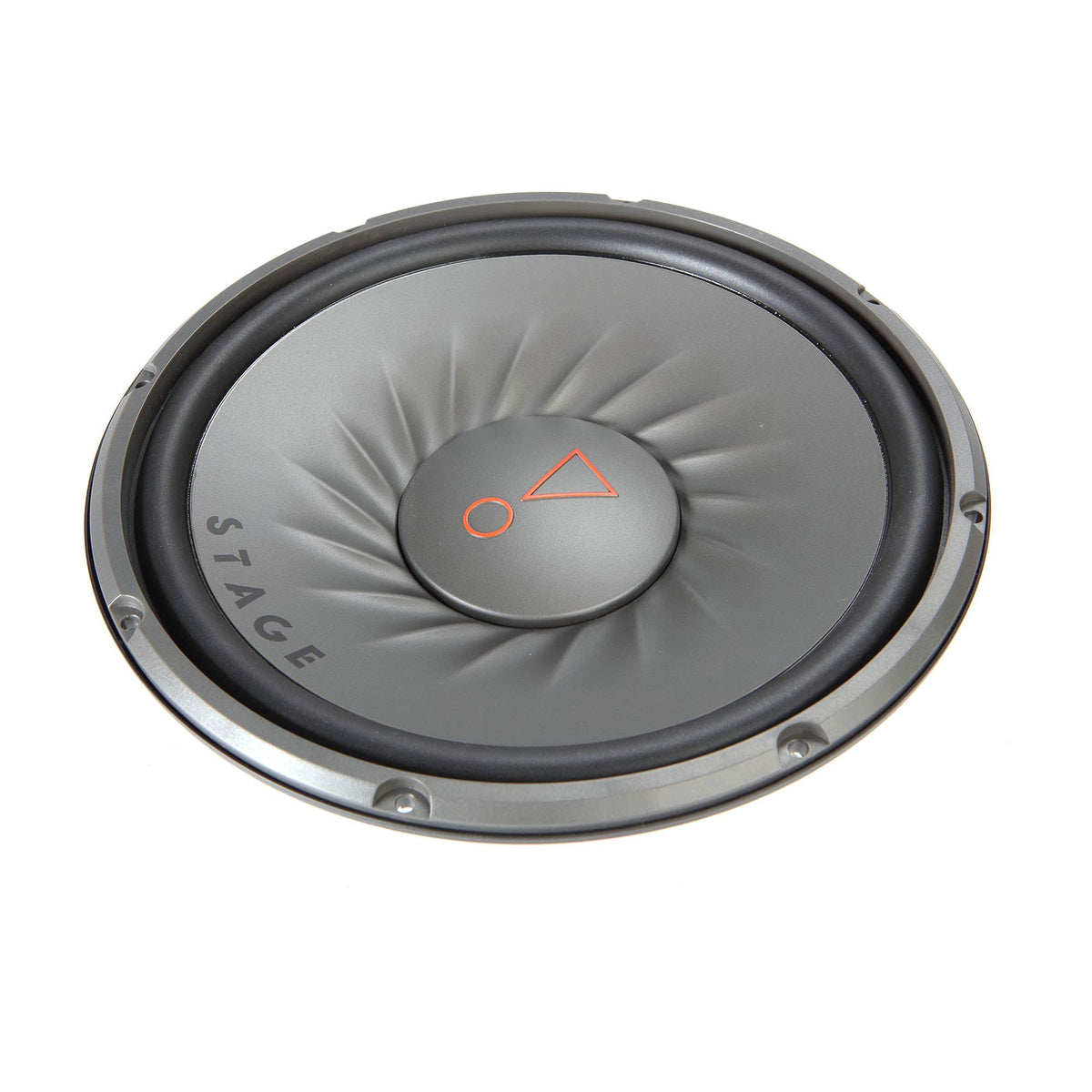

A lightweight, stiff polypropylene cone is paired with a high-roll rubber surround for controlled movement and long-term durability in a vehicle environment. JBL rates the Stage 102 at 89dB sensitivity at 2.83V/1m, with a 1.5-inch voice coil and 900-watt peak power handling. These elements support bass reproduction in systems designed around moderate amplifier power.

The STAGE102 can be used in sealed or vented enclosures, giving installers flexibility when balancing cargo-space needs and bass preferences. JBL specifies a 1.23-cubic-foot sealed enclosure for a compact, controlled setup. Its recommended vented alignment uses a 1.0-cubic-foot enclosure tuned to 30Hz for greater efficiency in the upper-bass region.

As a component subwoofer, the STAGE102 is not a self-powered enclosure and requires an external amplifier, speaker wire, and a suitable enclosure. It can serve as the low-frequency foundation of a first aftermarket audio system or as a straightforward replacement for an existing 10-inch subwoofer. A foam mounting gasket is included to help create a sealed installation between the driver frame and enclosure.

Key Features

• 10-Inch Subwoofer: Adds dedicated bass capability to a car audio system.
• 225W RMS Handling: Supports amplifier matching for sustained listening levels.
• 4-Ohm Nominal Impedance: Works with compatible 4-ohm amplifier channels.
• Polypropylene Cone: Provides a lightweight, stiff diaphragm for bass reproduction.
• High-Roll Rubber Surround: Supports cone movement and durable vehicle use.
• Sealed Or Vented Compatibility: Allows enclosure selection based on space and output goals.

Design & Installation

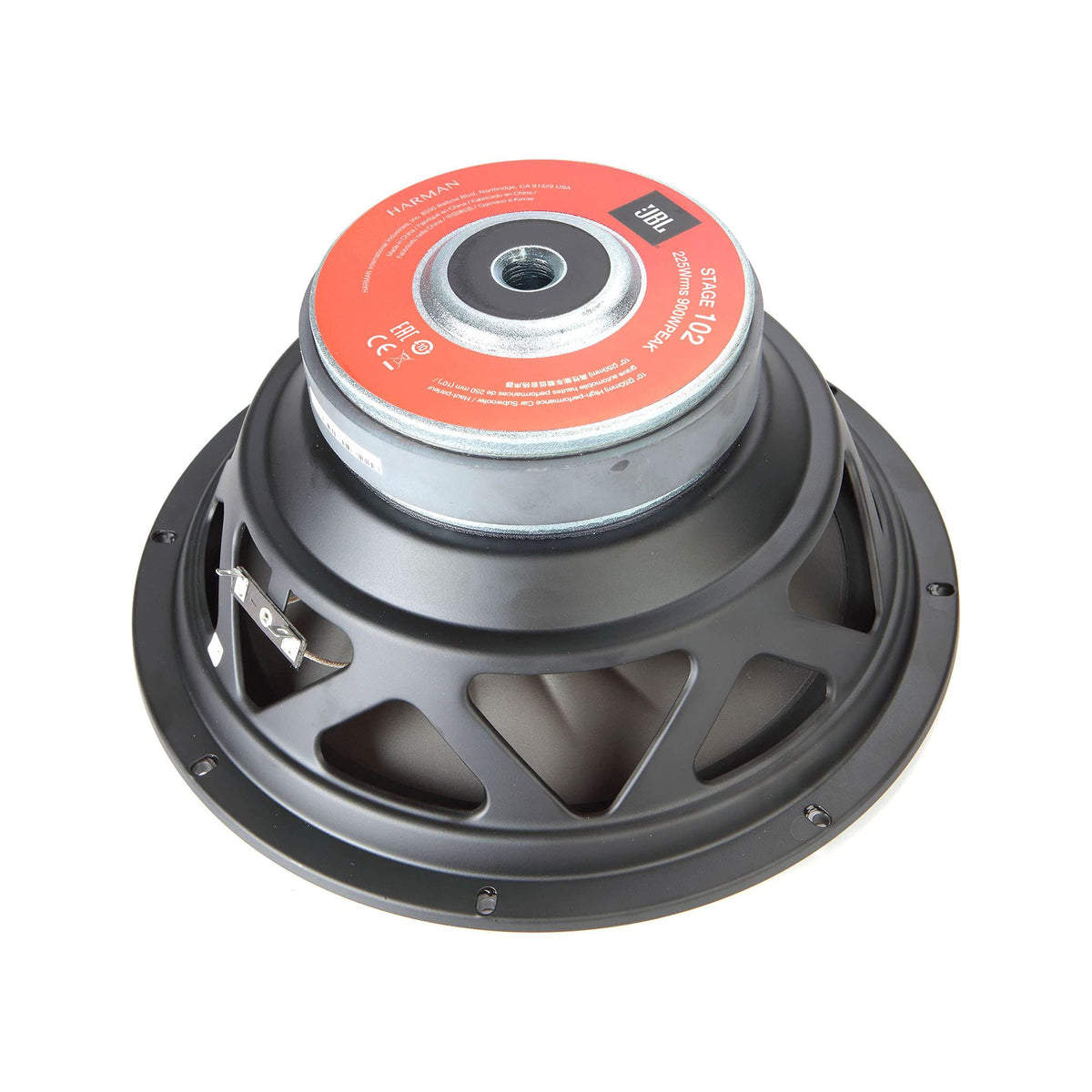

The STAGE102 uses a polypropylene cone and rubber surround in a 10-inch frame with a 1.5-inch voice coil. Its outer diameter is 10 inches, while its mounting depth is 4-7/16 inches. JBL includes a foam gasket, two two-color brand stickers, and an owner’s manual; a protective grille is not included.

Mount the subwoofer from the outside of a properly built enclosure and use the included gasket to help make the frame-to-box connection airtight. The terminals accept bare or tinned wire, with JBL recommending 14 AWG to 8 AWG speaker wire depending on run length; heavier wire is preferred for runs over 6 feet. Use an amplifier compatible with a 4-ohm load and set the system crossover and gain carefully for the enclosure and vehicle.
