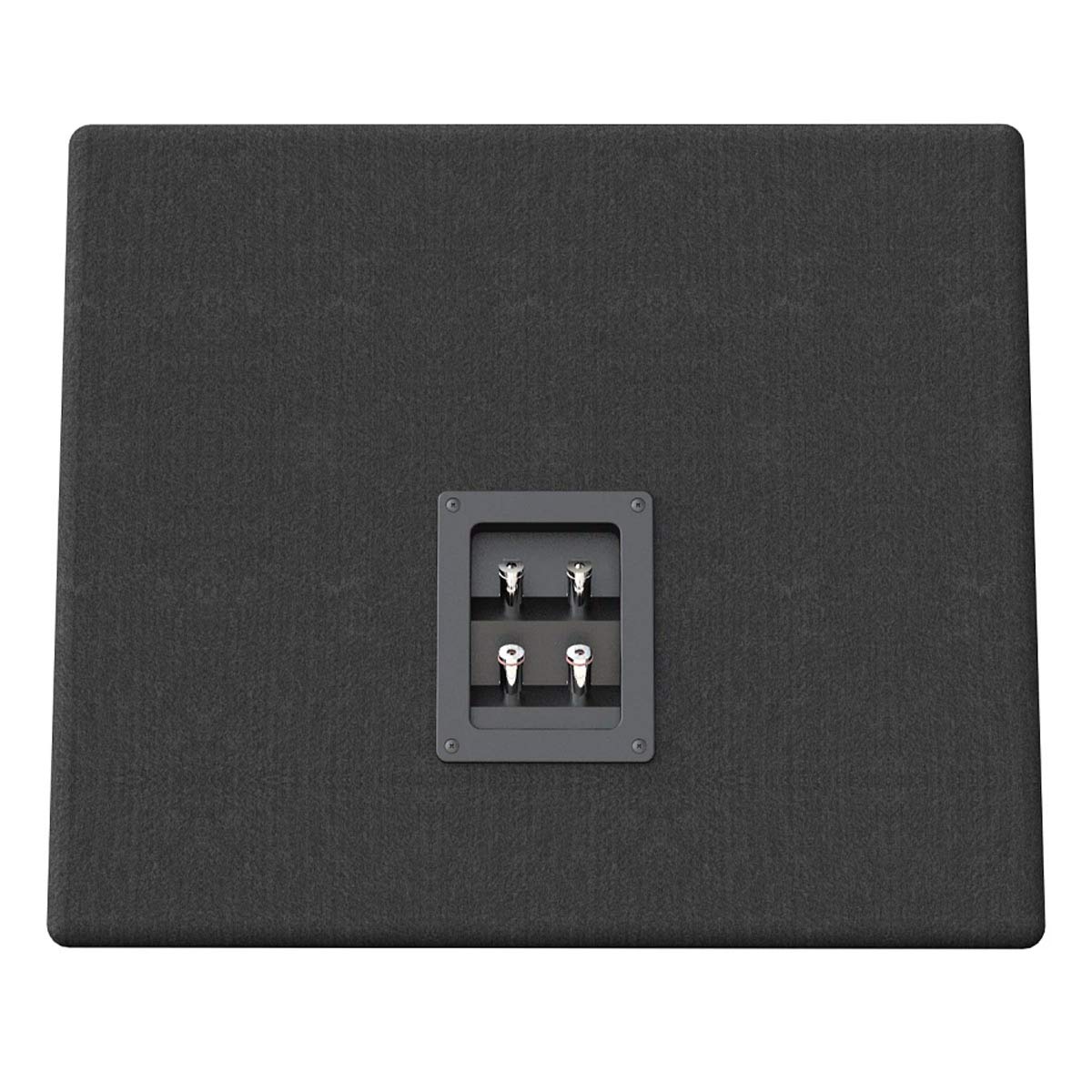

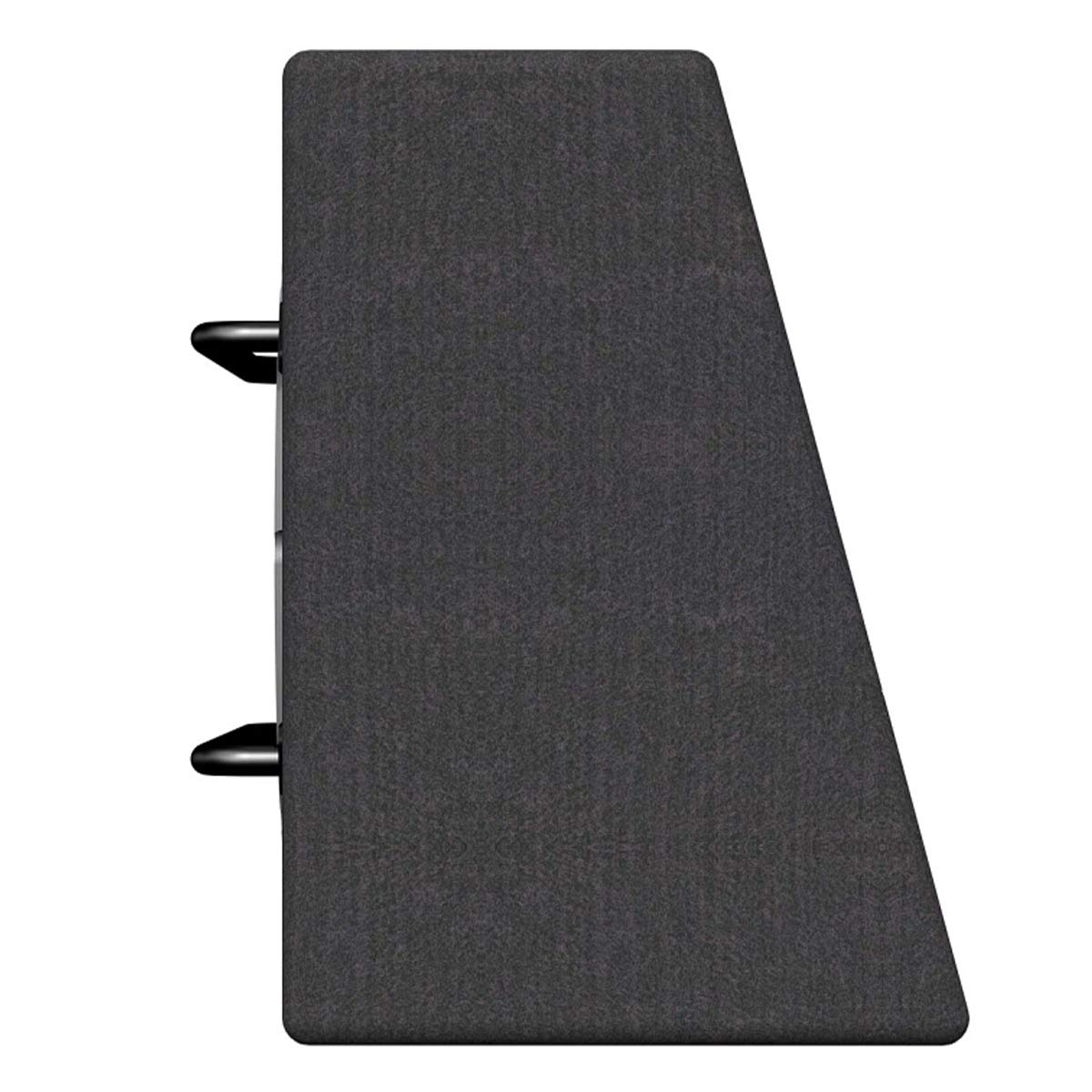

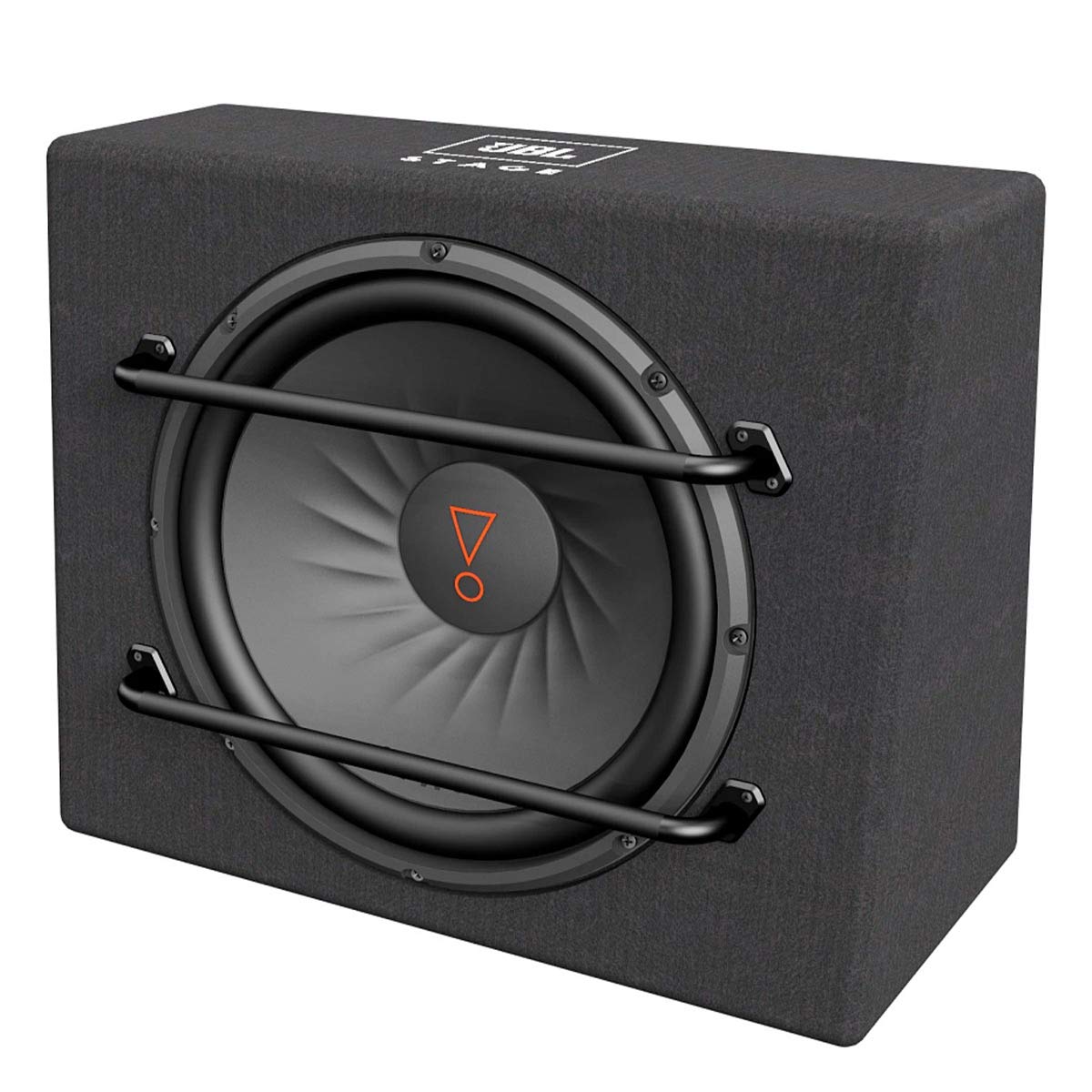

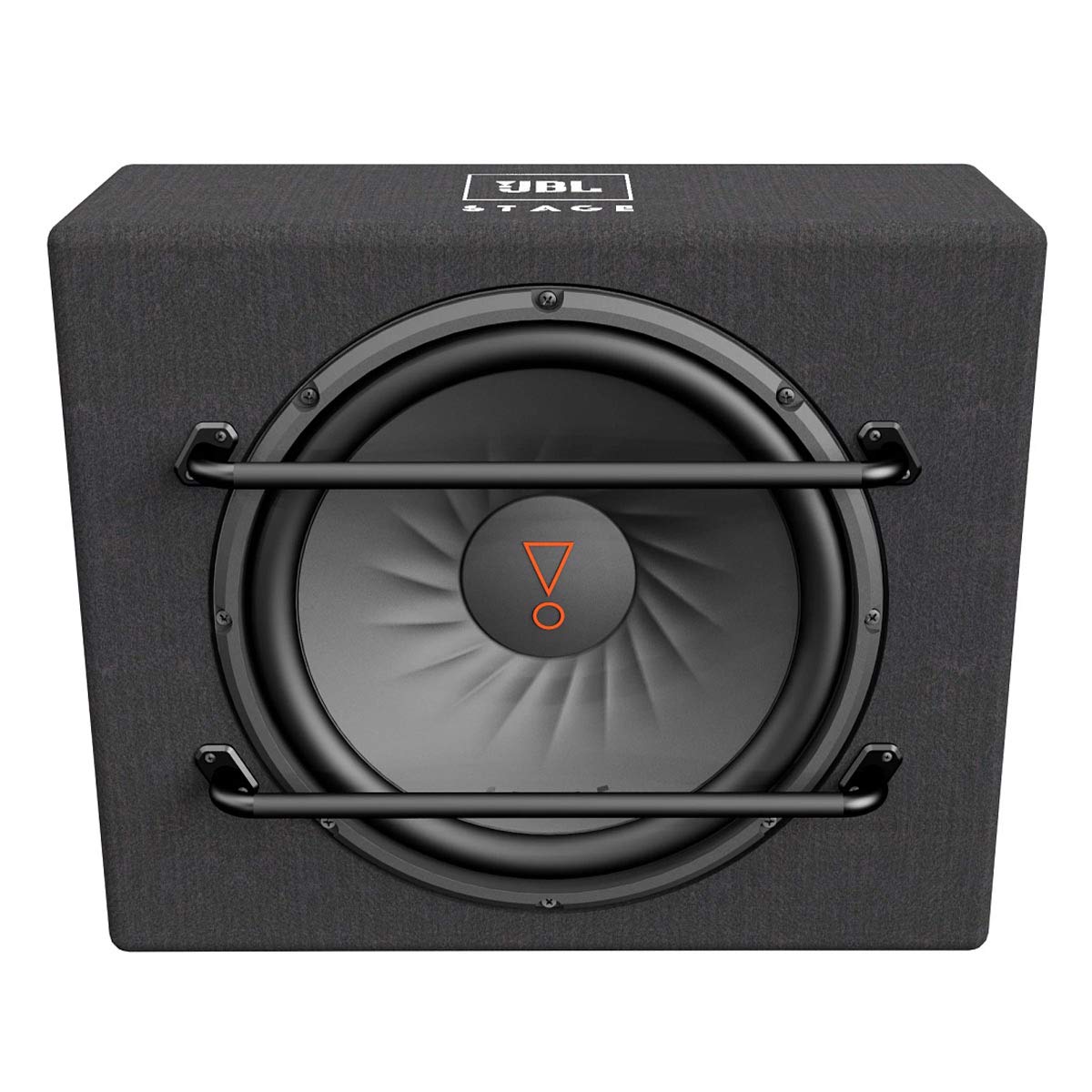

JBL JBLSUBST1200SAM 12" Sealed Car Subwoofer Enclosure

The JBL Stage 1200S is a loaded, sealed car subwoofer enclosure designed to add low-frequency output without requiring a custom-built box. It combines one 12-inch subwoofer with a compact, slim-profile enclosure for vehicles where cargo-space flexibility matters. This is a practical option for listeners upgrading a factory or aftermarket audio system with dedicated bass reinforcement.

The enclosure is built around a 2-ohm 12-inch woofer rated for 250 watts RMS power handling. Its specified 34Hz-200Hz frequency response supports bass duties across a broad low-frequency range. With 91dB sensitivity measured at 2.83V/1m, it is designed to work efficiently with an appropriately matched external amplifier.

A sealed enclosure design helps keep the installation straightforward while providing a controlled bass foundation for music playback. The Stage 1200S is factory loaded and tuned, eliminating the need to select a separate box or install a loose subwoofer into an enclosure. It is suited to systems that need a complete bass enclosure rather than a component-only subwoofer.

The included Stage 122 subwoofer uses a polypropylene cone, rubber surround, and 2-inch voice coil. These components are paired with a 5/8-inch MDF enclosure covered in black carpet. JBL also states that its car speakers undergo environmental and full-power reliability testing as part of product development.

Because this is a passive loaded enclosure, it should be connected to a compatible external subwoofer amplifier and installed securely in the vehicle. Its 2-ohm nominal impedance should be matched to an amplifier that is rated to operate at 2 ohms. The compact enclosure format makes it a sensible addition to a system with an aftermarket radio, factory radio integration, or an existing amplifier upgrade plan.

Key Features

• Loaded 12-Inch Enclosure: Includes one preinstalled JBL Stage 122 subwoofer.
• Sealed Cabinet Design: Provides a ready-to-install bass enclosure format.
• 250W RMS Handling: Supports properly matched external amplifier power.
• 2-Ohm Impedance: Designed for compatible 2-ohm-stable subwoofer amplifiers.
• 91dB Sensitivity: Helps convert amplifier power into usable output.
• Slim MDF Construction: Fits more easily than many conventional enclosures.

Design & Installation

The Stage 1200S uses a 5/8-inch MDF enclosure with a black carpet covering and a sealed cabinet configuration. Its loaded 12-inch driver has a polypropylene cone, rubber surround, and 2-inch voice coil. The enclosure measures 17.25 inches wide by 14.5 inches high, with 11.5-inch and 7.75-inch depth measurements.

Install the enclosure in a secure location with sufficient clearance for its dimensions and wire routing. It requires an external amplifier capable of driving a 2-ohm load; set amplifier gain and crossover controls appropriately for the system rather than using gain as a volume control. The package includes the enclosure, an owner's manual, and two JBL brand stickers, but no amplifier or amplifier wiring kit is listed.
