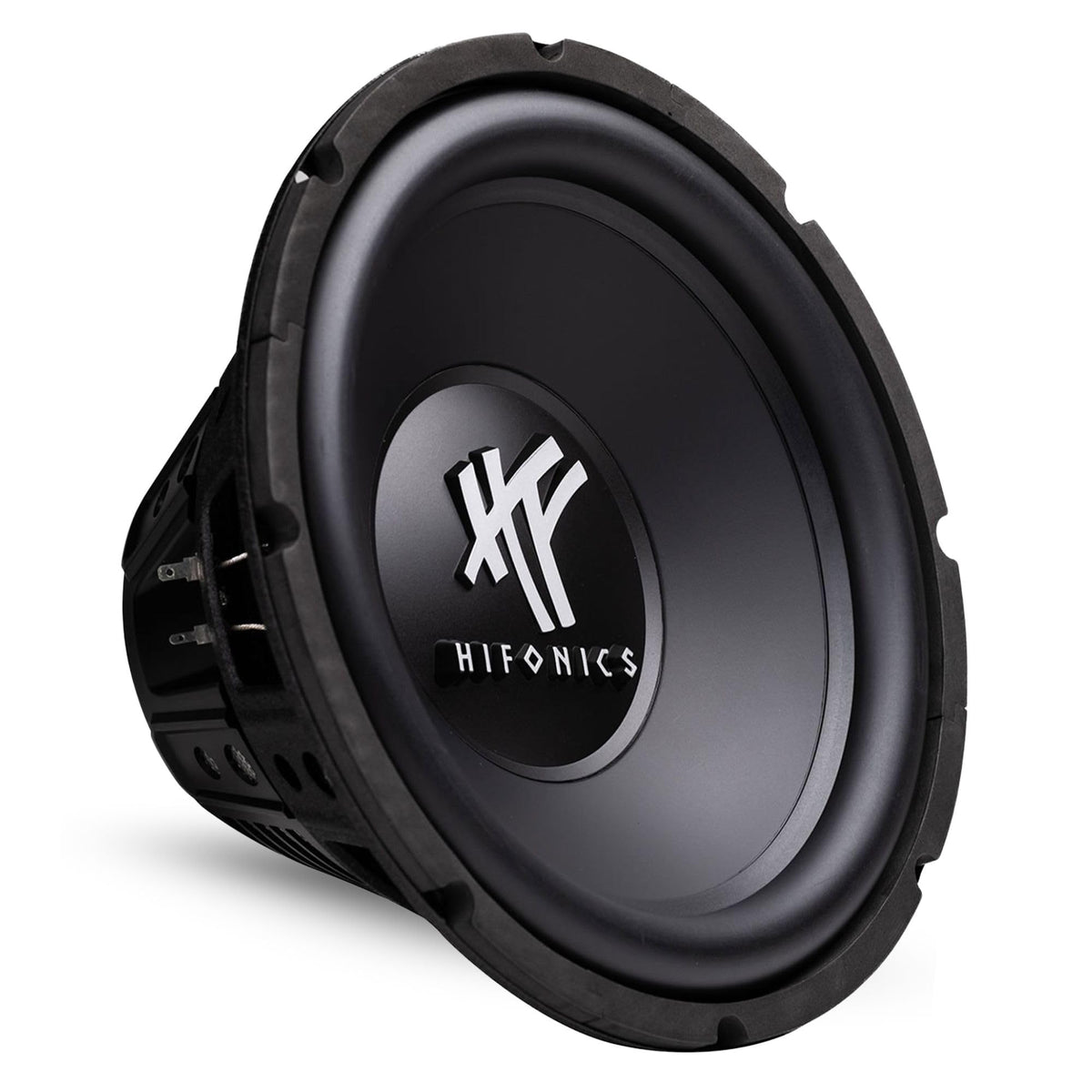

Hifonics HFX12D4 12" Dual 4-Ohm Car Subwoofer

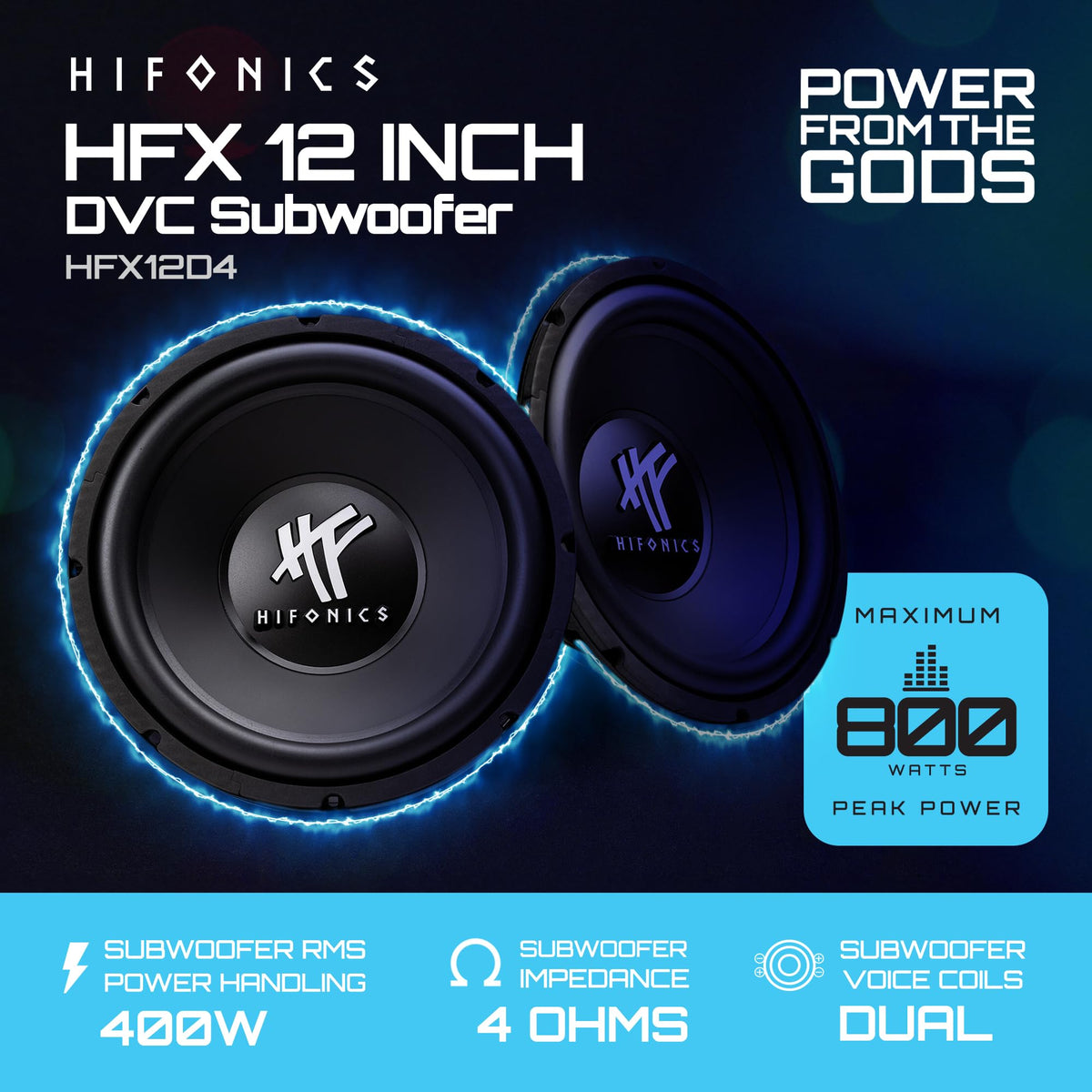

The Hifonics HFX12D4 is a 12-inch dual voice coil subwoofer designed to add dedicated low-frequency output to a vehicle audio system. It is rated for 400 watts RMS and 800 watts peak power handling, making it suited to systems that need more bass impact than full-range speakers can provide. Its round, standard-depth design is intended for universal mobile-audio installation.

This subwoofer is a practical option for listeners building a first bass system or replacing an existing 12-inch driver. Dual 4-ohm voice coils offer wiring flexibility, allowing a single subwoofer to be configured for a 2-ohm or 8-ohm load when the amplifier supports the selected load. Proper amplifier matching and gain setup remain important for dependable performance.

The HFX12D4 uses a vented aluminum voice-coil former with a 2-inch voice coil to help exchange heat during operation. A pressure-treated foam surround and poly-cotton spider support controlled cone movement. The result is a design focused on maintaining linear motion while handling bass duties in a dedicated enclosure.

Its heavy-gauge, powder-coated stamped-steel basket provides a rigid mounting structure, while the vented frame and motor assembly promote airflow around the driver. Heavy-duty magnets and back venting are incorporated into the motor system to support power handling and reliability. Spade-style quick-disconnect terminals simplify connection during installation.

The HFX12D4 can be used in either a sealed or vented enclosure, depending on the desired system layout. Hifonics provides a 1.5-cubic-foot sealed recommendation as well as a 1.5-cubic-foot vented design tuned to 38 Hz. With a 10.94-inch cutout and 5.61-inch mounting depth, it should be measured against the enclosure and available mounting clearance before installation.

Key Features

• 400W RMS Handling: Supports amplifier matching for sustained bass output.
• Dual 4-Ohm Voice Coils: Allows 2-ohm or 8-ohm single-sub wiring.
• 12-Inch Subwoofer: Adds dedicated low-frequency capability to a vehicle system.
• Vented Aluminum Former: Helps the 2-inch voice coil exchange heat.
• Steel Basket Construction: Powder-coated stamped-steel frame supports the driver assembly.
• Sealed Or Vented Compatibility: Works with manufacturer-recommended enclosure alignments.

Design & Installation

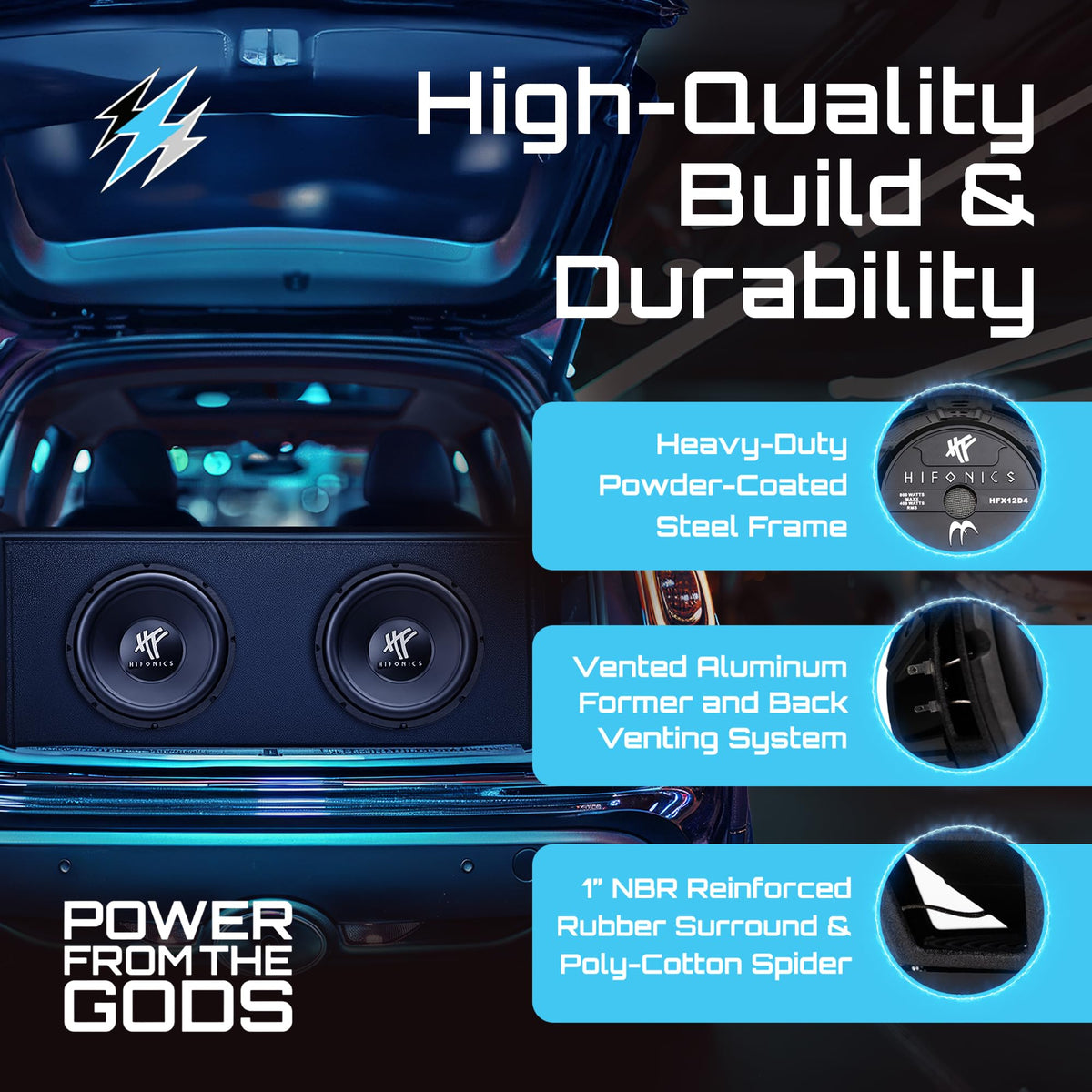

The HFX12D4 is built around a heavy-duty powder-coated steel frame, pressure-treated foam surround, and specialized poly-cotton spider. Its vented high-energy motor assembly uses heavy-duty magnets, while the frame's back venting is designed to circulate cooler air around the motor and voice-coil area. The subwoofer uses spade-style quick-disconnect terminals for its wiring connections.

Plan the enclosure around the 12.25-inch outside diameter, 10.94-inch cutout diameter, and 5.61-inch mounting depth. Hifonics recommends a 1.5-cubic-foot sealed or 1.5-cubic-foot vented enclosure, with 3/4-inch MDF specified in its enclosure-construction guidance. Use an amplifier and wiring configuration compatible with the final impedance load, apply a low-pass filter, and consider a subsonic filter for protection in a vented system.
