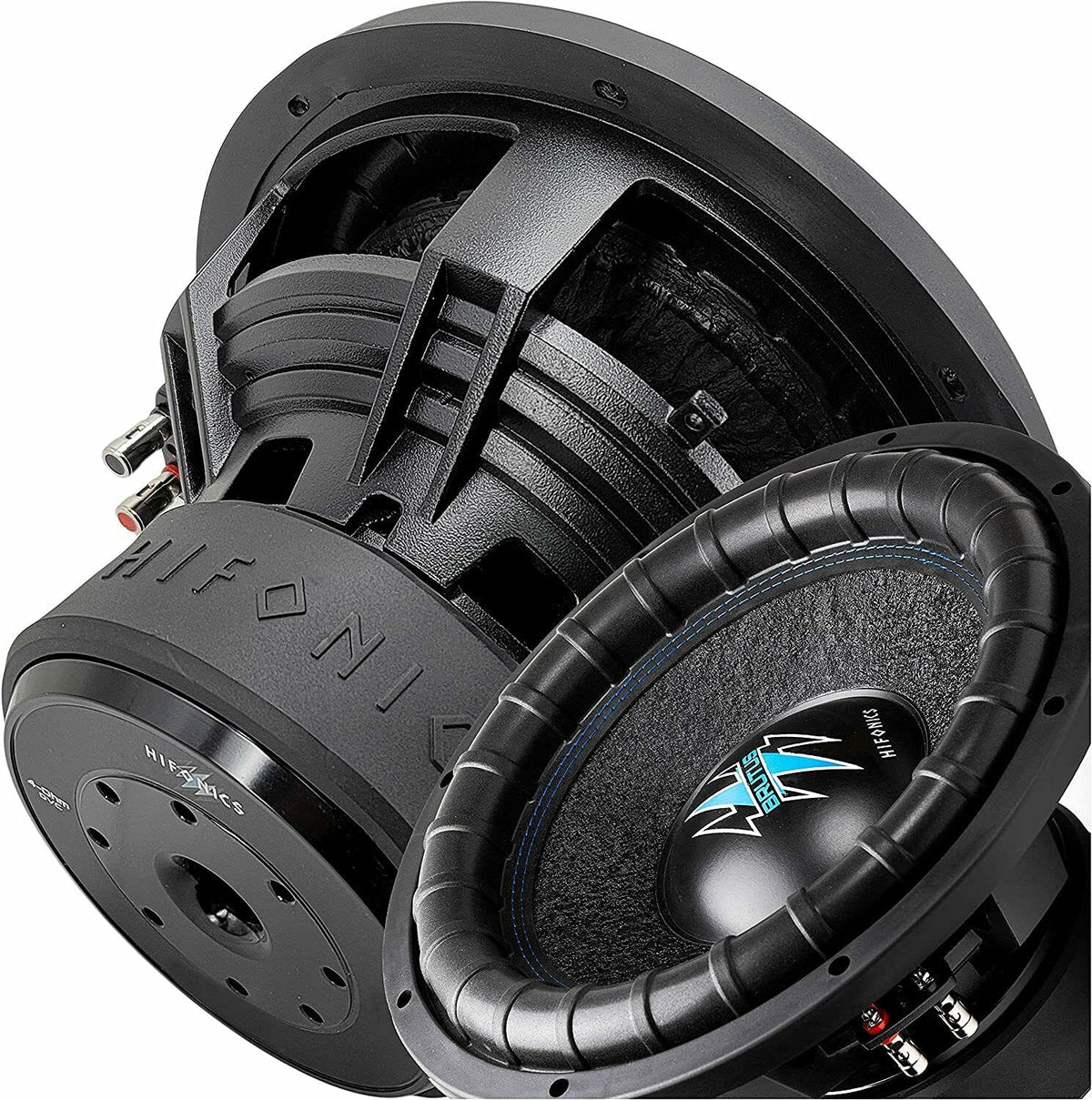

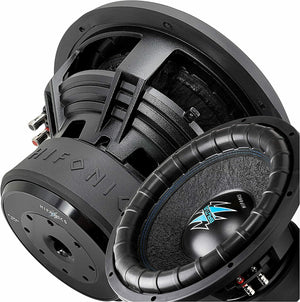

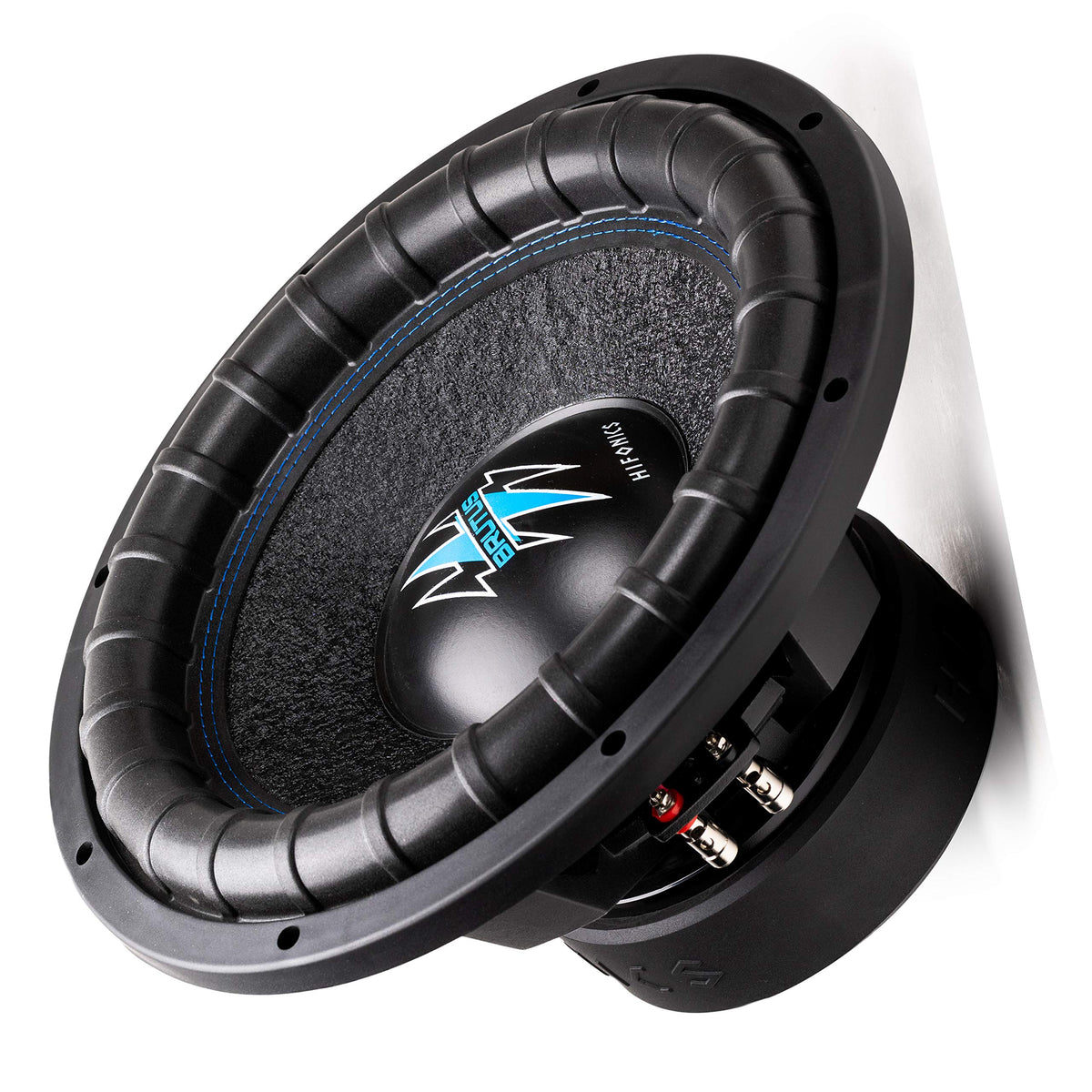

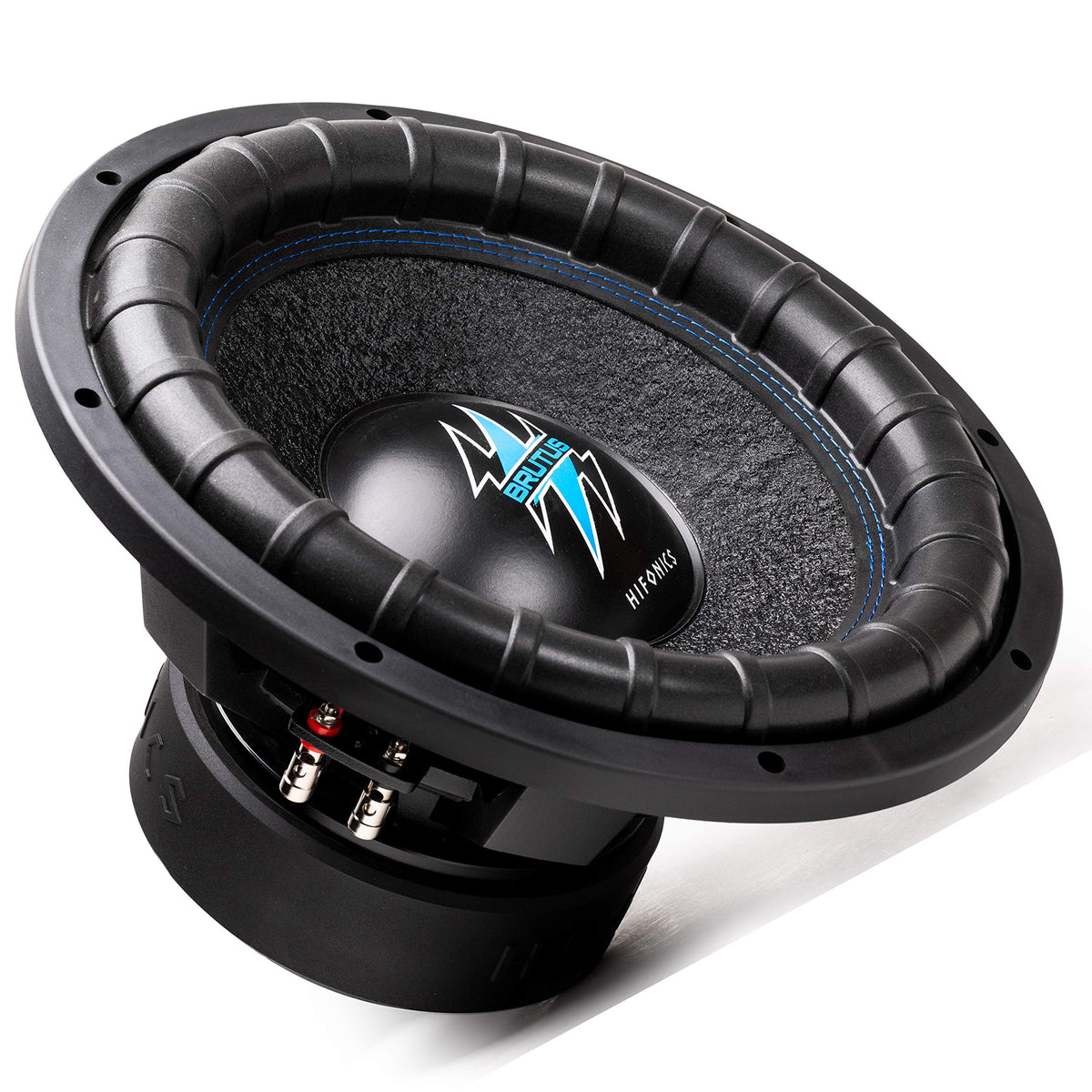

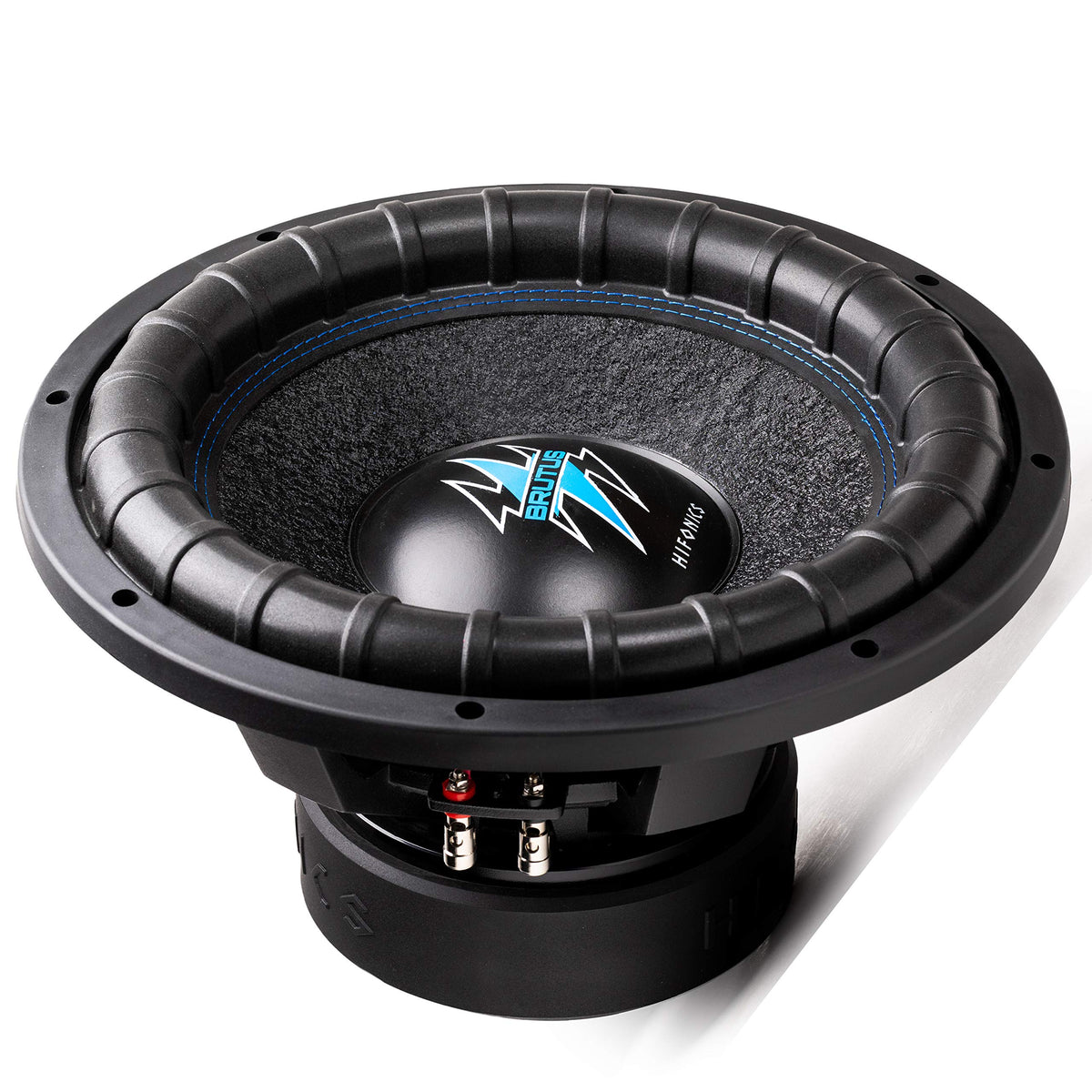

Hifonics BRW12D2 12" Brutus Dual 2-Ohm Subwoofer

The Hifonics BRW12D2 is a 12-inch Brutus-series component subwoofer designed to add dedicated low-frequency output to a car audio system. It is intended for installations where factory speakers alone do not provide the desired bass foundation. As a component subwoofer, it requires a compatible enclosure and an external amplifier.

This model uses dual 2-ohm voice coils, giving system builders flexibility when selecting a compatible monoblock or multi-channel amplifier configuration. The dual-coil arrangement can be wired in series or parallel, depending on the amplifier's supported impedance load. Proper impedance matching is important for reliable amplifier operation.

The BRW12D2 is rated for up to 2,000 watts of maximum power handling. Its 3-inch voice coil is mounted on a vented aluminum former to help exchange heat during operation. This cooling-focused construction is designed to support consistent performance during demanding playback.

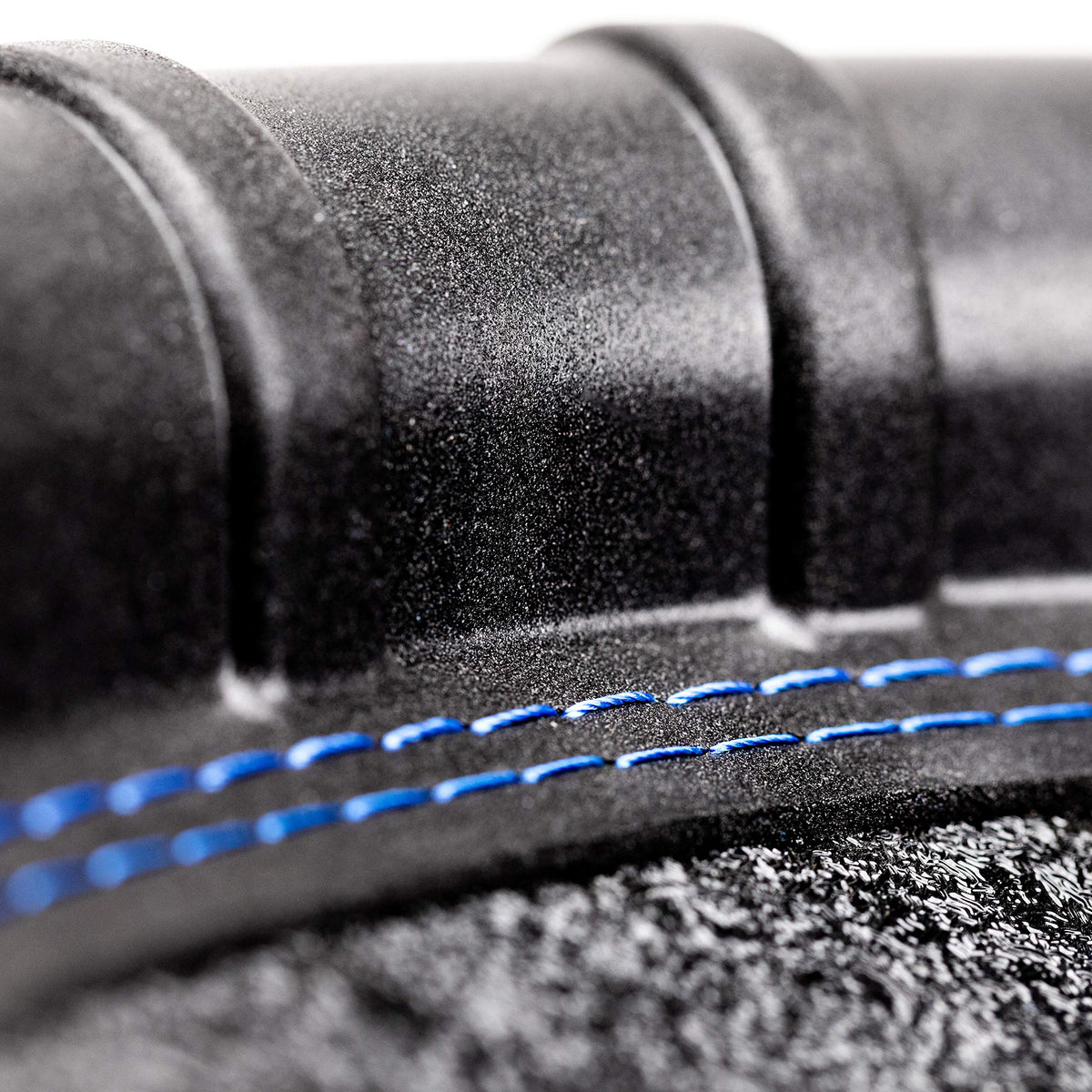

A vented high-energy motor assembly with dual 70-ounce magnets supports the subwoofer's power-handling design. The specialized dual poly-cotton spider uses double centering to help control cone movement. A pressure-treated, double-stitched ribbed foam surround further supports linear piston motion.

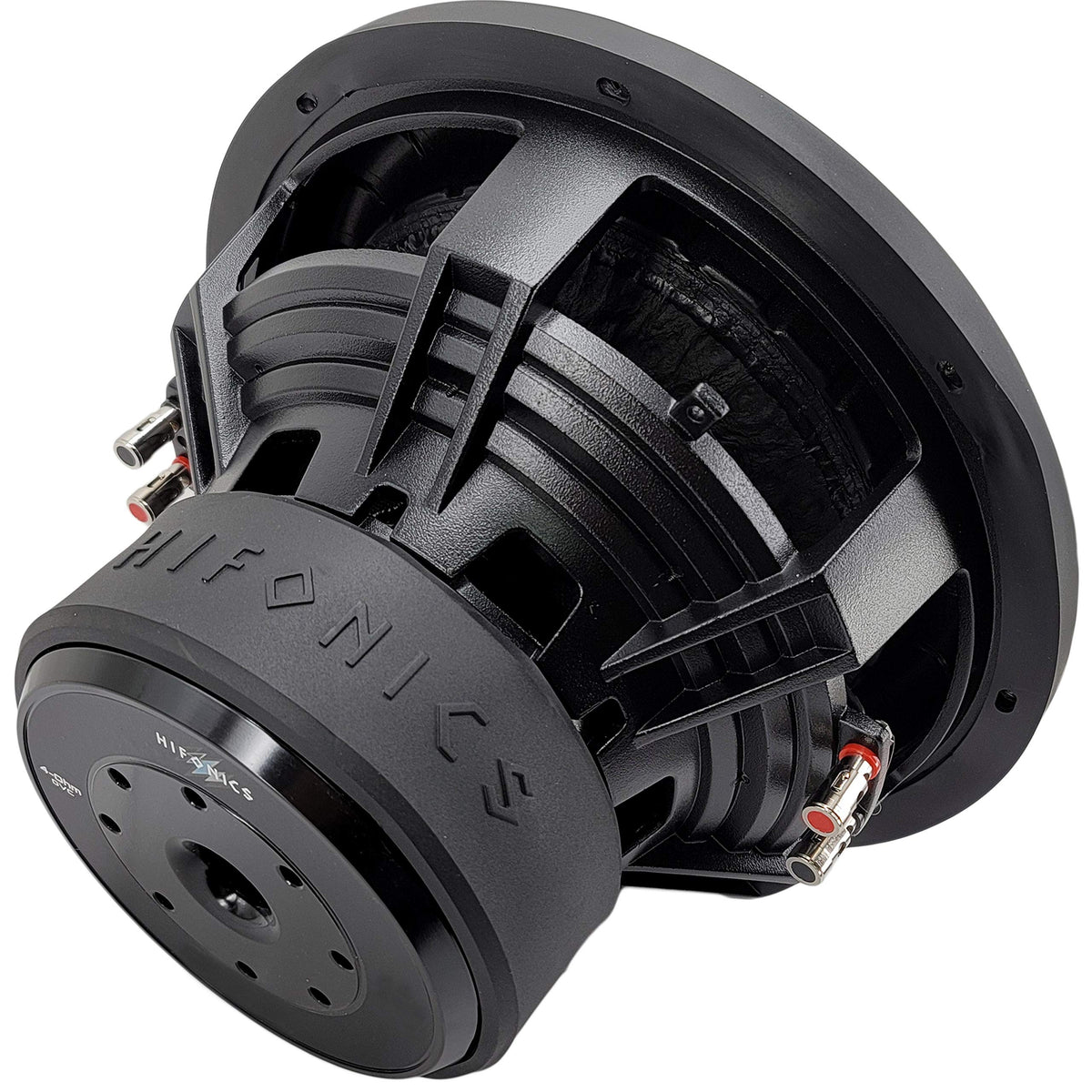

For an upgrade path, the BRW12D2 can be used as a single subwoofer or paired with additional matching drivers in a properly designed system. Its cast aluminum basket incorporates rear venting to promote airflow around the motor structure. Choose the enclosure type, amplifier output, wiring configuration, and installation space according to the requirements of the complete system.

Key Features

• 12-Inch Subwoofer: Adds dedicated bass capability to a vehicle audio system.
• Dual 2-Ohm Voice Coils: Provides series or parallel wiring flexibility.
• 2,000-Watt Maximum Handling: Supports higher-output car audio system designs.
• 3-Inch Vented Voice Coil: Helps manage heat around the coil assembly.
• Dual 70-Ounce Magnets: Supports the vented high-energy motor structure.
• Die-Cast Aluminum Basket: Provides a rigid frame with rear venting.

Design & Installation

The BRW12D2 uses a heavy-gauge, powder-coated aluminum die-cast basket, a vented aluminum voice-coil former, and a vented motor assembly. Its suspension includes a dual poly-cotton spider with double centering and a pressure-treated, double-stitched ribbed foam surround. These components are arranged to support controlled cone movement and heat exchange.

Install this component subwoofer in a suitable subwoofer enclosure and power it with an external amplifier matched to its wiring configuration. The two 2-ohm voice coils can produce a 1-ohm parallel load or a 4-ohm series load; verify that the amplifier supports the selected final impedance. Confirm enclosure fit, mounting clearance, wiring, and amplifier settings before installation.
