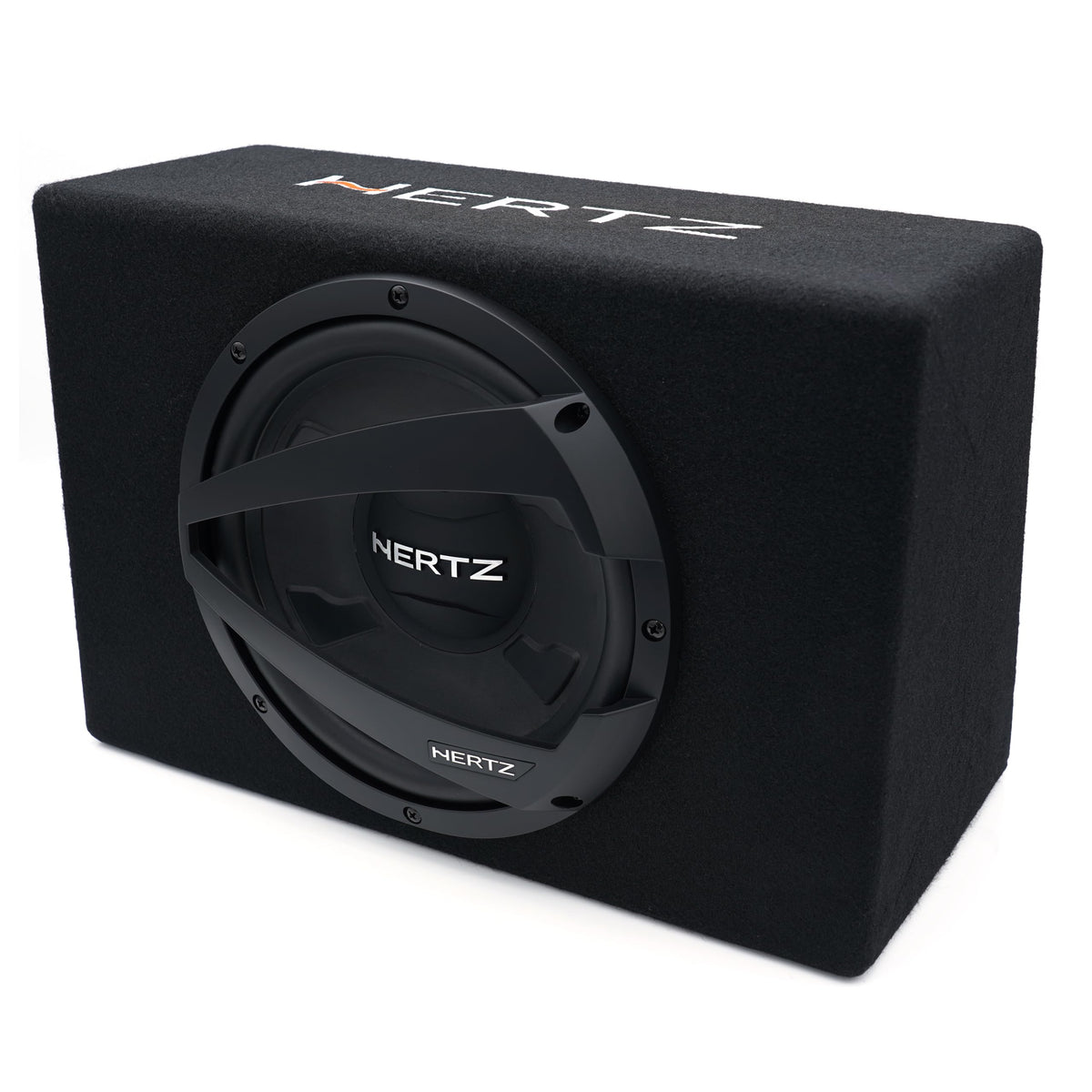

Hertz DBX25-3 10" Car Subwoofer Enclosure

The Hertz DBX25-3 is a complete 10-inch car subwoofer enclosure designed to add low-frequency output to an existing vehicle audio system. It provides a practical way to introduce bass without designing and building a separate enclosure. The 4-ohm passive configuration is intended for connection to a compatible external amplifier.

This subwoofer box is suited to listeners who want fuller bass response from factory or aftermarket speakers while keeping the installation relatively contained. Its 32-400 Hz frequency-response specification supports use as the low-frequency portion of a multi-speaker car audio system. With 150 W continuous power handling and 600 W peak power handling, it should be matched carefully with an amplifier and correctly configured crossover.

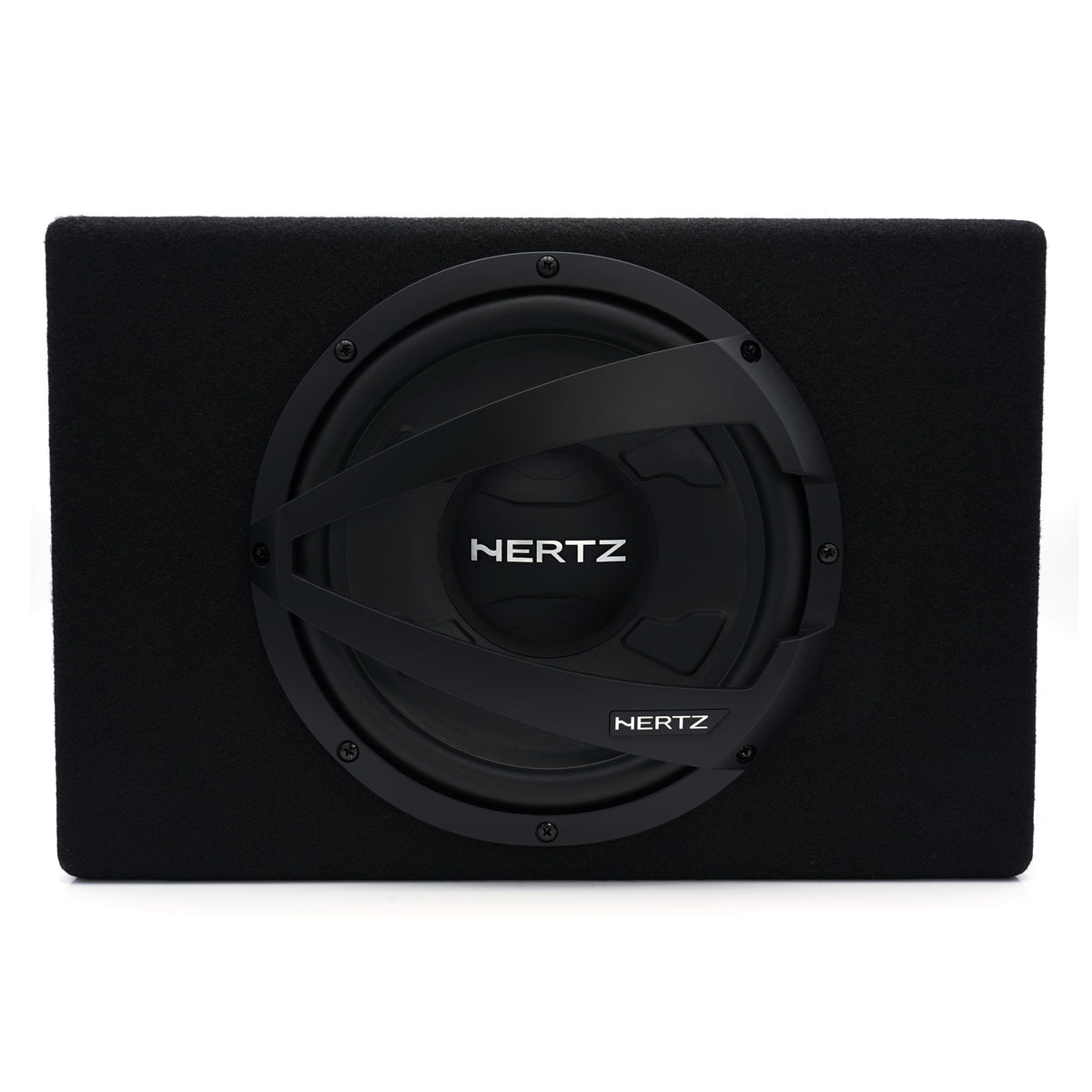

The DBX25-3 uses a 250 mm (10-inch) subwoofer with a polypropylene cone reinforced with mica injection. Its high-excursion butyl rubber surround and ribbed cone surface support controlled cone movement and rigidity. The result is a bass-focused driver built for integration in a dedicated enclosure.

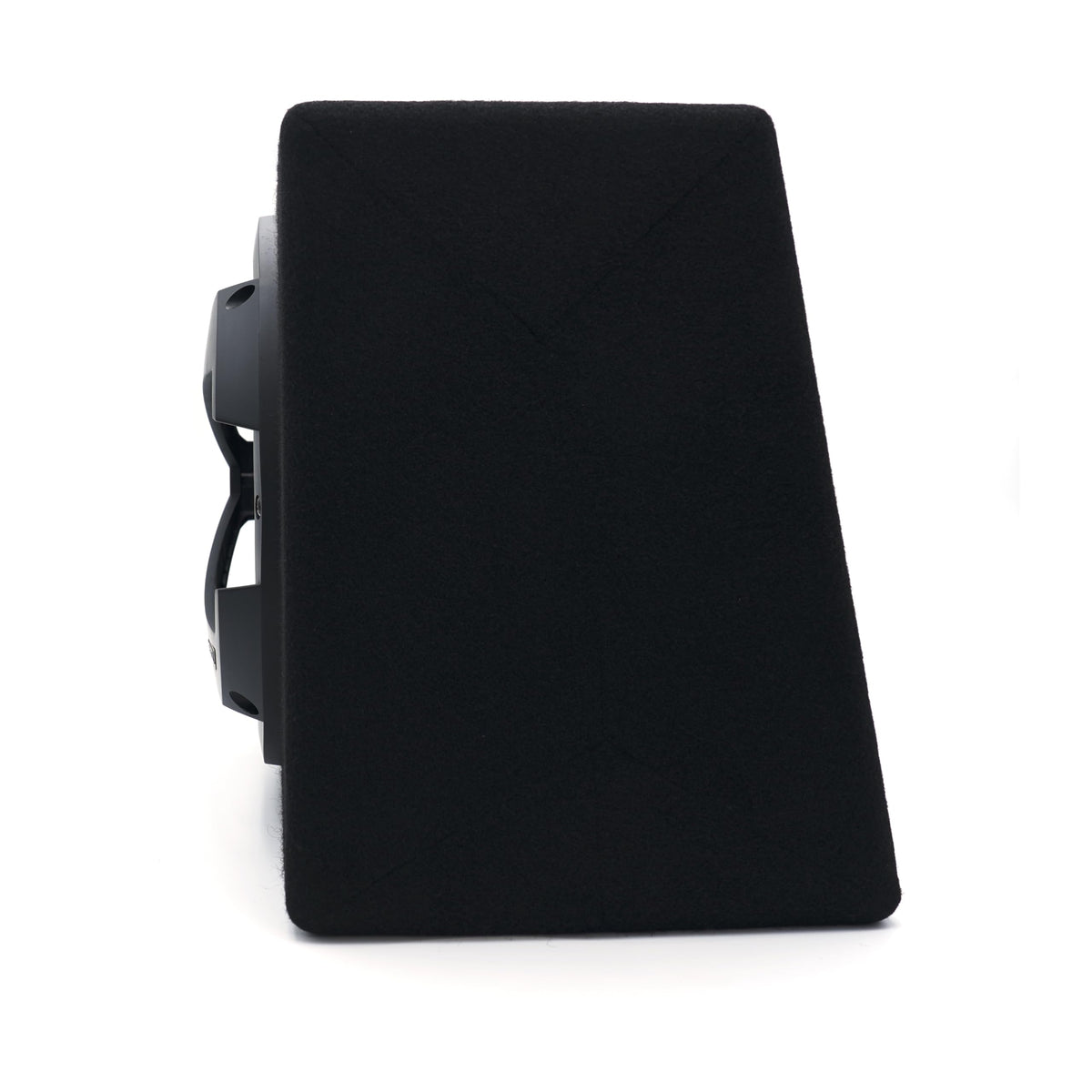

A high-density-flux ferrite magnet and 38 mm voice coil are part of the driver design. The enclosure uses a very thick MDF cabinet to provide a rigid mounting structure for the subwoofer. Its angled rear wall is designed to reduce rear-wave reflections while helping the enclosure fit more easily in vehicle cargo areas.

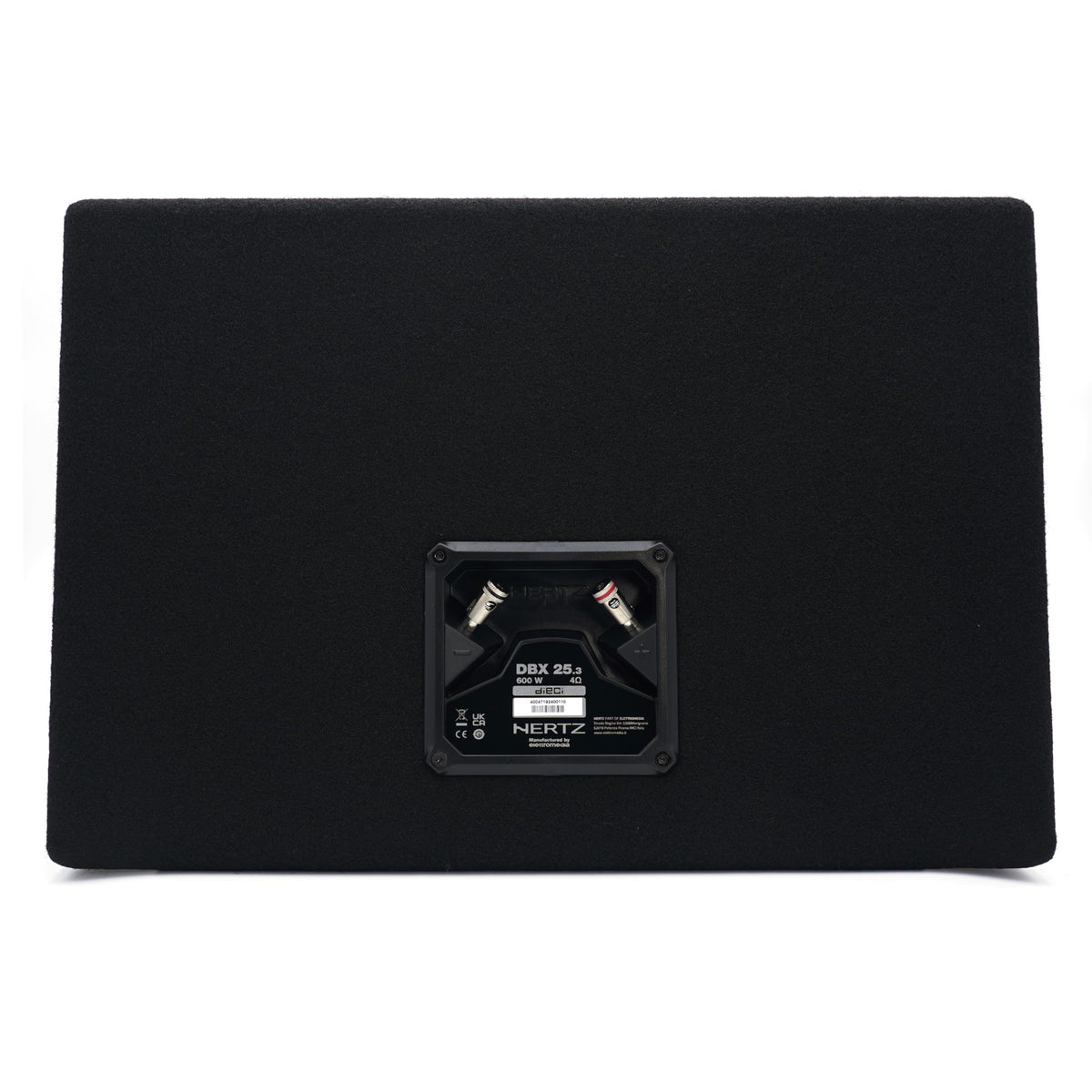

The DBX25-3 can serve as a compact bass upgrade alongside full-range door speakers, component speakers, or an aftermarket head unit. Its plated high-current terminals provide the connection point for speaker wire from the amplifier. Secure mounting, sensible gain adjustment, and a low-pass crossover are important for reliable system integration.

Key Features

• 10-Inch Subwoofer: Adds dedicated low-frequency output to a vehicle audio system.
• 4-Ohm Impedance: Connects to an amplifier rated for a 4-ohm speaker load.
• 150 W Continuous Handling: Supports amplifier matching for sustained playback.
• Polypropylene Mica Cone: Uses a stiffened cone material for bass reproduction.
• Thick MDF Enclosure: Provides a rigid cabinet structure for the installed driver.
• Angled Rear Panel: Helps placement while reducing rear-wave reflections.

Design & Installation

The DBX25-3 combines a polypropylene cone with mica injection, a high-excursion butyl rubber surround, and a high-density-flux ferrite magnet. Its enclosure is constructed from thick MDF and uses an angled rear panel. The cabinet includes plated high-current terminals for the speaker-level connection from an external amplifier.

Install the enclosure in a secure location where it cannot shift during driving and where it does not interfere with vehicle equipment. Connect it only to an amplifier that is stable at 4 ohms, then set amplifier gain and low-pass filtering appropriately for the rest of the system. Use appropriately sized, protected speaker cable and keep wiring clear of sharp edges, moving parts, moisture, and heat sources.
