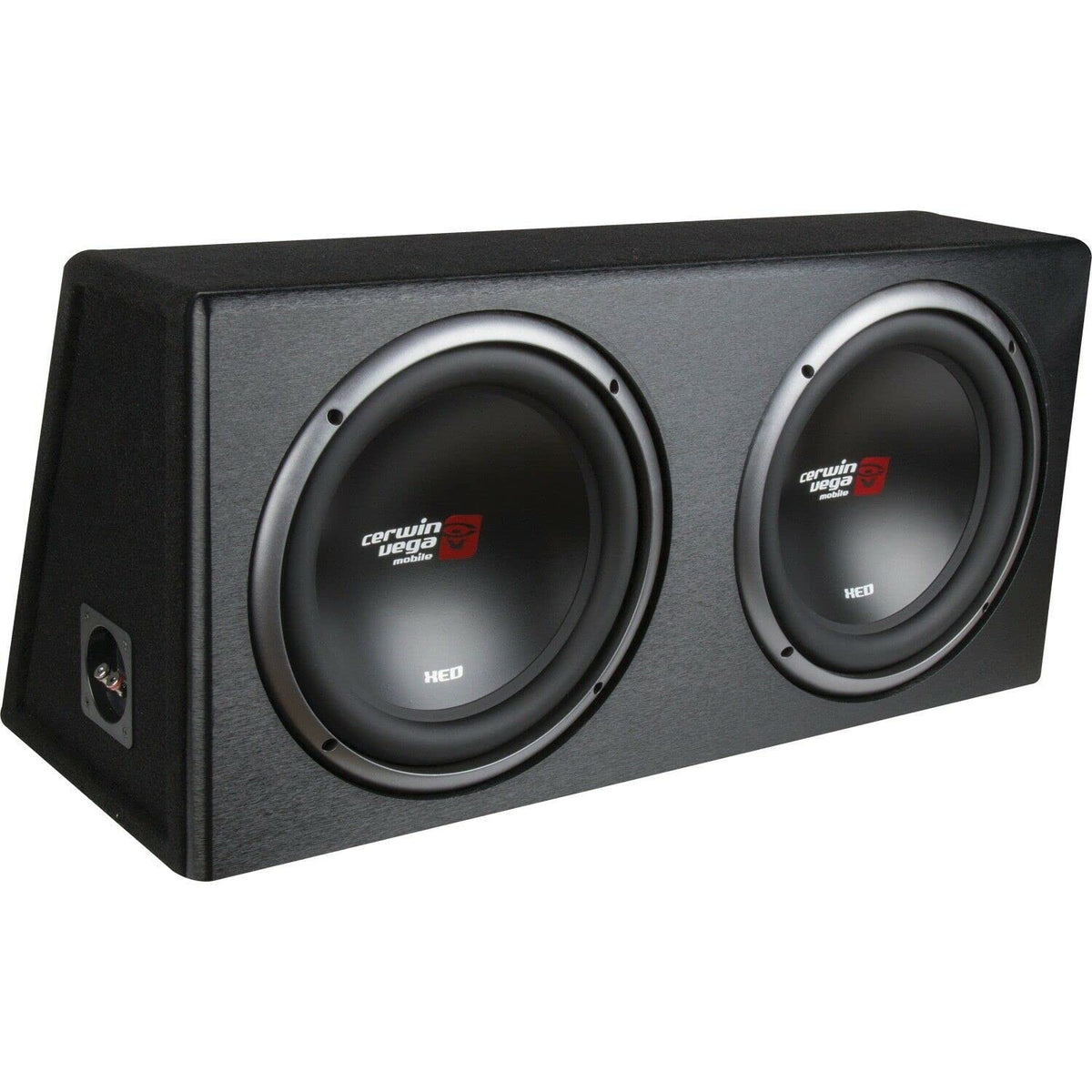

Cerwin-Vega XE12DV Dual 12" Loaded Vented Enclosure

The Cerwin-Vega XE12DV is a loaded car-audio subwoofer enclosure designed to add low-frequency output without requiring you to choose and build a separate subwoofer box. It combines two 12-inch XED Series subwoofers in a factory-tuned vented enclosure. This makes it a practical option for vehicle owners seeking a ready-to-install bass upgrade.

This enclosure is intended for use with an external car-audio amplifier and is specified with a 2-ohm nominal impedance. Its 450-watt RMS power rating gives shoppers a useful target when selecting an amplifier. The XE12DV is suited to systems where strong bass presence is desired while retaining a straightforward enclosure-based installation.

The vented cabinet design is engineered to support efficient low-frequency performance from the dual subwoofers. With a listed frequency response of 20 Hz to 500 Hz, it is intended to cover the bass range rather than reproduce full-range audio. It can complement factory or aftermarket speakers by handling the low-end portion of the system.

Each loaded subwoofer uses a polypropylene cone, treated-foam surround, stamped-steel basket, ferrite magnet, and dual voice coils. These materials form the core of the XED Series woofer design used in this enclosure. The cabinet is built from 3/4-inch MDF and finished in black carpet for a conventional trunk or cargo-area installation.

The XE12DV provides a single spring-post terminal connection for the enclosure. Cerwin-Vega's installation guide recommends an amplifier rated from 250 to 500 watts RMS and a minimum of 16-gauge speaker wire, with 14-gauge preferred. Secure mounting is important so the enclosure remains stable during operation in a vehicle.

Key Features

• Dual 12-Inch Subwoofers: Two preloaded XED Series woofers provide a complete bass enclosure solution.
• 450W RMS Handling: Supports amplifier matching within the manufacturer's recommended 250 to 500 watt RMS range.
• 2-Ohm Nominal Load: Designed for connection to a compatible 2-ohm-stable car-audio amplifier.
• Vented Enclosure: The factory-tuned ported cabinet supports low-frequency output and airflow.
• MDF Cabinet Construction: A 3/4-inch medium-density fiberboard enclosure provides a solid mounting structure.
• Spring-Post Terminal: A single enclosure terminal offers a straightforward speaker-wire connection point.

Design & Installation

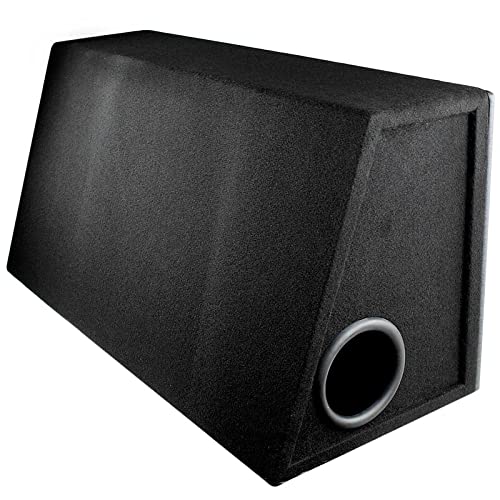

The XE12DV uses a hatchback-style enclosure with an angled back, black carpet exterior, and factory-embroidered Cerwin-Vega branding. Its loaded woofers use polypropylene cones, treated-foam surrounds, stamped-steel baskets, and ferrite magnets. Mesh grilles are included to help protect the front of the subwoofers.

Place the enclosure in a suitable trunk or cargo area and secure it before use, as recommended in the installation guide. Connect the spring-post terminal to an external amplifier with correct polarity, using at least 16-gauge wire; 14-gauge wire is preferred. Match the amplifier carefully to the enclosure's 2-ohm nominal impedance and 450-watt RMS rating.
