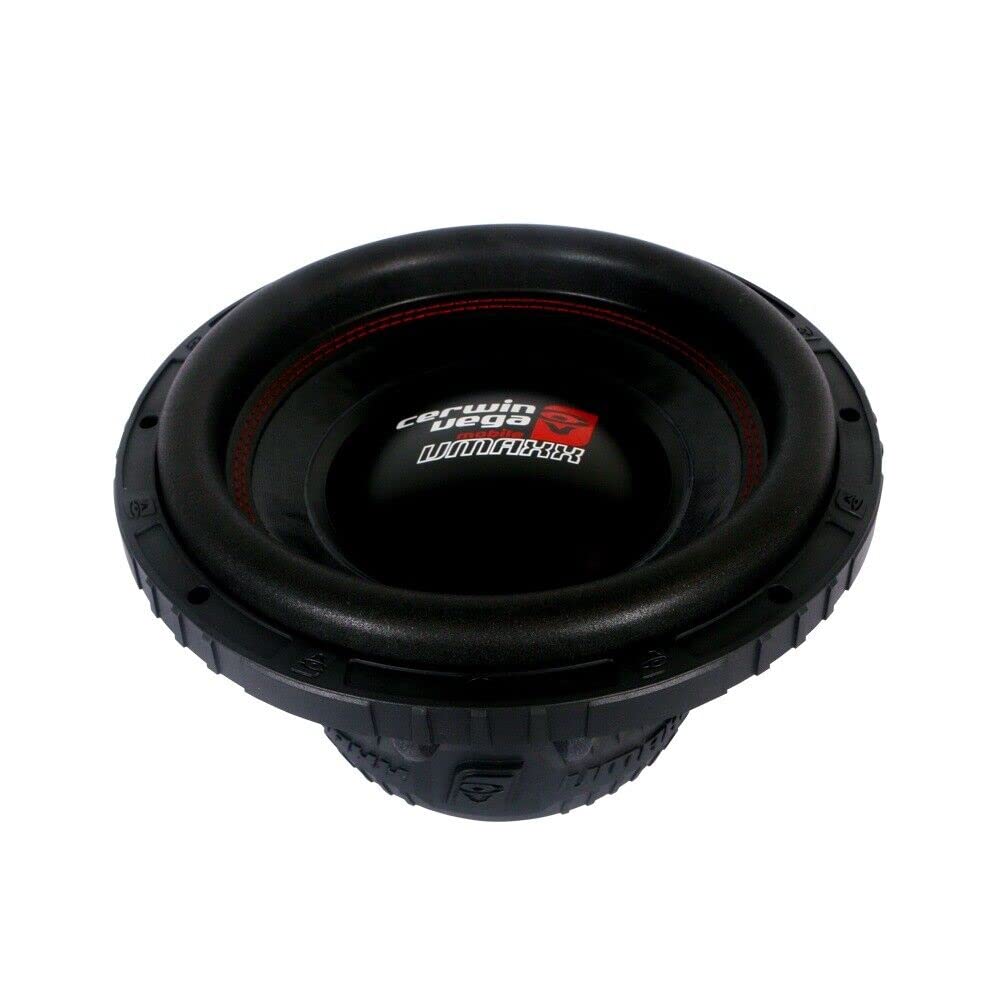

Cerwin Vega VMAX8D4 8" Dual 4-Ohm Car Subwoofer

The Cerwin Vega VMAX8D4 is an 8-inch dual 4-ohm car audio subwoofer designed for systems that need substantial bass output in a compact driver size. It is rated for 500 watts RMS and 1,000 watts maximum power handling. Its dual voice coil configuration gives installers wiring flexibility for compatible amplifiers.

This subwoofer is intended for drivers building or upgrading a dedicated low-frequency section in a car audio system. Its 15 mm Xmax and 43.6 Hz free-air resonance support controlled cone movement and low-frequency output when used in a properly designed enclosure. The 81.9 dB sensitivity specification reflects a design focused on power handling and system integration rather than a high-efficiency free-air approach.

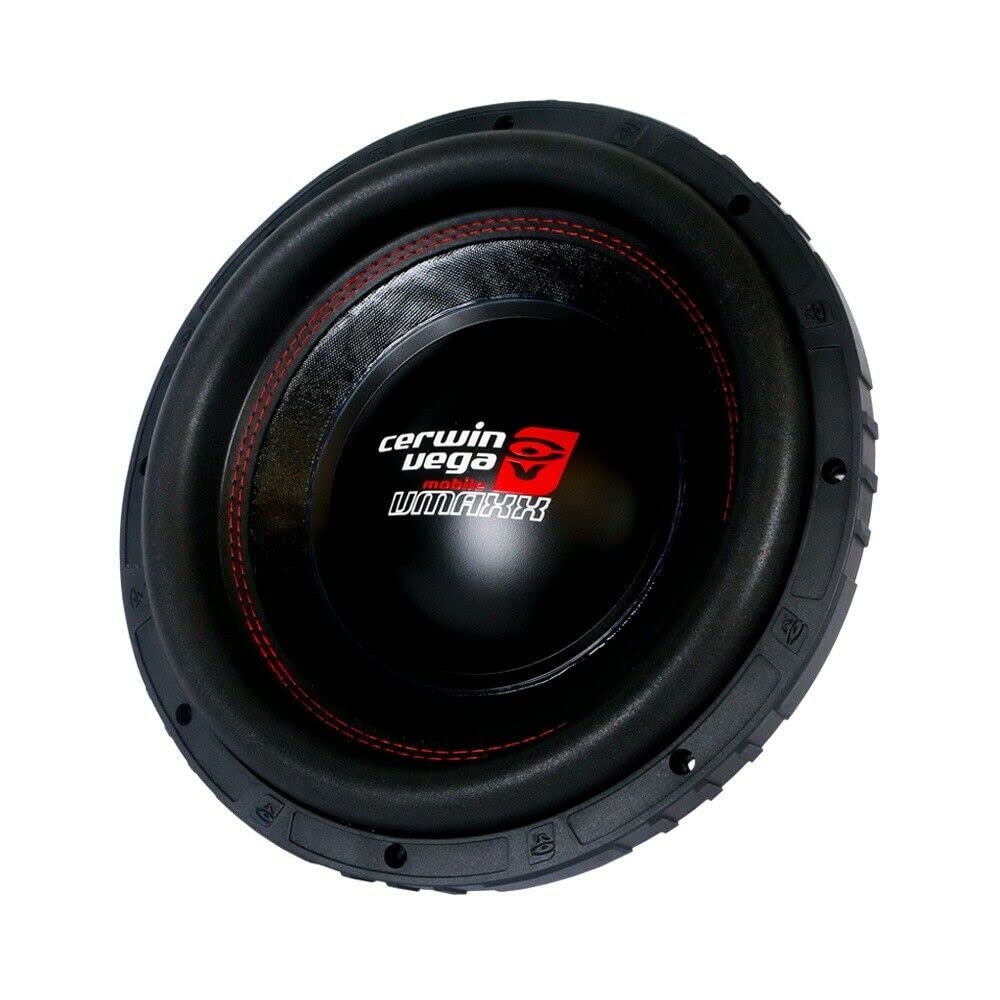

A treated semi-pressed pulped cone and treated foam surround form the moving assembly, while an oversized spider helps manage suspension control. The aluminum cast frame provides a rigid mounting structure for the driver. Cerwin Vega also uses a black-coated voice coil for increased thermal capability.

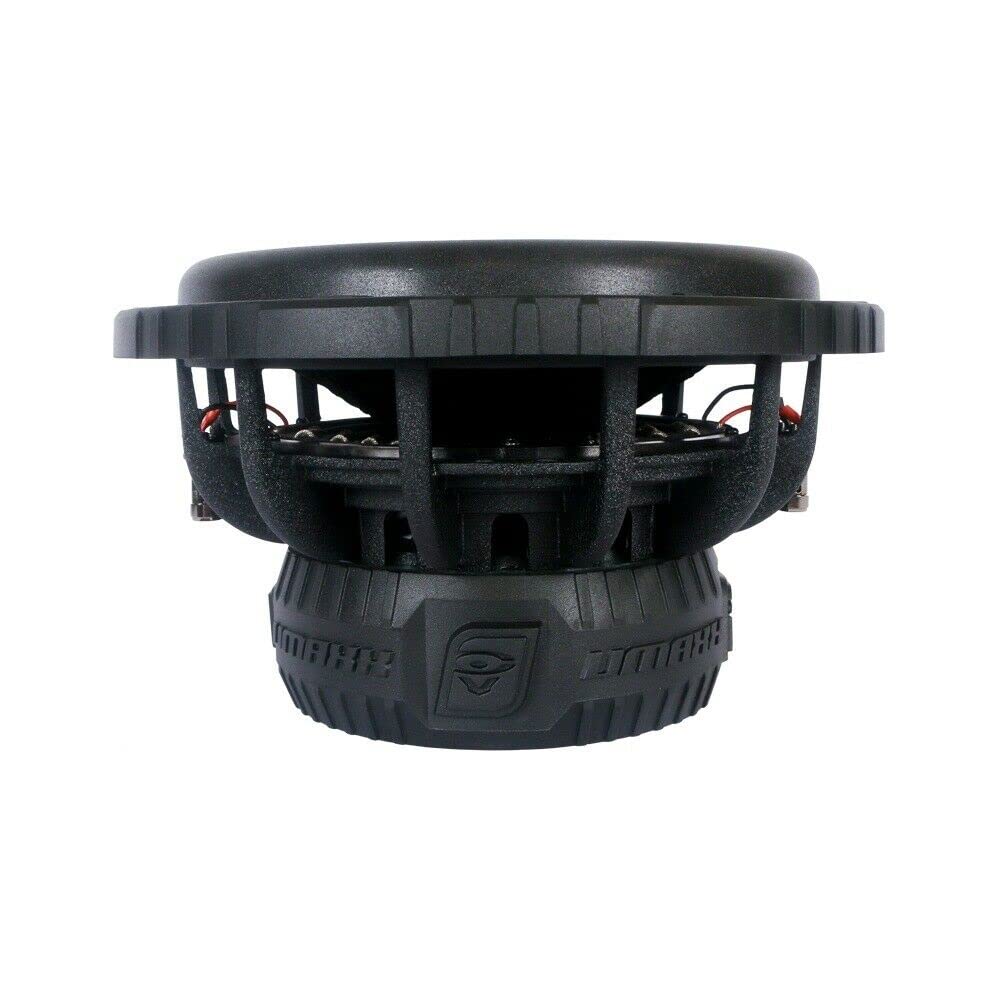

The VMAX8D4 uses an elevated motor structure cooling design, a polished bumped backplate, and a shorting ring intended to reduce distortion. Its motor and suspension symmetry are optimized using Klippel DA analysis. These details support more consistent performance when the subwoofer is operated within its rated limits.

For enclosure-based installations, the VMAX8D4 can be used in sealed or ported designs. Cerwin Vega's published recommendations list a 0.6 cubic foot sealed enclosure or a 1.0 cubic foot ported enclosure. With a 7.36-inch mounting cutout and 4.80-inch mounting depth, it is suited to custom enclosures with adequate internal clearance.

Key Features

• 500W RMS Power Handling: Supports amplifier matching for sustained bass performance.
• Dual 4-Ohm Voice Coils: Provides 2-ohm or 8-ohm final wiring options.
• 15 mm Xmax: Allows substantial linear cone travel.
• Cast Aluminum Frame: Adds rigidity to the subwoofer structure.
• Elevated Motor Cooling: Promotes airflow around the motor assembly.
• Shorting Ring: Helps reduce motor-related distortion.

Design & Installation

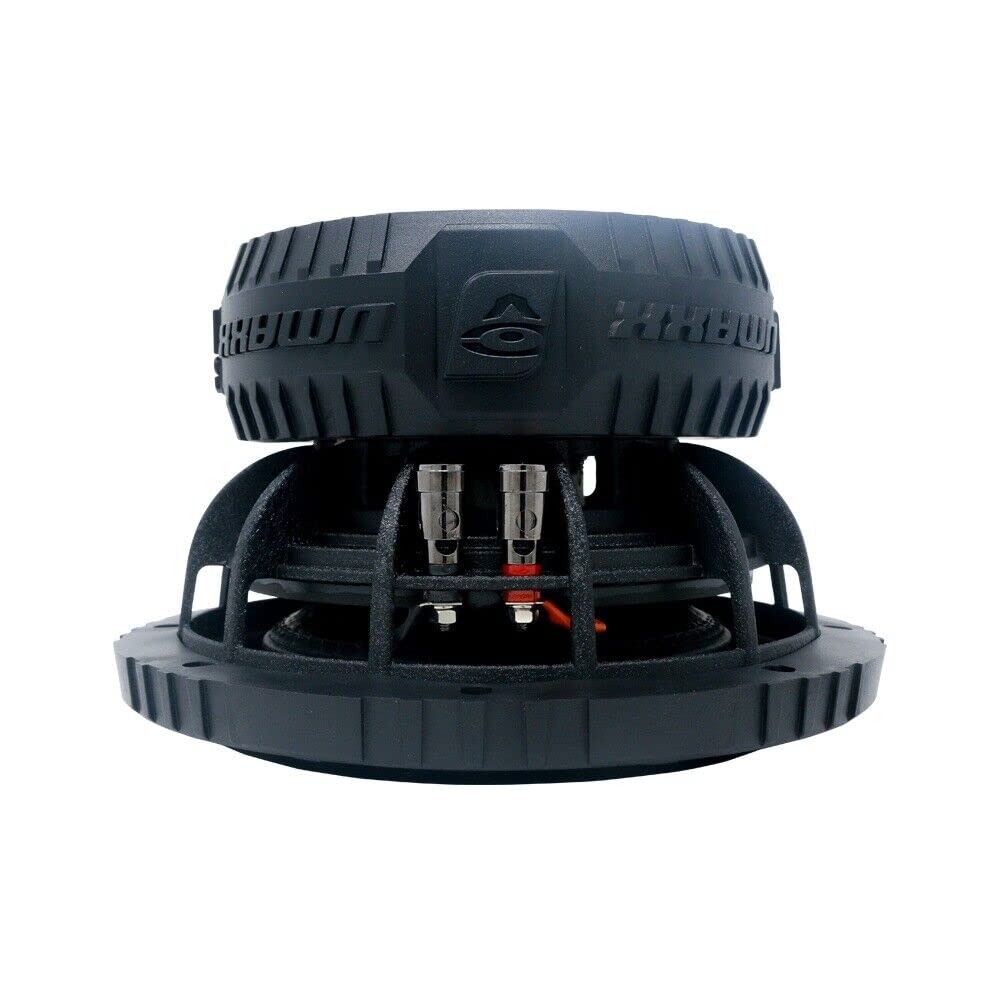

The VMAX8D4 combines a black treated semi-pressed pulped cone, treated foam surround, oversized spider, and heavy-duty aluminum cast frame. Its elevated motor assembly, black-coated voice coil, polished bumped backplate, and oversized polished black chrome-finished terminals are designed for a durable, serviceable car-audio driver layout.

Plan for a 7.36-inch cutout, 4.80-inch mounting depth, and 8.74-inch overall diameter before building or selecting an enclosure. Wire both 4-ohm voice coils only to an amplifier that is stable at the resulting final impedance, and use a sealed 0.6 cubic foot or ported 1.0 cubic foot net enclosure as the published starting point. Set amplifier gain carefully and use an appropriate low-pass crossover to integrate the subwoofer with full-range speakers.
