Cerwin-Vega H765C 6.5" 2-Way Component Speakers

The Cerwin-Vega H765C is a 6.5-inch, 2-way component speaker system designed to replace factory door or custom-location speakers. Its separate woofers and tweeters allow more flexible placement than a coaxial speaker, helping installers position high frequencies closer to the listener. It is intended for vehicle owners seeking a more detailed front-stage upgrade while retaining a conventional 4-ohm speaker load.

Each side of the system combines a polypropylene woofer with a 1-inch PEI balanced-dome tweeter. This component layout separates midrange and high-frequency reproduction into dedicated drivers for clearer placement and tuning options. The published frequency response is 50 Hz to 20 kHz, covering the primary range used for music playback in a vehicle system.

The H765C is rated for 60 watts RMS and 400 watts maximum power handling per side. That makes it suitable for use with compatible factory-powered systems as well as aftermarket amplification matched appropriately to its 4-ohm impedance and RMS rating. Sensitivity is rated at 84.5 dB at 1 watt/1 meter.

Its woofer uses a polypropylene cone, treated-foam surround, stamped-steel basket, and ferrite magnet structure. The dedicated tweeter uses a PEI diaphragm and neodymium magnet. These materials support a practical replacement-speaker design focused on stable mounting and separate high-frequency placement.

External crossover networks are included to divide the signal between the woofers and tweeters. The set can serve as a front-speaker upgrade in doors, kick panels, or custom installations where the published mounting dimensions are suitable. It can also be paired with a compatible rear-speaker upgrade, amplifier, and subwoofer system as part of a broader car-audio build.

Key Features

• 6.5-Inch Component Set: Separate woofers and tweeters support flexible speaker placement.
• 2-Way Design: Dedicated drivers handle midrange and high-frequency reproduction.
• 60W RMS Handling: Supports power-matched factory or aftermarket system integration.
• Polypropylene Woofer Cones: Provide a durable cone material for vehicle use.
• PEI Balanced-Dome Tweeters: Deliver dedicated high-frequency output through separate tweeters.
• External Crossovers: Direct appropriate frequencies to each driver in the system.

Design & Installation

The H765C uses stamped-steel woofer baskets, polypropylene cones, treated-foam surrounds, ferrite woofer magnets, and neodymium tweeter magnets. Each woofer has a 1-inch voice coil, while the tweeters use PEI balanced-dome diaphragms. Grilles are included for installations where speaker protection or a finished appearance is needed.

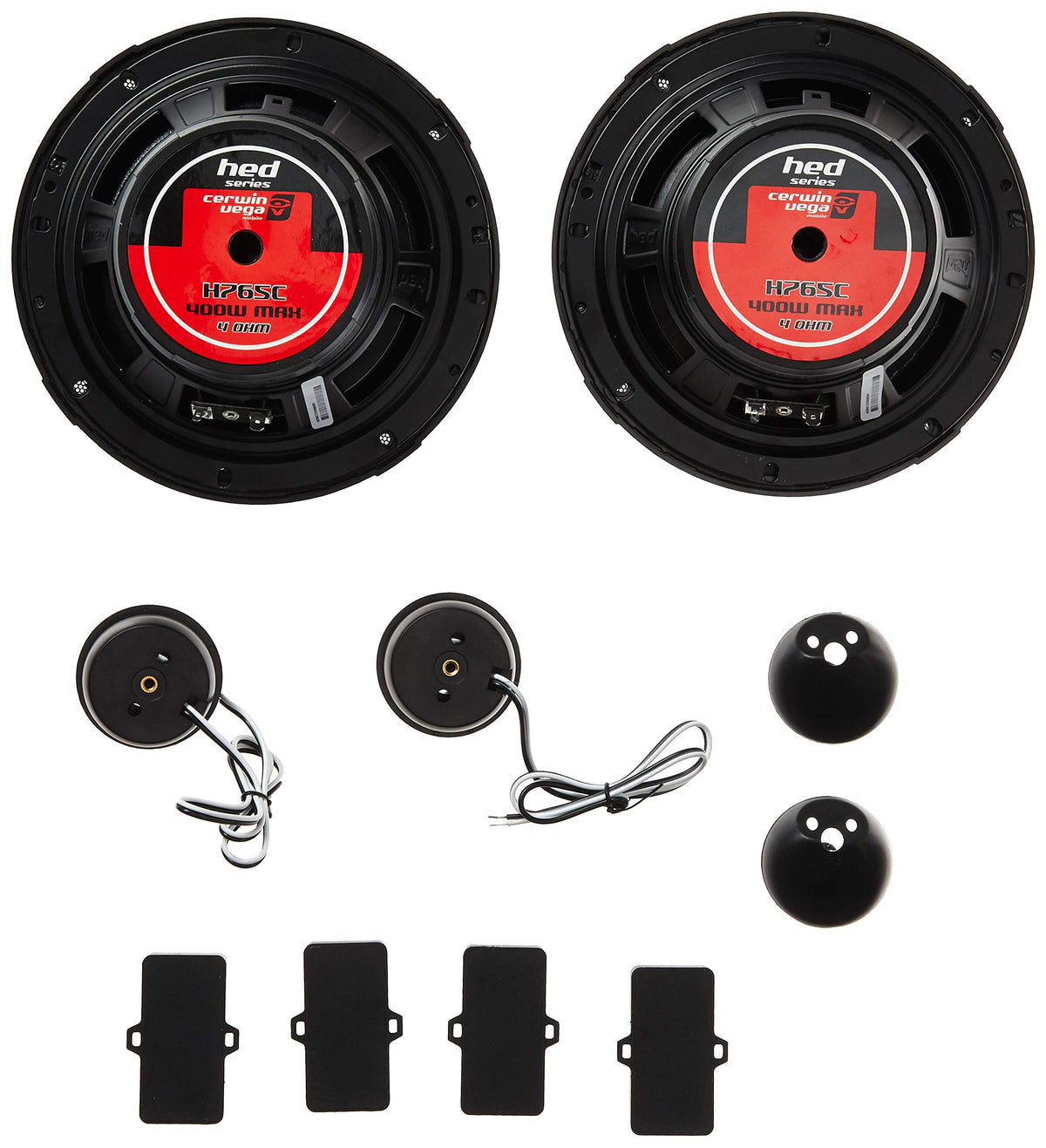

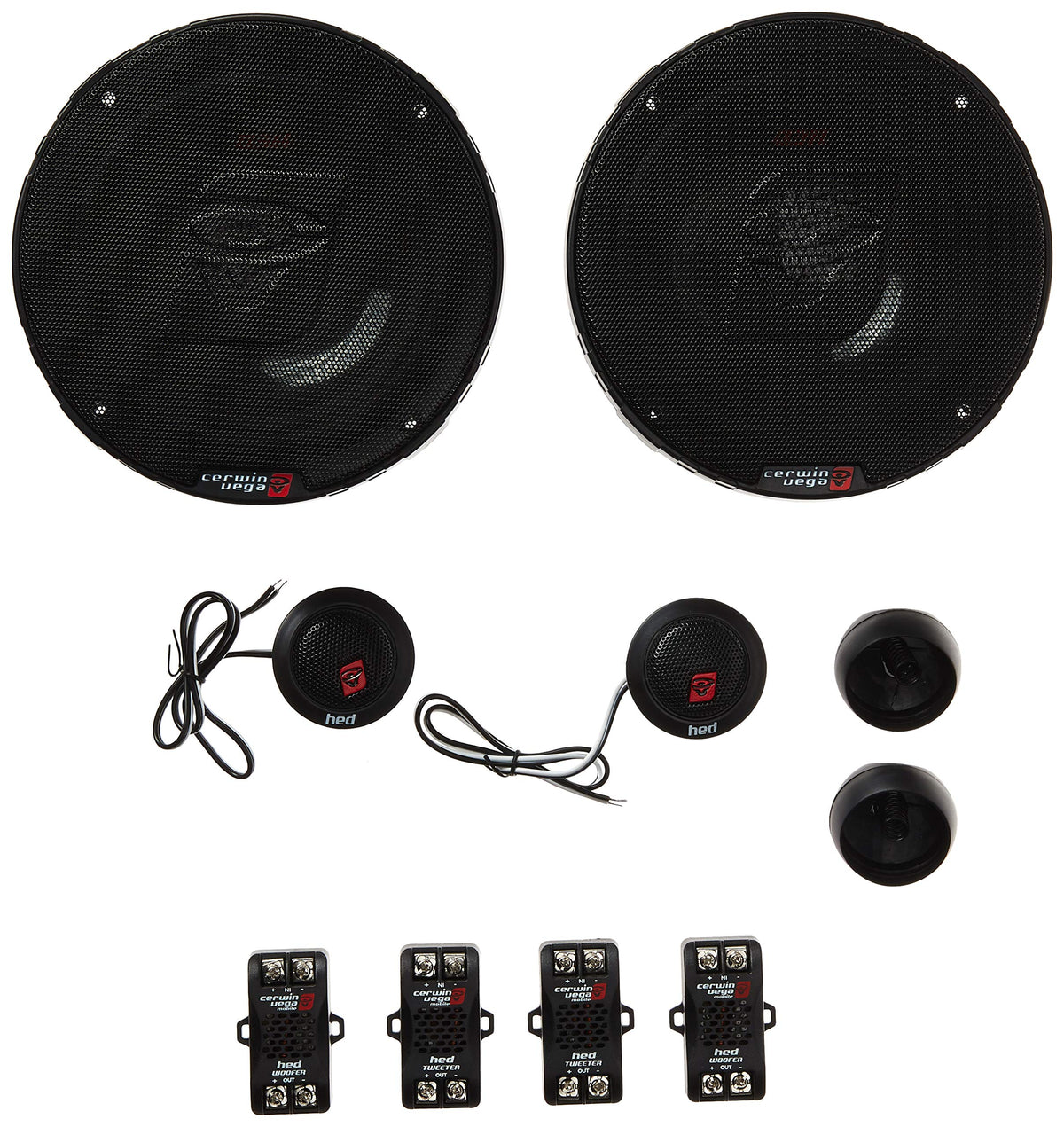

Verify vehicle fitment before purchase using the 5.7-inch mounting cutout requirement and published 2.45-inch mounting depth. The package includes two woofers, two tweeters, two external crossover networks, tweeter flush mounts, tweeter surface mounts, connection cables, and mounting hardware. For amplified use, select an amplifier and wiring configuration compatible with the system's 4-ohm impedance and 60-watt RMS-per-side rating.
