Audison AVX 6.5 II 6.5" 2-Way Coaxial Speakers

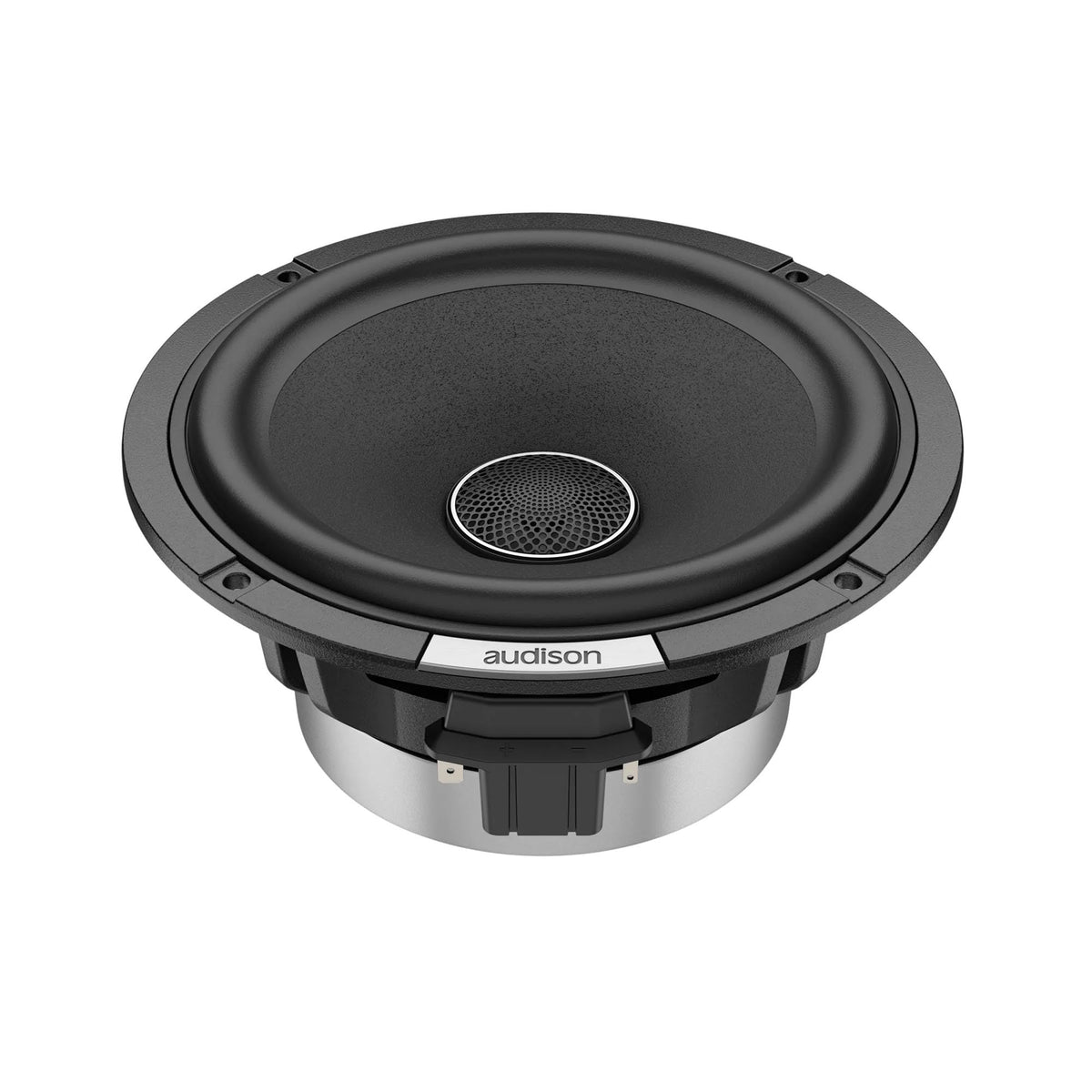

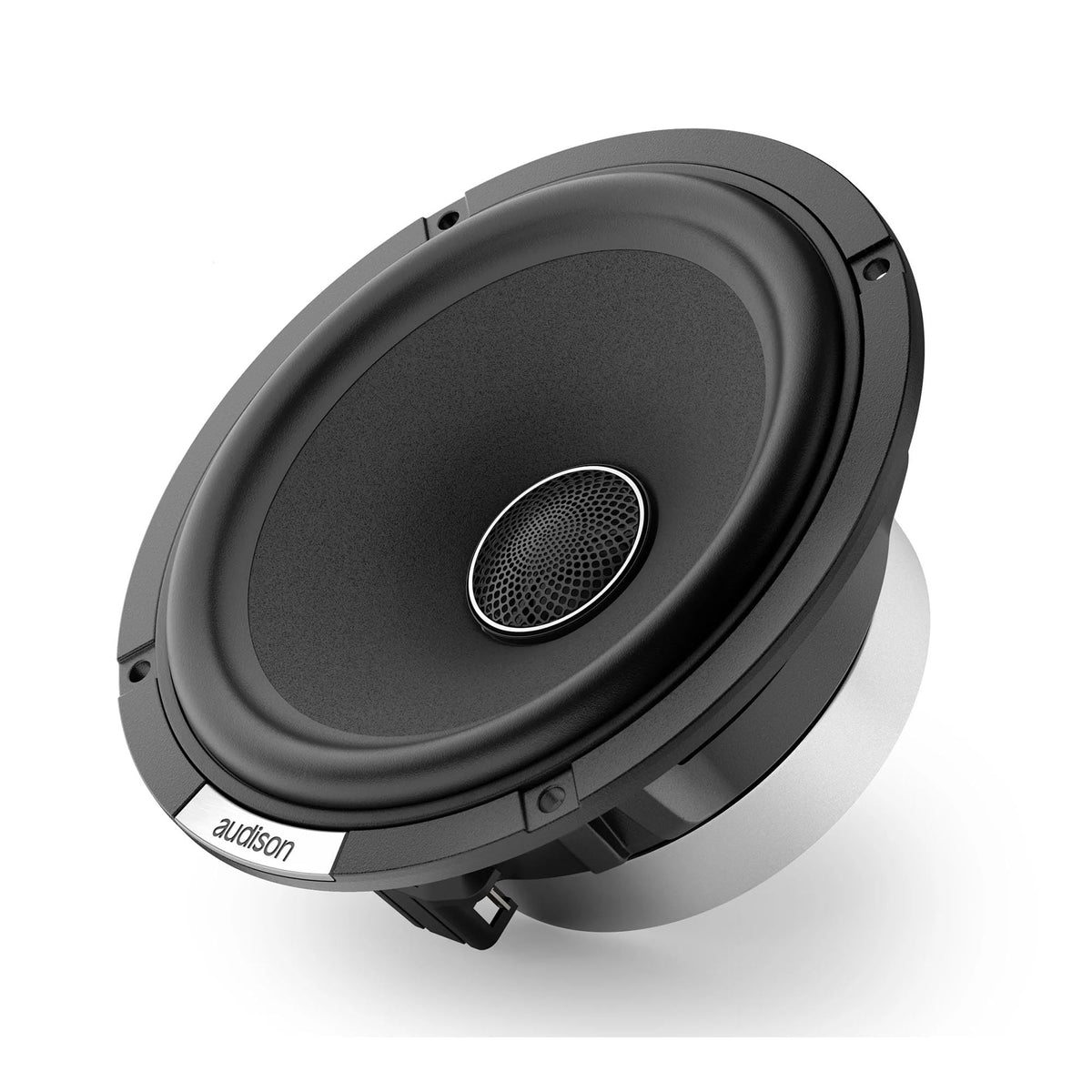

The Audison AVX 6.5 II is a 6.5-inch, 2-way coaxial speaker set from the VOCE II line. It combines a 165 mm woofer and centrally mounted 25.4 mm dome tweeter in each speaker, providing a compact solution where separate tweeter locations are not practical. The set is intended for vehicle audio upgrades that need broad bandwidth and a cohesive point-source layout.

Its coaxial architecture places the tweeter at the center of the woofer, helping the two drivers originate sound from the same location. This is useful in door, rear-deck, or factory-style speaker positions where listening angles vary. The rated low-frequency response extends from 45 Hz, while high-frequency response reaches 40 kHz.

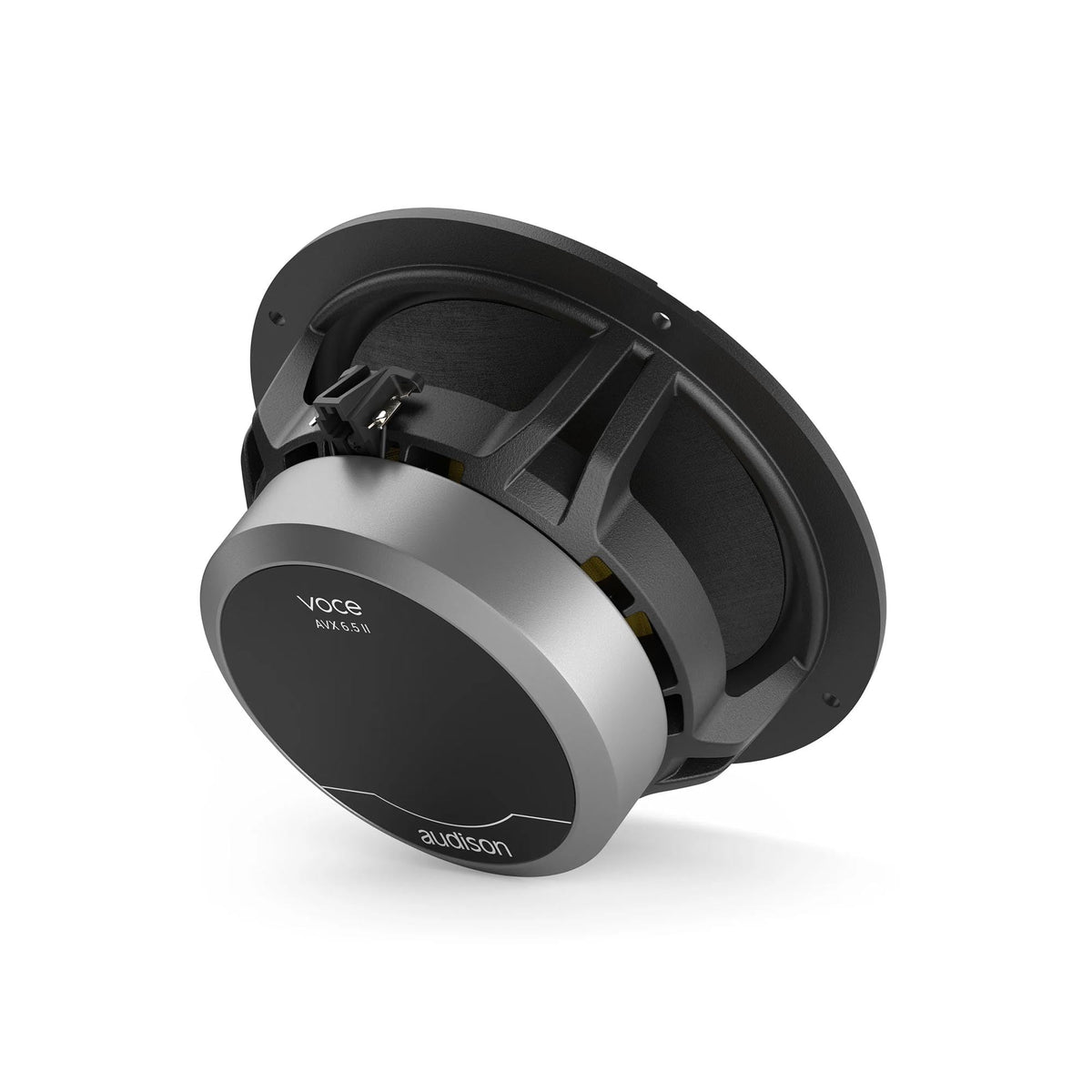

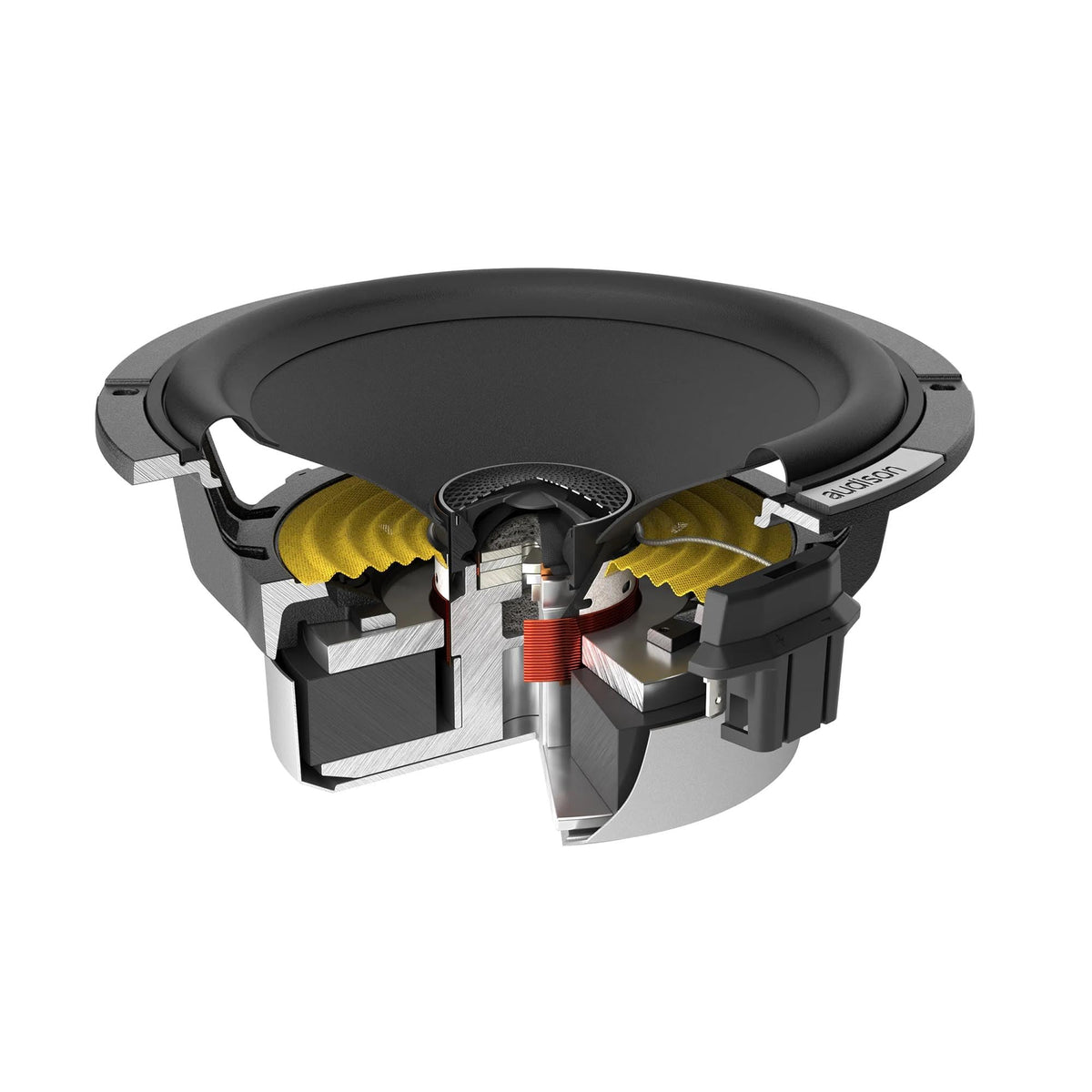

The woofer uses a semi-pressed paper cone, rubber surround, aluminum chassis, 40 mm CCAW voice coil, and high-density-flux ferrite magnet. The central tweeter uses a Tetolon fibre dome and surround, 25 mm CCAW voice coil, and neodymium magnet. These materials support the AVX 6.5 II's wide operating range in a compact coaxial format.

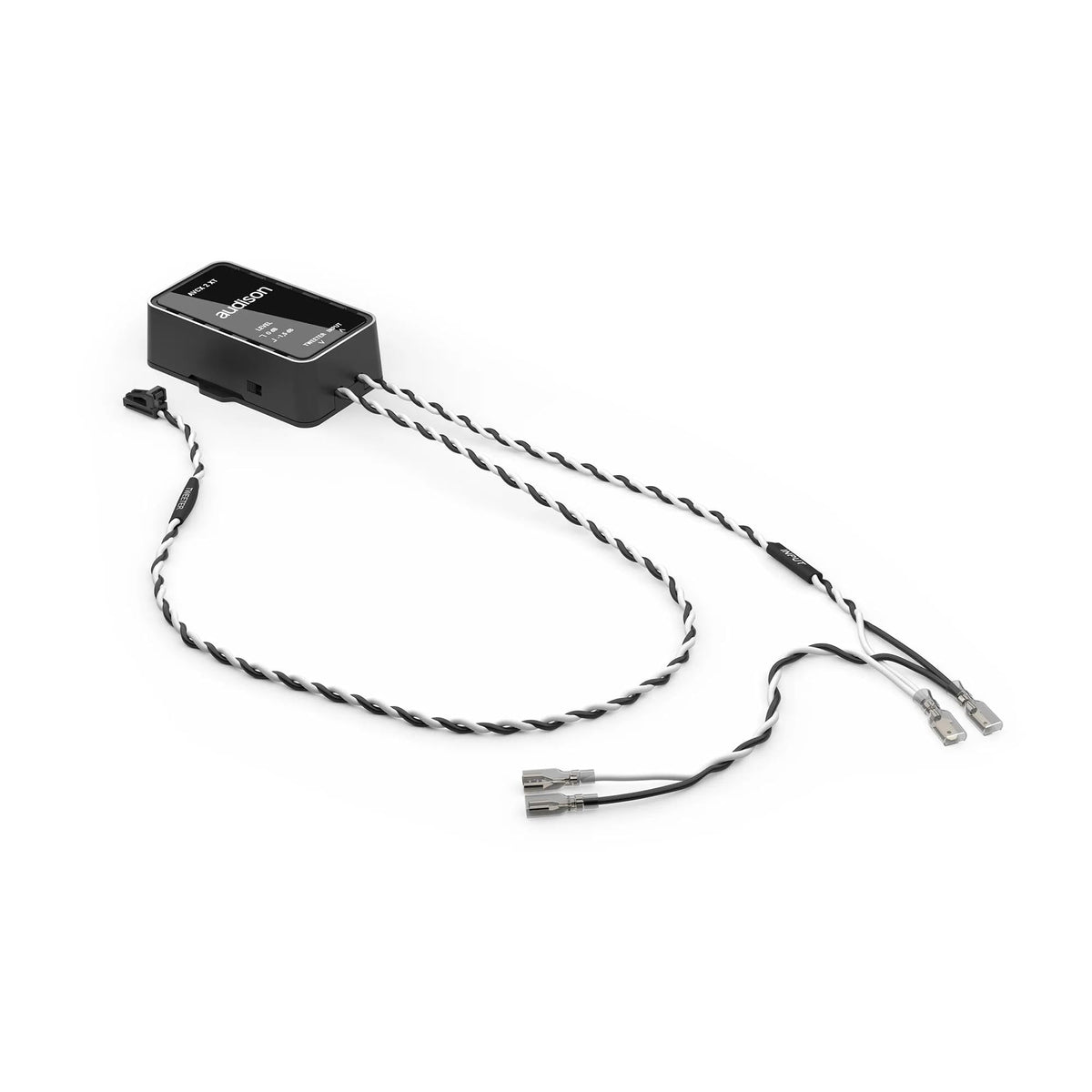

Audison supplies separate passive crossover modules for the woofer and tweeter: AVCX 2 XW and AVCX 2 XT. This separates the filtering duties rather than using a single shared inline network. The speaker can alternatively be used in an active two-way system with DSP-based filtering and separate amplifier channels for the woofer and tweeter sections.

The AVX 6.5 II suits installations seeking an upgraded 6.5-inch coaxial solution with passive-crossover flexibility and an active-system upgrade path. OEM-style 2-pin connectors with bare-wire pigtails are included for serviceable vehicle wiring, while conventional speaker terminals remain available. Confirm available mounting clearance and the vehicle's speaker mounting arrangement before installation.

Key Features

• 6.5-Inch Coaxial Layout: Combines woofer and tweeter in one vehicle-friendly speaker assembly.
• Hi-Res Audio Certification: Supports high-frequency reproduction extending to 40 kHz.
• Concentric 1-Inch Tweeter: Centers the tweeter within the woofer for point-source emission.
• Separate Passive Crossovers: Includes dedicated AVCX 2 XW and AVCX 2 XT modules.
• Active-System Capability: Supports DSP-based active two-way filtering and tuning.
• OEM-Style Connections: Includes 2-pin pigtail connectors for serviceable vehicle wiring.

Design & Installation

The AVX 6.5 II uses an aluminum chassis, semi-pressed paper woofer cone, rubber surround, ferrite woofer motor, and neodymium tweeter motor. Its 25.4 mm Tetolon fibre dome tweeter is mounted concentrically, and the woofer uses a 40 mm CCAW voice coil on a glass-fiber former. Overall dimension A is 165 mm, with a listed overall depth of 74.2 mm.

For passive operation, connect the woofer and tweeter sections through the included AVCX 2 XW and AVCX 2 XT crossover modules. For an active DSP installation, Audison recommends a 70 Hz high-pass filter for the woofer and a 3 kHz high-pass point for the tweeter, both using 24 dB/octave Linkwitz-Riley filters. Check mounting depth, mounting diameter, wiring polarity, and amplifier capability before fitting the speakers.
